Page 17 of 55
CAUTION:
Wrap the tip of ¯at-bladed screwdriver with a cloth when removing metal clips from garnishes.
REMOVAL Ð Body side trim (HARDTOP)
V1Remove tonneau cover.
V2Remove front and rear seats. Refer to ``SEAT'' for details, BT-32.
V3Remove kicking plates.
V4Remove body side welts.
V5Remove dash side lower ®nishers.
V6Remove assist grips.
V7Remove front pillar garnishes.
V8Remove luggage ¯oor retainer.
V9Remove back door welt.
V10Remove assist grips.
V11Remove lap outer covers.
V12Remove anchor bolt of seat belts. Refer to ``SEAT BELTS'' in RS section for details.
V13Remove seat belt escutcheons.
V14Remove rear parcel shelf holders.
V15Remove luggage side upper ®nishers.
V16Remove clips securing luggage side lower ®nishers. (On vehicles equipped with power supply sockets,
remove connector from luggage side lower ®nisher LH.)
V17Remove console box assembly. Refer to ``INSTRUMENT PANEL'' for details, BT-11.
V18Remove clips and luggage ¯oor rope hooks, then remove luggage ¯oor trim.
V19Remove screws, then remove rear ¯oor trim.
V20Remove clips, footrest and accel stopper, then remove front ¯oor trim.

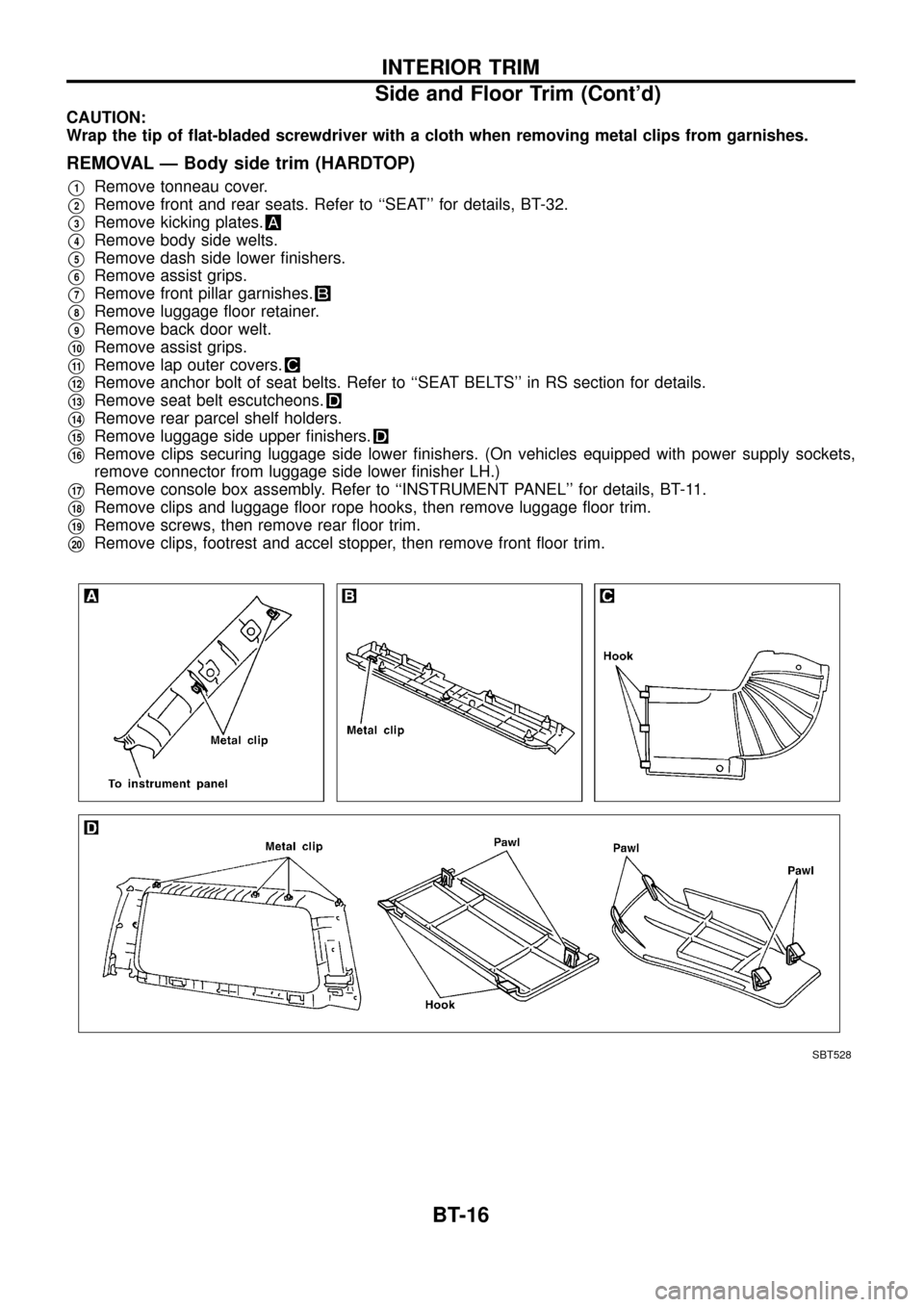

SBT528
INTERIOR TRIM
Side and Floor Trim (Cont'd)
BT-16
Page 18 of 55
HARDTOP

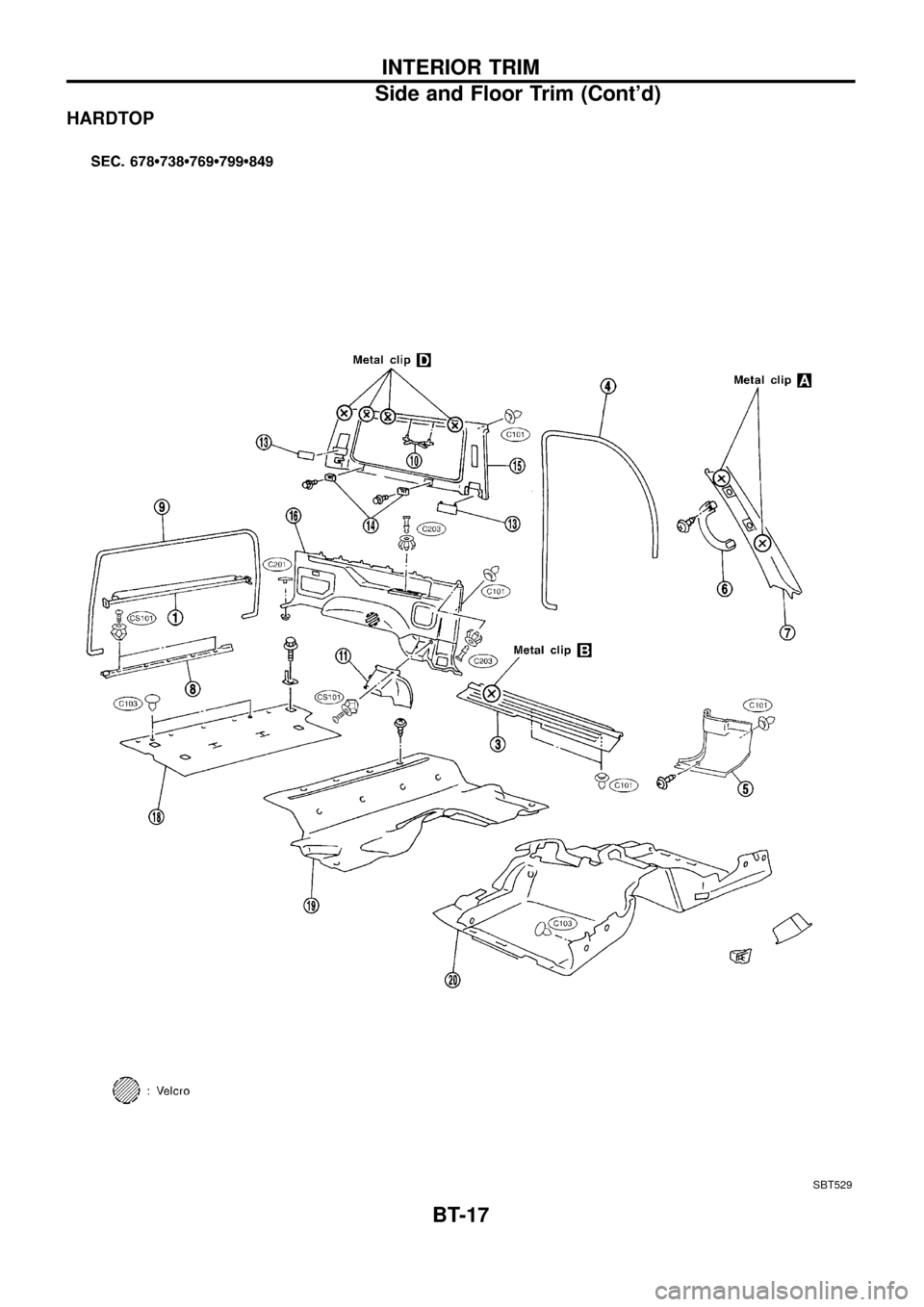

SBT529
INTERIOR TRIM
Side and Floor Trim (Cont'd)
BT-17
Page 19 of 55
Door Trim
REMOVAL Ð Door trim
V1Remove inside handle escutcheon.
V2Remove door armrest.
V3Remove screw securing power window switches, then disconnect the connector.
V4Remove screw securing door trim.
V5Remove clips securing door trim.
V6Lift out door trim.

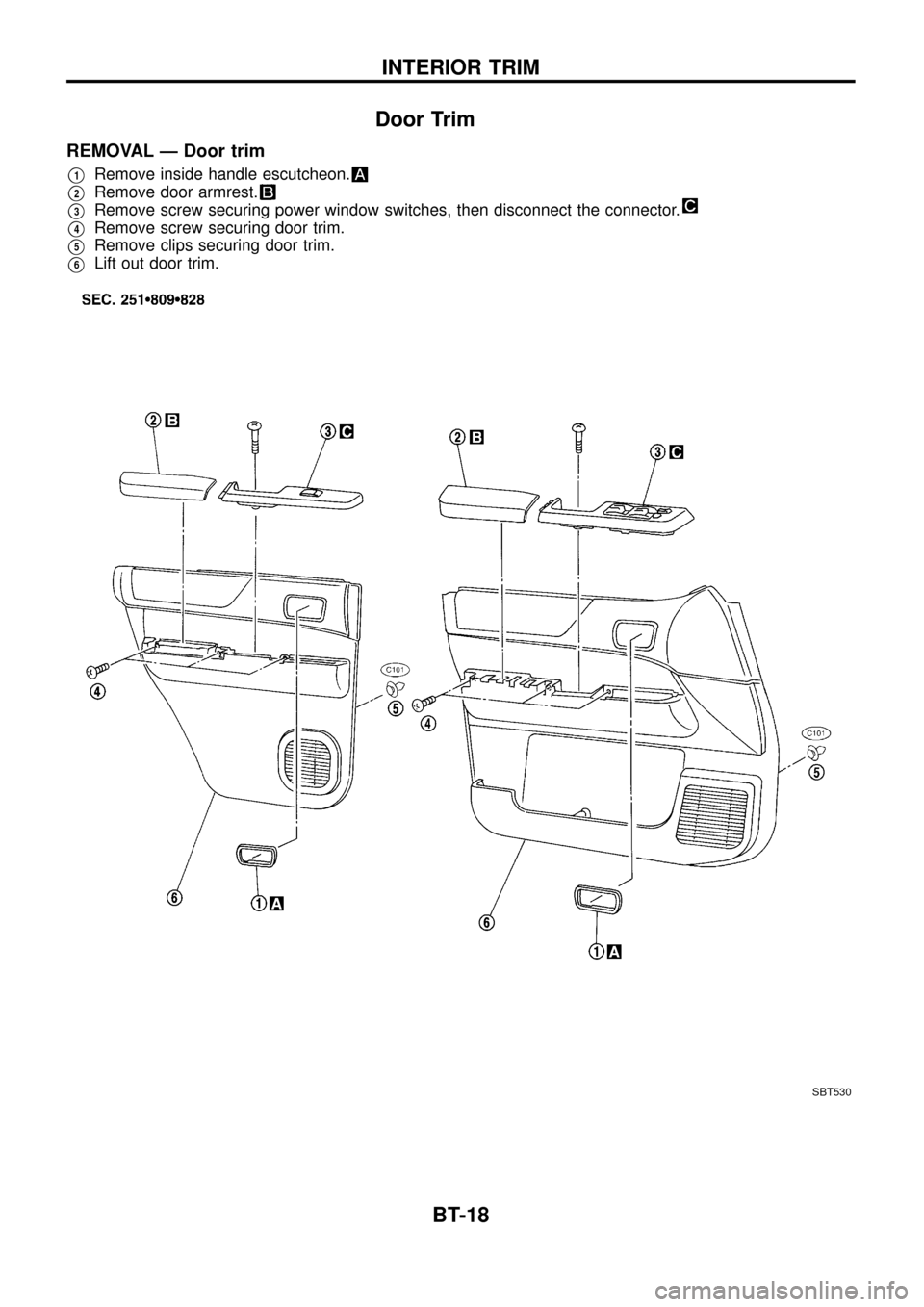

SBT530
INTERIOR TRIM
BT-18
Page 20 of 55

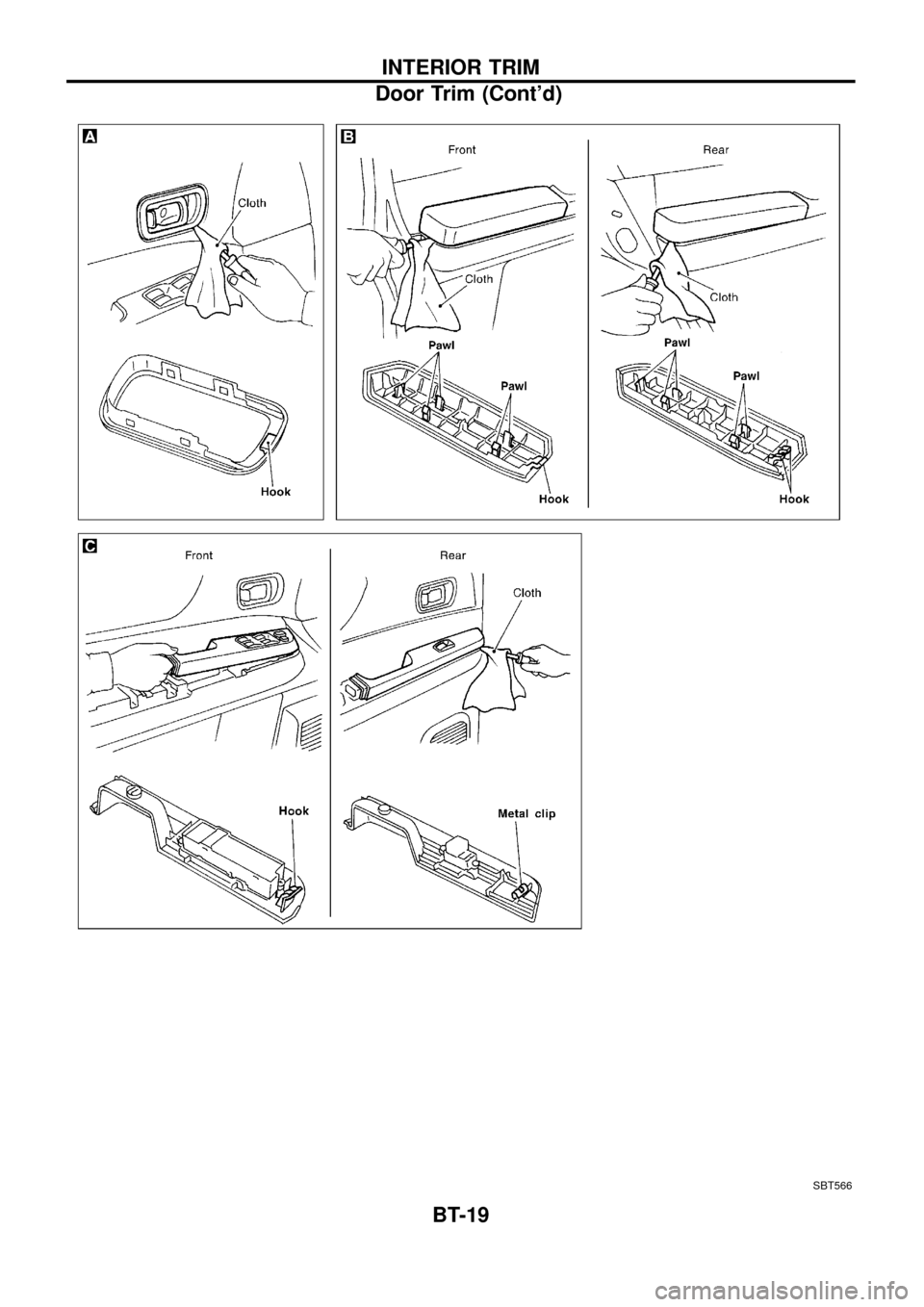

SBT566
INTERIOR TRIM
Door Trim (Cont'd)
BT-19
Page 21 of 55
Roof Trim
REMOVAL Ð Headlining (WAGON)
V1Remove front, rear and 3rd seats. Refer to ``SEAT'' for details, BT-32.
V2Remove front, rear and 3rd seat belts. Refer to ``SEAT BELTS'' in RS section for details.
V3Remove body side trim. Refer to ``Side and Floor Trim'' for details, BT-14.
V4Remove roof console assembly, then disconnect connectors.
V5Remove inside mirror assembly.
V6Remove sun visors.
V7Remove interior lamp assembly.
V8Remove luggage room lamp assembly.
V9Remove assist grips.
V10Remove clips securing headlining.
V11Remove rear headlining from vehicle through either back door.
V12Remove front headlining from vehicle through either back door.

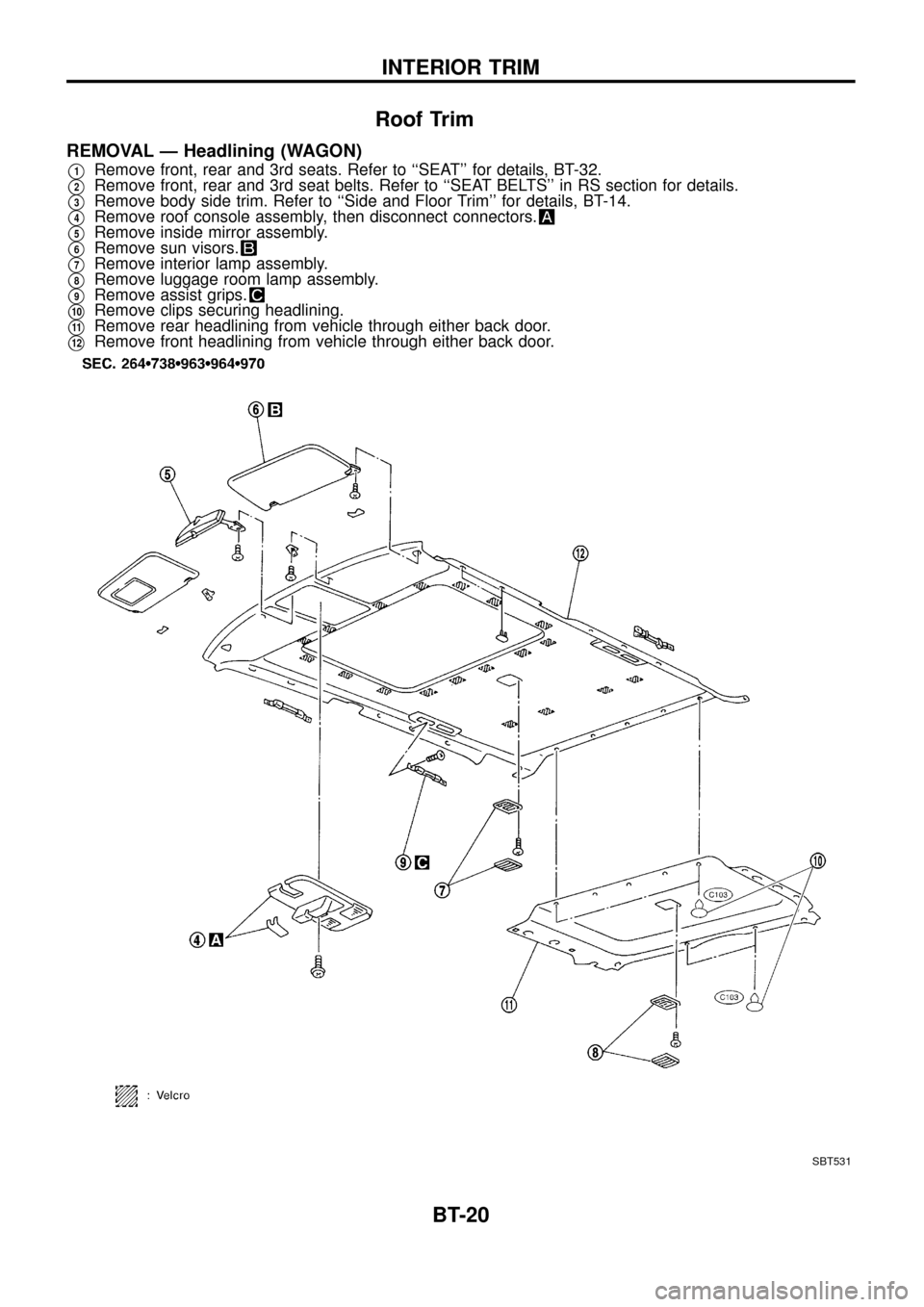

SBT531
INTERIOR TRIM
BT-20
Page 22 of 55
SBT569
INTERIOR TRIM
Roof Trim (Cont'd)
BT-21
Page 23 of 55
REMOVAL Ð Headlining (HARDTOP)
V1Remove front and rear seats. Refer to ``SEAT'' for details, BT-32.
V2Remove front and rear seat belts. Refer to ``SEAT BELTS'' in RS section for details.
V3Remove body side trim. Refer to ``Side and Floor Trim'' for details, BT-14.
V4Remove roof console assembly, then disconnect connector.
V5Remove inside mirror assembly.
V6Remove sun visors.
V7Remove interior lamp assembly.
V8Remove assist grips.
V9Remove clips securing headlining from vehicle through either back door.

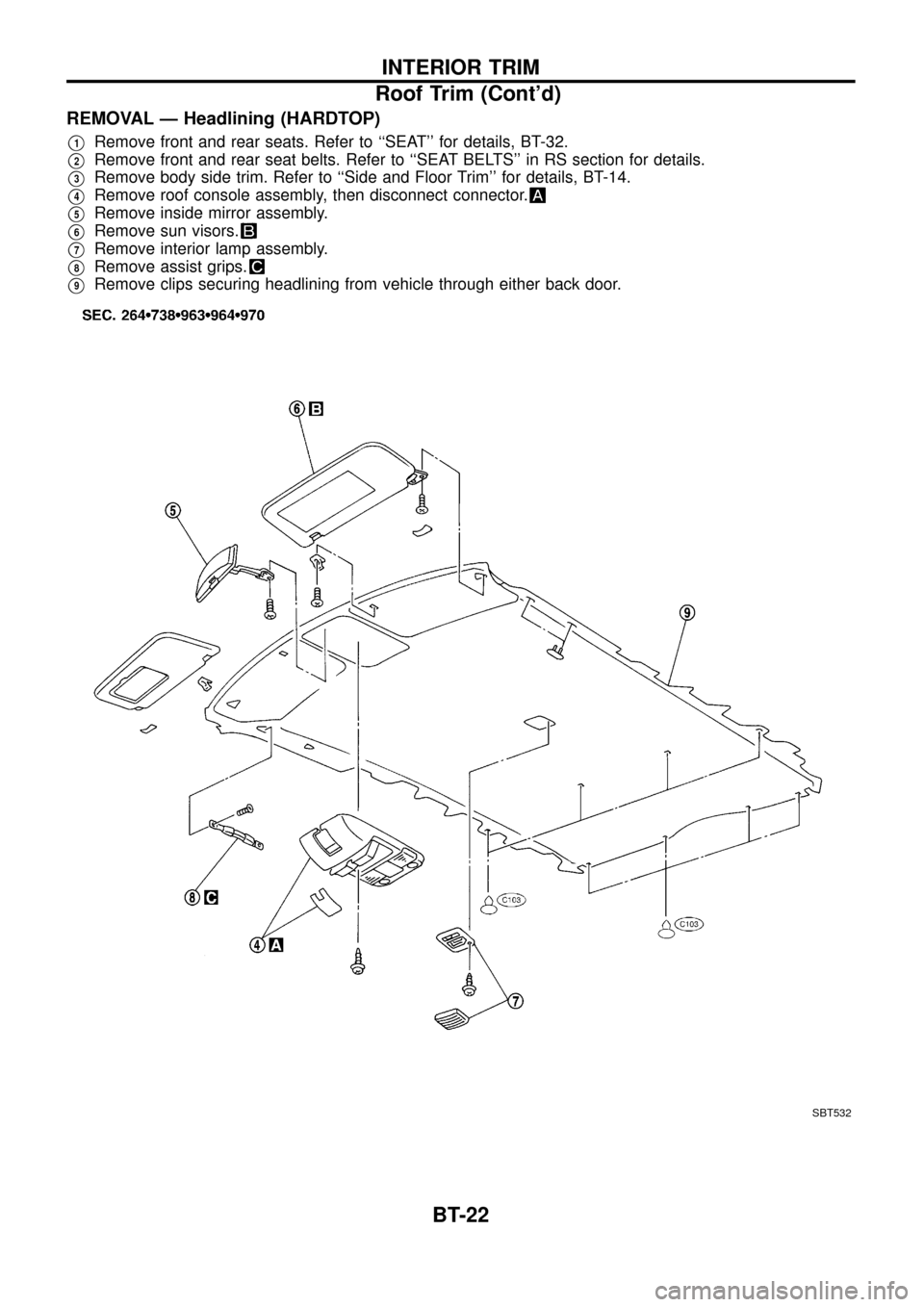

SBT532
INTERIOR TRIM
Roof Trim (Cont'd)
BT-22
Page 24 of 55

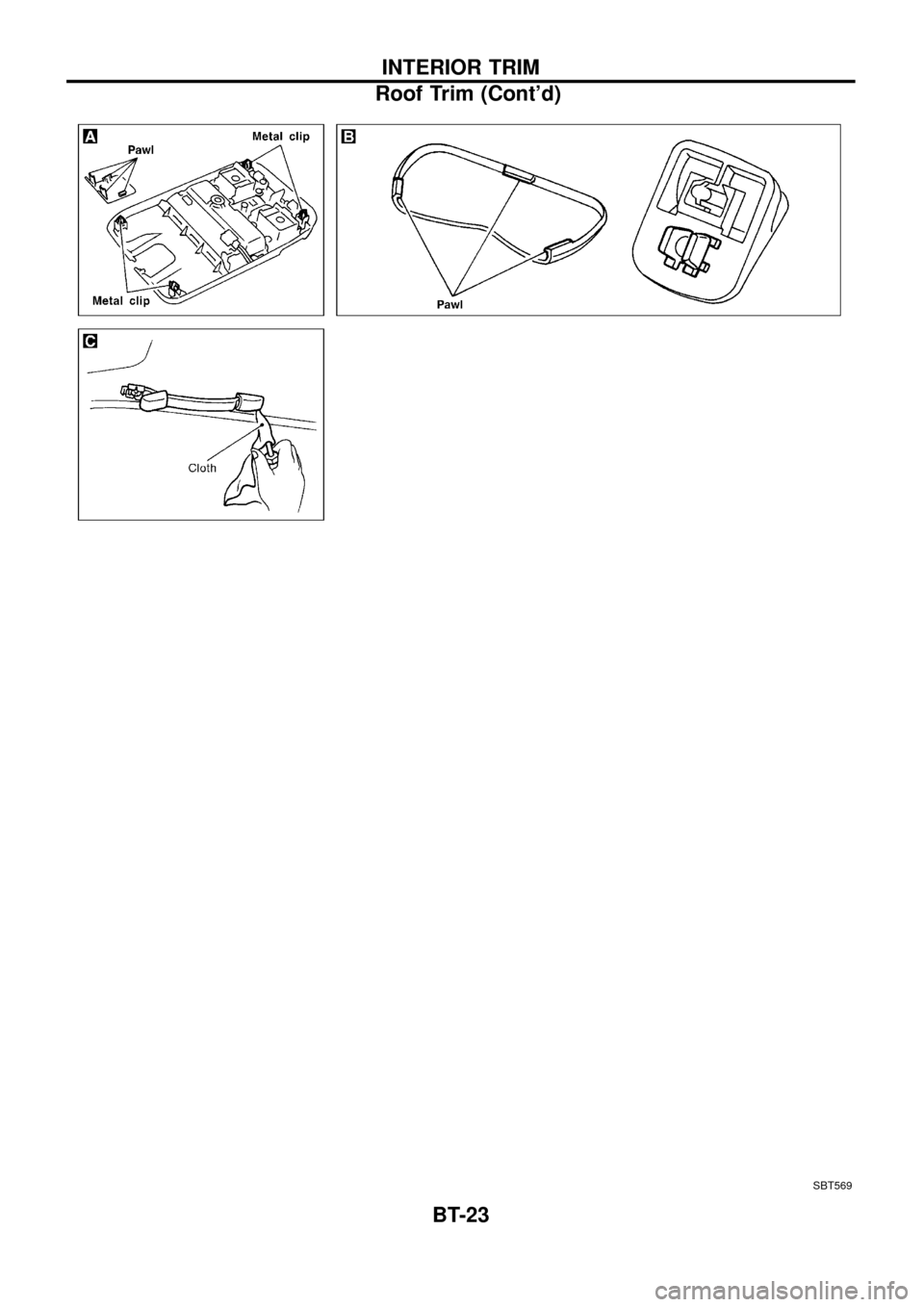

SBT569
INTERIOR TRIM
Roof Trim (Cont'd)
BT-23
