Page 33 of 55

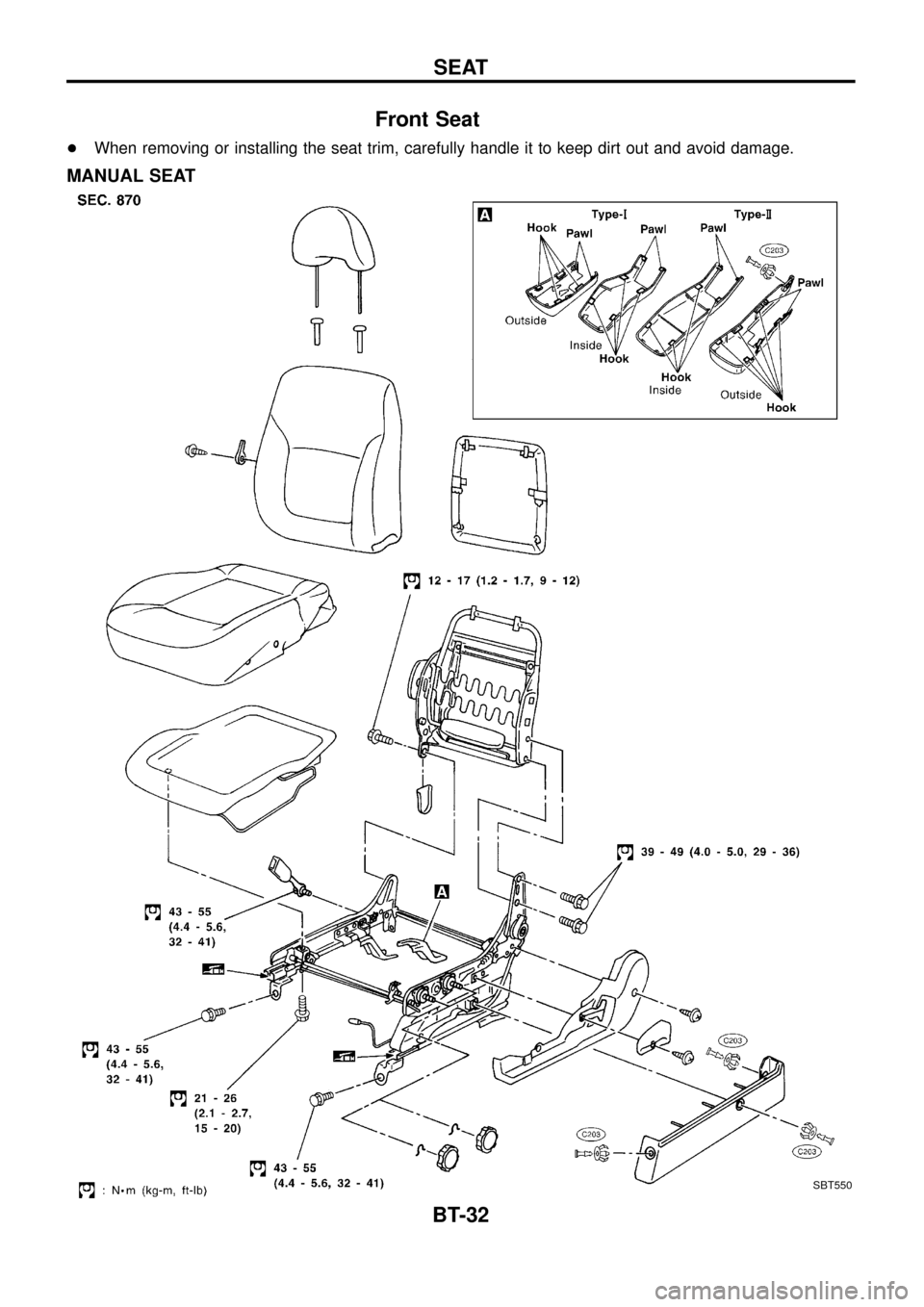

Front Seat
+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
MANUAL SEAT
SBT550
SEAT
BT-32
Page 34 of 55
+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

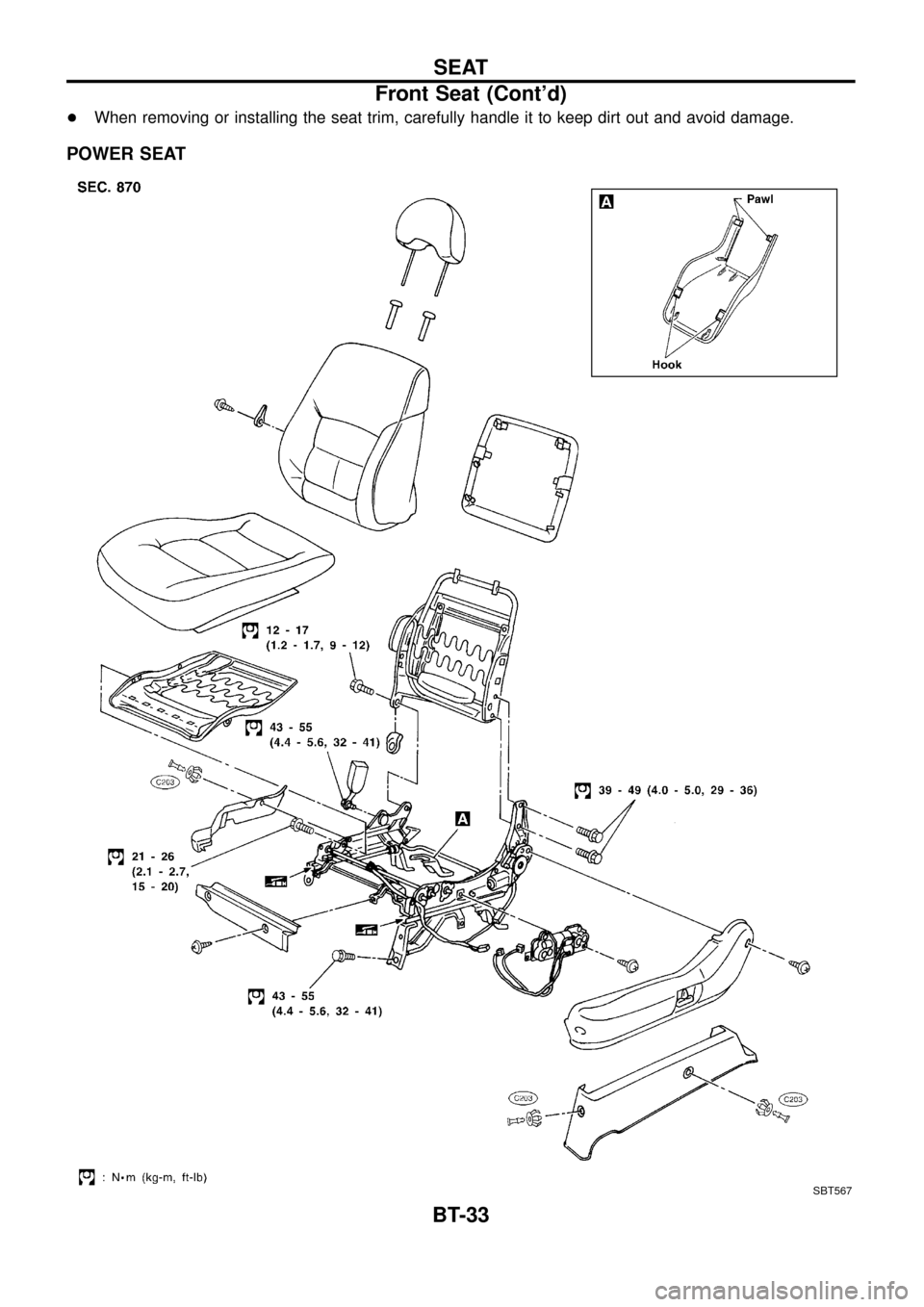

POWER SEAT
SBT567
SEAT
Front Seat (Cont'd)
BT-33
Page 35 of 55

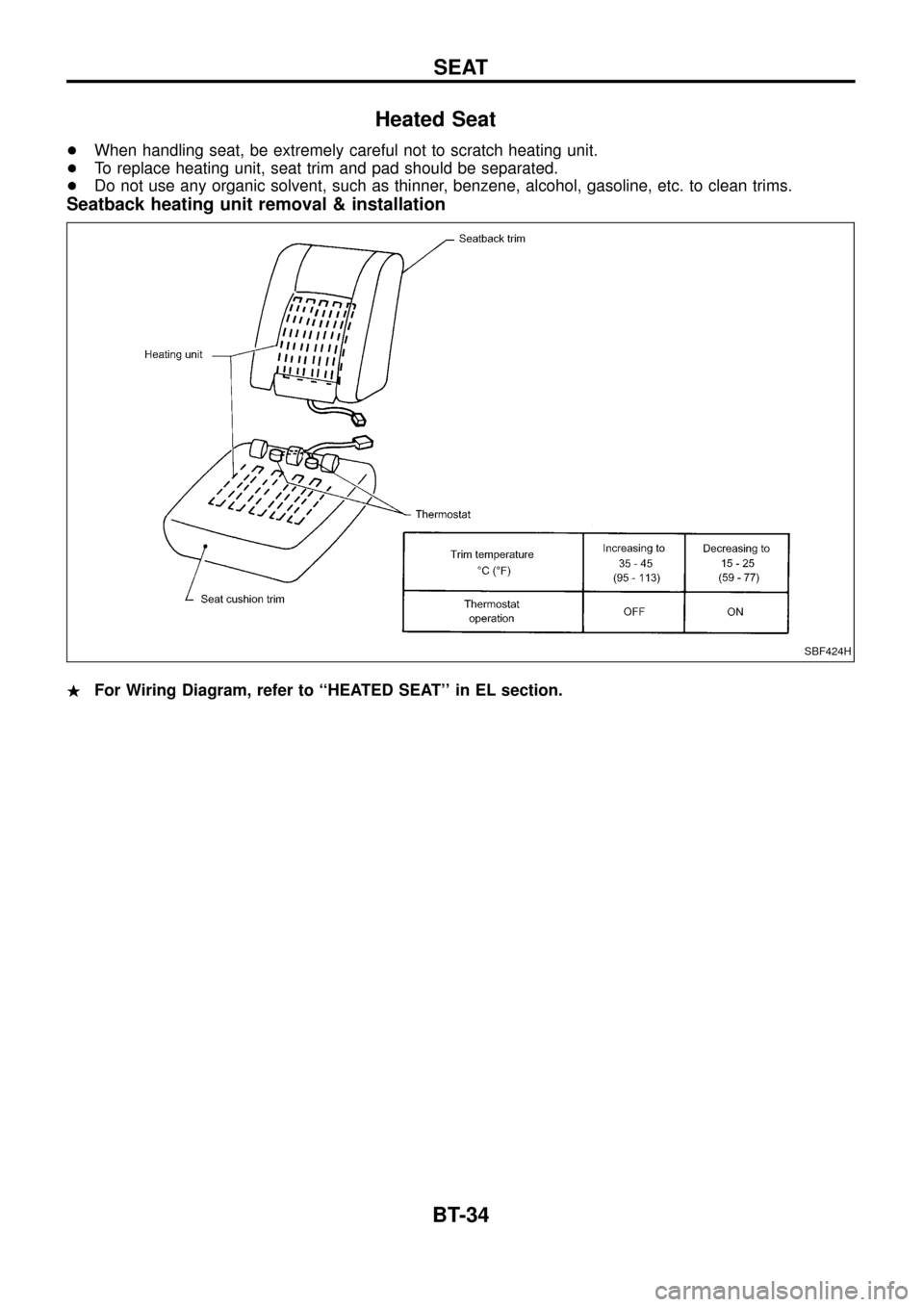

Heated Seat
+When handling seat, be extremely careful not to scratch heating unit.
+To replace heating unit, seat trim and pad should be separated.
+Do not use any organic solvent, such as thinner, benzene, alcohol, gasoline, etc. to clean trims.
Seatback heating unit removal & installation
.For Wiring Diagram, refer to ``HEATED SEAT'' in EL section.
SBF424H
SEAT
BT-34
Page 36 of 55

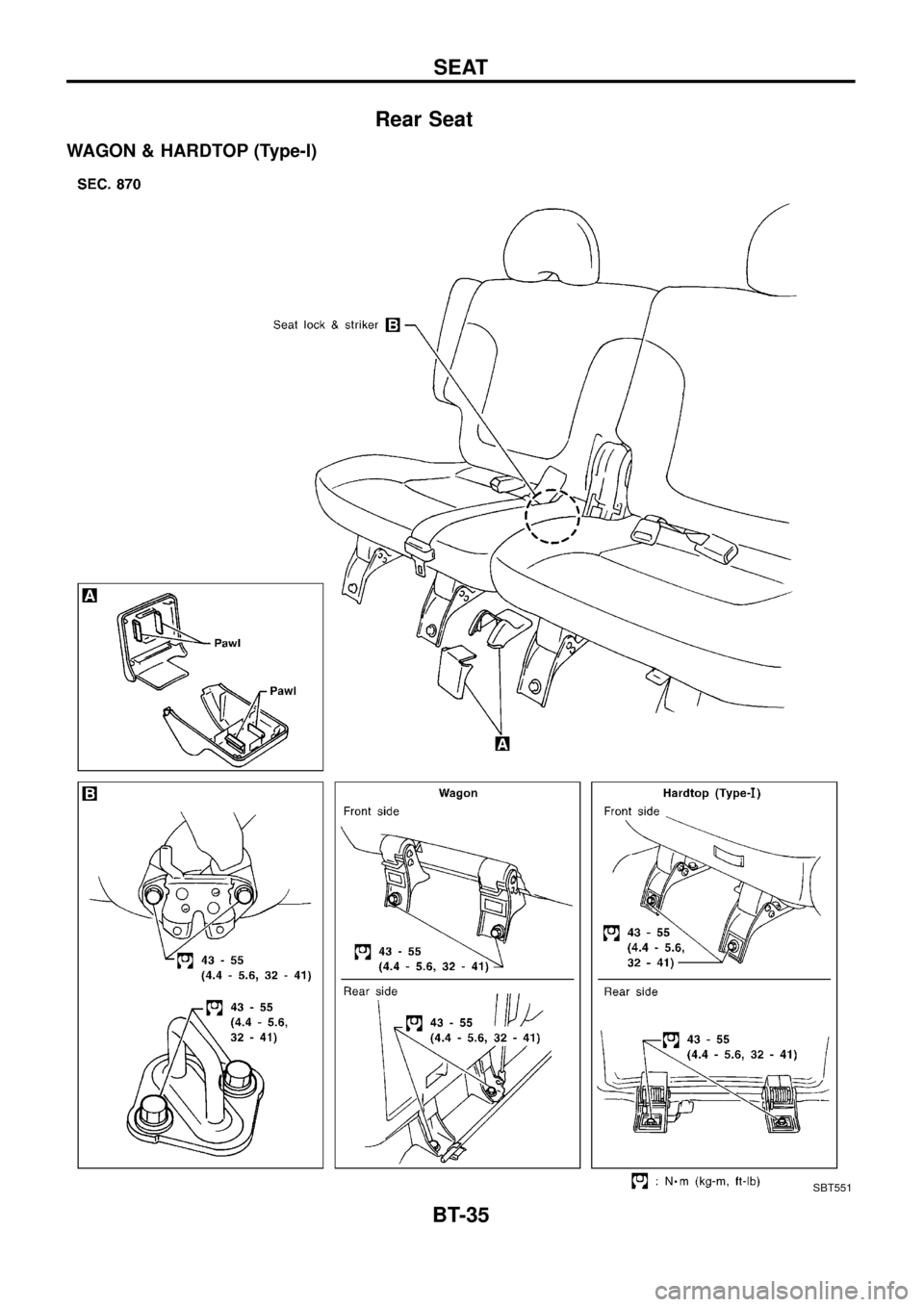

Rear Seat
WAGON & HARDTOP (Type-I)
SBT551
SEAT
BT-35
Page 37 of 55

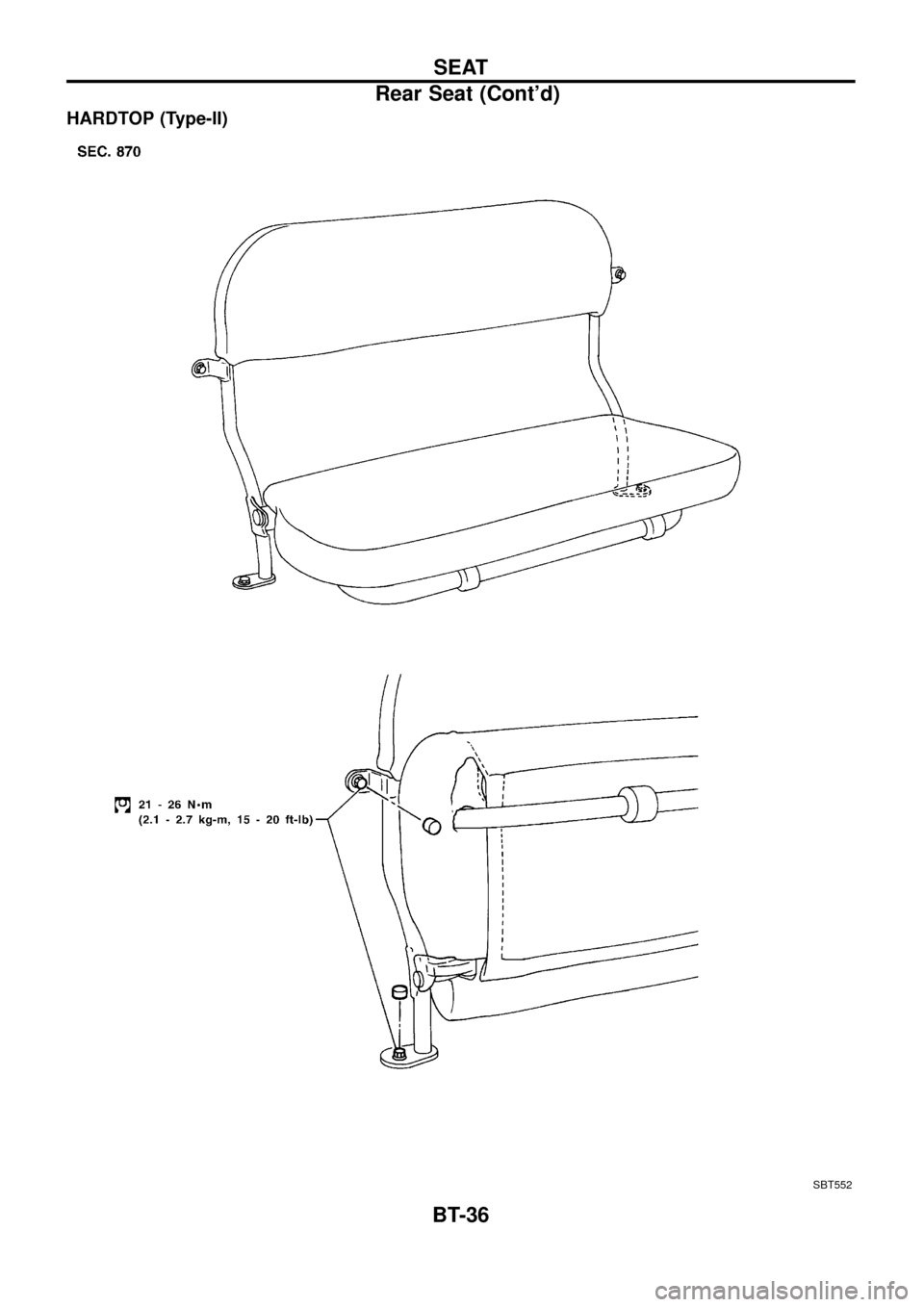

HARDTOP (Type-II)
SBT552
SEAT
Rear Seat (Cont'd)
BT-36
Page 38 of 55

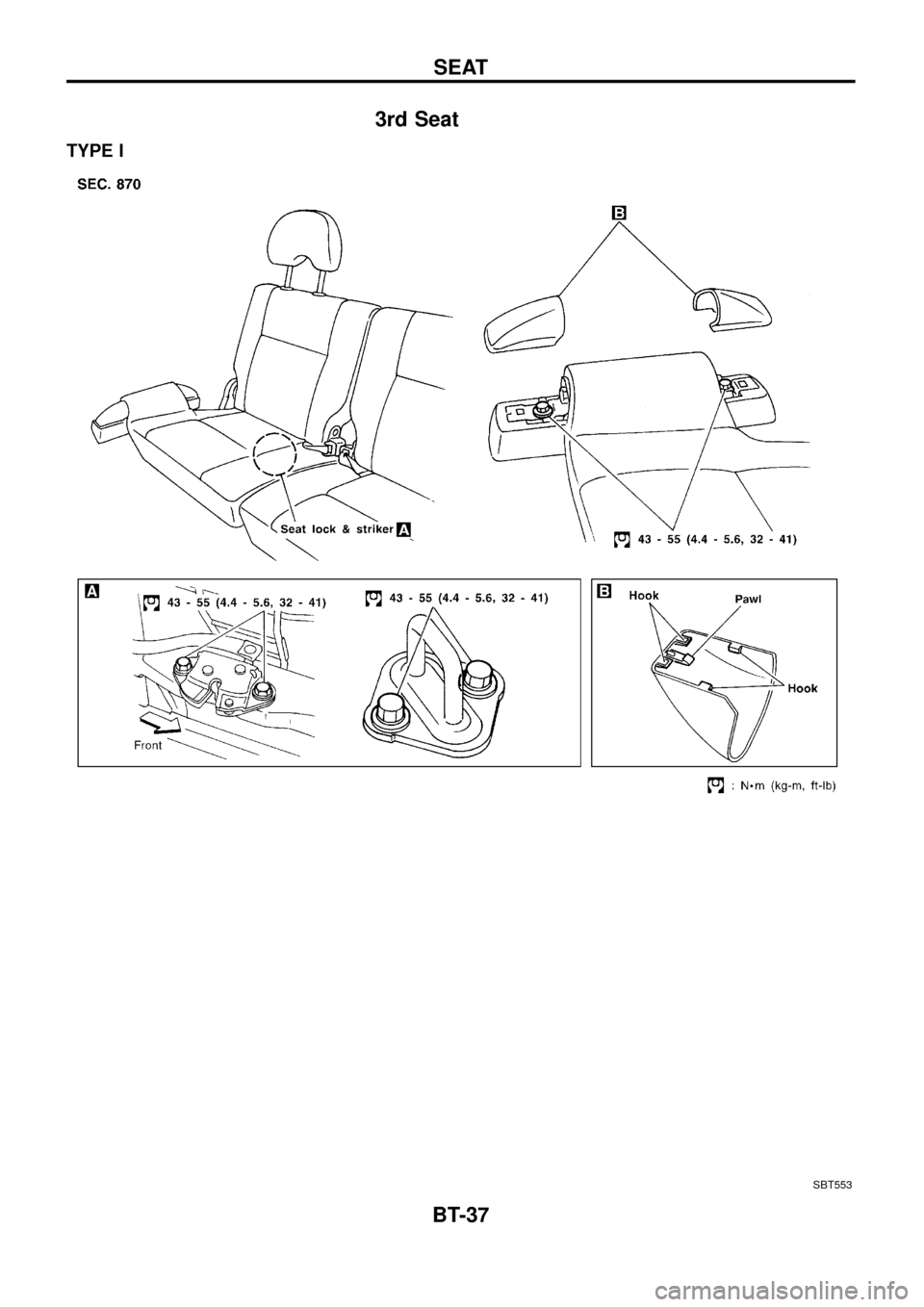

3rd Seat
TYPE I
SBT553
SEAT
BT-37
Page 39 of 55

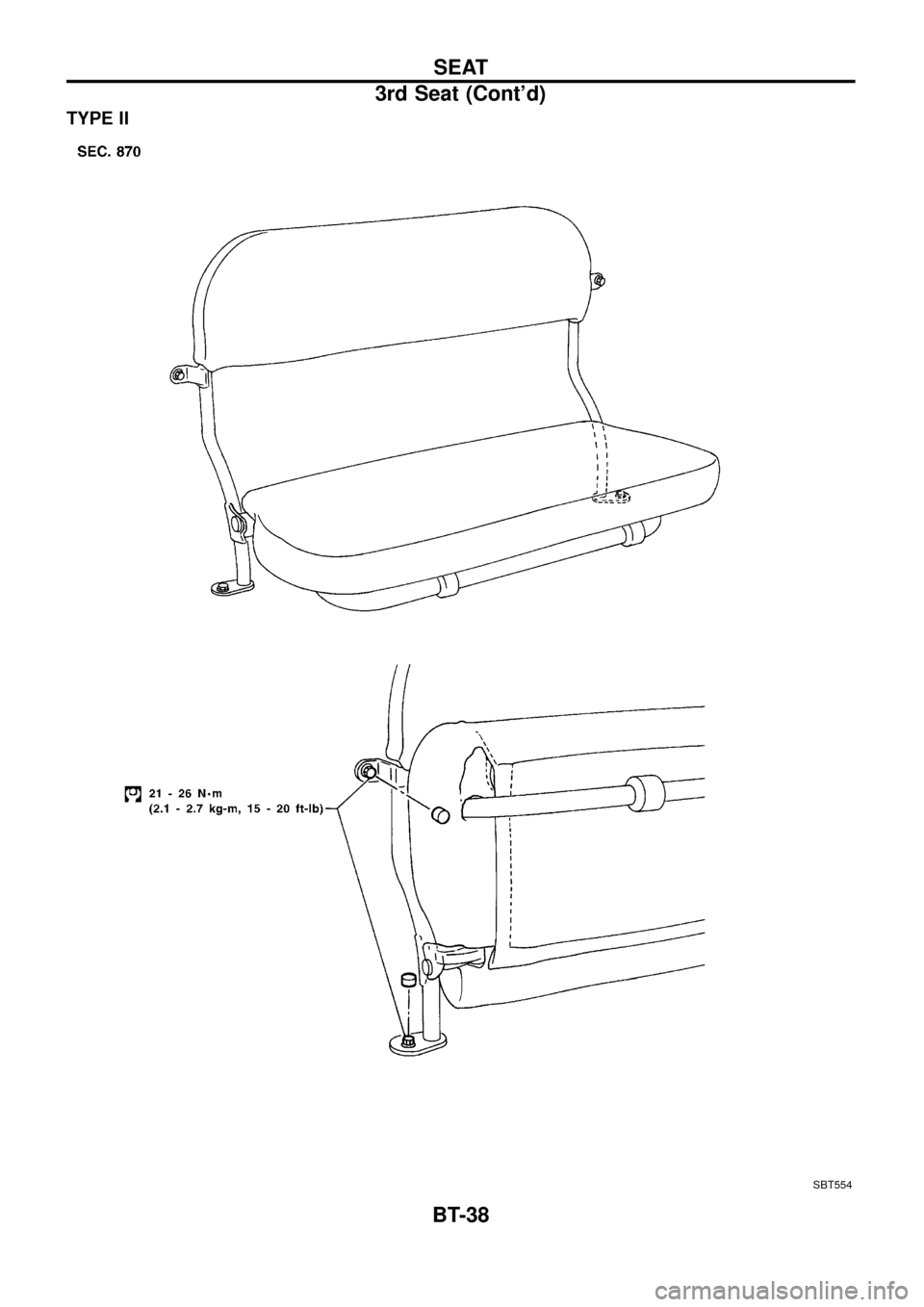

TYPE II
SBT554
SEAT
3rd Seat (Cont'd)
BT-38
Page 40 of 55

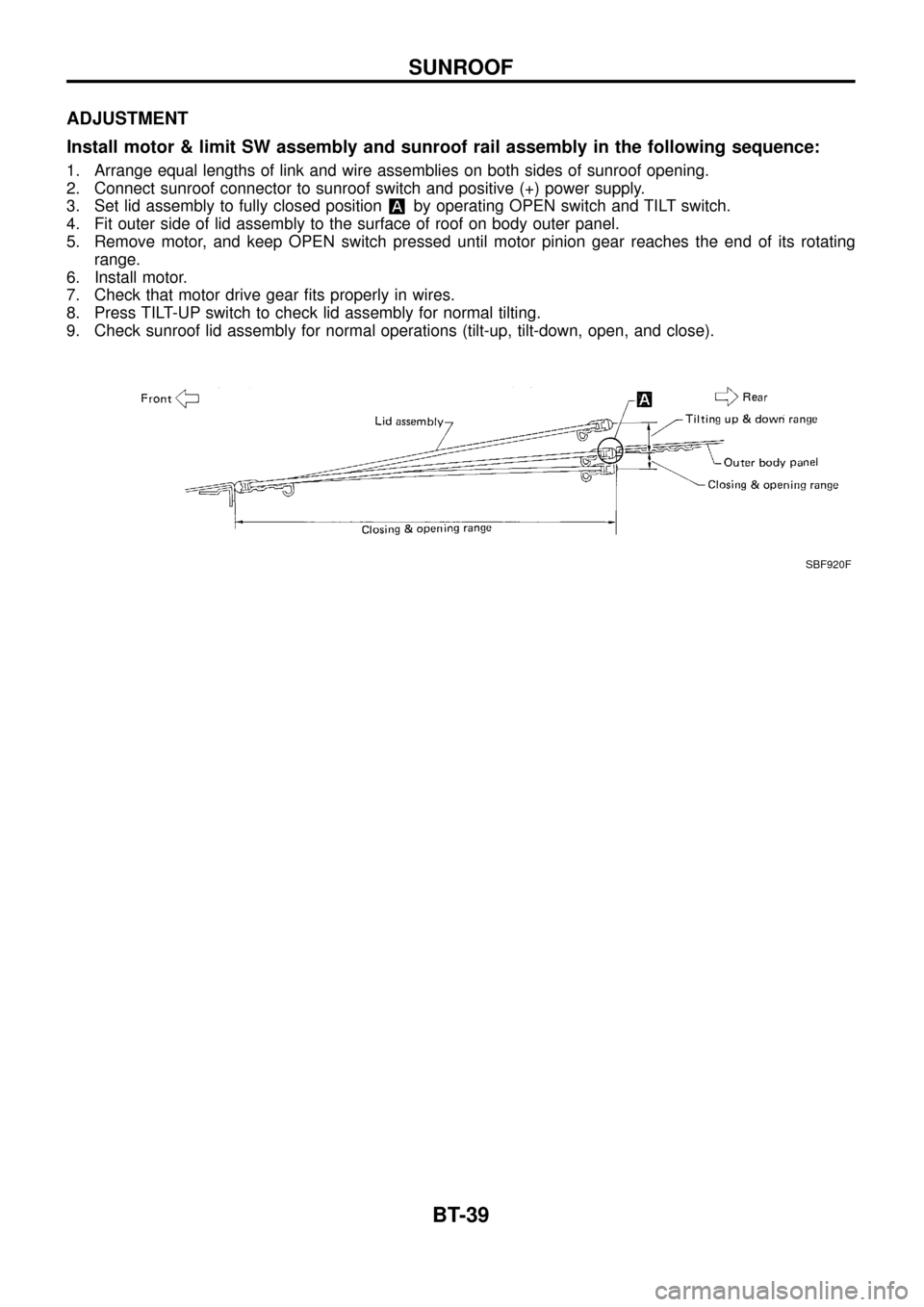

ADJUSTMENT
Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
2. Connect sunroof connector to sunroof switch and positive (+) power supply.
3. Set lid assembly to fully closed position
by operating OPEN switch and TILT switch.
4. Fit outer side of lid assembly to the surface of roof on body outer panel.
5. Remove motor, and keep OPEN switch pressed until motor pinion gear reaches the end of its rotating
range.
6. Install motor.
7. Check that motor drive gear ®ts properly in wires.
8. Press TILT-UP switch to check lid assembly for normal tilting.
9. Check sunroof lid assembly for normal operations (tilt-up, tilt-down, open, and close).
SBF920F
SUNROOF
BT-39
