Removal
Raise and support vehicle. Remove wheel assembly. Remove hub
cap. Remove snap ring and shim. Remove drive flange. Remove brake
caliper and suspend with wire. On vehicles with ABS, remove ABS speed
sensor. On all models, remove lock washer. Remove lock nut using
Socket (MB990954). See Fig. 2. Remove front rotor and hub assembly.
Installation
To install, reverse removal procedure. Adjust wheel bearing
preload and check drive shaft endplay. See ADJUSTMENTS.

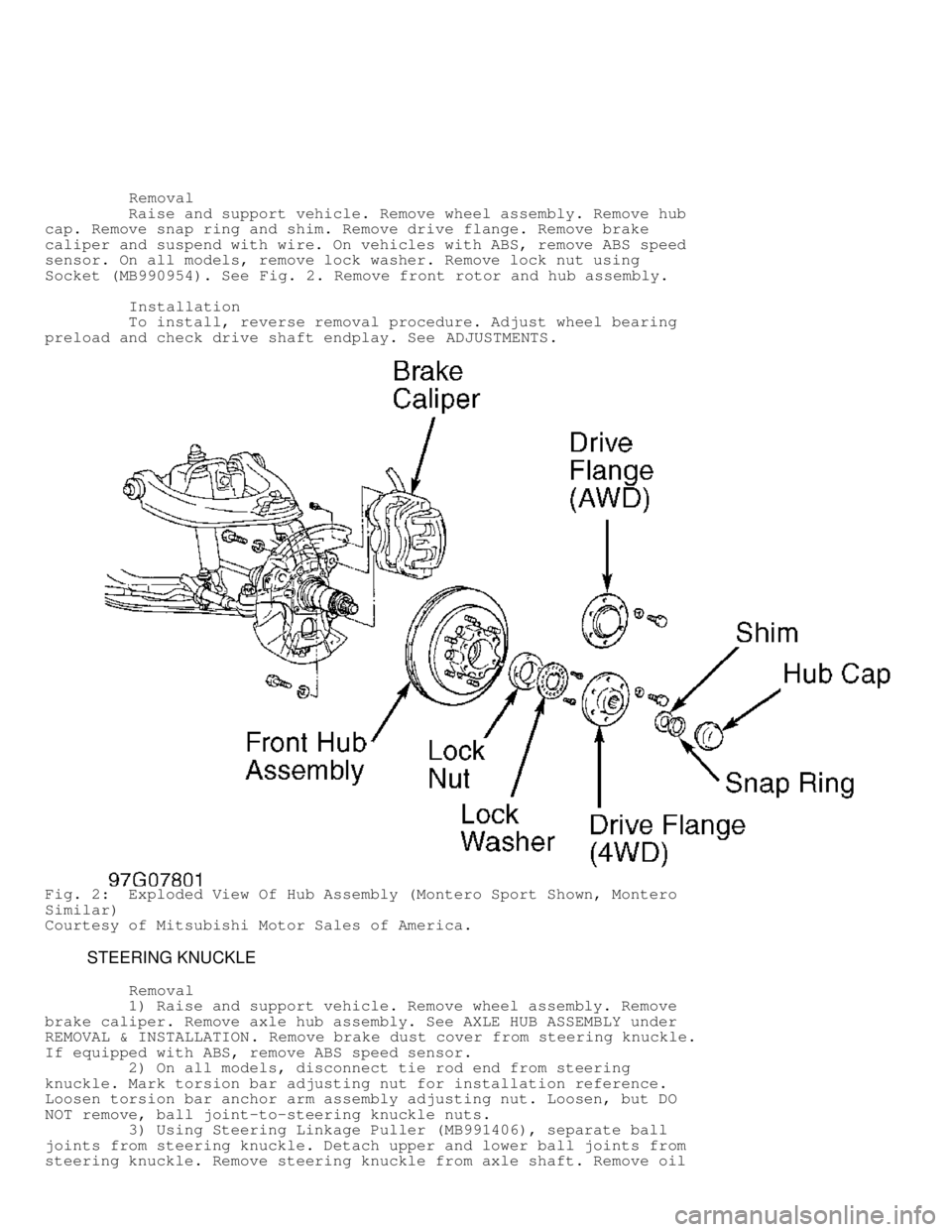

Fig. 2: Exploded View Of Hub Assembly (Montero Sport Shown, Montero
Similar)
Courtesy of Mitsubishi Motor Sales of America.
STEERING KNUCKLE
Removal
1) Raise and support vehicle. Remove wheel assembly. Remove
brake caliper. Remove axle hub assembly. See AXLE HUB ASSEMBLY under
REMOVAL & INSTALLATION . Remove brake dust cover from steering knuckle.
If equipped with ABS, remove ABS speed sensor.
2) On all models, disconnect tie rod end from steering
knuckle. Mark torsion bar adjusting nut for installation reference.
Loosen torsion bar anchor arm assembly adjusting nut. Loosen, but DO
NOT remove, ball joint-to-steering knuckle nuts.
3) Using Steering Linkage Puller (MB991406), separate ball
joints from steering knuckle. Detach upper and lower ball joints from
steering knuckle. Remove steering knuckle from axle shaft. Remove oil
Page 1239 of 1501
![MITSUBISHI MONTERO 1998 Service Manual FINAL ANCHOR ARM BOLT PROTRUSION \
\
\
\
\
\
\
Application/](/manual-img/19/57333/w960_57333-1238.png "MITSUBISHI MONTERO 1998 Service Manual FINAL ANCHOR ARM BOLT PROTRUSION \
\
\
\
\
\
\
Application/")
FINAL ANCHOR ARM BOLT PROTRUSION \
\
\
\
\
\
\
Application/ Right Bolt Left Bolt
Model In. (mm) In. (mm\
)
Montero ................... 3.15 (80.0) .............. 3.15 (80.0\
)
\
\
\
\
\
\
\
4) To complete installation, reverse removal procedure.
Tighten bolts to specification. See TORQUE SPECIFICATIONS. Check
riding height and front wheel alignment. See WHEEL ALIGNMENT
SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT section.
UPPER BALL JOINT
Removal
1) Raise and support vehicle. Remove wheel assembly. Mark
torsion bar adjusting nut for reassembly reference. Release torsion
bar tension. Loosen, but DO NOT remove, upper ball joint-to-steering
knuckle nut.
2) Using Steering Linkage Puller (MB991406), separate ball
joint from steering knuckle. Remove ball joint nut from steering
knuckle. Remove ball joint-to-upper control arm bolts. Remove ball
joint.
Installation
Lubricate ball joint. To complete installation, reverse
removal procedure. Tighten bolts to specification. See
TORQUE SPECIFICATIONS .
SHOCK ABSORBER & UPPER CONTROL ARM
Removal
1) Disconnect actuator on vehicles with Variable Shock
Absorbers. On all models, raise and support vehicle. Support lower
control arm using jackstand. Remove front wheels. Remove lower shock
absorber bolt. Remove nut from top of shock absorber and remove shock
assembly from vehicle.
2) Remove the bump stop from the bump stop bracket. Mark
anchor arm bolt for reassembly reference. Loosen anchor arm bolt to
release torsion bar tension. Disconnect and plug brake hose at frame
mount bracket.
3) Remove cotter pin from upper ball joint stud. Loosen, but
DO NOT remove, ball joint stud nut. Using Steering Linkage Puller
(MB991406), loosen ball joint from steering knuckle. Remove brake hose\
clip and rebound stopper. Remove rebound stopper and brake hose
support from control arm.
4) Remove ABS sensor bracket (if equipped) and rebound
stoppers. Remove upper control arm mounting bolts and shim(s). Note
direction of bolt installation and locations of camber adjustment
shims. Remove control arm. Remove upper ball joint from control arm.
Inspection
Inspect control arm for cracks and deformation. Check ball
joints. See BALL JOINT CHECKING under ADJUSTMENTS & INSPECTION.
Inspect ball joint dust cover for damage, and replace cover as
necessary.
Installation
1) To install, reverse removal procedure. Install control arm
bolts from outside of frame, with nuts against control arm. Install
the upper control with the marking "OUT" on shaft facing outside of
vehicle.
Page 1244 of 1501
REAR SUSPENSION ASSEMBLY
NOTE: Procedures for Montero are for lateral rod, coil springs and
lower arms only. Procedures for Montero Sport are for leaf
springs only.
Removal (Montero)
1) Raise and support rear of vehicle. Place a jack under
center of rear axle housing. Remove parking brake cable attaching
bolts.
2) Remove rear speed sensor attaching bolt (if equipped).
Remove rear axle housing lock position harness attaching bolt and
lower shock bolts.
3) Remove lateral rod bolts and remove lateral rod. Remove
lower arm rear bolts. Remove lower arm front mounting nut and remove
lower arm. See Fig. 2.
Inspection
Check lateral rod for straightness and damage. Check rubber
bushings for deterioration, cracks and wear.
Installation
If lateral rod bushings need replacing, remove and install
using Lower Arm Bushing Arbor (MB990650). Apply a sufficient amount of\
liquid soap to bushings when installing them into lateral rod. If
lower arm rear bushings need replacing, remove and install rear
bushings using Rear Bushing Arbor (MB991293). To complete
installation, reverse removal procedure. Tighten all suspension
fasteners to specification with vehicle on ground and suspension
unloaded. See TORQUE SPECIFICATIONS .
Removal (Montero Sport)
1) Raise and support rear of vehicle. Place a jack under
center of rear axle housing.
2) Disconnect parking brake cable attaching bolts. Remove
rear speed sensor attaching bolt. Remove rear shock nuts and washers.
Remove rear shocks.
NOTE: The yellow shock mounts on left side and the pink one mounts
to the right side of vehicle.
3) Remove U-bolt nuts, U-bolt seat and U-bolts. Remove bump
stopper. Remove rear shackle plate nuts, shackle plate, bushings and
shackle assembly. Remove front shackle nuts and bolts. Remove leaf
spring. See Fig. 1.
Inspection
Check leaf springs for cracks and other damage. Inspect all
components and bushings for damage and wear. Replace components as
necessary.
Installation
To install, reverse removal procedure. Ensure shocks are
installed on proper side of vehicle. Tighten all suspension fasteners
to specification with vehicle on ground and suspension unloaded. See
TORQUE SPECIFICATIONS .
SHOCKS
Removal
1) Raise and support rear of vehicle. Place a jack under
center of rear axle housing. On Montero remove shock actuator (if
equipped).
Page 1246 of 1501
* SUSPENSION UNIFORM INSPECTION GUIDELINES *
1998 Mitsubishi Montero
GENERAL INFORMATION
Steering, Suspension, Wheel Alignment, Wheels and Tires
Motorist Assurance Program
Standards For Automotive Repair
All Makes and Models
INTRODUCTION TO MOTORIST ASSURANCE PROGRAM (MAP)
CONTENTS
Motorist Assurance Program (MAP)
OVERVIEW
OVERVIEW OF SERVICE REQUIREMENTS & SUGGESTIONS
Steering and Suspension
AIR RIDE SUSPENSION
AIR RIDE SUSPENSION - AIR SHOCKS AND AIR STRUTS
AIR RIDE SUSPENSION - AIR SPRING VALVES
AIR RIDE SUSPENSION - AIR SPRINGS
AIR RIDE SUSPENSION - COMPRESSORS
AIR RIDE SUSPENSION - HEIGHT SENSORS
AIR RIDE SUSPENSION - MODULES
AIR RIDE SUSPENSION - RELAYS (COMPRESSOR)
AIR RIDE SUSPENSION - SWITCHES (ON/OFF)
AIR RIDE SUSPENSION - TORSION SPRINGS (COUNTER BALANCING)
AIR RIDE SUSPENSION - TUBING
AIR RIDE SUSPENSION - WARNING LAMPS
AIR RIDE SUSPENSION - WIRING HARNESSES
BALL JOINTS
BUSHINGS
CENTER LINKS
CONTROL ARM SHAFTS
CONTROL ARMS
DRAG LINKS
ELECTRONIC RIDE CONTROL SHOCKS AND STRUTS
IDLER ARMS
KING PINS
PITMAN ARMS
POWER STEERING HOSES
POWER STEERING (HYDRAULIC) PUMPS
RADIUS ARMS
RELAY RODS
SHOCK ABSORBERS, STRUT CARTRIDGES AND STRUT ASSEMBLIES
SPINDLES
SPRINGS - COIL, LEAF AND TORSION BAR
STEEL POWER STEERING LINES
STEERING ARMS
STEERING DAMPERS
STEERING GEARS (EXCEPT RACK AND PINION)
STEERING GEARS - RACK AND PINION
STEERING KNUCKLES
STRIKE OUT BUMPERS
STRUT RODS
STRUT UPPER BEARING PLATE ASSEMBLIES
SWAY BAR LINKS
SWAY BARS
Page 1252 of 1501
![MITSUBISHI MONTERO 1998 Service Manual AIR RIDE SUSPENSION - COMPRESSORS
AIR RIDE SUSPENSION - COMPRESSOR INSPECTION \
\
\
\
\](/manual-img/19/57333/w960_57333-1251.png "MITSUBISHI MONTERO 1998 Service Manual AIR RIDE SUSPENSION - COMPRESSORS
AIR RIDE SUSPENSION - COMPRESSOR INSPECTION \
\
\
\
\")
AIR RIDE SUSPENSION - COMPRESSORS
AIR RIDE SUSPENSION - COMPRESSOR INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware bent . B ... Require repair or replacement
of bent part.
Attaching hardware
broken ................. A ... Require replacement of broken
part.
Attaching hardware
loose .................. A ... Require repair or replacement
of loose part.
Attaching hardware
missing ................ C .. Require replacement of missing
part.
Attaching hardware
threads damaged ........ A ... Require repair or replacement
of part with damaged threads.
Attaching hardware
threads stripped
(threads missing) ...... A ..... Require replacement of part
with stripped threads.
Connector bent .......... A .. Require repair or replacement.
Connector broken ........ A ............ Require replacement.
Connector loose ......... A .. Require repair or replacement.
Does not build pressure . A .......... ( 1) Further inspection
required.
Excessive run time ...... B .......... ( 2) Further inspection
required.
Inoperative ............. A ............ Require replacement.
Leaking ................. A .. Require repair or replacement.
Missing ................. C ............ Require replacement.
( 1) - If failure to build pressure is traced to the
compressor, require replacement.
( 2) - If excessive run time is traced to the compressor,
require replacement.
\
\
\
\
\
\
\
AIR RIDE SUSPENSION - HEIGHT SENSORS
AIR RIDE SUSPENSION - HEIGHT SENSOR INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware bent . B ... Require repair or replacement
of bent part.
Attaching hardware
broken ................. A ... Require replacement of broken
part.
Attaching hardware
corroded, affecting
structural integrity .... A .......... Require replacement of
corroded part.
Attaching hardware
loose .................. A ... Require repair or replacement
of loose part.
Attaching hardware
missing ................ C .. Require replacement of missing
part.
Attaching hardware
Page 1253 of 1501
threads damaged ........ A ... Require repair or replacement
of part with damaged threads.
Attaching hardware
threads stripped
(threads missing) ...... A ..... Require replacement of part
with stripped threads.
Dust boot missing ....... 2 ........ (1) Suggest replacement.
Dust boot split ......... 2 ........ ( 1) Suggest replacement.
Dust boot torn .......... 2 ........ ( 1) Suggest replacement.
Housing cracked ......... A ............ Require replacement.
Lead routing incorrect .. B .. Require rerouting according to
vehicle manufacturer's
specifications.
Loose ................... B ... Require adjustment to vehicle
manufacturer's specifications.
Missing ................. C ............ Require replacement.
Output signal incorrect . A .. Require repair or replacement.
Wire lead damaged ....... A .. Require repair or replacement.
( 1) - This condition can lead to damage of the sliding magnet,
which, in turn, causes premature sensor failure.
\
\
\
\
\
\
\
AIR RIDE SUSPENSION - MODULES
AIR RIDE SUSPENSION - MODULE INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware
loose .................. A ... Require repair or replacement
of loose part.
Attaching hardware
missing ................ C .. Require replacement of missing
part.
Attaching hardware
threads damaged ........ A ... Require repair or replacement
of part with damaged threads.
Attaching hardware
threads stripped
(threads missing) ...... A ..... Require replacement of part
with stripped threads.
Housing cracked ......... 2 .. Suggest repair or replacement.
Inoperative ............. A ............ Require replacement.
Missing ................. C ............ Require replacement.
\
\
\
\
\
\
\
AIR RIDE SUSPENSION - RELAYS (COMPRESSOR)
AIR RIDE SUSPENSION - RELAY (COMPRESSOR) INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Housing cracked ......... 2 ........ ( 1) Suggest replacement.
Intermittent ............ A ............ Require replacement.
Missing ................. C ............ Require replacement.
Output signal incorrect . A ............ Require replacement.
( 1) - If moisture enters the relay, it can reduce life
expectancy or impair function.
\
\
\
\
\
\
\
AIR RIDE SUSPENSION - SWITCHES (ON/OFF)
Page 1391 of 1501
Low fuel pressure Test pressure regul-
ator and fuel pump,
check for restricted
lines and filters
No distributor reference Repair ignition
pulses system as necessary
Open coolant temperature Test sensor and
sensor circuit wiring
Shorted W.O.T. switch in Disconnect W.O.T.
T.P.S. switch, engine
should start
Defective ECM Replace ECM
Fuel tank residual pressure Test for fuel
valve leaks pressure drop after
shut down
\
\
\
\
\
\
\
Hard Starting Disconnected hot air tube Reconnect tube and
to air cleaner test control valve
Defective Idle Air Control Test valve operation
(IAC) valve and circuit
Shorted, open or misadjusted Test and adjust or
T.P.S. replace T.P.S.
EGR valve open Test EGR valve and
control circuit
Poor Oxygen sensor signal Test for shorted or
circuit
Incorrect mixture from PCV Test PCV for flow,
system check sealing of oil
filter cap
\
\
\
\
\
\
\
Poor High Speed Low fuel pump volume Faulty pump or
Operation restricted fuel
lines or filters
Poor MAP sensor signal Test MAP sensor,
vacuum hose and
wiring
Poor Oxygen sensor signal Test for shorted or
open sensor or
circuit
Open coolant temperature Test sensor and
sensor circuit wiring
Faulty ignition operation Check wires for
cracks or poor con-
nections, test
secondary voltage
with oscilloscope
Contaminated fuel Test fuel for water
Page 1392 of 1501
or alcohol
Intermittent ECM ground Test ECM ground
connection for
resistance
Restricted air cleaner Replace air cleaner
Restricted exhaust system Test for exhaust
manifold back
pressure
Poor MAF sensor signal Check leakage
between sensor and
manifold
Poor VSS signal If tester for ALCL
hook-up is available
check that VSS
reading matches
speedometer
\
\
\
\
\
\
\
Ping or Knock on Poor Knock sensor signal Test for shorted or
Acceleration open sensor or
circuit
Poor Baro sensor signal Test for shorted or
open sensor or
circuit
Improper ignition timing See VEHICLE EMISSION
CONTROL LABEL (where
applicable)
Check for engine Low coolant, loose
overheating problems belts or electric
cooling fan
inoperative
\
\
\
\
\
\
\
NOTE: For additional electronic fuel injection trouble shooting
information, see the appropriate article in the ENGINE
PERFORMANCE section (not all vehicles have Computer Engine
Control articles). Information is provided there for
diagnosing fuel system problems on vehicles with electronic
fuel injection.
IGNITION SYSTEM TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available
in the section(s) you are accessing.
Ignition Secondary Trouble Shooting Chart
\
\
\
\
\
\
START: Visually inspect Spark Plug Wires, Coil Wires,
Plug Wire Boots, Rotor, and Distributor Cap for
signs of damage.
