With the conditions held as in C4, run the engine at 1500
rpm for approximately 3 minutes. 1
Does the displayed voltage drop below 400mV and rise above 500
mV, cycling approximately every 180 seconds?
Yes GO to C7
No Renew O2 sensor and reconnect plug(s).
GO to C6
C6: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
C7: CHECK FOR O2 SENSOR CONTINUITY

With EM022 disconnected measure the insulation resistance
between sensor pin 001 and sensor body. 1
Repeat for pin 002 and sensor body. 2
Is the resistance > 10 MOHM?
Yes GO to C11
No Renew the O2 sensor and reconnect all plugs.
GO to C10
C10: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service

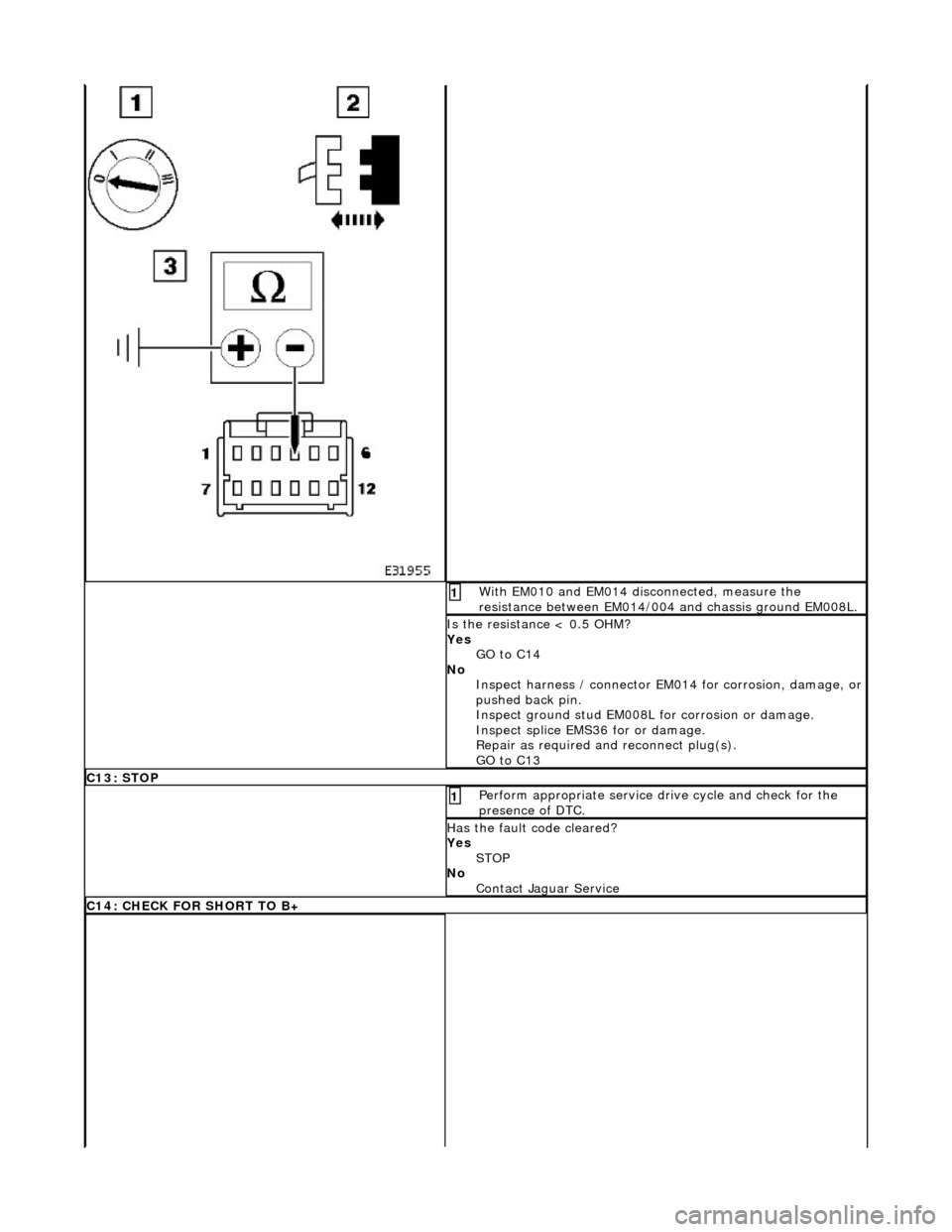

C11: SIGNAL GROUND 1 CONTINUITY

With EM010 and EM014 disconnected, measure the
resistance between EM014/004 and chassis ground EM008L. 1
Is the resistance < 0.5 OHM?
Yes GO to C14
No Inspect harness / connector EM014 for corrosion, damage, or
pushed back pin.
Inspect ground stud EM008L for corrosion or damage.
Inspect splice EMS36 for or damage.
Repair as required an d reconnect plug(s).
GO to C13
C13: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
C14: CHECK FOR SHORT TO B+

Pinpoint test D: P0140
Measure the insulation resistance between EM012/017 and
EM012/022. 1
Is the resistance > 10 MOHM?
Yes Reconnect all plugs
GO to C18
No Inspect harness / connector EM012 for corrosion, bent /
pushed back pins. Repair as re quired and reconnect plug(s).
GO to C18
C18: END
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes
STOP
No Contact Jaguar Service
PINPOINT TEST D : P0140
TEST CONDITIONSDETAILS/RESULTS/ACTIONS
D1: RETRIEVE DTCS
• NOTE: Battery and or ECM disconnection prior to scanning wi ll erase all data, ensure that the correct DTC is present.

With the conditions held as in D5, run the engine at 1500
rpm for approximately 3 minutes. 1
Does the displayed voltage drop below 400mV and rise above 500
mV, cycling approximately every 180 seconds?
Yes GO to D8
No Renew O2 sensor. Reconnect plug(s).
GO to D7
D7: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
D8: CHECK FOR O2 SENSOR CONTINUITY

With EM022 disconnected measure the insulation resistance
between sensor pin 001 and sensor body. 1
Repeat for pin 002 and sensor body. 2
Is the resistance > 10 MOHM?
Yes GO to D12
No Renew the O2 sensor and reconnect all plugs.
GO to D11
D11: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
D12: SIGNAL GROUND 1 CONTINUITY

With EM010 and EM014 disconnected, measure the
resistance between EM014/004 and chassis ground EM008L. 1
Is the resistance < 0.5 OHM?
Yes GO to D15
No Inspect harness / connector EM014 for corrosion, damage, or
pushed back pin.
Inspect ground stud EM008L for corrosion or damage.
Inspect harness / spli ce EMS36 for damage.
Repair as required an d reconnect plug(s).
GO to D14
D14: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
D15: CHECK FOR O2 SENSOR CONTINUITY

Pinpoint test E: P0151, P0152, P0155
Measure the insulation resistance between EM012/017 and
EM012/022. 1
Is the resistance > 10 MOHM?
Yes Reconnect all plugs
GO to D21
No Inspect harness / connector EM012, EM015 and EM022 for
corrosion, bent / pushed back pins.
Repair as required an d reconnect plug(s).
GO to D21
D21: END
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
PINPOINT TEST E : P0151, P0152, P0155
TEST CONDITIONSDETAILS/RESULTS/ACTIONS
E1: RETRIEVE DTCS
• NOTE: Battery and or ECM disconnection prior to scanning wi ll erase all data, ensure that the correct DTC is present.
