1998 JAGUAR X308 Door remove

Interior Trim and Ornamentation - Cowl Side Trim Panel
Removal and Installation
Removal
Installation

1.
Remove draught welt from adjace nt section of door aperture
flange.
2. Remove and discard fir tree fast ener from'A' post lower trim
pad.
3. Pull trim pad rearwards to di sengage clips and remove pad
from lower 'A' post.
1. Position trim pad on 'A' post and press outwards and forward
to engage retaining clips.
2. Fit and fully seat ne w fir tree fastener.
3. Fit draught welt to door aperture flange.
4. Fit and fully seat new fir tree fastener to secure trim pad.
5. Fit draught welt to adjace nt door aperture flange.

Interior Trim and Ornamentation - C-Pillar Trim Panel
Removal and Installation
Removal
1. Remove the passenger assist handle.
For additional information, refer to: Passenger Assist Handle
(501-05 Interior Trim and Ornamentation, Removal and
Installation).

2. Detach the rear courtesy/reading light.

3. Remove the rear courtesy/reading light.
Disconnect the electrical connector.
4. Detach the door aperture weatherstrip.

5. Detach the C-pillar trim panel fi r tree fasteners from the BIW.
6. Remove the C-pillar trim pa nel and discard the fir tree
fasteners.

Interior Trim and Ornamentation - Door Window Control Switch Finish
Panel
Removal and Installation
Removal
Installation

1.
Remove door casing veneer panel. Refer to 76.47.11.
2. Remove door casing. Refer to 76.34.01.
3. Remove door armrest and remo ve switchpack assembly from
armrest. Refer to 76.34.22.

4. Slacken and remove th ree screws securing door glass lift
switch veneer panel to switchpack.
5. Remove veneer panel from switch assembly.
1. Position veneer panel over swit ch assembly and fit and tighten
securing screws.
2. Position switchpack assembly on armrest and fit and tighten
securing screws.
3. Fit armrest to door casing. Refer to 76.34.22.

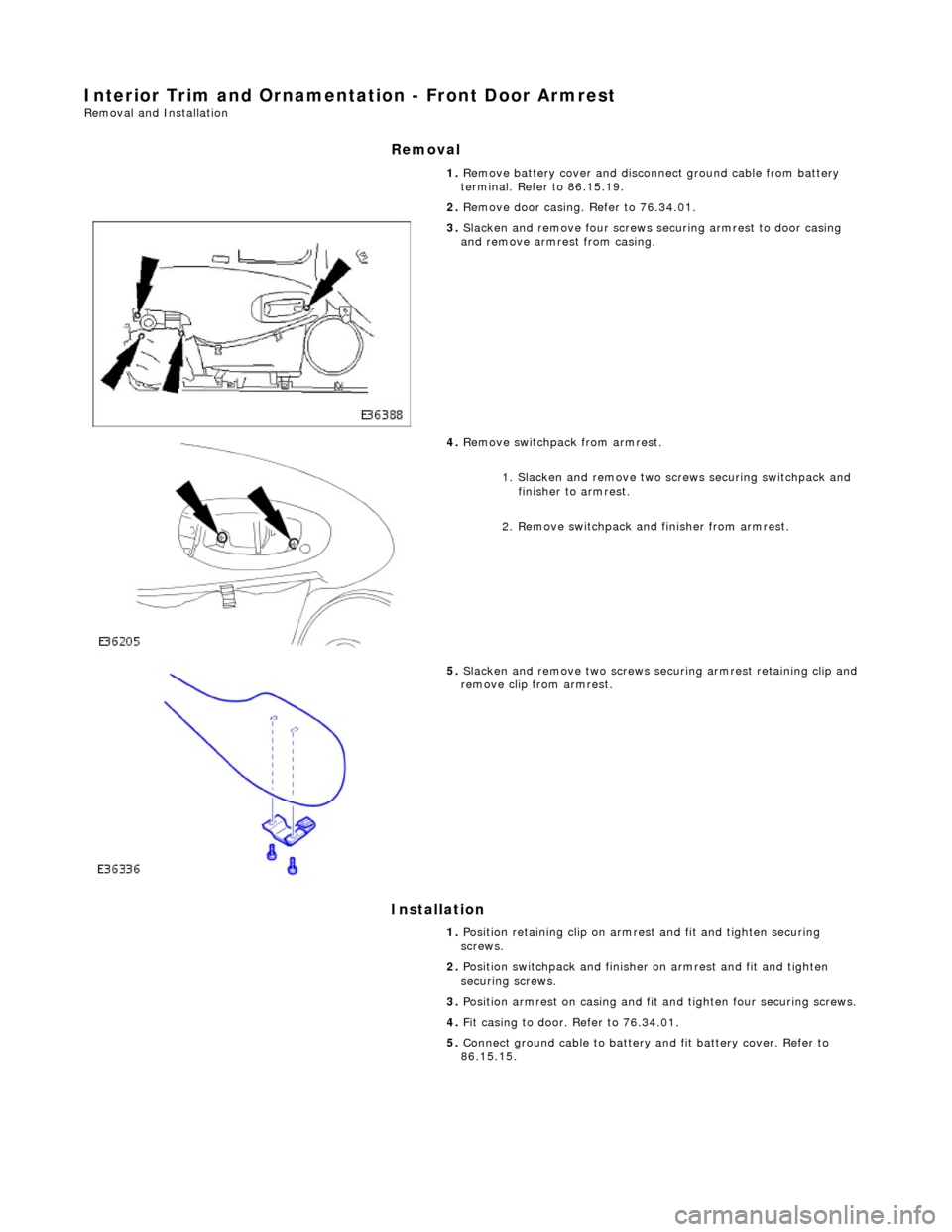

Interior Trim and Ornamentation - Front Door Armrest Removal and Installation
Removal
Installation

1.
Remove battery cover and disconnect ground cable from battery
terminal. Refer to 86.15.19.
2. Remove door casing. Refer to 76.34.01.

3. Slacken and remove four screws se curing armrest to door casing
and remove armrest from casing.

4. Remove switchpack from armrest.
1. Slacken and remove two screws securing switchpack and finisher to armrest.
2. Remove switchpack and finisher from armrest.

5. Slacken and remove two screws secu ring armrest retaining clip and
remove clip from armrest.
1. Position retaining clip on armrest and fit and tighten securing
screws.
2. Position switchpack and finisher on armrest and fit and tighten
securing screws.
3. Position armrest on casing and fit and tighten four securing screws.
4. Fit casing to door. Refer to 76.34.01.
5. Connect ground cable to battery and fit battery cover. Refer to
86.15.15.

Interior Trim and Ornamentation - Front Door Trim Panel Finish Panel
Removal and Installation
Removal
Installation



1. Remove interior door handle escutcheon.
Remove cover from door ha ndle escutcheon securing
screw and slacken and remove screw.
Pull door handle inwards and exercising care to avoid
damaging tweeter, remove escutcheon from casing.

2. Remove veneer panel from casing.
1. Using a thin plastic leve r, carefully ease rear of
veneer panel inwards to release the two rear
securing tangs.
2. Slide veneer panel re arwards to release front
retainers.
1. Position veneer panel on casing and slide forward to engage
front retainers.
2. Using a soft pad or cloth, press re ar of panel firmly to seat the
securing tangs.
3. Fit door handle escutcheon.

Interior Trim and Ornamentation - Front Door Stowage Compartment
Removal and Installation
Removal
Installation

1.
Remove door casing for access. Refer to 76.34.01.

2. Remove pocket from door casing.
1. Release puddle lamp harness from clips at base of door pocket.
2. Slacken and remove th e two screws securing
bottom of pocket to casing.
3. Remove two spring clips securing top of pocket to casing.
3. Lift pocket out of casing .
1. Position pocket in casing and secure with screws and spring
clips.
2. Position puddle lamp harn ess in pocket clips.
3. Fit door casing. Refer to 76.34.01.

Interior Trim and Ornamentation - Front Door Trim Panel
Removal and Installation
Removal

1. Remove interior door handle escutcheon.
Remove cover from door ha ndle escutcheon securing
screw and slacken and remove screw.
Pull door handle inwards and exercising care to avoid
damaging tweeter, remove escutcheon from casing.
2. Remove door casing veneer panel. Refer to 76.47.11.

3. Slacken and remove the armres t centre securing screw.

4. Carefully release the eight fasten ers securing lower section of
casing to door.

5. Lift rear edge of door casing to release retaining clip housing
from door panel.

6. Lift casing clear of door wais t flange and lock button and
withdraw for access.
7. Using pliers, remove housing from clip and fit to door panel.

8. Disconnect tweeter, speaker, puddle lamp and switchpack
harness multiplugs.
9. Remove armrest lower securing clip housing from casing. and
refit to door.

10. Remove door inner waist se al from holder, slacken and
remove screws securing waist seal holder and remove seal
holder.
11. Remove armrest from door casing. Refer to 76.34.22.

12. Slacken and remove puddle la mp securing screws and
remove lamp assembly from casing.
13. Remove pocket from door casing.
