Page 2238 of 2490
Instrument Panel and Console - Glove Compartment Liner
Removal and Installation
Removal
Installation
1.
Remove glovebox refer to 76.52.03.
2. Remove glovebox lid. Tefer to 76.52.02.
3. Remove glovebox damper. Refer to 76.52.22.
4. Release damper cord guide retaining tangs and remove guide
from bracket.
5. Position liner for access and ca refully remove switch assembly
from housing.
1. Route illumination switch harness into switch housing.
2. Connect switch to harness mult iplugs and fit and fully seat
switch in housing.
3. Secure harness in liner clips.
4. Fit lid damper to liner. Refer to 76.52.22.
5. Fit damper cord guide to bracket.
6. Route damper cord through guide and connect to damper.
7. Fit glovebox lid. refer to 76.52.02.
8. Fit glovebox. Refer to 76.52.03.
Page 2242 of 2490

Instrument Panel and Console - Instrument Panel
Removal and Installation
Removal
1. Turn ignition switch to position II.
2. Motor driver and front passenger seats rearward.
3. Position steering wheel in stra ight ahead position and fully
lower and extend steering column.
4. Turn ignition switch to position O.
5. Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
6. Remove 'J' gate finish er. Refer to 76.25.24.
7. Remove 'J' gate finisher retain ing panel. Refer to 76.25.26.
8. Remove centre console veneer panel. Refer to 76.47.26.
9. Disconnect and remove radio.
10. Remove centre console switch module. Refer to 86.80.32.
11. Remove centre console. Refer to 76.25.01.
12. Slacken and remove centre cons ole vent duct rear securing
screw and withdraw duct assemb ly from air conditioning unit
manifold.
13. WARNING: BEFORE ANY AIRBAG/SRS SERVICE IS
PERFORMED, AT LEAST ONE MINUTE MUST ELAPSE AFTER
DISCONNECTION OF THE BATTERY CABLE, TO ALLOW
DISSIPATION OF BACK-UP POWER SUPPLY ENERGY.
Remove driver airbag. Refer to 76.73.39.
14. Remove steering wheel. Refer to Section 211-04.
15. Remove steering column lo wer cowl. Refer to 76.46.03.
16. Remove steering column u pper cowl. Refer to 76.46.02.
17. Remove driver side unders cuttle. Refer to 76.46.11.
18. Remove combined windshield wiper/washer switch and
audible warning speaker assembly. Refer to 86.65.42.
19. Remove glovebox. Refer to 76.52.03.
20. Remove 'A' post lower trim pads. refer to 76.13.30.
21. Carefully withdraw driver stowage bin trim, remove bin
securing screw and remove bin from facia.
Page 2261 of 2490
46. Connect passenger side facia harness to passenger
compartment harness multiplug and secure with retaining
lever.
47. Install trim pad on passenger side lower 'A' post. Refer to
76.13.30.
48. Connect passenger air bag link harness multiplug.
49. Install passenger glovebox assembly. Refer to 76.52.03.
50. Install 'J' gate assembly. Refer to 76.25.24 and 76.25.26.
51. Position centre console rear vent duct in air conditioning unit
and install rear securing screw.
52. Install centre console. Refer to 76.25.01.
53. Install centre console switch module. Refer to 76.13.30.
Page 2269 of 2490
Instrument Panel and Console - Rear Cup Holder
Removal and Installation
Removal
Installation
1. Remove the console glove box lid. Refer to 76.25.18.
2. Slacken and remove the ten inner lid securing screws. and
remove the inner lid.
3. Slacken and remove cupholder latch securing screw and
remove latch assembly.
4. Open cupholder, depress tang each side of latch location and
withdraw cupholder assembly. from base.
5. Slacken and remove the cupholde r trim panel securing screws.
Page 2270 of 2490
1.
Fit trim panel assenbly to cupholder mechanism.
2. Fit and tighten the trim panel securing screws.
3. Fit and fully seat cupholder mechanism, ensuring tangs are
fully engaged.
4. Fit and tighten lid inner securing screws.
5. Fit cupholder latch and ti ghten securing screw.
6. Fit glovebox lid. Refer to 76.25.18.
Page 2273 of 2490

Handles, Locks, Latches and Entry Systems - Handles, Locks, Latches and
Entry Systems
Description and Operation
Door Lock Mechanism
For most markets, the remote central locking system also, in corporates deadlocking facilities for optimum security. Door
locks are eight disc, bayonet fixing barrels with integral lock / unlock switches. Keys include 'in-key' transponders which are
programmed to the vehicle via the Jaguar Diagnostic Sy stem and operate the engine immobilisation system.
The central locking system employs single key access to the driv er's door, trunk lid and ignition switch/steering column lock.
An additional green headed valet or park ing services key permits access via the driver's door, and ignition/start-up, but
denies access to the trunk and glovebox.A valet switch located on the centre console switch panel above the radio,
precludes normal internal access to the trunk.When the vehicle is not locked, each door catch can be externally released by
the corresponding external door handle which operates via a si ngle rod. When unlocked, or 'single action' locked, the door
catches can also be released via the interior handles, each of which operates via a single cable. Operation of the front door
interior handles will also unlock the rear doors. Use of either key in the external door barrel, operates the lock via a short
rod to provide locking of the door latch. These locking functions can also be achieved by use of the remote transmitter.The
trunk lid can be independently unlatched via a switch located on the driver's side underscuttle. This will only operate at
vehicle speeds up to 8 km/h (5 mph).
All doors and the trunk can be manually lock ed simultaneously from inside by pressing the driver or front passenger door sill
button down. Each rear door can be independently locked by si milarly depressing the sill button and in some markets can be released by operating the internal door handle.
For most markets, a 'drive-away door locking' feature automati cally locks all doors and the trunk when the gear selector is
moved from the Park position.
Key Operation
To 'single action' lock or unlock the vehicle, the key is inserted in the door lock , turned towards the front or rear of the
vehicle respectively, and released. Holding the key in the lock position will close all windows. Releasing the key stops all
operations. 'single action' locking of the vehicle locks all doors, the trunk lid and the fuel filler flap, and sets the alarm
system.
In addition to all of the above functions, deadlocking prevents door opening from th e interior. To deadlock the vehicle, the
key is inserted in the door lock and turned to the unlock (rearw ard) position, then within three seconds, turned to the lock
(forward) position and released.
Remote Operation
Page 2284 of 2490

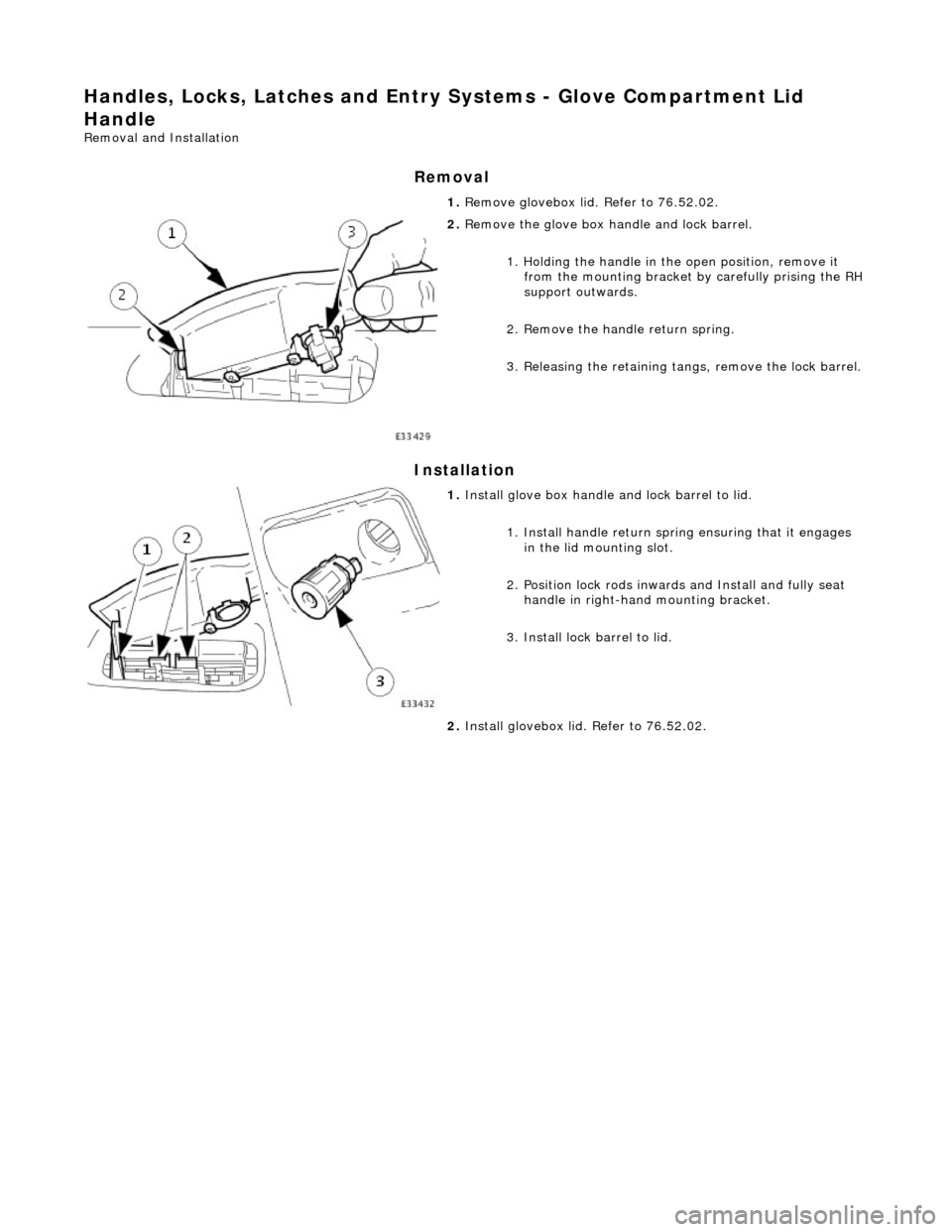

Handles, Locks, Latches and Entry Systems - Glove Compartment Lid
Handle
Removal and Installation
Removal
Installation
1.
Remove glovebox lid. Refer to 76.52.02.
2. Remove the glove box ha ndle and lock barrel.
1. Holding the handle in the open position, remove it from the mounting bracket by carefully prising the RH
support outwards.
2. Remove the handle return spring.
3. Releasing the retaining tangs, remove the lock barrel.
1. Install glove box handle and lock barrel to lid.
1. Install handle return spring ensuring that it engages in the lid mounting slot.
2. Position lock rods inwards and Install and fully seat handle in right-hand mounting bracket.
3. Install lock barrel to lid.
2. Install glovebox lid. Refer to 76.52.02.
Page 2285 of 2490

Handles, Locks, Latches and Entry Systems - Glove Compartment Lid Lock
Cylinder
Removal and Installation
Removal
Installation
1. Remove glovebox handle and lock assembly. Refer to
76.52.08.
2. Remove plastic lock rod operat ing bush from lock barrel.
3. Remove operating bush bias spring from lock barrel.
4. Slacken and remove screw securing barrel to housing and
remove barrel from lock housing.
5. Thoroughly clean lock housing.
1. NOTE: For re-fitting of original lock barrel, refer to operations 4 to 9.
Identify key cut code. 1. Hold key so that cut ou ts can be identified and
commencing at key grip, note and record cut out
sequence.
2. Fit lock discs to barrel.
1. Grease bore of lock barrel.
2. Ensure lock discs match recorded key code.
3. Grease the first seven discs and install them in the barrel in sequence with embossed spacers in
between and orientated to align roller locations.
4. Fit wavy spring spacer.
5. Grease and fit final disc.
3. Fit shutter assembly an d roller to barrel.
1. Grease shutter assemb ly and fit to barrel.
2. Align recesses in discs and spacers to accept the steel roller.
3. Grease steel roller and fit into recesses via barrel slot.
Via adjacent barrel slot, check discs for correct sequence
and orientation.
4. Align and fit barrel into lock housing.
5. Fit plastic securing ring to barrel and rotate to engage locking
tangs.
