1998 JAGUAR X308 front bumper

Exterior Lighting - Front Side Marker Lamp
Removal and Installation
Removal
Installation



1. Remove lamp unit.
Apply gentle thumb pressure to front end of lamp lens.
Exercising care to avoid damaging paintwork, compress
rear spring clip to release lamp unit.
Disconnect harness connector.
1. Position lamp at bumper an d connect harness connector.
2. Engage lamp front tang in bumper aperture.
3. Pivot lamp, compress rear clip and fully seat lamp in bumper.

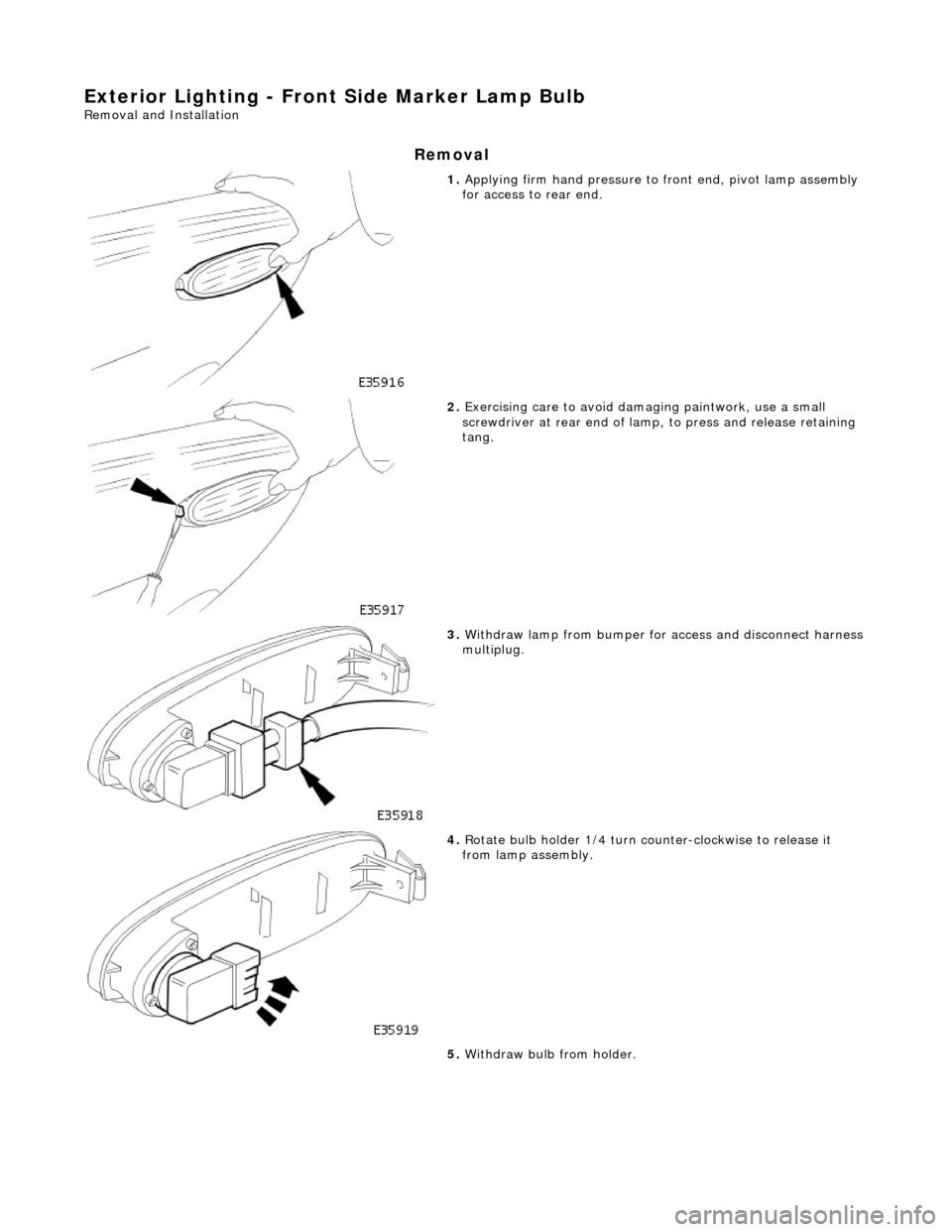

Exterior Lighting - Front Side Marker Lamp Bulb
Removal and Installation
Removal

1. Applying firm hand pressure to front end, pivot lamp assembly
for access to rear end.

2. Exercising care to avoid dama ging paintwork, use a small
screwdriver at rear end of lamp, to press and release retaining
tang.

3. Withdraw lamp from bumper for access and disconnect harness multiplug.

4. Rotate bulb holder 1/4 turn counter-clockwise to release it
from lamp assembly.
5. Withdraw bulb from holder.

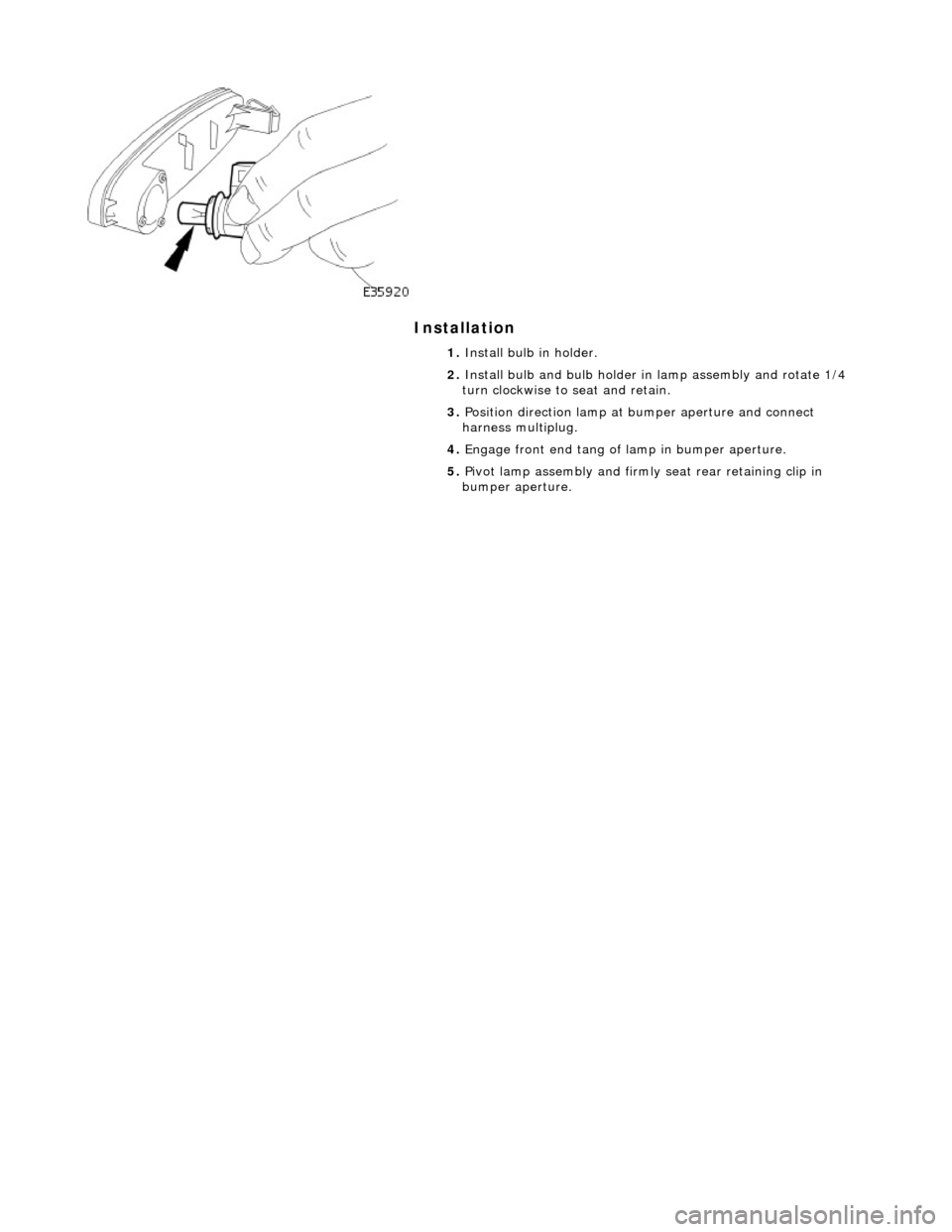

Installation



1. Install bulb in holder.
2. Install bulb and bulb holder in lamp assembly and rotate 1/4
turn clockwise to seat and retain.
3. Position direction lamp at bumper aperture and connect
harness multiplug.
4. Engage front end tang of lamp in bumper aperture.
5. Pivot lamp assembly and firmly seat rear retaining clip in
bumper aperture.

Exterior Lighting - Front Turn Signal Lamp Bulb
Removal and Installation
Removal

1. Applying firm hand pressure to inner end, pivot indicator lamp
assembly for access to outer end.

2. Exercising care to avoid dama ging paintwork, use a small
screwdriver at outer end of lamp, to press and release retaining clip.

3. Withdraw lamp from bumper for access and disconnect harness multiplug.

4. Rotate bulb holder 1/8 turn to release it from lamp assembly.
5. Withdraw bulb holder and remove bulb.

Exterior Lighting - Rear Side Marker Lamp
Removal and Installation
Removal
Installation



1. Applying firm thumb pressure to front of lens, pivot lamp
assembly for access to rear end.

2. Exercising care to avoid dama ging paintwork, use a small
screwdriver to press and re lease rear retaining clip.

3. Withdraw lamp from bumper for access and disconnect harness connector.
1. Position lamp at bumper ap erture and connect harness
connector.
2. Engage front end tang of lamp in bumper aperture.
3. Pivot lamp assembly and firmly seat rear retaining clip in
bumper aperture.

Exterior Lighting - Rear Side Marker Lamp Bulb
Removal and Installation
Removal

1. Applying firm thumb pressure to front of lens, pivot lamp
assembly for access to rear end.

2. Exercising care to avoid dama ging paintwork, use a small
screwdriver to press and re lease rear retaining clip.

3. Withdraw lamp from bumper for access and disconnect harness connector.

4. Rotate bulb holder 1/4 turn counter-clockwise to release it
from lamp assembly.
5. Withdraw bulb from holder.

Installation



1. Install bulb in holder.
2. Install bulb and bulb holder in lamp assembly and rotate 1/4
turn clockwise to seat and retain.
3. Position lamp at bumper ap erture and connect harness
connector.
4. Engage front end tang in bumper aperture.
5. Pivot lamp assembly and firmly seat rear retaining clip in
bumper aperture.

Exterior Lighting - Side Lamp/Front Turn Signal Lamp
Removal and Installation
Removal
Installation



1. Applying firm hand pressure to inner end, pivot indicator lamp
assembly for access to outer end.

2. Exercising care to avoid dama ging paintwork, use a small
screwdriver at outer end of lamp, to press and release retaining clip.

3. Withdraw lamp from bumper for access and disconnect harness multiplug.
1. Position direction indicator la mp at bumper aperture and
connect harness multiplug.
2. Engage inner end tang of lamp in bumper aperture.
3. Pivot lamp assembly and firmly seat outer retaining clip in
bumper aperture.
