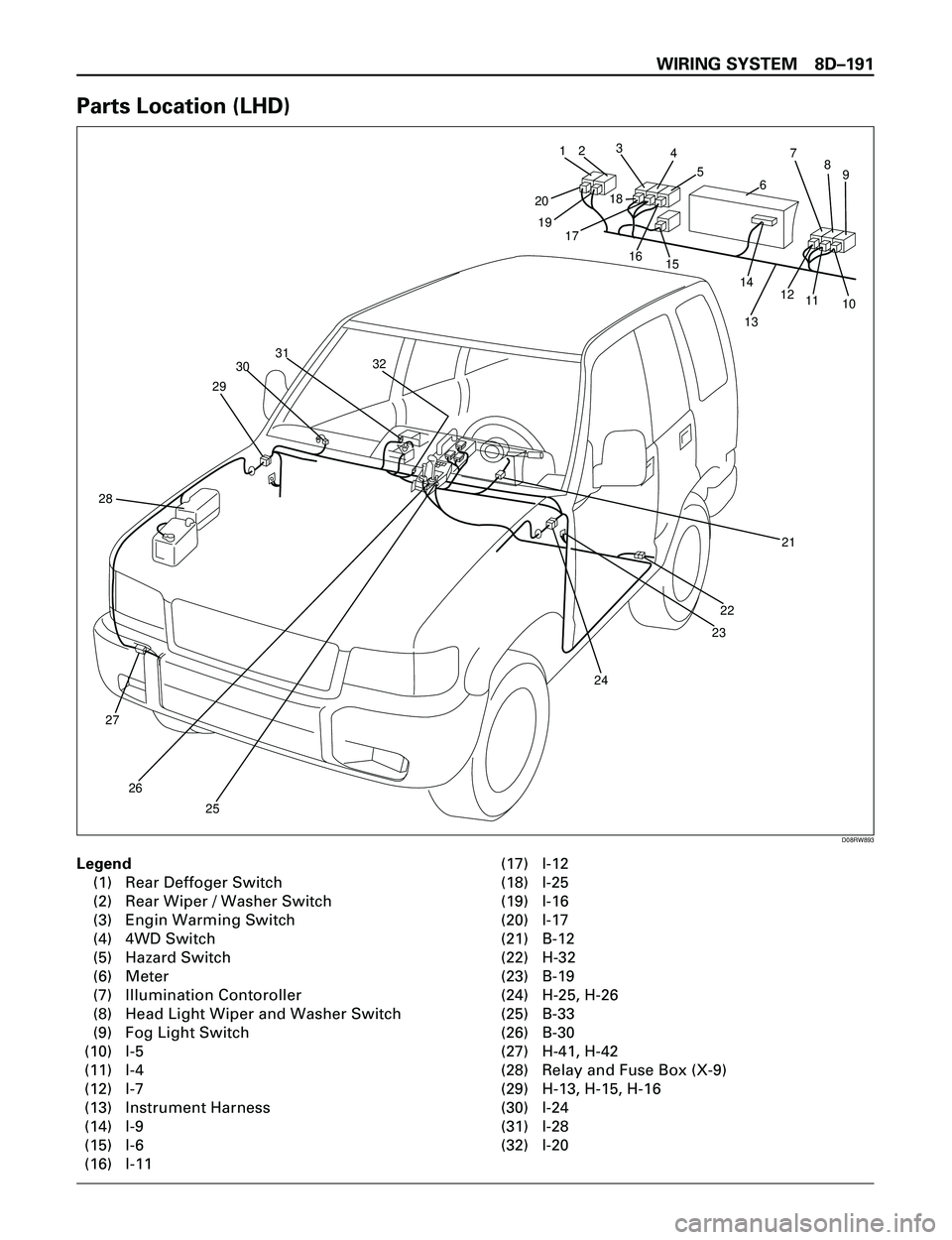

WIRING SYSTEM 8DÐ191
Parts Location (LHD)
Legend
(1) Rear Deffoger Switch
(2) Rear Wiper / Washer Switch
(3) Engin Warming Switch
(4) 4WD Switch
(5) Hazard Switch
(6) Meter
(7) Illumination Contoroller
(8) Head Light Wiper and Washer Switch
(9) Fog Light Switch
(10) I-5
(11) I-4
(12) I-7
(13) Instrument Harness
(14) I-9
(15) I-6
(16) I-11(17) I-12
(18) I-25
(19) I-16
(20) I-17
(21) B-12
(22) H-32
(23) B-19
(24) H-25, H-26
(25) B-33
(26) B-30
(27) H-41, H-42
(28) Relay and Fuse Box (X-9)
(29) H-13, H-15, H-16
(30) I-24
(31) I-28
(32) I-20
2322
27
26
2521 283031
325
6
14
137
12
10 8
9
18
17 20
15 164 3
24
11
29
1912
D08RW893

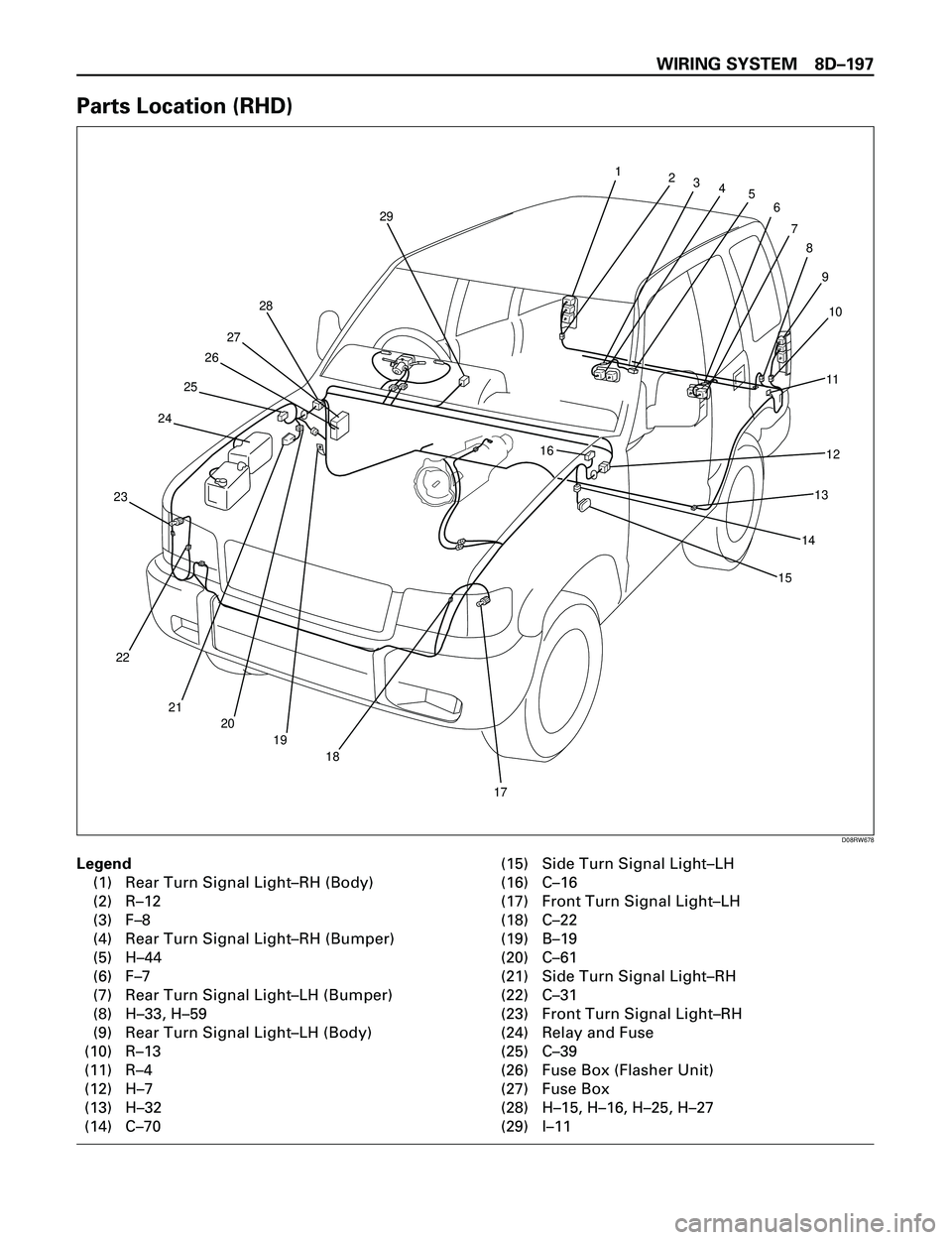

WIRING SYSTEM 8DÐ197
Parts Location (RHD)
Legend
(1) Rear Turn Signal LightÐRH (Body)
(2) RÐ12
(3) FÐ8
(4) Rear Turn Signal LightÐRH (Bumper)
(5) HÐ44
(6) FÐ7
(7) Rear Turn Signal LightÐLH (Bumper)
(8) HÐ33, HÐ59
(9) Rear Turn Signal LightÐLH (Body)
(10) RÐ13
(11) RÐ4
(12) HÐ7
(13) HÐ32
(14) CÐ70(15) Side Turn Signal LightÐLH
(16) CÐ16
(17) Front Turn Signal LightÐLH
(18) CÐ22
(19) BÐ19
(20) CÐ61
(21) Side Turn Signal LightÐRH
(22) CÐ31
(23) Front Turn Signal LightÐRH
(24) Relay and Fuse
(25) CÐ39
(26) Fuse Box (Flasher Unit)
(27) Fuse Box
(28) HÐ15, HÐ16, HÐ25, HÐ27
(29) IÐ11
12
3
4
5
6
7
8
9
10
11
12
13
14
15 16
17
18
19
20
21
22
23
24
25
262728
29
D08RW678

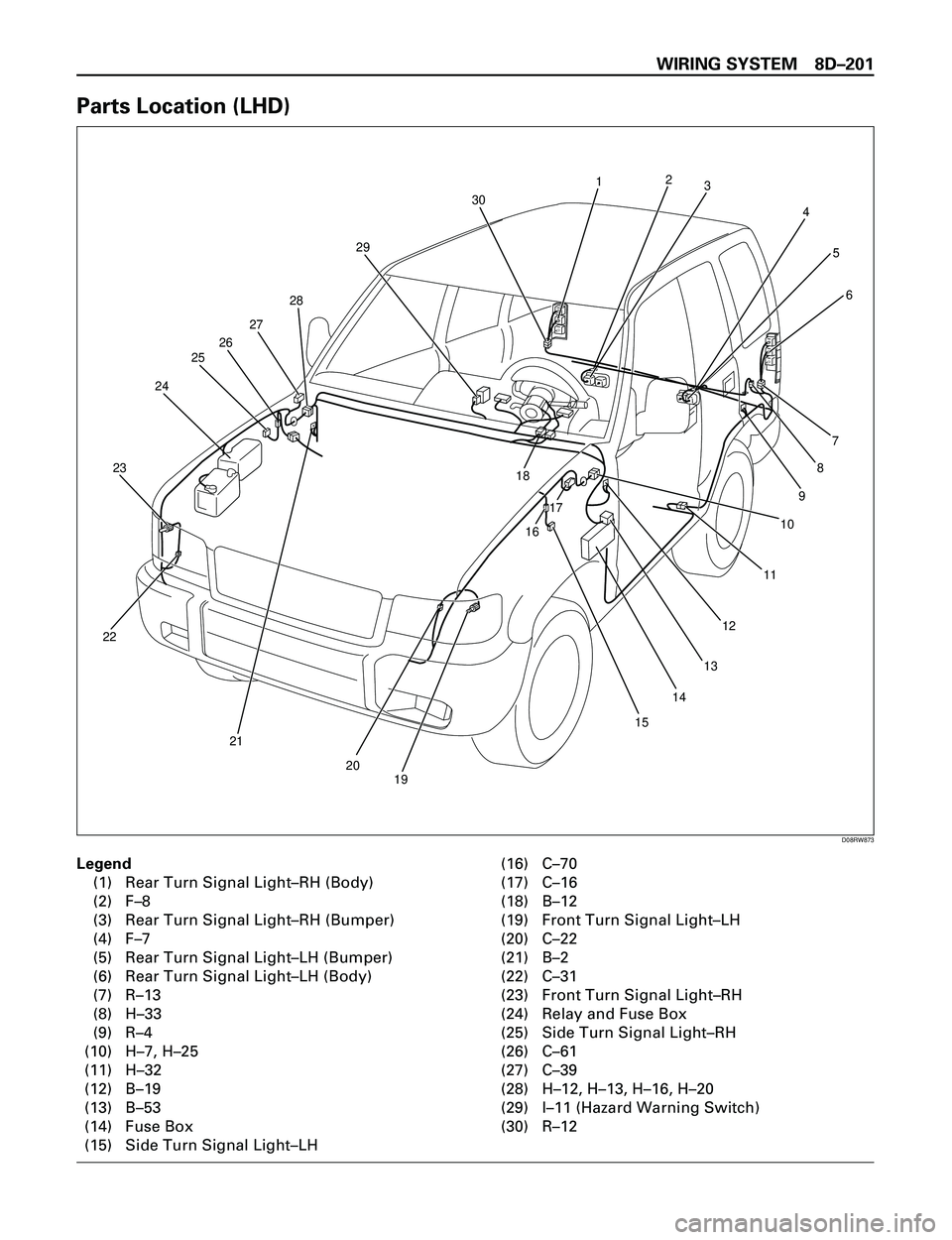

WIRING SYSTEM 8DÐ201
Parts Location (LHD)
2324
2526
27
28
29
30
123
4
5
6
8
10
1617
18
19 20
22
21
11
12
13
14
15
9
7
D08RW873
Legend
(1) Rear Turn Signal LightÐRH (Body)
(2) FÐ8
(3) Rear Turn Signal LightÐRH (Bumper)
(4) FÐ7
(5) Rear Turn Signal LightÐLH (Bumper)
(6) Rear Turn Signal LightÐLH (Body)
(7) RÐ13
(8) HÐ33
(9) RÐ4
(10) HÐ7, HÐ25
(11) HÐ32
(12) BÐ19
(13) BÐ53
(14) Fuse Box
(15) Side Turn Signal LightÐLH(16) CÐ70
(17) CÐ16
(18) BÐ12
(19) Front Turn Signal LightÐLH
(20) CÐ22
(21) BÐ2
(22) CÐ31
(23) Front Turn Signal LightÐRH
(24) Relay and Fuse Box
(25) Side Turn Signal LightÐRH
(26) CÐ61
(27) CÐ39
(28) HÐ12, HÐ13, HÐ16, HÐ20
(29) IÐ11 (Hazard Warning Switch)
(30) RÐ12

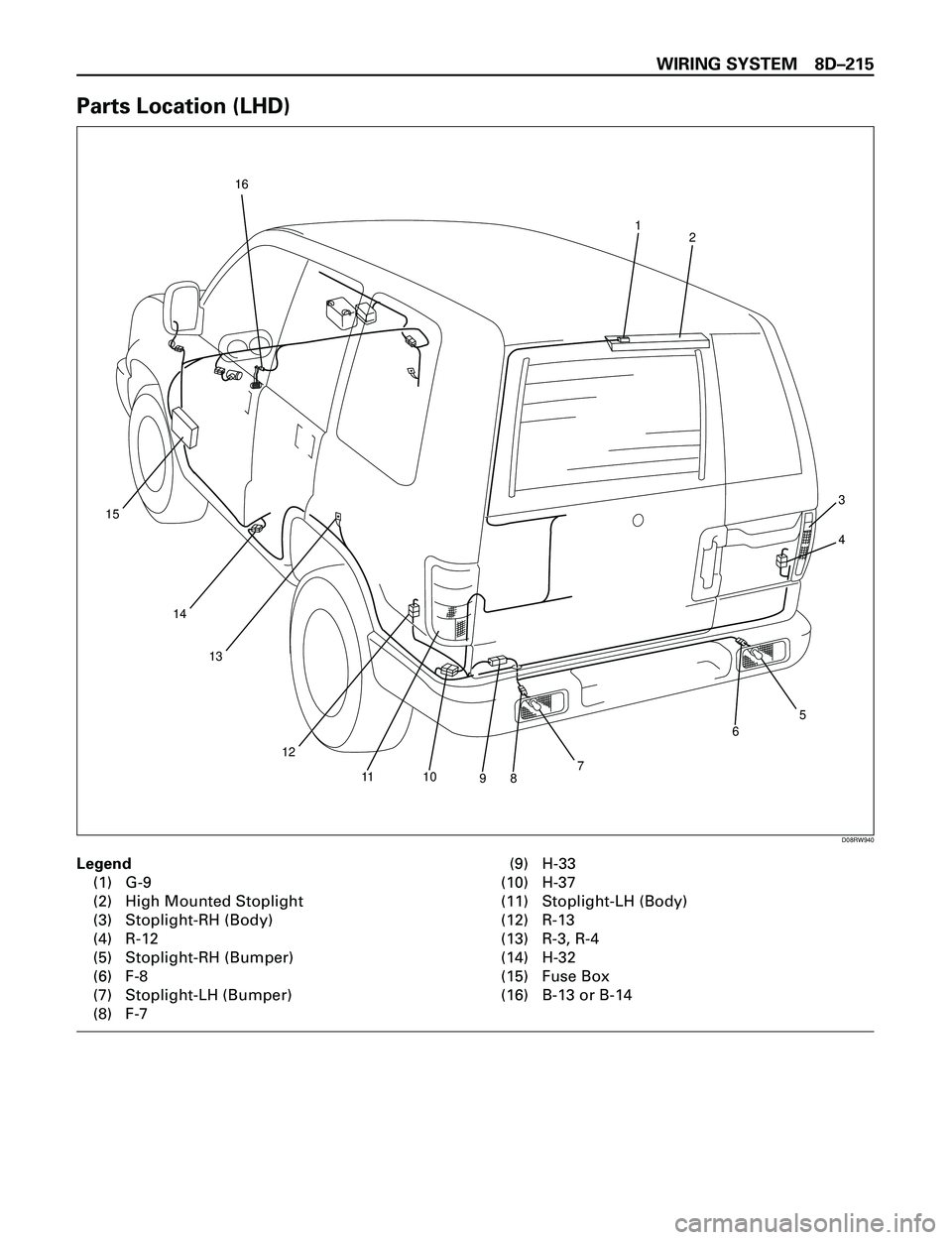

WIRING SYSTEM 8DÐ215
Parts Location (LHD)
12
3
4
5
7
6
891011
12
13
14
1516
D08RW940
Legend
(1) G-9
(2) High Mounted Stoplight
(3) Stoplight-RH (Body)
(4) R-12
(5) Stoplight-RH (Bumper)
(6) F-8
(7) Stoplight-LH (Bumper)
(8) F-7(9) H-33
(10) H-37
(11) Stoplight-LH (Body)
(12) R-13
(13) R-3, R-4
(14) H-32
(15) Fuse Box
(16) B-13 or B-14

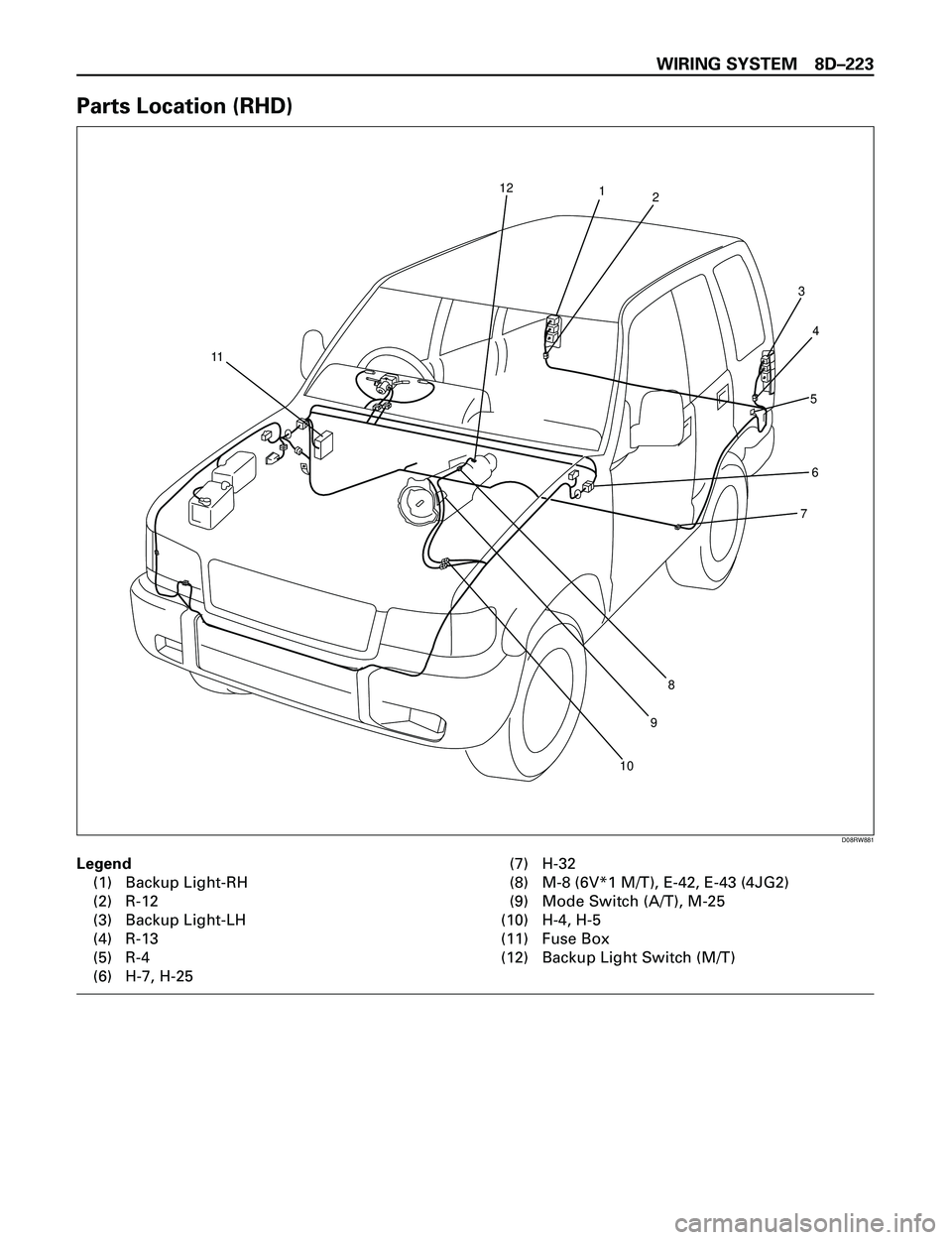

WIRING SYSTEM 8DÐ223
Parts Location (RHD)
Legend
(1) Backup Light-RH
(2) R-12
(3) Backup Light-LH
(4) R-13
(5) R-4
(6) H-7, H-25(7) H-32
(8) M-8 (6V*1 M/T), E-42, E-43 (4JG2)
(9) Mode Switch (A/T), M-25
(10) H-4, H-5
(11) Fuse Box
(12) Backup Light Switch (M/T)
1122
4
3
5
6
7
8
9
10
11
D08RW881

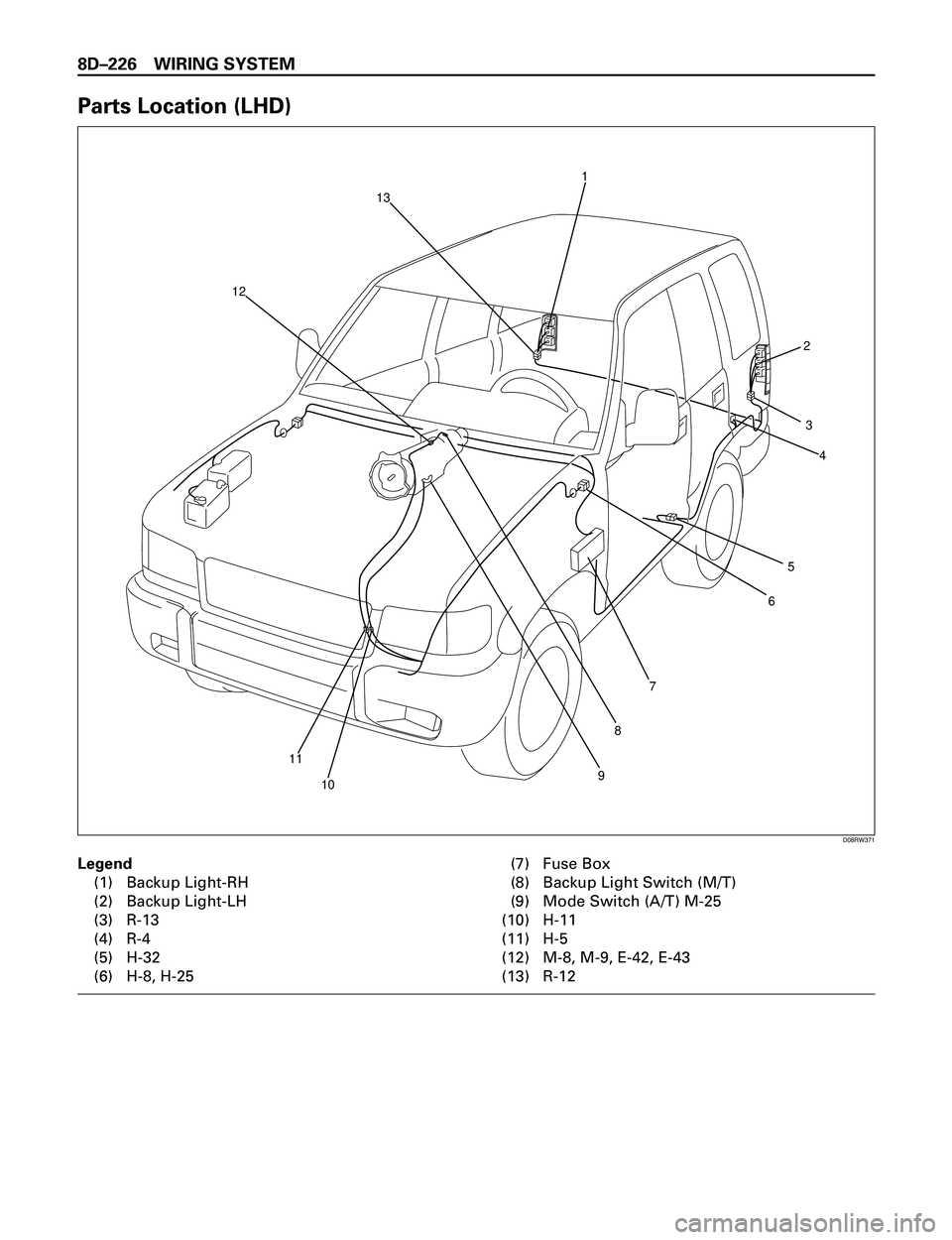

8DÐ226 WIRING SYSTEM
Parts Location (LHD)
Legend
(1) Backup Light-RH
(2) Backup Light-LH
(3) R-13
(4) R-4
(5) H-32
(6) H-8, H-25(7) Fuse Box
(8) Backup Light Switch (M/T)
(9) Mode Switch (A/T) M-25
(10) H-11
(11) H-5
(12) M-8, M-9, E-42, E-43
(13) R-12
11
1087653 2 131
12
9
4
D08RW371

8DÐ232 WIRING SYSTEM
Parts Location (RHD)
Legend
(1) Horn Switch
(2) Horn (Low Note)
(3) C-28
(4) C-27(5) Horn (High Note)
(6) Relay and Fuse Box (X-8)
(7) Fuse Box
(8) H-15, H-16
(9) B-12
54
6
7
8
9
1
3
2
D08RW880

8DÐ234 WIRING SYSTEM
Parts Location (LHD)
Legend
(1) Horn Switch
(2) Fuse Box
(3) B-12
(4) C-28(5) C-27
(6) Horn (High Note)
(7) Horn (Low Note)
(8) Relay and Fuse Box (X-8)
(9) H-12, H-16
1
9
8
7
6
54
32
D08RW398
