1998 CHEVROLET MALIBU Owners Manual

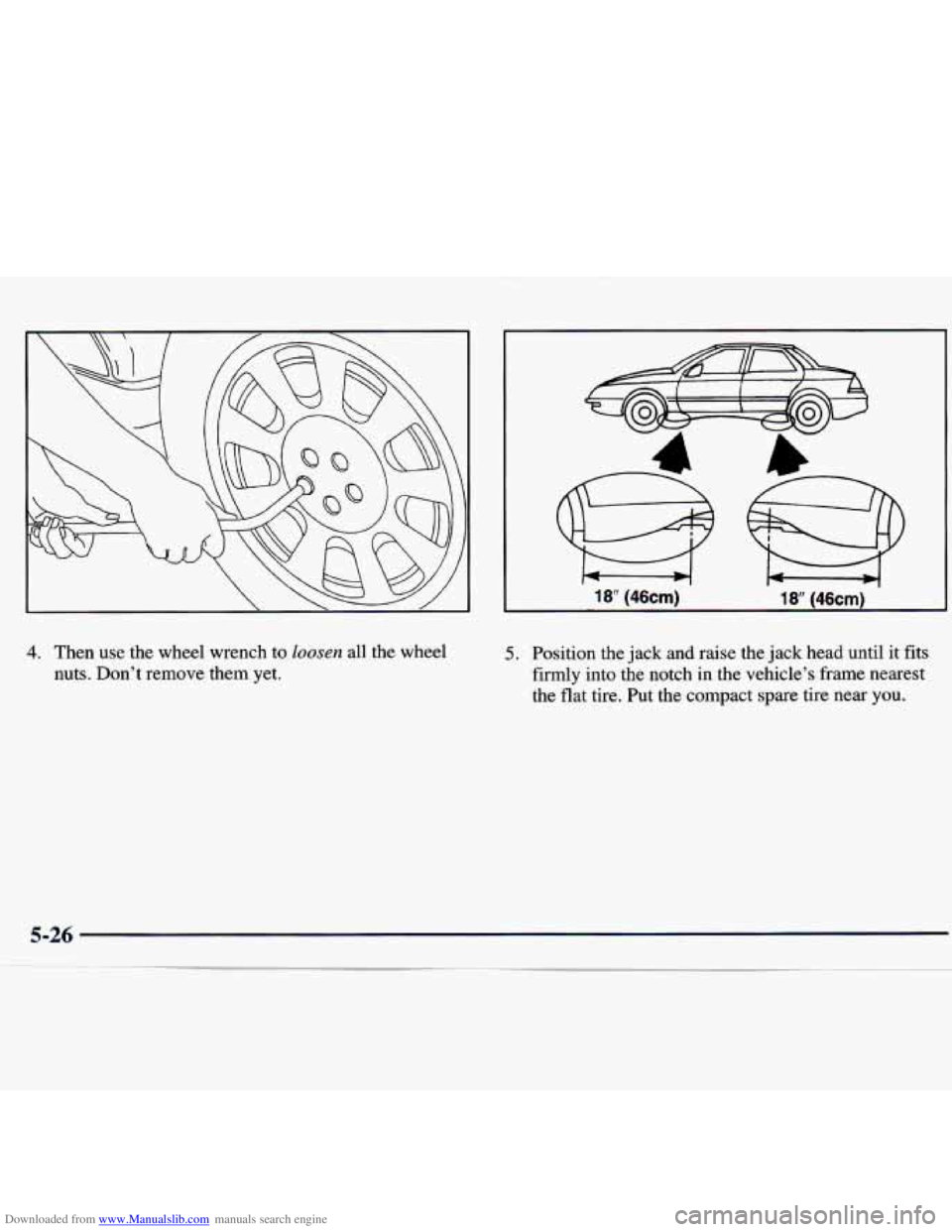

Downloaded from www.Manualslib.com manuals search engine 4. Then use the wheel wrench to loosen all the wheel
nuts. Don’t remove them yet. 5. Position the jack and raise the jack head until it fits
firmly into the notch in the vehicle’s frame nearest
the flat tire. Put the compact spare tire near you.

Downloaded from www.Manualslib.com manuals search engine /rl CAUTION:
W
Getting under a vehicle when it is jacked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by
a jack.
lh CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall.
To help avoid personal
injury and vehicle damage, be sure to fit the jack
lift head into the proper location before raising
the vehicle.
I
6. Raise the vehicle by turning the wheel wrench to the
right. Raise the vehicle far enough
off the ground so
there is enough room for the spare tire to fit.
7. Remove all of the wheel nuts.
8. Then take off the flat tire.

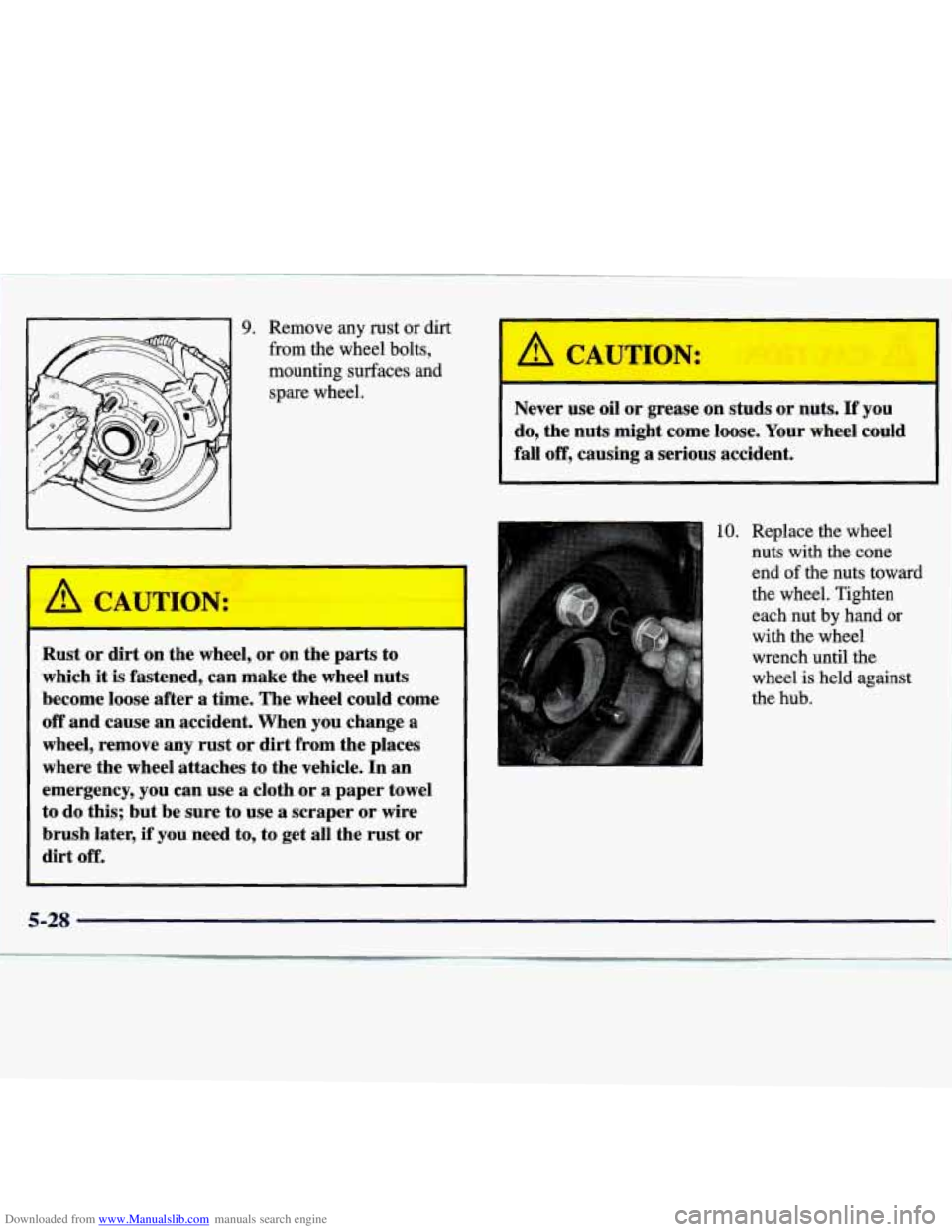

Downloaded from www.Manualslib.com manuals search engine 9. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and spare wheel.
Rust or dirt on the wheel, or on the parts to
which
it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any
rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth
or a paper towel
to do this; but be sure to use a scraper or wire
brush later,
if you need to, to get all the rust or
dirt off.
L
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall
off, causing a serious accident.
10. Replace the wheel
nuts with the cone
end
of the nuts toward
the wheel. Tighten
each nut by hand or
with the wheel
wrench until the
wheel
is held against
the hub.
5-28

Downloaded from www.Manualslib.com manuals search engine I h
II

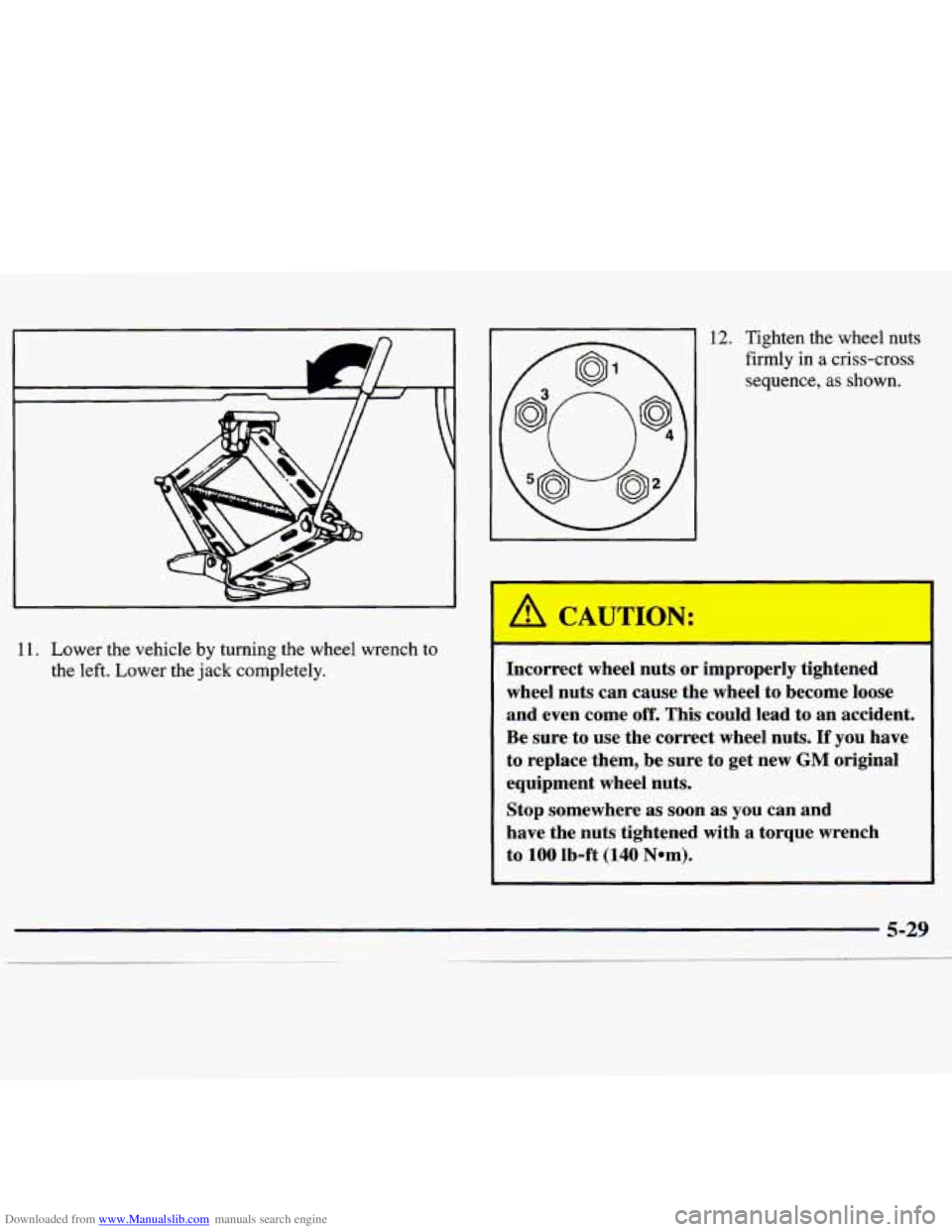

11. Lower the vehicle by turning the wheel wrench to
the left. Lower the jack completely.
AC
12. Tighten the wheel nuts
firmly in a criss-cross
sequence, as shown.
LUTION:
1
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts.
If you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere
as soon as you can and
have the nuts tightened with a torque wrench
to
100 lb-ft (140 Nom).

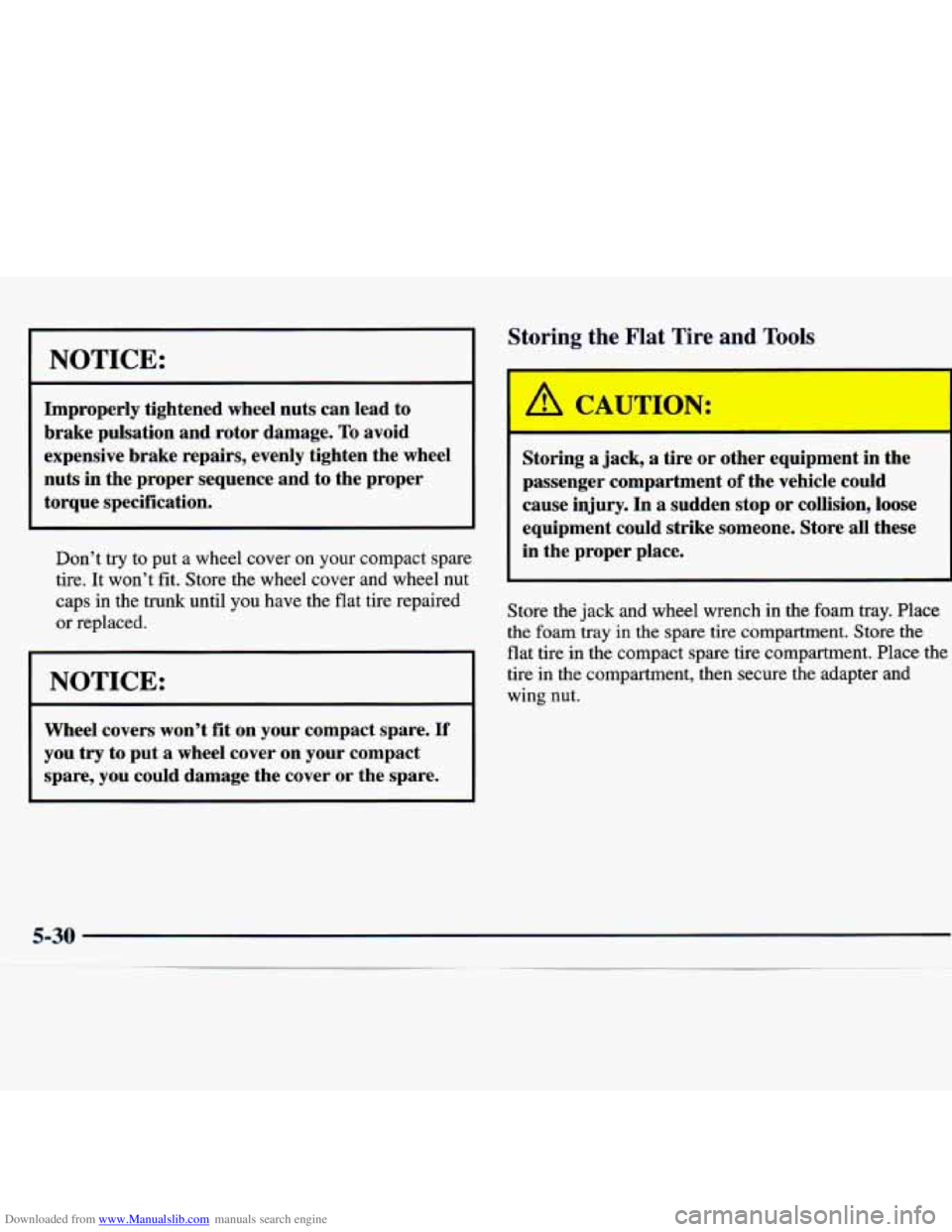

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage,
To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and
to the proper
torque specification.
Don't try to put a wheel cover on your compact spare
tire.
It won't fit. Store the wheel cover and wheel nut
caps
in the trunk until you have the flat tire repaired
or replaced.
I NOTICE:
Wheel covers won't fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
Storing the Flat Tire and Tools
I A CAUTION:
F-- -
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury, In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
Store the jack and wheel wrench in the foam tray. Place
the foam tray
in the spare tire compartment. Store the
flat tire in the compact spare tire compartment. Place the
tire in the compartment, then secure the adapter and
wing nut.

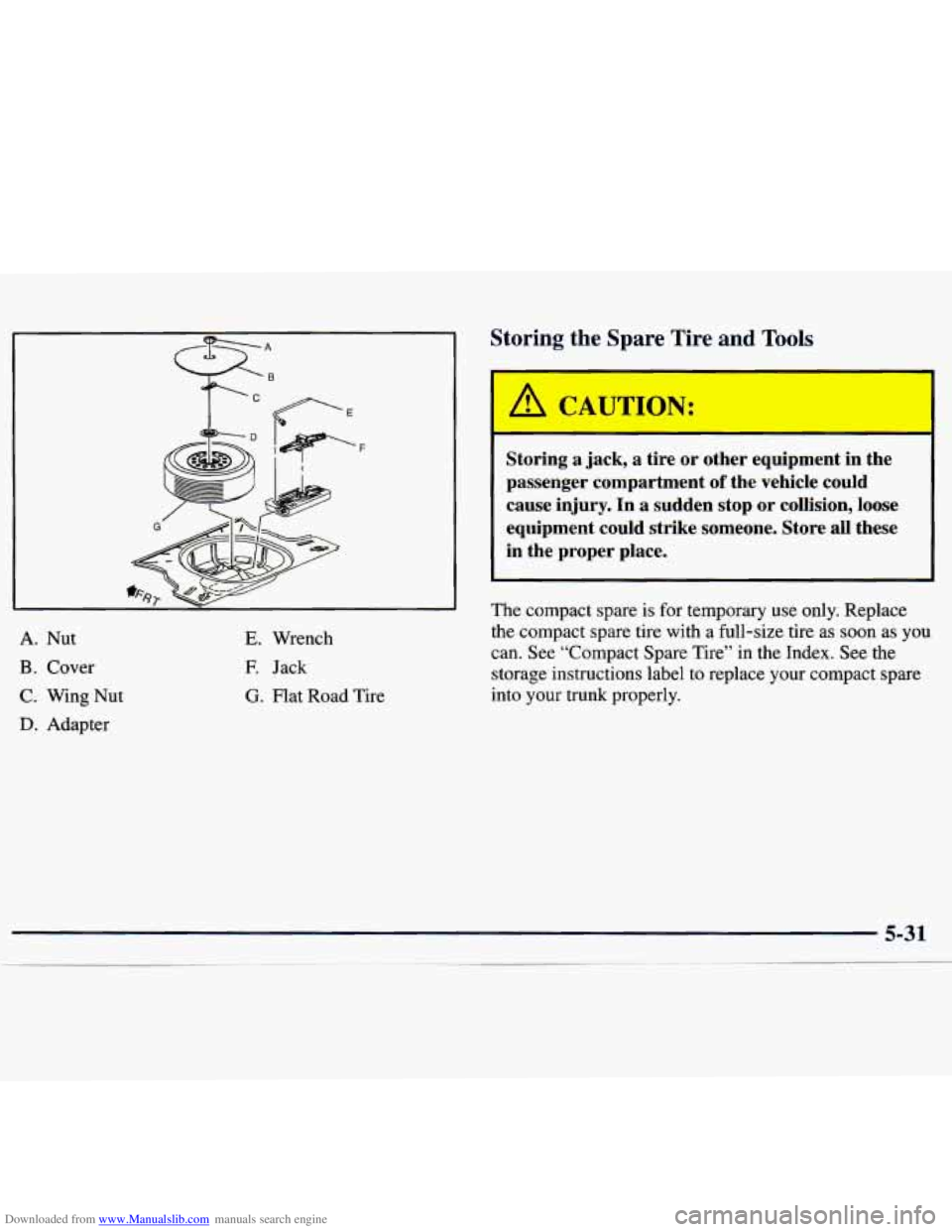

Downloaded from www.Manualslib.com manuals search engine A. Nut
B. Cover
C. Wing Nut
D. Adapter
E. Wrench
E Jack
G. Flat Road Tire
Storing the Spare Tire and Tools
r
A CAUTION:
-
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury. In a sudden stop or collision,
loose
equipment could strike someone. Store all these
in the proper place.
The compact spare is for temporary use only. Replace
the compact spare tire with
a full-size tire as soon as you
can. See “Compact Spare Tire” in the Index. See the
storage instructions label to replace your compact spare
into your trunk properly.
I

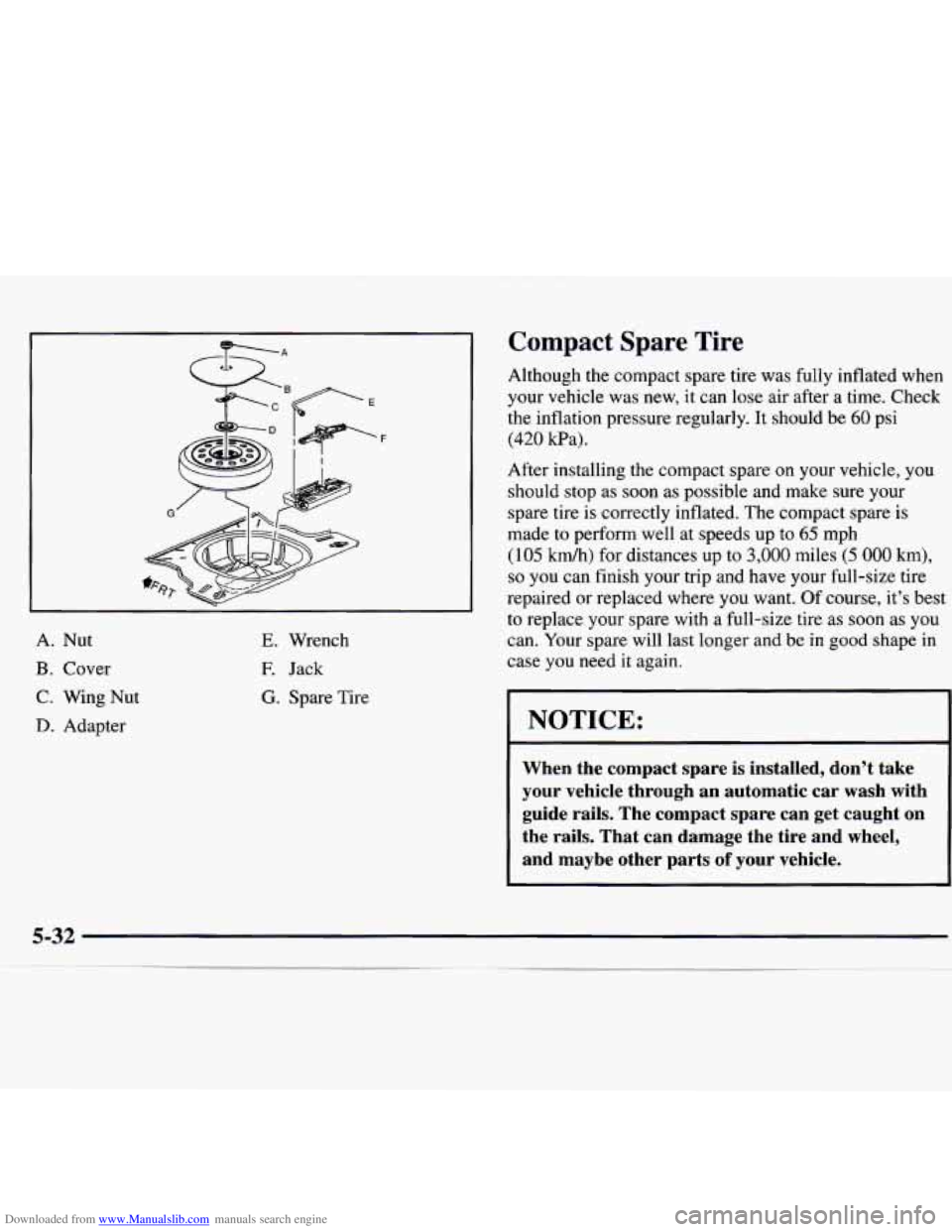

Downloaded from www.Manualslib.com manuals search engine ‘F
A. Nut
B. Cover
C. Wing Nut
D. Adapter
E. Wrench
E Jack
G. Spare Tire
Compact Spare Tire
Although the compact spare tire was fully inflated when
your vehicle was new, it can lose air after a time. Check
the inflation pressure regularly.
It should be 60 psi
(420 kPa).
After installing the compact spare on your vehicle, you
should stop as soon as possible and make sure your
spare tire is correctly inflated. The compact spare is
made to perform well at speeds up to 65 mph
(105 kdh) for distances up to
3,000 miles (5 000 km),
so you can finish your trip and have your full-size tire
repaired or replaced where you want. Of course, it’s best
to replace your spare with a full-size tire as soon as you
can. Your spare will last longer and be in good shape in
case you need it again.
I NOTICE:
When the compact spare is installed, don’t take
your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts
of your vehicle.

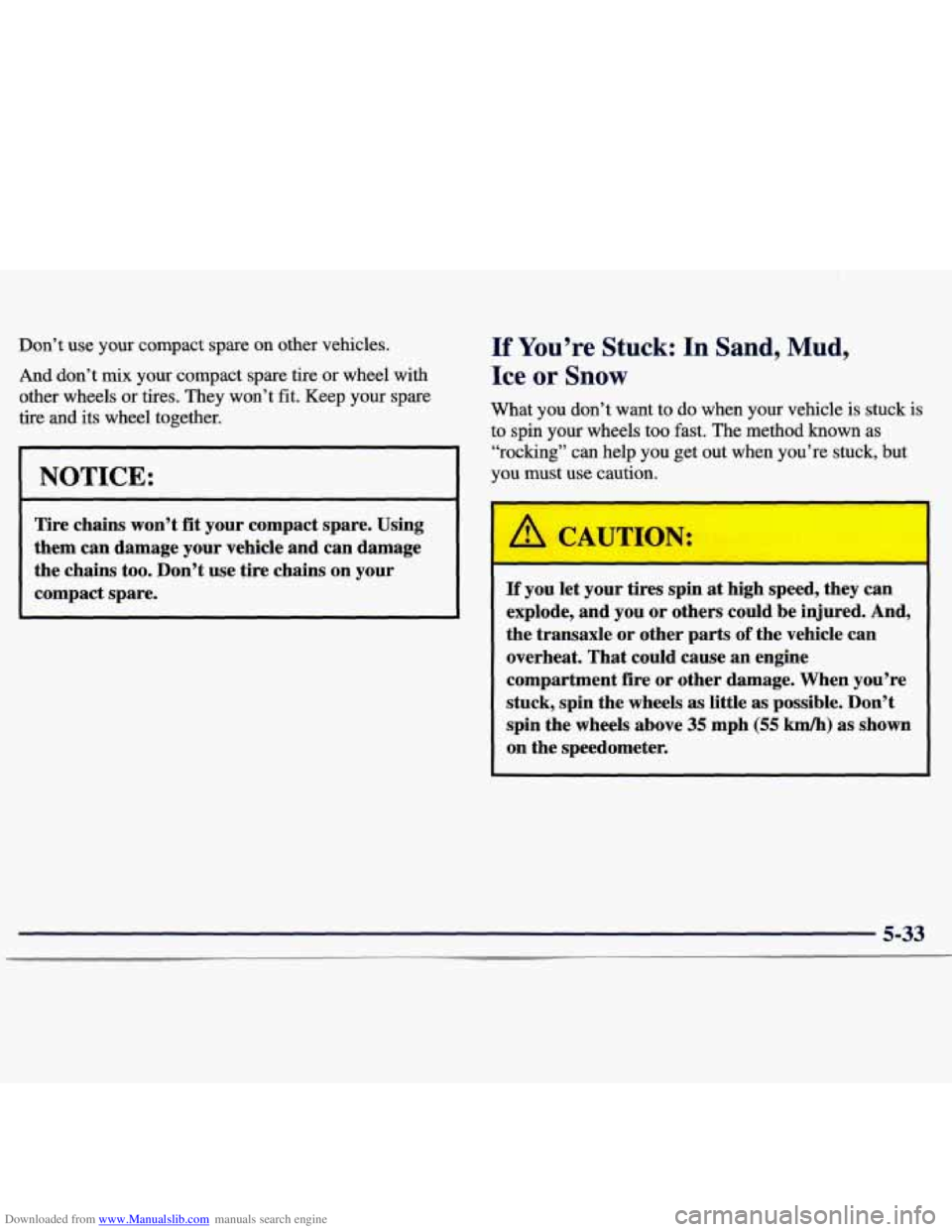

Downloaded from www.Manualslib.com manuals search engine Don’t use your compact spare on other vehicles.
And don’t
mix your compact spare tire or wheel with
other wheels
or tires. They won’t fit. Keep your spare
tire and its wheel together.
NOTICE:
Tire chains won’t fit your compact spare. Using
them can damage your vehicle and can damage
the chains
too. Don’t use tire chains on your
compact spare.
If You’re Stuck: In Sand, Mud,
Ice
or Snow
What you don’t want to do when your vehicle is stuck is
to spin
your wheels too fast. The method known as
“rocking” can help you get out when you’re stuck, but
you must
use caution.
If you let your tires spin at high speed, they can
explode, and you or others could be injured. And,
the transaxle or other parts
of the vehicle can
overheat. That could cause an engine
compartment fire or other damage. When you’re
stuck, spin the
wheels as little as possible. Don’t
spin the wheels above 35 mph (55 km/h) as shown
on the speedometer.
- - -
5-33
