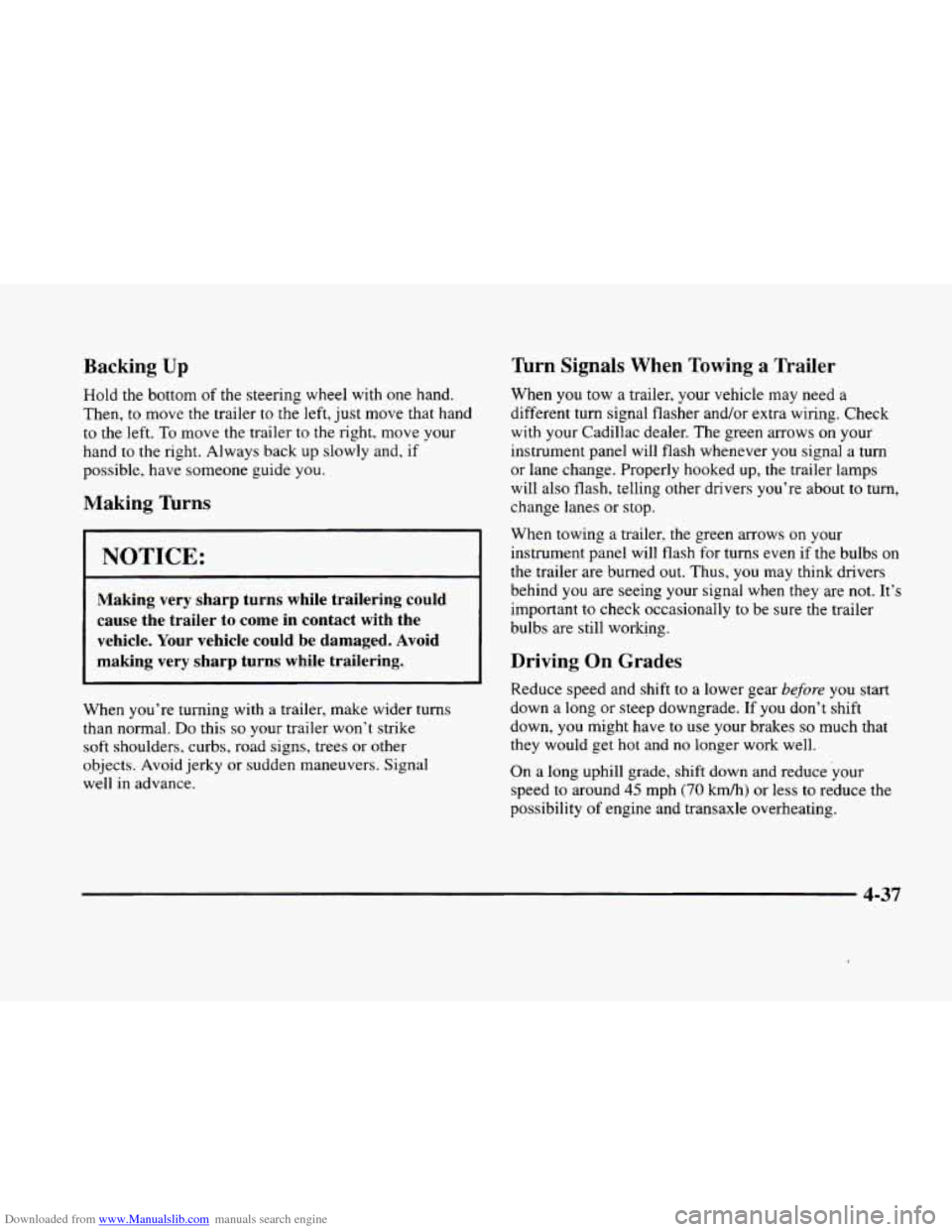

Downloaded from www.Manualslib.com manuals search engine Backing Up Turn Signals When Towing a Trailer
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer
to the left, just move that hand
to
the left. To move the trailer to the right, move your
hand
to the right. Always back up slowly and, if
possible, have someone guide you.
Making Turns
I NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns
than normal.
Do this so your trailer won’t strike
soft shoulders, curbs, road signs, trees or other
objects. Avoid jerky or sudden maneuvers. Signal
well in advance. When you tow
a trailer,
your vehicle may need a
different
turn signal flasher and/or extra wiring. Check
with your Cadillac dealer. The green arrows
on your
instrument panel will flash whenever
you signal a turn
or lane change. Properly hooked up, the trailer lamps
will also flash, telling other drivers you’re about to turn,
change lanes or stop.
When towing a trailer, the green arrows on your
instrument panel will flash for turns even if the bulbs on
the trailer are burned
out. Thus, you may think drivers
behind you are seeing your signal when they are not. It’s
important to check occasionally
to be sure the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If
you don’t shift
down, you might have
to use your brakes so much that
they would get hot and no longer work well.
On a long uphill grade, shift down and reduce your
speed
to around 45 mph (70 kmh) or less to reduce the
possibility
of engine and transaxle overheating.
4-37

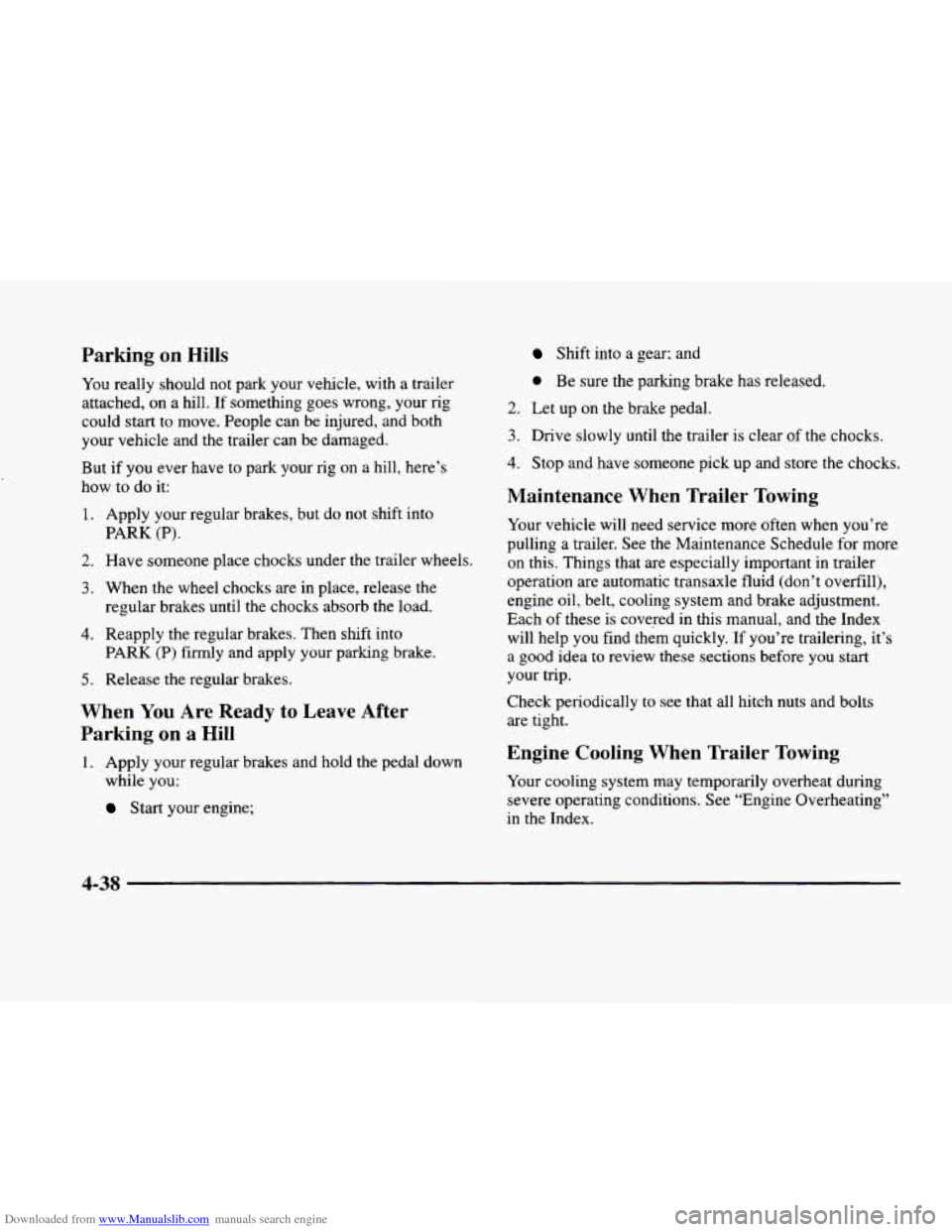

Downloaded from www.Manualslib.com manuals search engine Parking on Hills Shift into a gear; and
a Be sure the parking brake has released.
You really should not park your vehicle, with a trailer
attached, on
a hill. If something goes wrong, your rig
could start
to move. People can be injured, and both
your vehicle and the trailer can be damaged.
But if you ever
have to park your rig on a hill, here’s
how to
do it:
1. Apply your regular brakes, but do not shift into
PARK (P).
2. Have someone place chocks under the trailer wheels.
3. When the wheel chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then shift into
5. Release the regular brakes.
PARK (P) firmly and apply your parking brake.
When You Are Ready to Leave After
Parking on
a Hill
1. Apply your regular brakes and hold the pedal down
while you:
Start your engine;
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. See the Maintenance Schedule for more
on this. Things that are especially important in trailer
operation are automatic transaxle fluid (don’t overfill),
engine oil, belt, cooling system and brake adjustment.
Each
of these is covered in this manual, and the Index
will help you find them quickly. If you’re trailering, it’s
a good idea to review these sections before you start
your trip.
Check periodically
to see that all hitch nuts and bolts
are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat during
severe operating conditions. See “Engine Overheating”
in the Index.
4-38

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Number
Headlamps Composite Inner High Beam
....................... 9005
Outer Low Beam ....................... 9006
Front Turn Signal ..................... 2357 NA
Center High-Mounted Stoplamp (CHMSL) ... 1156
Rear Turn Signal and Taillamp ............. 2057
Capacities and Specifications
Displacement ......... 279 cubic inches (4 565 cc)
Engine Specifications
Type .......................... 4.6L DOHC V8
Eldorado ............................... Y
ETC .................................. 9
VIN Engine Code
Horsepower Eldorado
.............. 275 (bhp) @ 5600 rpm
ETC ................. 300 (bhp) @ 6000 rpm
205 (kWj @ 5600 rprn
224 (kWj @ 6000 rpm Torque
Eldorado
............. 300 (lb-ft) @ 4000 rpm
ETC ................ 295 (lb-ft) @ 4400 rpm
Firing Order
................... 1-2-7-3-4-5-6-8
407
(N-m)
@ 4000 rpm
400 (N-m) @ 4400 rpm
Thermostat Starts
To Open . . 177-184°F (81-85°C)
Capacities
Crankcase (Engine Oil
Transaxle (4T80-E) .......... 15 quarts (14.2 Lj
with Filter Change) ........... 7.5 quarts (7.1 L)
Engine Cooling System
........ 12.5 quarts ( 1 1.8 L)
R- 134a Refrigerant .............. 2 lbs. (0.91 kg)
Wheel Base
............... 108 inches (274.3 cm)
Length
................. 200.2 inches (508.6 cm)
Height
................... 53.6 inches ( 136.2 cm)
Fuel Tank
....... : ........... 20 gallons
(75.7 L)
Vehicle Dimensions
Width ................... 75.5 inches (191.8 cmj
Front Tread
............... 60.9 inches (154.7 cm)
6-64

Downloaded from www.Manualslib.com manuals search engine Driver Information Center ........................ 2-70
Driver Information Center Messages
................ 2-7 1
Driver's Outside Auto-Dimming Rearview Mirror ..... 2-48
DriverPosition
................................. 1-12
Driving
City
........................................ 4-20
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-21
InaBlizzard
................................. 4-28
In Foreign Countries ........................... 6-5
In the Rain .................................. 4-18
On Curves
.................................. 4- 1 1
On Grades While Towing a Trailer ............... 4-37
On Hill and Mountain Roads
.................... 4-24
On Snow and Ice
............................. 4-26
Night
...................................... 4-16
Throughwater ............................... 4-20
WetRoads
.................................. 4-18
Winter ...................................... 4-25 With a Trailer ................................ 4-36
DRL ......................................... 2-40
DrunkenDriving
................................ 4-3
Dual Temperature Control
......................... 3-2
Ecc ......................................... 3-2
Electrical Equipment . Adding ........... 2.20. 3.35. 6-55
Electrical System ............................... 6-55
Electrochromic Daymight Rearview Mirror ..... 2.44. 2-45
Electrcnic Climate Control
........................ 3-2
Electronic Level Control ......................... 4-3 I
Electronic Solar Sensor ........................... 3-6
Engine ....................................... 6-10
Compartment Fuse Block ....................... 6-59
Coolant
................................ 6-22, 6-23
Coolant Heater ............................... 2-20
Coolant Hot-Idle Engine Message ................ 2-74
Coolant Temperature Gage
..................... 2-65
Coolant Temperature Wdming Light .............. 2-65
Exhaust ..................................... 3-29
Hot
-- A/C Off Message ....................... 2-74
Identification
................................ 6-55
Misfire
-- Ease Off Gas Pedal Message ........... 2-74
Overheated
. Stop Engine Message ................ 2-74
Overheating ................................. 5-15
Power Reduced Message ....................... 2-74
Running While Parked
......................... 2-30
Specifications
................................ 6-64
Starting Your ................................ 2-19
Engineoil
..................................... 6-11
Adding ..................................... 6-12
Additives
................................... 6-14
Checking ................................... 6-12
Used ....................................... 6-15
What Kind
of Oil to Use ....................... 6-13
Whentochange .............................. 6-14
EnglisNMetric Display .......................... 2-59
Ethanol ........................................ 6-4
Exhaust, Engine
................................ 2-29
Engine
Speed Limiter
............................ 2-60
Express-Down Window .......................... 2-31
Exterior Lighting Battery Saver
.................... 2-42
8-4
