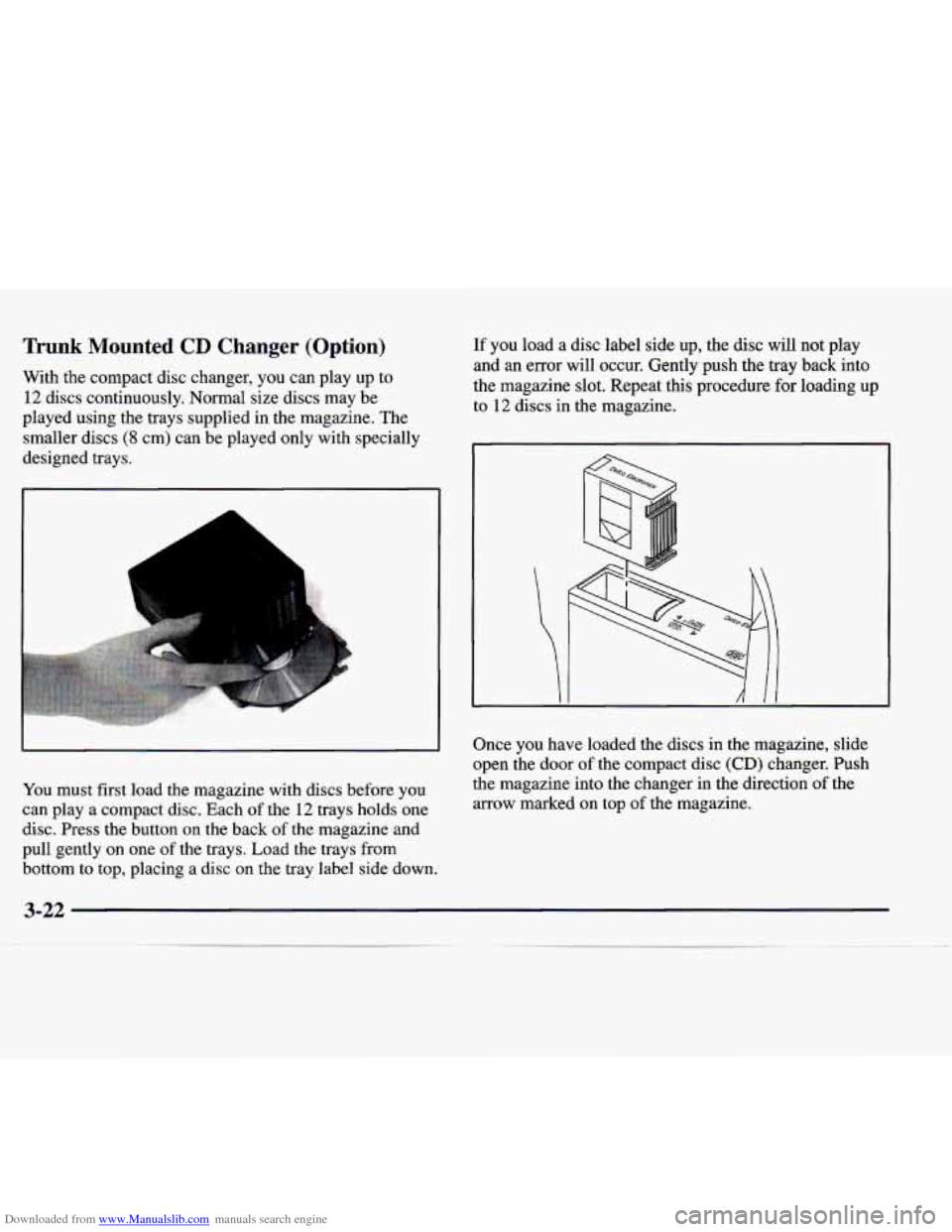

1998 CADILLAC CATERA Owners Manual

Downloaded from www.Manualslib.com manuals search engine Trunk Mounted CD Changer (Option)
With the compact disc changer, you can play up to
12 discs continuously. Normal size discs may be
played using the trays supplied in the magazine. The
smaller discs
(8 cm) can be played only with specially
designed trays.
1 L
.. .... . ..... . ..... . . ". ...... .. . . , .. ..:. :~::::::::. .. , .
1 .-.
You must first load the magazine with discs before you
can play a compact disc. Each
of the 12 trays holds one
disc. Press the button on
the back of the magazine and
pull gently on one of the trays. Load the trays from
If you load a disc label side up, the disc will not play
and an error will occur. Gently push the tray back into
the magazine slot. Repeat this procedure for loading
up
to 12 discs in the magazine.
Once you have loaded the discs in the magazine, slide
open the door of the compact disc
(CD) changer. Push
the magazine into the changer in the direction of the
arrow marked on top
of the magazine.
bottom to top, placing a disc
on the tray label side down.
3-22
~_____ ~

Downloaded from www.Manualslib.com manuals search engine Close the door by sliding it all the way to the left. When
the door
is closed, the changer will begin checking for
discs in the magazine. This will continue for up to one
and a half minutes, depending on the number
of
discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer. Whenever
a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
radio display.
If the CD changer is checking the
magazine for CDs, the CD symbol will flash on the
display until the changer is ready to
play. When a CD
begins playing, a disc and track number will be
displayed. The disc numbers are listed on the front
of
the magazine.
All of the CD functions are controlled by the radio
buttons, except for ejecting the CD magazine.
PUSHBUTTONS: Press buttons one through six to
select compact discs one through six. Press and hold one
of the six pushbuttons until a beep sounds to select
compact discs
7 through 12. These pushbuttons
represent the order of the discs loaded in
the changer.
DSPL: Press and hold this button to see the track
elapsed time. (This button is available on the AM-FM
Stereo with Cassette Tape Player only.)
REV/RW Press and hold this button to reverse quickly
through a track selection.
FF: Press and hold this button to advance quickly
through a track selection.
3-23

Downloaded from www.Manualslib.com manuals search engine If your vehicle is equipped with the AM-FM Stereo with
Cassette Tape Player, use SEEK-TUNE. For all other
audio systems, use TUNE-SEEK.
SEEK-TUNE: Press the right arrow to seek to the next
selection. Press the left arrow to search for the previous
track selection. The sound will mute while seeking.
TUNE-SEEK: When this button is pressed, it has two
positions.
This button works the same, whether it is
pressed to the first or second position. Press
this button to
seek to the next or previous selection on
the compact disc.
SCAN: Press this button. You will hear the first few
seconds of the first track on each disc. Press this button
again to stop scanning. (This button is available
on the
AM-FM Stereo with Cassette Tape Player only.)
TRACK SCAN: Press SCAN for less than two seconds.
You will hear the first few seconds of each track on a
disc. Press SCAN again to stop TRACK SCAN. The CD
will mute while scanning and SCAN will appear on the
display. (This function
is not available on the AM-FM
Stereo with Cassette Tape Player.)
DISC SCAN: Press SCAN for more than two seconds.
You will hear the first few seconds
of the first track on
each disc. Press SCAN again to stop DISC SCAN.
The CD will mute while scanning and SCAN will
appear on the display. (This function is not available on
the
AM-FM Stereo with Cassette Tape Player.)
a al
RDM: Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on
the display. Press TUNE-SEEK while RDM is on the
display to randomly seek through discs. Press RDM
again to turn off random play. (This button is not
available on the AM-FM Stereo with Cassette
Tape Player.)
SIDE: Press this button to select the next disc in the
changer.
If your vehicle is equipped with the AM-FM
Stereo with Cassette Tape Player, CD and the disc nmber
will appear on the display each time you press
this button.
If your vehicle is equipped with any other audio system,
DISC
LOADING will appear on the display and the disc
number on the radio display will
go to that of the next
available CD each time you press
this button.
SOURCE: Press this button to select a source. The
audio source must be loaded to play. If none of the audio
sources are loaded, NO SOURCE LOADED will appear
on the display. Press this button again or BAND to
switch back to the radio. (CD will be displayed for a few
seconds instead on the AM-FM Stereo with Cassette
Tape Player, then the radio will play.)
EJECT: Slide the CD changer door all the way open
and the disc holder will automatically eject.
3-L4

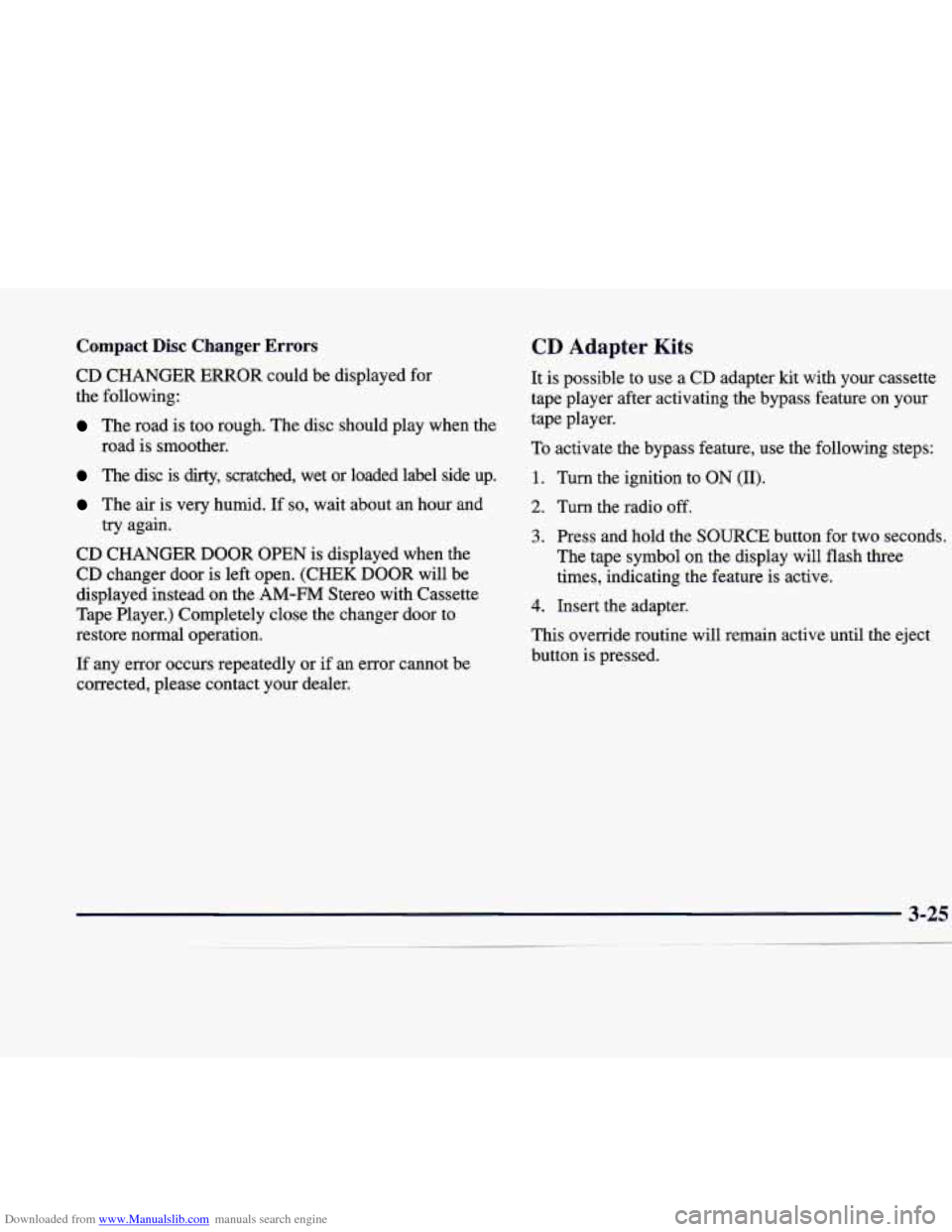

Downloaded from www.Manualslib.com manuals search engine Compact Disc Changer Errors
CD CHANGER ERROR could be displayed for
the following:
The road is too rough. The disc should play when the
The disc is dxty, scratched, wet or loaded label side up.
road is
smoother.
The air is very humid. If so, wait about an hour and
CD CHANGER DOOR OPEN is displayed when the
CD changer door is left open. (CHEK DOOR will be
displayed instead on the
AM-FM Stereo with Cassette
Tape Player.) Completely close the changer door to
restore normal operation.
try again.
If any error
occurs repeatedly or if an error cannot be
corrected, please contact your dealer.
CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature on your
tape player.
To activate the bypass feature,
use the following steps:
1. Turn the ignition to ON (11).
2. Turn the radio off.
3. Press and hold the SOURCE button for two seconds.
The tape symbol on the display will flash three
times, indicating the feature
is active.
4. Insert the adapter.
This override routine will remain active until the eject
button is pressed.

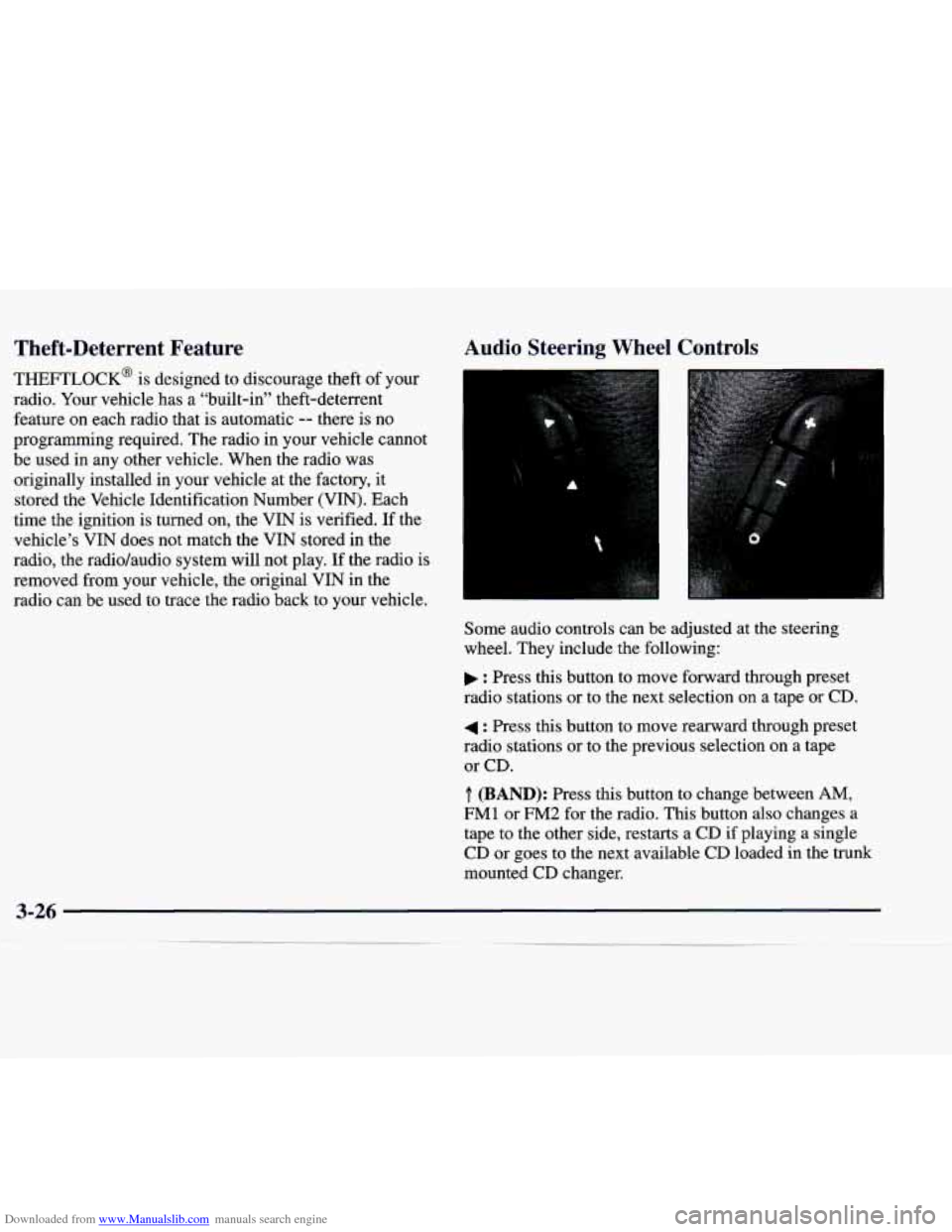

Downloaded from www.Manualslib.com manuals search engine Theft-Deterrent Feature
THEFTLOCK@ is designed to discourage theft of your
radio. Your vehicle has a “built-in” theft-deterrent
feature
on each radio that is automatic -- there is no
programming required. The radio in your vehicle cannot
be used in any other vehicle. When the radio was
originally installed in your vehicle at the factory, it
stored the Vehicle Identification Number (VIN). Each
time the ignition is turned on, the VIN is verified. If the
vehicle’s VIN does
not match the VIN stored in the
radio, the radio/audio system will not play. If the radio is
removed from your vehicle, the original
VIN in the
radio can be used to trace the radio back to your vehicle.
Audio Steering Wheel Controls
Some audio controls can be adjusted at the steering
wheel. They include the following:
: Press this button to move forward through preset
radio stations or to the next selection on a tape
or CD.
4 : Press this button to move rearward through preset
radio stations or to the previous selection
on a tape
or CD.
.T. (BAND): Press this button to change between AM,
FM1 or FM2 for the radio. This button also changes a
tape to the other side, restarts a
CD if playing a single
CD or goes to the next available
CD loaded in the trunk
mounted CD changer.

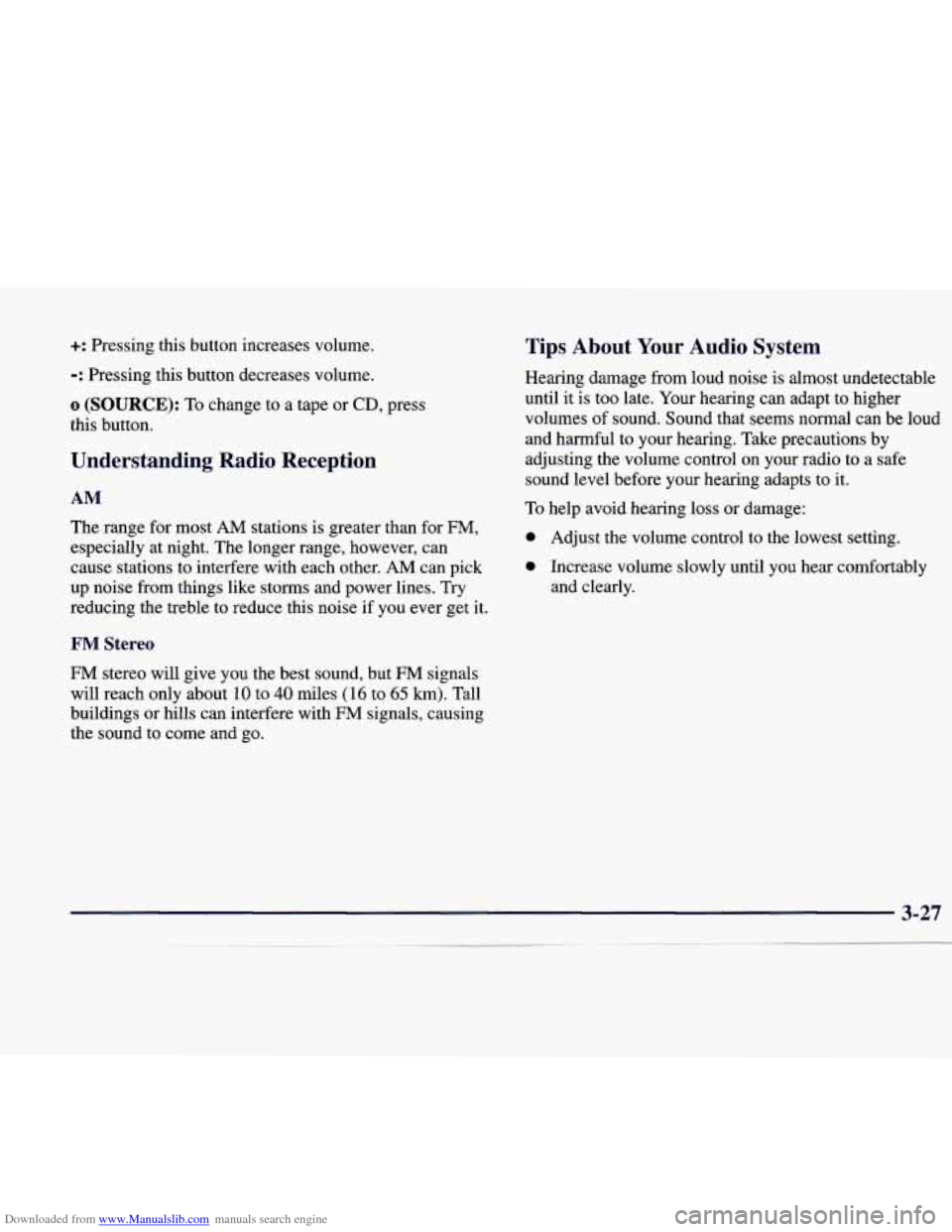

Downloaded from www.Manualslib.com manuals search engine +: Pressing this button increases volume.
-: Pressing this button decreases volume.
o (SOURCE): To change to a tape or CD, press
this button.
Understan hg Radio Reception Tips About Your Audio System
Hearing
damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be loud
and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts to it.
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations
to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise
if you ever get it.
FM Stereo
EM stereo will give you the best sound, but FM signals
will reach only about
10 to 40 miles (1 6 to 65 km). Tall
buildings or hills can interfere with
FM signals, causing
the sound to come and go. To
help avoid hearing loss or damage:
0 Adjust the volume control to the lowest setting.
0 Increase volume slowly until you hear comfortably
and clearly.

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two-way radio
-- be sure you can
add what you want.
If you can, it’s very
important to do it properly. Added sound
equipment may interfere with the operation
of
your vehicle’s engine, radio or other systems, and
even damage them. Your vehicle’s systems may
also interfere with the operation
of sound
equipment that has been added improperly.
So, before adding sound equipment, check with
your dealer and be sure to check Federal rules
covering mobile radio and telephone units.
Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight and
extreme heat. If they aren’t, they may not operate
properly or may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN or
CLEAN
TAPE to indicate that you have used your tape
player for
50 hours without resetting the tape clean
timer.
If this message appears on the display, your
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean
it as soon as possible to
prevent damage to your tapes and player.
If you notice a
reduction in sound quality,
try a known good cassette to
see if it
is the tape or the tape player at fault. If this other
cassette has no improvement in sound quality, clean the
tape player.
The recommended cleaning method for your cassette
tape player is the use
of a scrubbing action,
non-abrasive cleaning cassette with pads which scrub
the tape head as the hubs of the cleaner cassette turn.
The recommended cleaning cassette is available through
your dealership
(GM Part No. 12344789).
3-28

Downloaded from www.Manualslib.com manuals search engine When using a scrubbing action, non-abrasive cleaning
cassette, it
is normal for the cassette to eject because
your unit is equipped with a cut tape detection feature
and a cleaning cassette may appear as
a broken tape. To
prevent the cleaning cassette from being ejected, use the
following steps.
1. Turn the ignition to ON (11).
2. Turn the radio off.
3. Press and hold the SOURCE button for two seconds.
The tape symbol on the display will flash three times.
4. Turn the radio on and insert the scrubbing action
cleaning cassette.
5. Eject the cleaning cassette after the manufacturer's
recommended cleaning time.
When the cleaning cassette has been ejected, the
cut tape
detection feature is active again.
You may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type of cleaning cassette will not
eject on its own. A non-scrubbing action cleaner may
not clean as thoroughly as the scrubbing type cleaner.
The use of a non-scrubbing action, dry-type cleaning
cassette is not recommended. If your vehicle is
equipped with the
AM-FM Stereo with
Cassette Tape Player, press and hold the eject button for
five seconds to reset the CLN indicator after you clean
the player. The radio will display
--- to show the
indicator was reset.
If your vehicle is equipped with the AM-FM Stereo with
Cassette Tape and Compact Disc Player with Radio Data
Systems
(RDS), press and hold the eject button for three
seconds to reset the CLEAN TAPE indicator after you
clean the player. The radio will display CLEAN TAPE
MSG CLEARED to show the indicator was reset.
Cassettes are subject to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is in good condition before you have your tape
player serviced.
