1997 SUBARU LEGACY ignition

I: TROUBLE CODE 33
DIAGNOSIS:
Airbag module is inflated.
1. Check if trouble code 33 is indicated.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
terminal, and then wait at least 20 seconds. [W6A0].>
1. CHECK IF TROUBLE CODE 33 IS INDICATED.
Confirm flashing trouble code according to 5-5b [T4A0]
“BASIC DIAGNOSTICS PROCEDURE”.
: Is airbag warning light trouble code 33 indi-
cated?
: Replace airbag control module.
: Clear memory.
28
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
5. Diagnostics Chart with Trouble Code

J: TROUBLE CODE 34
DIAGNOSIS:
Airbag main harness circuit (Passenger) is shorted to
power supply.
Airbag module harness (Passenger) is shorted to power
supply.
Airbag control module is faulty.
1. Airbag main harness inspection
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground ter-
minal and then wait at least 20 seconds.
After 20 seconds elapse, remove instrument panel
lower cover, and disconnect (AB3) and (AB8), (AB9)
and (AB10).
G5M0559
1. AIRBAG MAIN HARNESS INSPECTION
1) Disconnect connector (AB6) from airbag control module
, and connect it to test harness B2
connector (8B).
2) Connect battery ground cable and turn ignition switch
“ON”(engine off).
3) Measure voltage across each test harness B2 connec-
tor (5B) terminal and chassis ground.
: Connector & terminal
(5B) No. 6 (+)—Chassis ground ():
Is voltage less than 1 V?
: Go to next.
: Replace airbag main harness.
: Connector & terminal
(5B) No. 7 (+)—Chassis ground ():
Is voltage less than 1 V?
: Replace airbag control module.
: Replace airbag main harness.
29
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
5. Diagnostics Chart with Trouble Code

K: TROUBLE CODE 41
DIAGNOSIS:
Airbag main harness circuit (Driver) is shorted to ground.
Airbag module harness (Driver) is shorted to ground.
Roll connector circuit is shorted to ground.
Airbag control module is faulty.
1. Airbag main harness inspection
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
After 20 seconds elapse, remove instrument panel
lower cover, and disconnect (AB3) and (AB8), (AB9)
and (AB10).
G5M0559
1. AIRBAG MAIN HARNESS INSPECTION
1) Disconnect connector (AB6) from airbag control module
, and connect it to test harness B2
connector (8B).
2) Measure resistance between test harness B2 connec-
tor (5B) terminals and chassis ground.
: Connector & terminal
(5B) No. 1 (+)—Chassis ground ():
Is resistance more than 200Ω?
: Go to next.
: Replace airbag main harness.
: Connector & terminal
(5B) No. 14 (+)—Chassis ground ():
Is resistance more than 200Ω?
: Replace airbag control module.
: Replace airbag main harness.
30
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
5. Diagnostics Chart with Trouble Code

L: TROUBLE CODE 42
DIAGNOSIS:
Airbag main harness circuit (Passenger) is shorted to
ground.
Airbag module harness circuit (Passenger) is shorted to
ground.
Airbag control module is faulty.
1. Airbag main harness inspection
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
After 20 seconds elapse, remove instrument panel
lower cover, and disconnect (AB3) and (AB8), (AB9)
and (AB10).
G5M0559
1. AIRBAG MAIN HARNESS INSPECTION
1) Disconnect connector (AB6) from airbag control module
, and connect it to test harness B2
connector (8B).
2) Measure resistance between test harness B2 connec-
tor (5B) terminals and chassis ground.
: Connector & terminal
(5B) No. 6 (+)—Chassis ground ():
Is resistance more than 200Ω?
: Go to next.
: Replace airbag main harness.
: Connector & terminal
(5B) No. 7 (+)—Chassis ground ():
Is resistance more than 200Ω?
: Replace airbag control module.
: Replace airbag main harness.
31
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
5. Diagnostics Chart with Trouble Code

M: TROUBLE CODE 43
DIAGNOSIS:
Airbag main harness circuit (Driver) is shorted to power
supply.
Airbag module harness (Driver) is shorted to power sup-
ply.
Roll connector is shorted to power supply.
Airbag control module is faulty.
1. Airbag main harness inspection
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground ter-
minal and then wait at least 20 seconds.
After 20 seconds elapse, remove instrument panel
lower cover, and disconnect (AB3) and (AB8), (AB9)
and (AB10).
G5M0559
1. AIRBAG MAIN HARNESS INSPECTION
1) Disconnect connector (AB6) from airbag control module
, and connect it to test harness B2
connector (8B).
2) Connect battery ground cable and turn ignition switch
“ON”(engine off).
3) Measure voltage across each test harness B2 connec-
tor (5B) terminal and chassis ground.
: Connector & terminal
(5B) No. 1 (+)—Chassis ground ():
Is voltage less than 1 V?
: Go to next.
: Replace airbag main harness.
: Connector & terminal
(5B) No. 14 (+)—Chassis ground ():
Is voltage less than 1 V?
: Replace airbag control module.
: Replace airbag main harness.
32
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
5. Diagnostics Chart with Trouble Code

N: AIRBAG WARNING LIGHT REMAINS ON.
DIAGNOSIS:
Airbag warning light is faulty.
Airbag control module to airbag warning light harness
circuit is shorted or open.
Grounding circuit is faulty.
Airbag control module is faulty.
(AB1) and (B31) are not connected properly.
1. Double lock inspection for connectors (AB1)
and (B31)
2. Inspection of body harness, connector and
airbag warning light
3. Grounding circuit inspection
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
B5M0122B
1. DOUBLE LOCK INSPECTION FOR CONNECTORS
(AB1) AND (B31)
1) Remove front pillar lower trim (Driver side).
2) Check double lock of connectors (AB1) and (B31).
: Is there poor contact in double lock of con-
nectors (AB1) and (B31)?
: Repair poor contact in double lock of connectors
(AB1) and (B31).
: Go to step2.


33
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
5. Diagnostics Chart with Trouble Code

B5M0123B
2. INSPECTION OF BODY HARNESS, CONNECTOR
AND AIRBAG WARNING LIGHT
1) Turn ignition switch“OFF”and connect body harness
connector (B31) to test connector A connector (1A).
G5M0455
2) Connect battery ground cable and turn ignition switch
“ON”, (engine off) and connect connectors (3A) and (4A).
: Does the airbag warning light come off?
: Go to step 3).
: Go to next.
B5M0124A
: Is there anything unusual to body harness?
: Repair body harness.
: Replace airbag warning light module
1.
NOTE:
After problem has been eliminated, disconnect connectors
(3A) and (4A).
G5M0559
3) Turn ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds, and re-connect
connectors (AB1) and (B31).
4) Remove instrument panel lower cover and disconnect
(AB3) with (AB8), then disconnect connector (AB6) from
airbag control module, and connect
it to test harness B2 connector (8B).
G5M0458
5) Connect battery ground cable and turn ignition switch
“ON,”(engine off) and connect connectors (6B) and (7B).
: Does the airbag warning light come on?
: Go to step3.
: Replace airbag main harness.
NOTE:
After problem has been eliminated, disconnect connectors
(6B) and (7B).
34
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
5. Diagnostics Chart with Trouble Code

B5M0123B

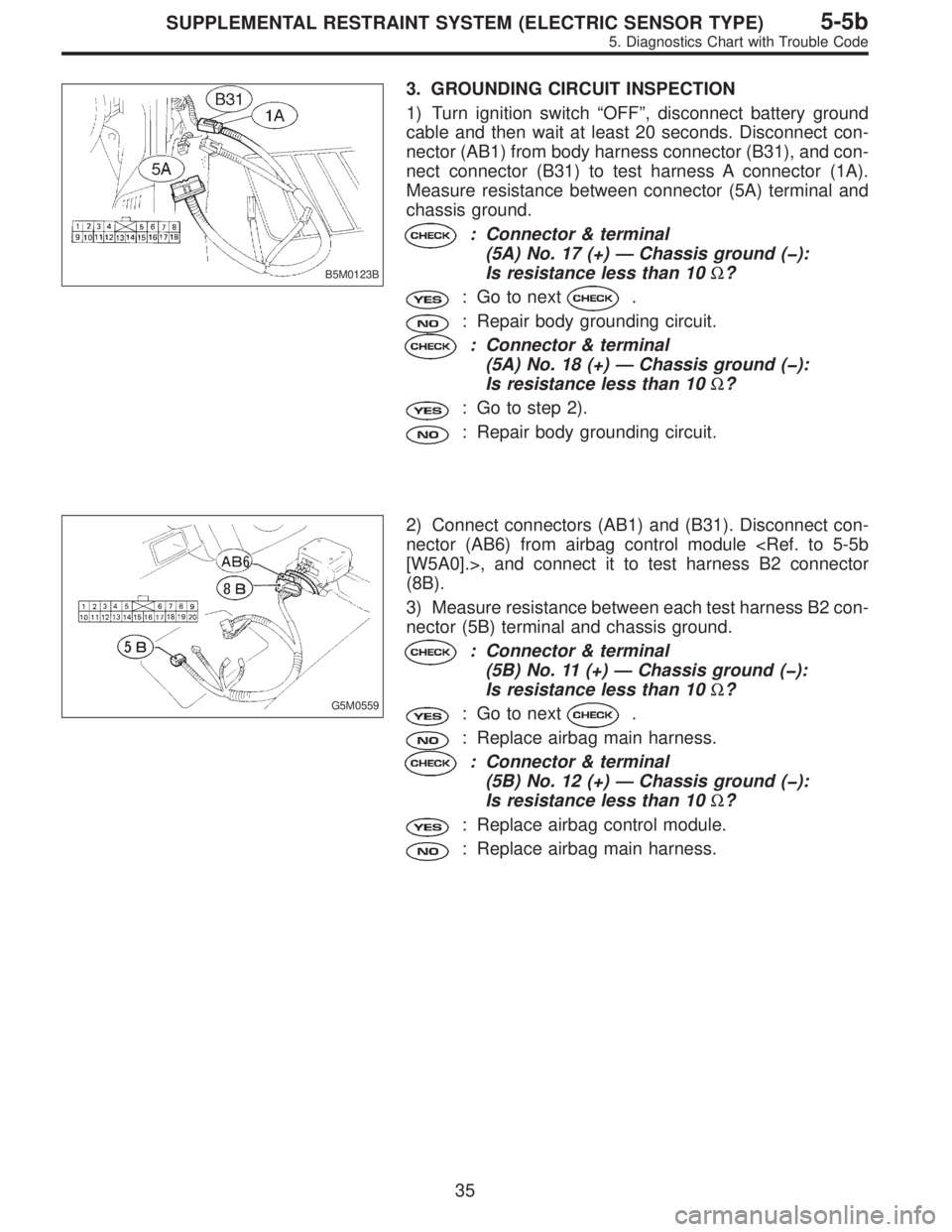

3. GROUNDING CIRCUIT INSPECTION
1) Turn ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds. Disconnect con-
nector (AB1) from body harness connector (B31), and con-
nect connector (B31) to test harness A connector (1A).
Measure resistance between connector (5A) terminal and
chassis ground.
: Connector & terminal
(5A) No. 17 (+)—Chassis ground ():
Is resistance less than 10Ω?
: Go to next.
: Repair body grounding circuit.
: Connector & terminal
(5A) No. 18 (+)—Chassis ground ():
Is resistance less than 10Ω?
: Go to step 2).
: Repair body grounding circuit.
G5M0559
2) Connect connectors (AB1) and (B31). Disconnect con-
nector (AB6) from airbag control module [W5A0].>, and connect it to test harness B2 connector
(8B).
3) Measure resistance between each test harness B2 con-
nector (5B) terminal and chassis ground.
: Connector & terminal
(5B) No. 11 (+)—Chassis ground ():
Is resistance less than 10Ω?
: Go to next.
: Replace airbag main harness.
: Connector & terminal
(5B) No. 12 (+)—Chassis ground ():
Is resistance less than 10Ω?
: Replace airbag control module.
: Replace airbag main harness.
35
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
5. Diagnostics Chart with Trouble Code
