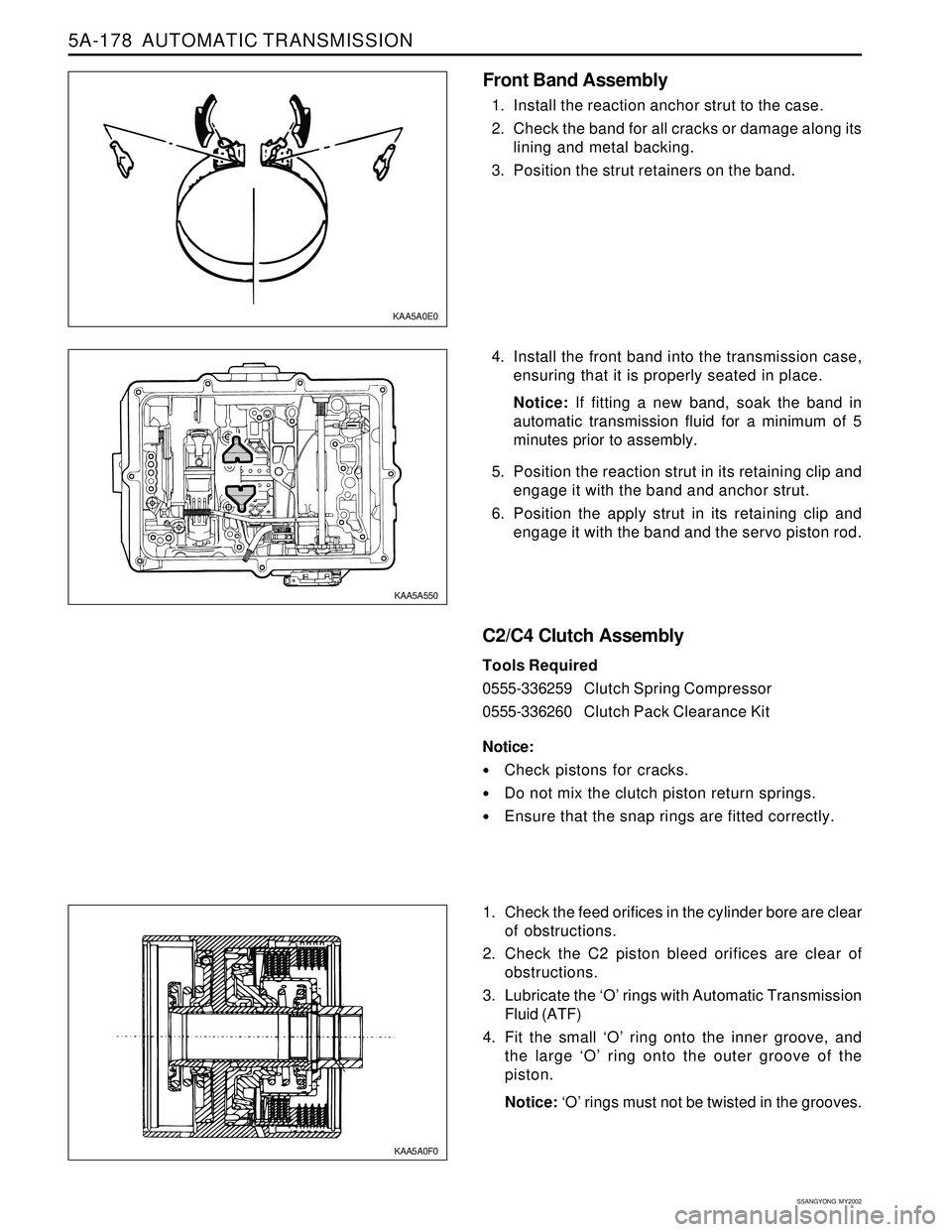

5A-178 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
4. Install the front band into the transmission case,
ensuring that it is properly seated in place.
Notice: If fitting a new band, soak the band in
automatic transmission fluid for a minimum of 5
minutes prior to assembly.
5. Position the reaction strut in its retaining clip and
engage it with the band and anchor strut.
6. Position the apply strut in its retaining clip and
engage it with the band and the servo piston rod.
C2/C4 Clutch Assembly
Tools Required
0555-336259Clutch Spring Compressor
0555-336260Clutch Pack Clearance Kit
Notice:
Check pistons for cracks.
Do not mix the clutch piston return springs.
Ensure that the snap rings are fitted correctly.
1. Check the feed orifices in the cylinder bore are clear
of obstructions.
2. Check the C2 piston bleed orifices are clear of
obstructions.
3. Lubricate the ‘O’ rings with Automatic Transmission
Fluid (ATF)
4. Fit the small ‘O’ ring onto the inner groove, and
the large ‘O’ ring onto the outer groove of the
piston.
Notice: ‘O’ rings must not be twisted in the grooves.
KAA5A0E0
KAA5A550
KAA5A0F0
Front Band Assembly
1. Install the reaction anchor strut to the case.
2. Check the band for all cracks or damage along its
lining and metal backing.
3. Position the strut retainers on the band.

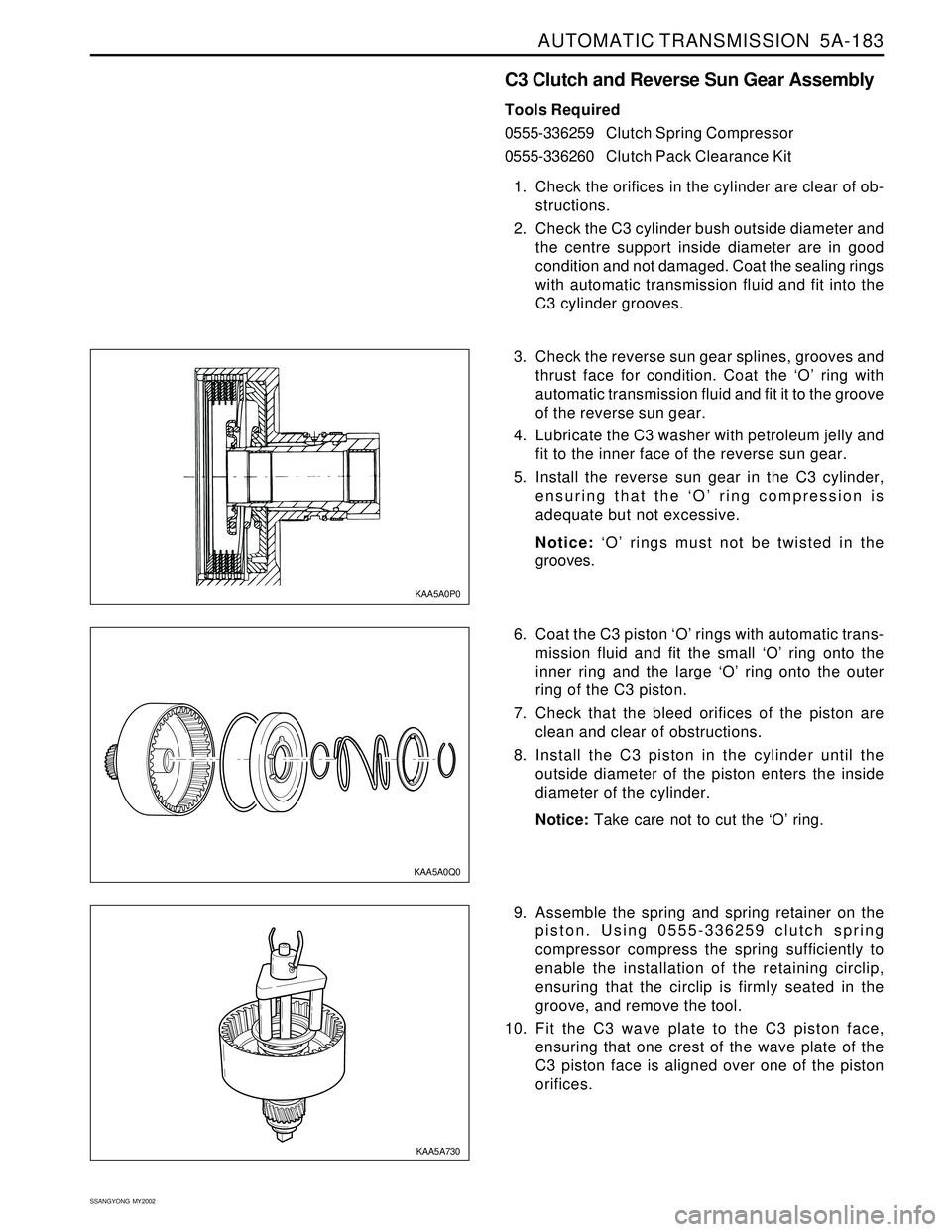

AUTOMATIC TRANSMISSION 5A-183
SSANGYONG MY2002
C3 Clutch and Reverse Sun Gear Assembly
Tools Required
0555-336259Clutch Spring Compressor
0555-336260Clutch Pack Clearance Kit
1. Check the orifices in the cylinder are clear of ob-
structions.
2. Check the C3 cylinder bush outside diameter and
the centre support inside diameter are in good
condition and not damaged. Coat the sealing rings
with automatic transmission fluid and fit into the
C3 cylinder grooves.
3. Check the reverse sun gear splines, grooves and
thrust face for condition. Coat the ‘O’ ring with
automatic transmission fluid and fit it to the groove
of the reverse sun gear.
4. Lubricate the C3 washer with petroleum jelly and
fit to the inner face of the reverse sun gear.
5. Install the reverse sun gear in the C3 cylinder,
ensuring that the ‘O’ ring compression is
adequate but not excessive.
Notice: ‘O’ rings must not be twisted in the
grooves.
KAA5A0P0
6. Coat the C3 piston ‘O’ rings with automatic trans-
mission fluid and fit the small ‘O’ ring onto the
inner ring and the large ‘O’ ring onto the outer
ring of the C3 piston.
7. Check that the bleed orifices of the piston are
clean and clear of obstructions.
8. Install the C3 piston in the cylinder until the
outside diameter of the piston enters the inside
diameter of the cylinder.
Notice: Take care not to cut the ‘O’ ring.
9. Assemble the spring and spring retainer on the
piston. Using 0555-336259 clutch spring
compressor compress the spring sufficiently to
enable the installation of the retaining circlip,
ensuring that the circlip is firmly seated in the
groove, and remove the tool.
10. Fit the C3 wave plate to the C3 piston face,
ensuring that one crest of the wave plate of the
C3 piston face is aligned over one of the piston
orifices.
KAA5A0Q0
KAA5A730

5A-186 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
KAA5A0X0
C1 Clutch Overdrive Shaft and Input Shaft
Assembly
Tools Required
0555-336260Clutch Pack Clearance Kit
Notice:
Ensure that the snap rings are fitted correctly.
Check pistons for cracks, especially the C1 piston.
Do not mix clutch piston return springs.
If the C1/C2 clutch packs separate from the C3
clutch pack, make sure the No. 6 bearing doesn’t
drop out of the bearing retainer.
1. Check the overdrive shaft grooves for any defect.
2. Coat the sealing rings, large and small, with petro-
leum jelly and fit them to the overdrive shaft. The
sealing rings may be held in place with a small
amount of petroleum jelly.
3. Assemble the clutch plate and disc into the cylinder
in the following sequence:
Steel plate
Friction disc
Steel plate
Friction disc
Steel plate
Steel plate ( 0574-000013, `014, `015, `016, `019,
`022), or friction disc (0574-000012 & `017)
Steel plate (selective)
Friction disc
Steel plate (selective)
Friction disc
4. Check the clutch pack clearance using 0555-
336260 clutch pack clearance kit.
5. Use selective plates to achieve the correct
specification.
Notice: With the clutch pack supporting a 2 kg
weight, the dimension from the input shaft locating
stop to the friction disc must be 0.70 - 0.90 mm.
6. If new friction plates are being fitted, remove the
clutch pack and soak the friction elements in auto-
matic transmission fluid for a minimum of five
minutes prior to assembly.
Notice: The clutch pack clearance must be taken
before elements are soaked in automatic
transmission fluid.
KAA5A0X0
KAA5A0Y0
KAA5A0Z0

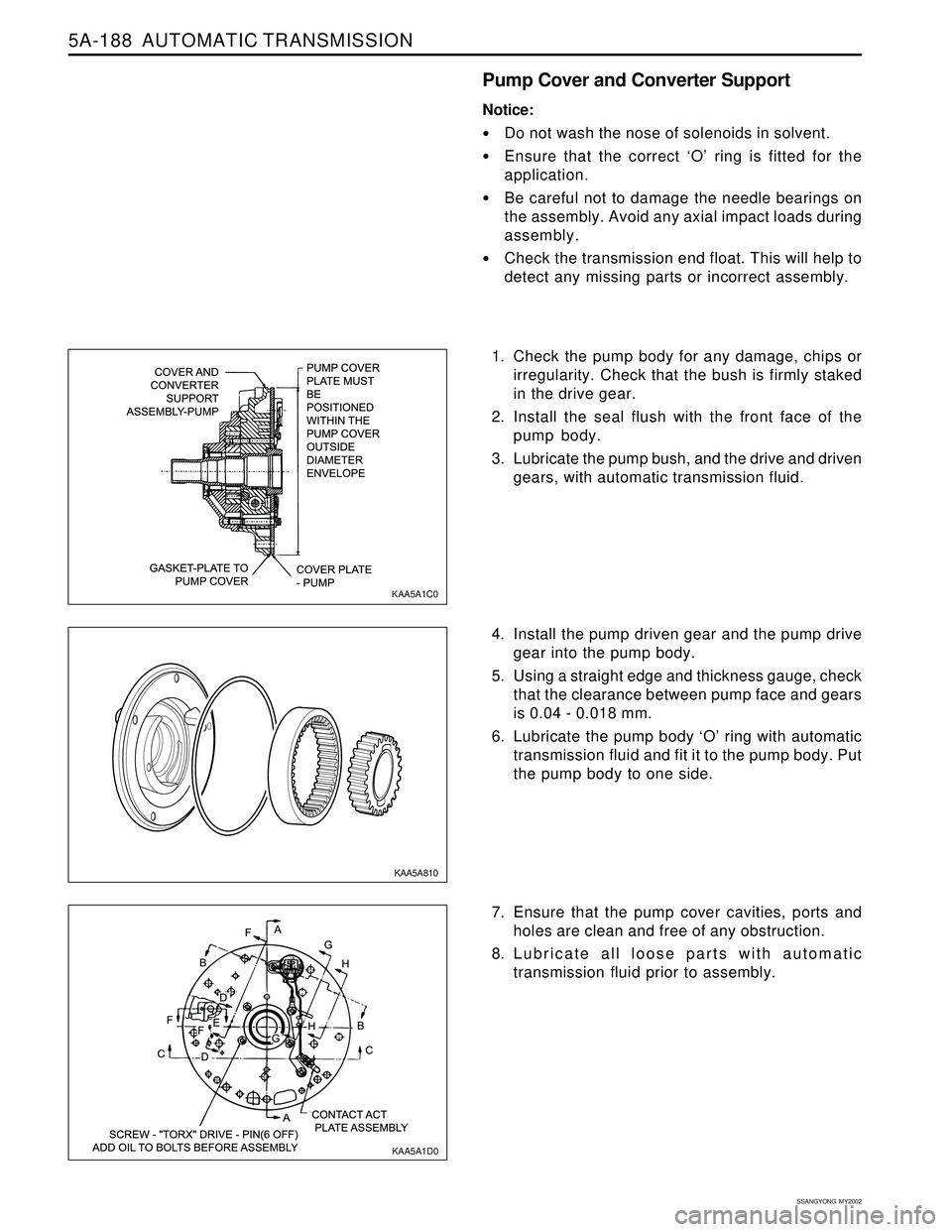

5A-188 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
Pump Cover and Converter Support
Notice:
Do not wash the nose of solenoids in solvent.
Ensure that the correct ‘O’ ring is fitted for the
application.
Be careful not to damage the needle bearings on
the assembly. Avoid any axial impact loads during
assembly.
Check the transmission end float. This will help to
detect any missing parts or incorrect assembly.
1. Check the pump body for any damage, chips or
irregularity. Check that the bush is firmly staked
in the drive gear.
2. Install the seal flush with the front face of the
pump body.
3. Lubricate the pump bush, and the drive and driven
gears, with automatic transmission fluid.
4. Install the pump driven gear and the pump drive
gear into the pump body.
5. Using a straight edge and thickness gauge, check
that the clearance between pump face and gears
is 0.04 - 0.018 mm.
6. Lubricate the pump body ‘O’ ring with automatic
transmission fluid and fit it to the pump body. Put
the pump body to one side.
7. Ensure that the pump cover cavities, ports and
holes are clean and free of any obstruction.
8. Lubricate all loose parts with automatic
transmission fluid prior to assembly.
KAA5A1C0
KAA5A810
KAA5A1D0

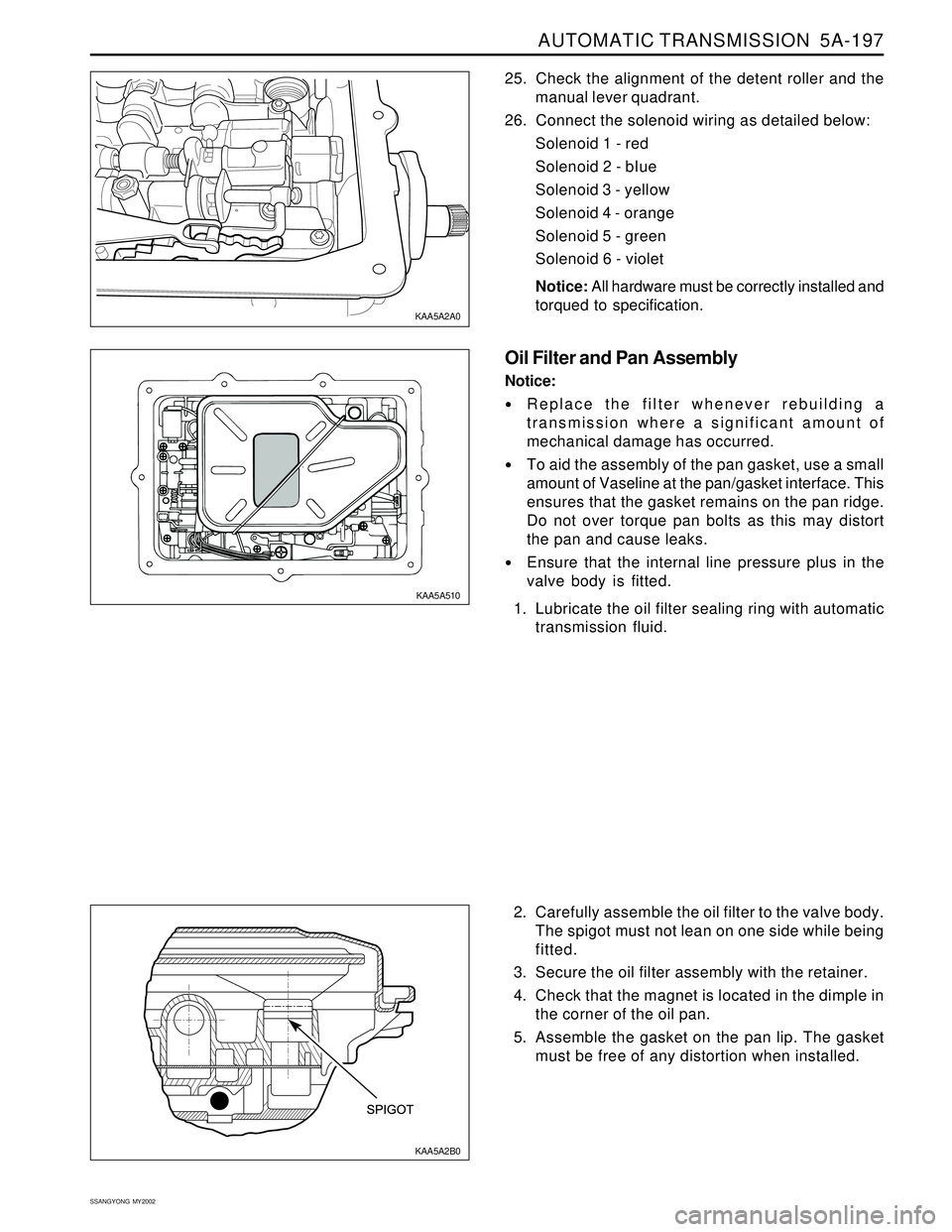

AUTOMATIC TRANSMISSION 5A-197
SSANGYONG MY2002
2. Carefully assemble the oil filter to the valve body.
The spigot must not lean on one side while being
fitted.
3. Secure the oil filter assembly with the retainer.
4. Check that the magnet is located in the dimple in
the corner of the oil pan.
5. Assemble the gasket on the pan lip. The gasket
must be free of any distortion when installed. 25. Check the alignment of the detent roller and the
manual lever quadrant.
26. Connect the solenoid wiring as detailed below:
Solenoid 1 - red
Solenoid 2 - bIue
Solenoid 3 - yellow
Solenoid 4 - orange
Solenoid 5 - green
Solenoid 6 - violet
Notice: All hardware must be correctly installed and
torqued to specification.
Oil Filter and Pan Assembly
Notice:
Replace the filter whenever rebuilding a
transmission where a significant amount of
mechanical damage has occurred.
To aid the assembly of the pan gasket, use a small
amount of Vaseline at the pan/gasket interface. This
ensures that the gasket remains on the pan ridge.
Do not over torque pan bolts as this may distort
the pan and cause leaks.
Ensure that the internal line pressure plus in the
valve body is fitted.
1. Lubricate the oil filter sealing ring with automatic
transmission fluid.
KAA5A2B0 KAA5A2A0
KAA5A510
