1997 MERCEDES-BENZ ML500 roof

Contents
Transmission control –
LOW RANGE mode............................. 125
Switching on LOW RANGE mode.. 125
Switching off LOW RANGE mode . 125
Good visibility .................................... 126
Rear view mirror........................... 126
Electrically folding exterior
rear view mirrors .......................... 128
Windshield wipers ........................ 129
Headlamp cleaning system* ........ 131
Rear window wiper ....................... 131
Sun visor ...................................... 132
Rear window defroster ................. 133
Automatic climate control ................. 134
Automatic mode........................... 137
Adjusting air volume and
air distribution manually............... 137
Defrosting .................................... 138
Air recirculation mode.................. 138
Air conditioning ............................ 139
Residual heat and ventilation ....... 140
Rear passenger compartment
ventilation and rear automatic
climate control ............................. 141
Front and rear air vents................ 142Power windows .................................. 144
Opening and closing
the side windows .......................... 144
Synchronizing power windows ...... 146
Rear quarter windows* ................. 146
Sliding / pop-up roof* ......................... 148
Opening and closing the
sliding / pop-up roof ...................... 148
Synchronizing the
sliding / pop-up roof ...................... 149
Driving systems .................................. 150
Cruise control ............................... 150
Parktronic system*
(Parking assist) ............................. 153
Loading............................................... 157
Loading instructions ..................... 157
Partition net* ................................ 159
Cargo area cover blind* ................ 161
Cargo floor plates ......................... 162
Roof rack* .................................... 163Useful features ................................... 164
Interior storage spaces ................. 164
Cup holders .................................. 166
Armrest in rear seat bench ........... 167
Ashtrays and cigarette lighter ....... 168
Electrical outlet............................. 170
Telephone* ................................... 170
Tele Aid* ....................................... 171
Garage door opener ...................... 180
Trip computer* ............................. 186

Contents
Opening / closing in an emergency .... 265
Sliding / pop-up roof* ................... 265
Replacing bulbs ................................. 266
Bulbs ............................................ 266
Replacing bulbs for front lamps ... 268
Replacing bulbs for rear lamps..... 270
Adjusting headlamp aim............... 272
Replacing wiper blades ...................... 273
Removing ..................................... 273
Installing ...................................... 273
Flat tire .............................................. 274
Mounting the spare wheel............ 274
Battery ............................................... 278
Disconnecting the battery ............ 279
Removing the batteries ................ 279
Charging and reinstalling
batteries....................................... 279
Reconnecting the batteries .......... 279
Jump starting ..................................... 281
Towing the vehicle ............................. 283
Front towing eye .......................... 285
Rear towing eye ........................... 285
Stranded vehicle .......................... 286Fuses .................................................. 287
Fuse box in engine
compartment ................................ 287
Auxiliary fuse box in front
passenger footwell........................ 288
Technical data.................................. 289
Spare parts service............................. 290
Warranty coverage ............................. 291
Loss of Service and Warranty
Information Booklet ...................... 291
Identification labels ............................ 292
Layout of poly-V-belt drive .................. 293
Engine ................................................ 294
Rims and tires .................................... 295
Rims and tires ............................... 295
Spare wheel .................................. 296
Electrical system ................................ 297
Main Dimensions ................................ 298
Weights .............................................. 299Fuels, coolants, lubricants etc............ 300
Capacities ..................................... 300
Engine oils .................................... 302
Engine oil additives ....................... 302
Air conditioning refrigerant ........... 302
Brake fluid .................................... 302
Premium unleaded gasoline.......... 303
Fuel requirements......................... 303
Gasoline additives......................... 303
Coolants ....................................... 304
Anticorrosion / antifreeze.............. 305
Windshield washer system and
headlamp cleaning system* ......... 307
Windshield and headlamp
washer fluid mixing ratio............... 307
Consumer information........................ 308
Uniform tire quality grading .......... 308
Temperature ................................. 309
Technical terms............................... 311Index................................................. 317

29 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Front left interior lighting
112
2
Signal transmitter buttons
for garage door opener
180
3
Front right interior lighting
112
4
Roadside Assistance
button
175
Information button
177
5
Interior lighting control
112
6
Trip computer* display
186
7
Rear view mirror
126
Item
Page
8
Right reading lamp on / off
114
9
Automatic antiglare func-
tion* on / off
126
a
Left reading lamp on / off
114
b
Glass breakage sensor
84
c
Trip computer* control
186
Tow-away alarm switch
85
d
Tele Aid* (emergency call
system) button
171
e
Sliding / pop-up roof*
switch
148

87 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Automatic transmission
Transmission control – LOW RANGE mode
Good visibility
Automatic climate control
Power windows
Sliding / pop-up roof*
Driving systems
Loading
Useful features

148 Controls in detailSliding / pop-up roof*
Sliding / pop-up roof*Opening and closing the sliding / pop-up roof
The sliding / pop-up roof can be opened
and closed electrically. The switch for the
sliding / pop-roof is on the overhead
control panel.
1Push up to raise roof at rear
2Push back to slide roof open
3Push down to lower roof at rear
4Push forward to slide roof closedWith the roof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
roof open, the screen will also retract.
Warning!
G
When closing the sliding / pop-up roof, make
sure that there is no danger of anyone being
harmed by the closing procedure.
The closing procedure can be immediately
reversed by moving the switch in
direction1 or2.
When leaving the vehicle, always remove the
key from steering lock and lock your vehicle.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and / or serious personal
injury.!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the
sliding / pop-up roof.
Do not open the sliding / pop-up roof if
there is snow or ice on the roof, as this
could result in malfunctions.
The sliding / pop-up roof can be opened
or closed manually should an electrical
malfunction occur (
page 265).

149 Controls in detail
Sliding / pop-up roof*

Turn the key in the steering lock to
position1 or2 (
page 33).
Opening and closing the
sliding / pop-up roof

To open, close, raise or lower the
sliding / pop-up roof, move the switch
in the required direction1to4.
Release the switch when the roof has
reached the desired position.
Raising the roof

Press and hold the switch in
direction1.
The roof is raised at rear.
Lowering the roof

Pull and hold the switch in direction3.
The sliding / pop-up roof is lowered and
closed.Opening the sliding / pop-up roof auto-
matically

Briefly press switch in direction2.
The sliding / pop up roof will not open
completely.

Press switch again to open the
sliding / pop-up roof completely.
Stopping the roof

Briefly press the switch in any direc-
tion.
The movement of the roof will stop.
Synchronizing the sliding / pop-up roof
The power sliding / pop-up roof must be re-
synchronized each time after:

the battery has been disconnected


the sliding / pop-up roof has been
closed manually


the sliding / pop-up roof does not open
smoothly


a malfunction
Synchronizing

Remove the fuse from the fuse box
(page 287).

Replace the fuse in the fuse box.

Switch on ignition.

Press and hold the switch in
direction1 until the sliding / pop-up
roof is fully raised at the rear.
Hold the switch for approximately one
second.
The sliding / pop-up roof is synchro-
nized.

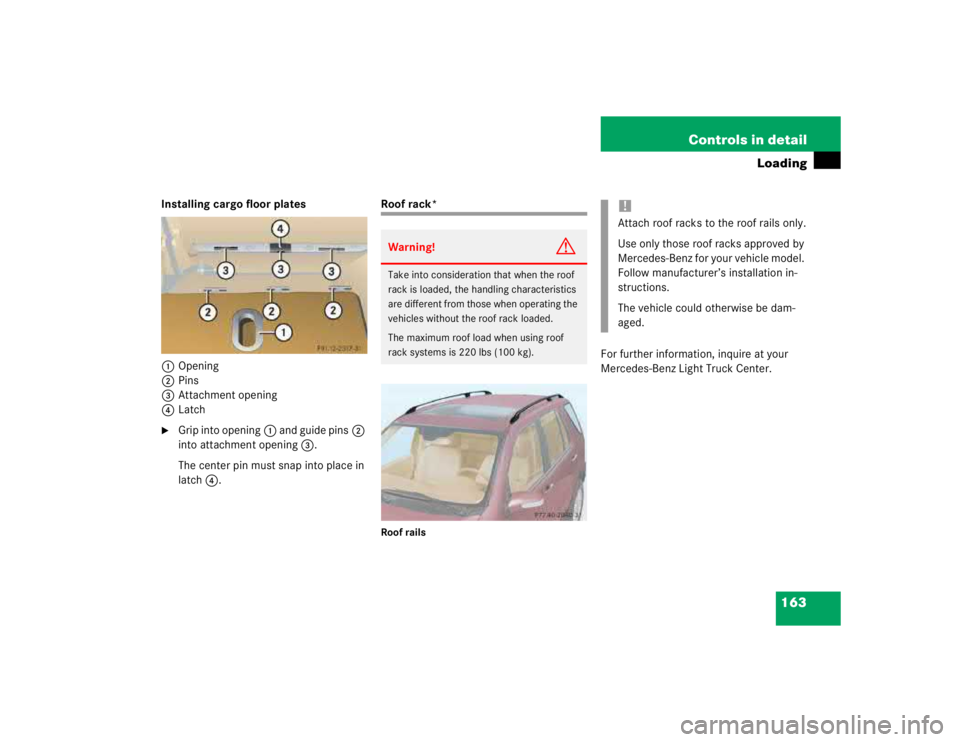

163 Controls in detail
Loading
Installing cargo floor plates
1Opening
2Pins
3Attachment opening
4Latch
Grip into opening1 and guide pins2
into attachment opening3.
The center pin must snap into place in
latch4.
Roof rack*Roof rails
For further information, inquire at your
Mercedes-Benz Light Truck Center.
Warning!
G
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
The maximum roof load when using roof
rack systems is 220 lbs (100 kg).
!Attach roof racks to the roof rails only.
Use only those roof racks approved by
Mercedes-Benz for your vehicle model.
Follow manufacturer’s installation in-
structions.
The vehicle could otherwise be dam-
aged.

188 Controls in detailUseful featuresSetting the compass zone
Determine the geographical point of
the vehicle with the aid of the zone
maps.

Switch on the ignition.

Press MODE2 (
page 186) repeat-
edly until the compass display appears
in the trip computer display3.

Press RESET1 (
page 186) to select
the compass zone mode.
The zone selected last is shown in the
display.

Press RESET1 repeatedly until the
correct compass zone, as determined
from the zone map, is shown in the dis-
play.

Press MODE2 twice.
The new compass zone is activated and
the compass display will be shown.Calibrating the compass
If the vehicle was exposed to a significant
magnetic zone, such as high voltage power
lines, the compass may have to be calibrat-
ed.
To calibrate the compass correctly, ob-
serve the following:


Calibrate the compass in an area free
of steel superstructures and power
lines.


Switch off all electrical consumers (e.g.
exterior lamps, climate control, rear
window defroster etc.).


Do not open or close the
sliding / pop-up roof.


Close doors and liftgate.

Start and run the engine.

Press MODE2 (
page 186) repeat-
edly until the compass display appears
in the trip computer display3.

Press RESET1 and afterwards press
MODE2.
In the display appears
CAL–
.

Press and hold RESET1 for approxi-
mately two seconds.
The calibration mode is activated and
the display shows
CAL
.

Drive without interruption two full cir-
cles at a speed between 3 mph
(5 km / h) and 7 mph (10 km / h).
The message
CAL
goes out after a short
time. The calibration is now complete.
iAn open liftgate triggers the
display
---
.
