Main dimensions
Model ML 320 ML 430 ML 55 AMG
Overall vehicle length 180.6 in (4587 mm) 180.6 in (4587 mm) 182.5 in (4635 mm)
Overall vehicle width 86.2 in (2190 mm) 86.2 in (2190 mm) 86.2 in (2190 mm)
Overall height 71.6 in (1820 mm) 71.6 in (1820 mm) 71.0 in (1804 mm)
Wheel base 111.0 in (2820 mm) 111.0 in (2820 mm) 111.0 in (2820 mm)
Track, front 60.4 in (1535 mm) 61.2 in (1555 mm) 61.2 in (1555 mm)
Track, rear 60.4 in (1535 mm) 61.2 in (1555 mm) 61.2 in (1555 mm)

309
Index
Te ch n ica l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Special settings (Climate control) ............................... 101
Split rear seat bench ..................................................... 120 Easy entry/exit feature ............................................ 123
Rear seat head restraints ......................................... 124
SRS indicator lamp ........................................................ 219
SRS malfunction .............................................................. 57
Start lock-out .................................................................... 25
Starting and turning off the engine ............................ 164
Steering lock ................................................................... 162
Steering wheel
Adjustable .................................................................... 70
Indicator lamp ...........................................................222
Stop lamp, high mounted .............................................267
Storage compartments Center console ............................................................115
Compartment under front passenger seat .............116
Glove box .....................................................................115
Stowing things in the vehicle ......................................230
Stranded vehicle ............................................................259
Sun visors ........................................................................113
Supplemental restraint system (SRS) ........................... 54
Synchronizing remote control ..................................... 271
TTachometer ........................................................................82
Technical data ................................................................ 287 Electrical system ...................................................... 290
Main dimensions ...................................................... 291
Rims and tires ..................................................288, 289
Weights ...................................................................... 290
Tele Aid ............................................................................ 148 Emergency calls ........................................................149
Information ................................................................ 154
Initiating an emergency call manually .................. 151
Roadside Assistance ................................................. 152
Telephone, general ......................................................... 139
Telephones and two-way radios ................................... 146
Telescoping steering column
Adjusting ......................................................................70
Indicator lamp .......................................................... 222
The first 1 000 miles (1 500 km) ................................147
Third row seats ...............................................................126
Tie-down rings, cargo .................................................... 132
Tire inflation pressure ................................................. 250
Tire traction ....................................................................178

Contents
Opening / closing in an emergency .... 265
Sliding / pop-up roof* ................... 265
Replacing bulbs ................................. 266
Bulbs ............................................ 266
Replacing bulbs for front lamps ... 268
Replacing bulbs for rear lamps..... 270
Adjusting headlamp aim............... 272
Replacing wiper blades ...................... 273
Removing ..................................... 273
Installing ...................................... 273
Flat tire .............................................. 274
Mounting the spare wheel............ 274
Battery ............................................... 278
Disconnecting the battery ............ 279
Removing the batteries ................ 279
Charging and reinstalling
batteries....................................... 279
Reconnecting the batteries .......... 279
Jump starting ..................................... 281
Towing the vehicle ............................. 283
Front towing eye .......................... 285
Rear towing eye ........................... 285
Stranded vehicle .......................... 286Fuses .................................................. 287
Fuse box in engine
compartment ................................ 287
Auxiliary fuse box in front
passenger footwell........................ 288
Technical data.................................. 289
Spare parts service............................. 290
Warranty coverage ............................. 291
Loss of Service and Warranty
Information Booklet ...................... 291
Identification labels ............................ 292
Layout of poly-V-belt drive .................. 293
Engine ................................................ 294
Rims and tires .................................... 295
Rims and tires ............................... 295
Spare wheel .................................. 296
Electrical system ................................ 297
Main Dimensions ................................ 298
Weights .............................................. 299Fuels, coolants, lubricants etc............ 300
Capacities ..................................... 300
Engine oils .................................... 302
Engine oil additives ....................... 302
Air conditioning refrigerant ........... 302
Brake fluid .................................... 302
Premium unleaded gasoline.......... 303
Fuel requirements......................... 303
Gasoline additives......................... 303
Coolants ....................................... 304
Anticorrosion / antifreeze.............. 305
Windshield washer system and
headlamp cleaning system* ......... 307
Windshield and headlamp
washer fluid mixing ratio............... 307
Consumer information........................ 308
Uniform tire quality grading .......... 308
Temperature ................................. 309
Technical terms............................... 311Index................................................. 317

208 OperationDriving instructionsLoading a trailer

When loading a trailer, you should ob-
serve that neither the permissible GTW,
nor the GVWR are exceeded.
Maximum permissible values are listed
on the safety compliance certification
labels for the vehicle and for the trailer
to be towed.
The lowest value listed must be select-
ed when determining how the vehicle
and trailer are loaded.


The tongue weight at the hitch ball
must be added to the GVW to prevent
exceeding your Mercedes-Benz tow
vehicle’s rear GAWR.Checking weights of vehicle and trailer


To assure that the tow vehicle and trail-
er are in compliance with the maximum
permissible weight limits have the load-
ed rig (tow vehicle including driver, pas-
sengers and cargo, trailer fully loaded)
weighed on a commercial scale.


Check the vehicle’s front and rear
Gross Axle Weight (GAW), the GTW and
TW.
The values as measured must not be
exceeded, according to the weight list-
ed under “Vehicle and trailer weight
and ratings”.Attaching a trailer
Observe maximum permitted trailer
dimensions (width and length).
Most states and all Canadian provinces
require


safety chains between your tow vehicle
and the trailer.
The chains should be crisscrossed un-
der the trailer tongue. They must be at-
tached to the hitch receiver, and not to
the vehicle’s bumper or axle.
Be sure to leave enough slack in the
chains to permit turning corners.


a separate brake system at various
trailer weights.


a break-away switch on trailers with a
separate brake system.
The switch activates the trailer brakes
in the possible event that the trailer
might separate from the tow vehicle.
iWe recommend loading the trailer in
such a manner that it has a tongue
weight (TW) between 10% and 15% of
the GTW.

259 Practical hints
Where will I find ...?
Spare wheel (space-saver tire)
Use the spare wheel only temporarily,
while observing the following restrictions:

Do not exceed vehicle speed of
50 mph (80 km / h).


Drive to the nearest repair facility to
have the flat tire repaired or replaced
as appropriate.


Do not operate vehicle with more than
one spare wheel mounted.Removing spare wheel

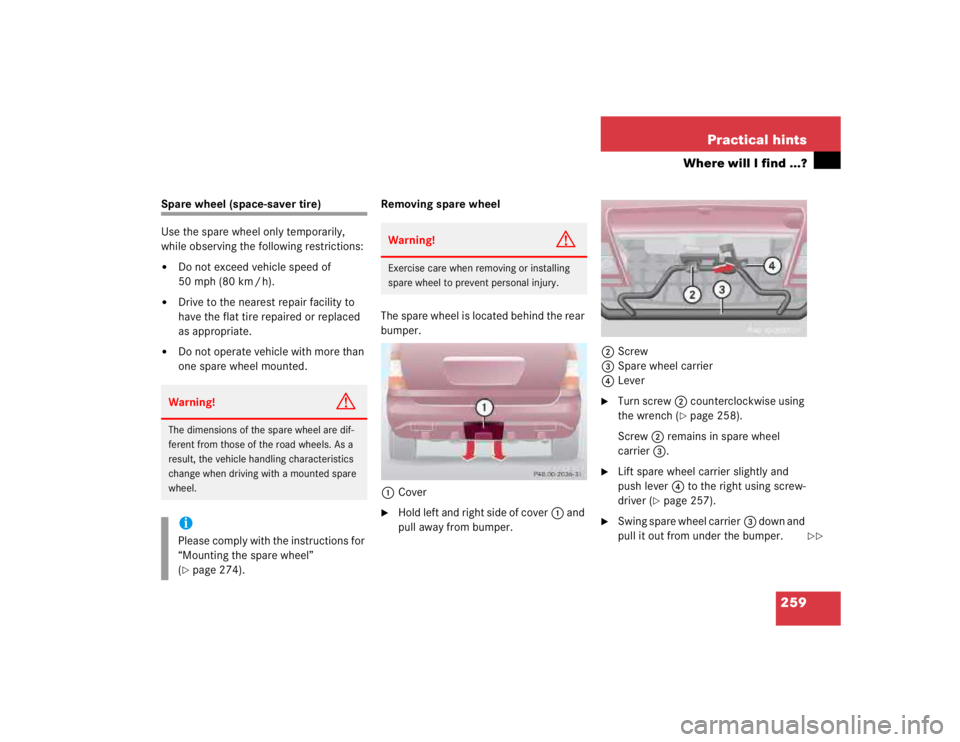

The spare wheel is located behind the rear
bumper.
1Cover

Hold left and right side of cover1 and
pull away from bumper.2Screw
3Spare wheel carrier
4Lever

Turn screw2 counterclockwise using
the wrench (
page 258).
Screw2 remains in spare wheel
carrier3.

Lift spare wheel carrier slightly and
push lever4 to the right using screw-
driver (
page 257).

Swing spare wheel carrier3 down and
pull it out from under the bumper.
Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel.iPlease comply with the instructions for
“Mounting the spare wheel”
(page 274).
Warning!
G
Exercise care when removing or installing
spare wheel to prevent personal injury.


274 Practical hintsFlat tire
Flat tireMounting the spare wheel Preparing the vehicle

Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering wheel lock in the
straight ahead position and set the
parking brake.

Move the gear selector lever toP.

Have any passenger exit the vehicle at
a safe distance from the roadway.

Take the spare wheel out of its carrier
(page 259).Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
(not included) or other sizable objects.
When changing wheel on a level surface:

Place one chock in front of and one be-
hind the wheel that is diagonally oppo-
site to the wheel being changed.
When changing wheel on a hill:

Place chocks on the downhill side
blocking both wheels of the other axle.

Take the two-piece wheel wrench and
the jack out of the rear compartment
area (
page 257). Assemble wheel
wrench.

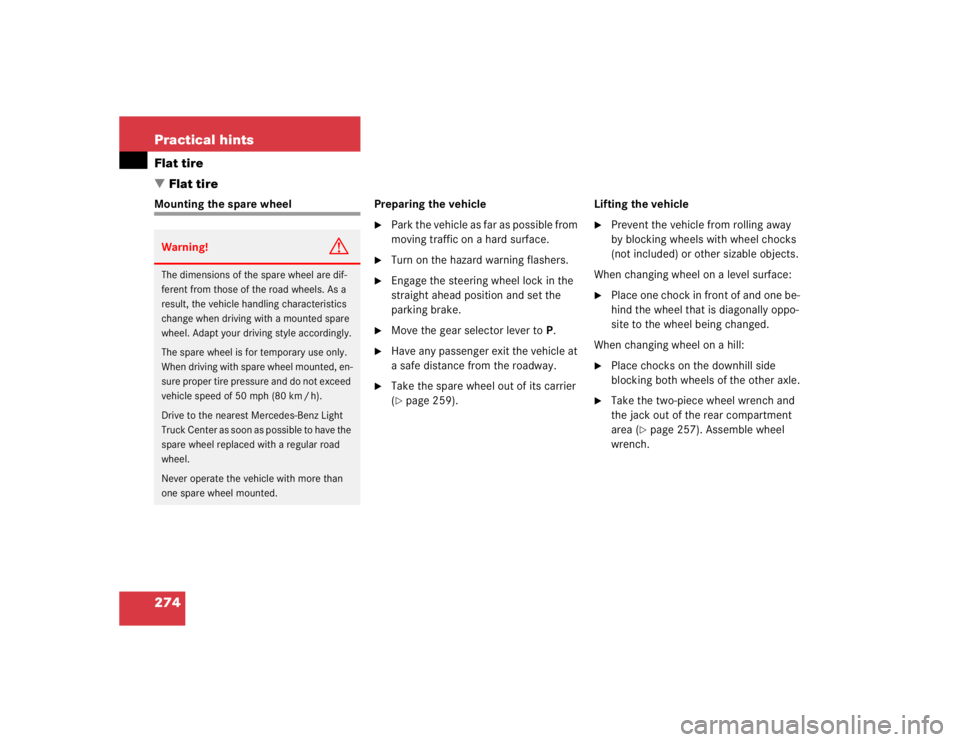

Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel. Adapt your driving style accordingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted, en-
sure proper tire pressure and do not exceed
vehicle speed of 50 mph (80 km / h).
Drive to the nearest Mercedes-Benz Light
Truck Center as soon as possible to have the
spare wheel replaced with a regular road
wheel.
Never operate the vehicle with more than
one spare wheel mounted.

289 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants etc.
Consumer information

298 Technical dataMain Dimensions

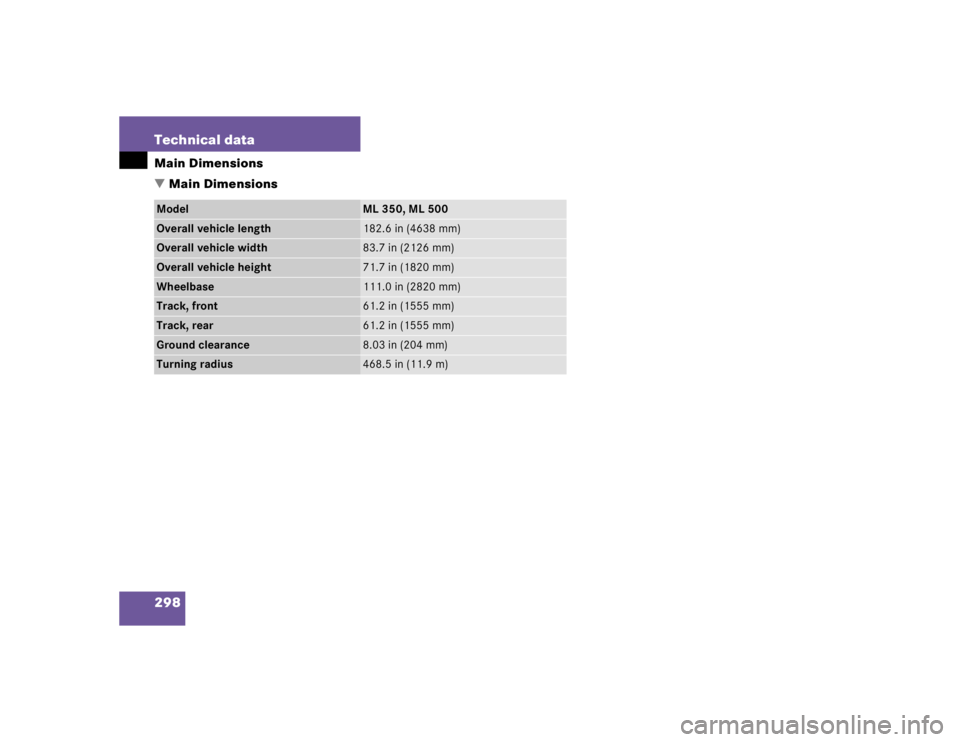

Main DimensionsModel
ML 350, ML 500
Overall vehicle length
182.6 in (4638 mm)
Overall vehicle width
83.7 in (2126 mm)
Overall vehicle height
71.7 in (1820 mm)
Wheelbase
111.0 in (2820 mm)
Track, front
61.2 in (1555 mm)
Track, rear
61.2 in (1555 mm)
Ground clearance
8.03 in (204 mm)
Turning radius
468.5 in (11.9 m)
