Fig. 325: Engine Oil Monitor Function - (4 Of 4)
DISPLAYING SERVICE, FUNCTION - GF00.20-P-2010B
MODEL 129 as of 1.8.99
MODEL 163 as of 1.1.00
MODEL 168 as of 1.9.99
MODEL 170 as of 1.12.99
Active service system survey
of display facilities GF00.20-P-0003-04A
Active service system
technology/ influencing
variables GF00.20-P-0003-05A
Active service system survey
model/engine/
sensor/instrument cluster GF00.20-P-0003-06A
Active service system
(ASSYST) operating
instructions, resetting GF00.20-P-0003-01A
Oil sensor
position/task/functionOil sensor position, task,
functionGF18.40-P-4111A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:47 PMPage 215 © 2006 Mitchell Repair Information Company, LLC.

REMOVE CONTACTS FROM SENSOR SPADE- TYPE CONTACT PLUG - AR00.19-P-0120-01A
Fig. 408: Identifying Wiring Harness Repair Kit, Supplement Fo r Passenger Cars (220 589 04 99 00)
Fig. 409: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
by soldering
Repair cable harness using
rapid connection
technology AR00.19-P-0100-06A
Protect repair area after
cable repairsHeat-shrinkable tubeAR00.19-P-0100-08A
Protect repair area after
cable repairsCorrugated tubeAR00.19-P-0100-08B
Protect repair area after
cable repairsFabric tapeAR00.19-P-0100-08C
Checking wiring harness AR54.18-P-0600-01A
Plugs and couplings as-
built configuration GF00.19-P-8000A
Female contacts and
contact pins, installation
survey, as-built
configuration GF00.19-P-7000A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:49 PMPage 282 © 2006 Mitchell Repair Information Company, LLC.

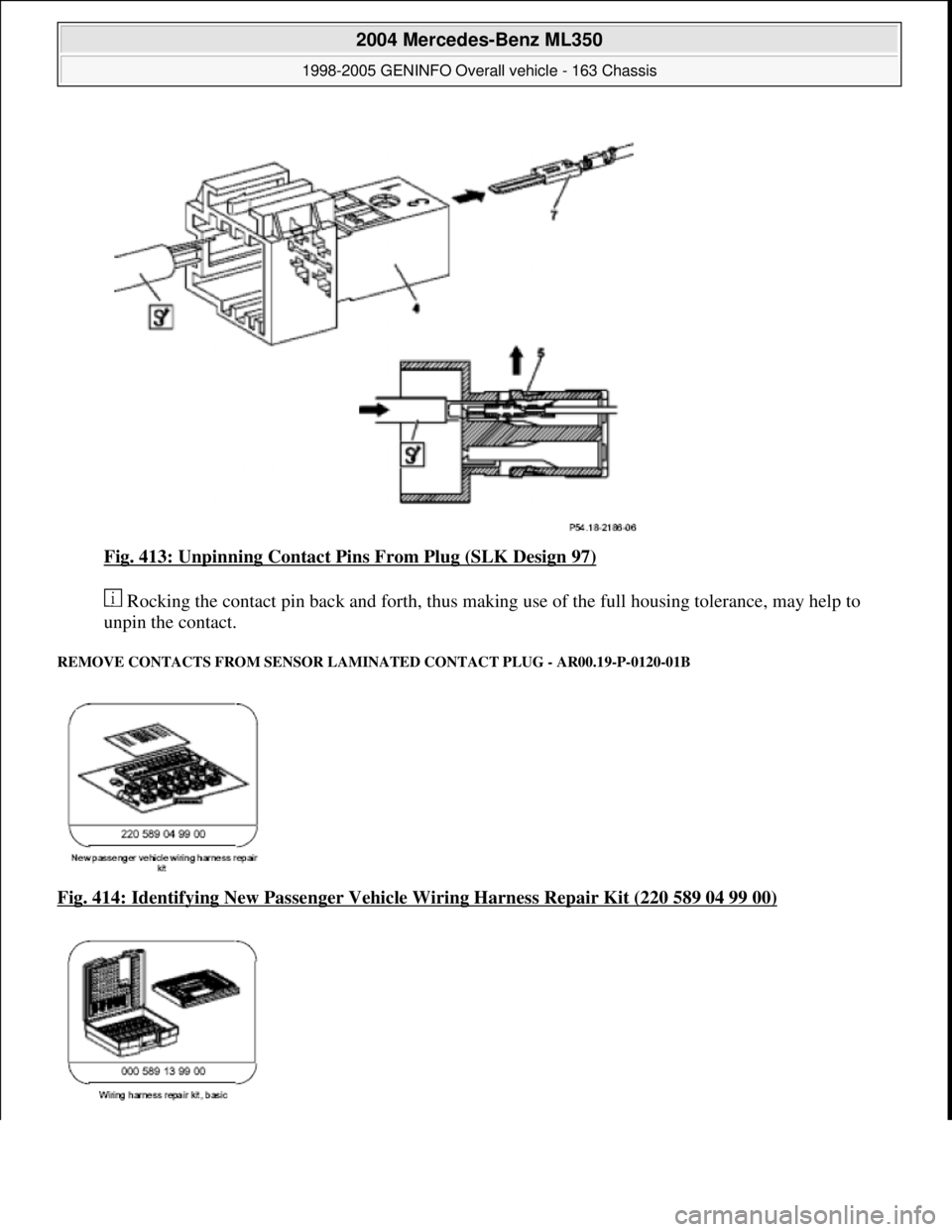

Fig. 413: Unpinning Contact Pins From Plug (SLK Design 97)
Rocking the contact pin back and forth, thus maki ng use of the full housing tolerance, may help to
unpin the contact.
REMOVE CONTACTS FROM SENSOR LAMINATED CONTAC T PLUG - AR00.19-P-0120-01B
Fig. 414: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:49 PMPage 284 © 2006 Mitchell Repair Information Company, LLC.

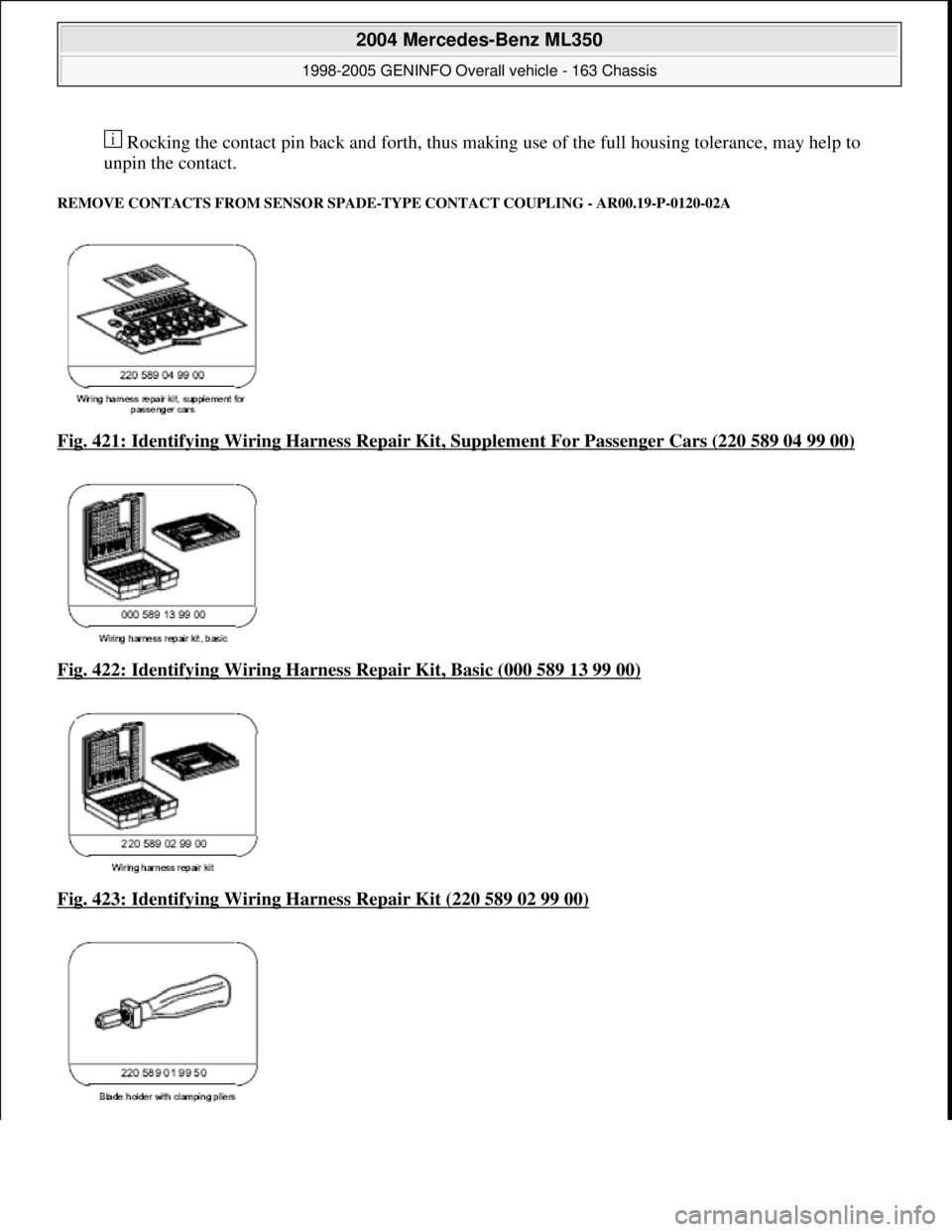

Rocking the contact pin back and forth, thus maki ng use of the full housing tolerance, may help to
unpin the contact.
REMOVE CONTACTS FROM SENSOR SPADE- TYPE CONTACT COUPLING - AR00.19-P-0120-02A
Fig. 421: Identifying Wiring Ha rness Repair Kit, Supplement Fo r Passenger Cars (220 589 04 99 00)
Fig. 422: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 423: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00)


2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:49 PMPage 287 © 2006 Mitchell Repair Information Company, LLC.

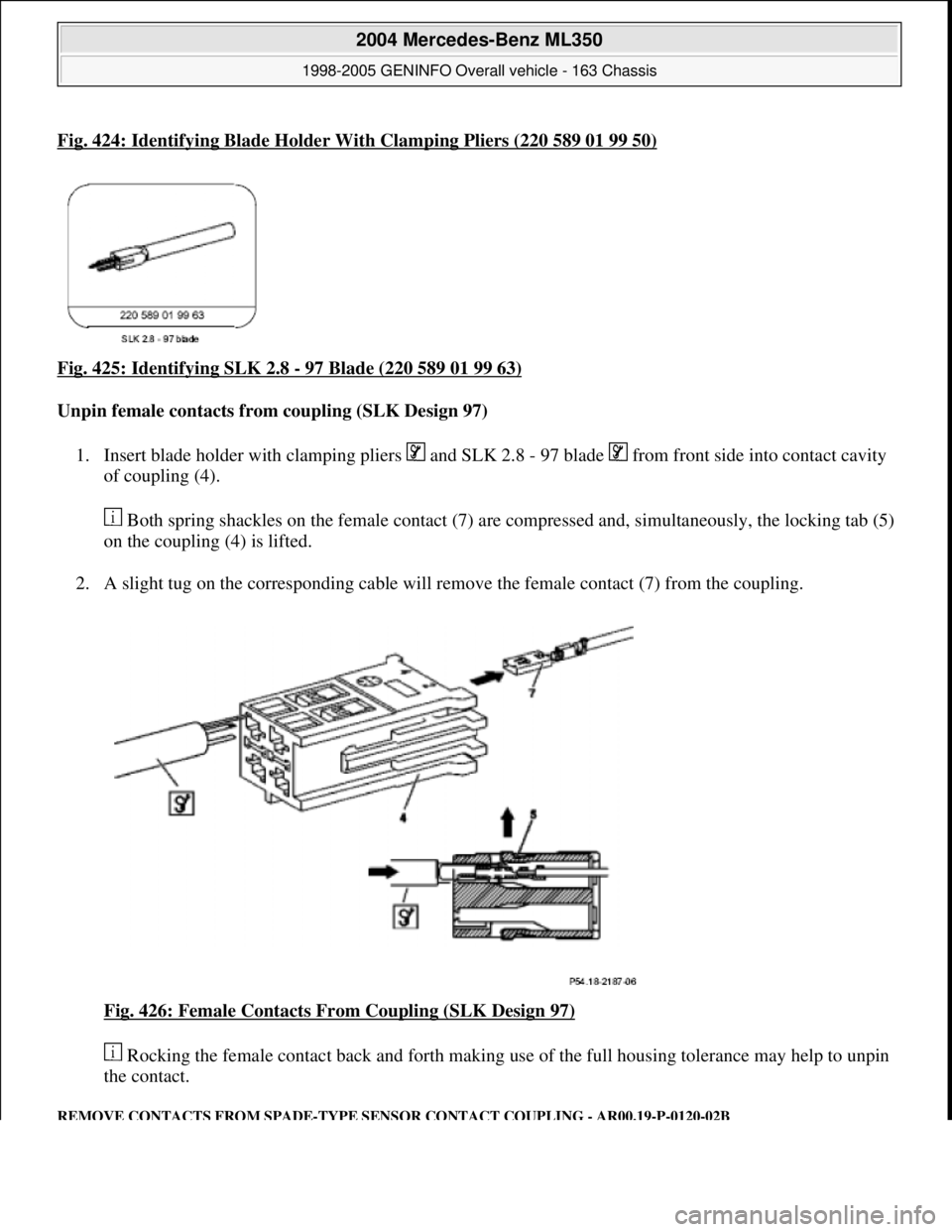

Fig. 424: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)
Fig. 425: Identifying SLK 2.8 - 97 Blade (220 589 01 99 63)
Unpin female contacts from coupling (SLK Design 97)
1. Insert blade holder with clamping pliers and SLK 2.8 - 97 blade from front side into contact cavity
of coupling (4).
Both spring shackles on the female contact (7) are compressed and, simultaneously, the locking tab (5)
on the coupling (4) is lifted.
2. A slight tug on the corresponding cable will remove the female contact (7) from the coupling.
Fig. 426: Female Contacts From Coupling (SLK Design 97)

Rocking the female contact back and forth making use of the full housing tolerance may help to unpin
the contact.
REMOVE CONTACTS FROM SPADE-TYPE SENSOR CONTACT COUPLING - AR00.19-P-0120-02B

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:49 PMPage 288 © 2006 Mitchell Repair Information Company, LLC.

Fig. 537: Pushing Slider Out Of Last Detent - Shown On A 6-Pin SPT Coupling
Unpin female contacts from coupling (SPT)
1. Insert blade holder with clamping pliers with JPT/SPT blade or MCP 2.8/ Fl.2.8/JPT/SPT blade
from the front through the openings in contact cavity of coupling (1).
This step compresses the spring shackles (2) on the female contact.
2. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.
Fig. 538: Unpinning Female Contacts From Coupling (SPT)

REMOVE CONTACTS FROM SPADE-TYPE SENSOR CONTACT COUPLING - AR00.19-P-0120-12A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 343 © 2006 Mitchell Repair Information Company, LLC.

Fig. 547: Female Contacts From Coupling (LSK)
REMOVE CONTACTS FROM SPADE-TYPE SENSOR CONTACT PLUG - AR00.19-P-0120-13A
Fig. 548: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 347 © 2006 Mitchell Repair Information Company, LLC.

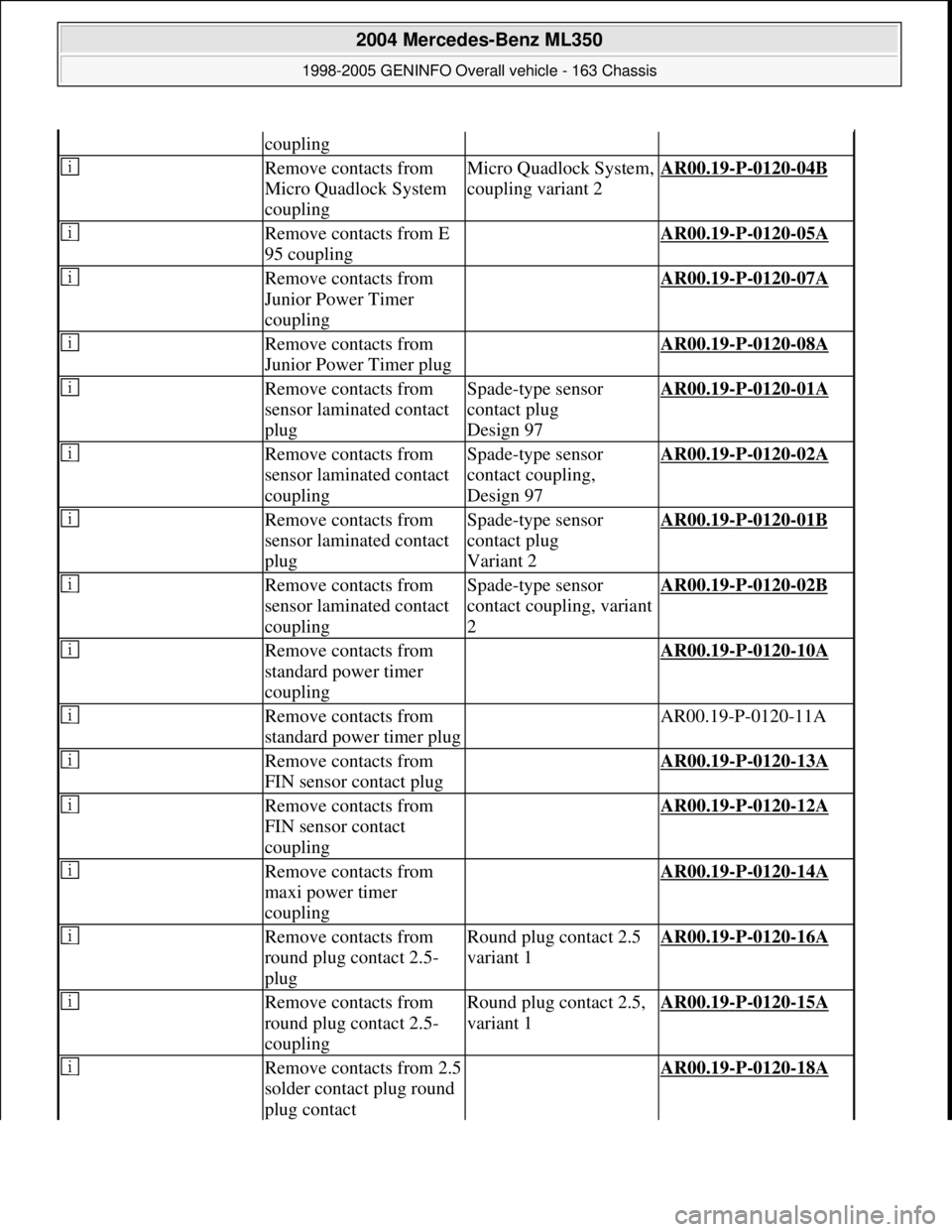

coupling
Remove contacts from
Micro Quadlock System
couplingMicro Quadlock System,
coupling variant 2AR00.19-P-0120-04B
Remove contacts from E
95 coupling AR00.19-P-0120-05A
Remove contacts from
Junior Power Timer
coupling AR00.19-P-0120-07A
Remove contacts from
Junior Power Timer plug AR00.19-P-0120-08A
Remove contacts from
sensor laminated contact
plugSpade-type sensor
contact plug
Design 97AR00.19-P-0120-01A
Remove contacts from
sensor laminated contact
couplingSpade-type sensor
contact coupling,
Design 97AR00.19-P-0120-02A
Remove contacts from
sensor laminated contact
plugSpade-type sensor
contact plug
Variant 2AR00.19-P-0120-01B
Remove contacts from
sensor laminated contact
couplingSpade-type sensor
contact coupling, variant
2AR00.19-P-0120-02B
Remove contacts from
standard power timer
coupling AR00.19-P-0120-10A
Remove contacts from
standard power timer plug AR00.19-P-0120-11A
Remove contacts from
FIN sensor contact plug AR00.19-P-0120-13A
Remove contacts from
FIN sensor contact
coupling AR00.19-P-0120-12A
Remove contacts from
maxi power timer
coupling AR00.19-P-0120-14A
Remove contacts from
round plug contact 2.5-
plugRound plug contact 2.5
variant 1AR00.19-P-0120-16A
Remove contacts from
round plug contact 2.5-
couplingRound plug contact 2.5,
variant 1AR00.19-P-0120-15A
Remove contacts from 2.5
solder contact plug round
plug contact AR00.19-P-0120-18A
