1997 MAZDA MIATA belt

wheel puller. Pry out seal.
Installation
1. Apply light oil coat to seal lip. Using a hammer and seal installer, tap seal into oil pump body until it is
flush with edge of pump body. DO NOT bottom seal in pump body. Align keyway slots, and install
crankshaft sprocket and Woodruff key with tapered side toward oil pump body. Install crankshaft
sprocket bolt.
2. Using Crankshaft Lock Tool (49-D011-102), lock crankshaft sprocket into position. Tighten lock bolt to
specification. See TORQUE SPECIFICATIONS
.
3. Install timing belt. See TIMING BELT
under REMOVAL & INSTALLATION. Install timing belt
covers, pulleys and drive belts. Reconnect negative battery cable and ensure timing is correct.
TIMING BELT
Removal (Miata)
1. Disconnect negative battery cable. Drain cooling system. Remove radiator hose and by-pass hoses from
thermostat housing. Remove air cleaner intake duct assembly from between throttle body and air cleaner
filter housing.
2. Remove drive belts and water pump pulley. Align crankshaft pulley timing mark with cylinder No. 1 at
TDC of compression stroke. Hold crankshaft pulley stationary. Remove crankshaft pulley bolts and
pulley. Remove crankshaft pulley hub bolt and hub.
3. Remove cylinder head cover. Remove upper, center and lower timing belt cover. If timing belt is to be
reused, mark timing belt rotation direction. Ensure timing marks on camshaft sprockets are aligned. See
Fig. 8
. Loosen timing belt tensioner lock bolt, and move tensioner away from belt with spring fully
expanded. Remove timing belt.
Removal (Protege)
1. Disconnect negative battery cable. Raise and support vehicle. Remove right front wheel. Remove right
side cover and undercover.
2. Remove drive belts and water pump pulley. Align crankshaft pulley timing mark with cylinder No. 1 at
TDC of compression stroke. Hold crankshaft stationary. Remove crankshaft pulley bolts and pulley.
Remove crankshaft pulley hub bolt and hub.
3. Remove cylinder head cover. Remove upper, center and lower timing belt cover. If timing belt is to be
reused, mark timing belt rotation direction. Ensure timing marks on camshaft sprockets are aligned. See
Fig. 8
. Loosen timing belt tensioner lock bolt, and move tensioner away from belt with spring fully
expanded. Remove timin
g belt. NOTE: For 1997-98 vehicles, the manufacturer recommends the belt be replaced at
60,000 mile intervals for vehicles sold outside of California and Massachusetts.
For vehicles sold in California and Massachusetts, inspect timing belt at 60,000
and 90,000 miles, and replace timing belt at 105,000 miles.

1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 12 © 2005 Mitchell Repair Information Company, LLC.

Inspection (All Models)
Check timing belt for cracks, peeling, abrasion or other damage. Check tensioner bearing for looseness or
roughness of rotation. Inspect tensioner spring for stretching. Replace parts as necessary.
Installation (All Models)
1. Position notch on crankshaft sprocket to 12 o'clock position (aligned with mark on oil pump). Align
timing marks on camshaft sprockets. See Fig. 8
. Ensure crankshaft timing mark is at TDC. Install belt
around crankshaft sprocket, then working in a counterclockwise direction, route belt around camshaft
sprockets.
2. Loosen timing belt tensioner lock bolt and allow spring to apply tension on belt. Snug tensioner lock bolt.
Rotate crankshaft 2 complete turns in direction of normal engine rotation. Ensure timing marks align. If
timing marks are not aligned, remove belt, realign all timing marks, and repeat installation procedure.
3. Check timing belt deflection with 22 lbs. (10 kg) of pressure applied to belt. See Fig. 9
. Ensure timing
belt deflection is within specification. See TIMING BELT DEFLECTION
.
TIMING BELT DEFLECTION
Application(1) Deflection In. (mm)
Miata & Protege.35-.45 (9.0-11.5)
(1)Deflection measurement is with 22 lbs. (10 kg) of pressure applied to timing belt. See Fig. 9 .

1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 13 © 2005 Mitchell Repair Information Company, LLC.

Fig. 9: Measuring Timing Belt Deflection
Courtesy of MAZDA MOTORS CORP.
HYDRAULIC LASH ADJUSTER (HLA)
Removal
Disconnect negative battery cable. Remove camshaft. See CAMSHAFT . Mark location of each HLA for
reassembly reference. Remove HLA from cylinder head.
Inspection
Place HLA in palm of hand. Attempt to compress HLA plunger with thumb. If plunger compresses, replace
HLA.
NOTE: If hydraulic lash adjusters are persistently noisy, check with manufacturer for
availability of modified adjusters.

1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.

Installation
Insert HLA in original location. To complete installation, reverse removal procedure. Tighten camshaft bearing
caps evenly in sequence to specification. See Fig. 10
or Fig. 11 . See TORQUE SPECIFICATIONS .
CAMSHAFT
Removal
Remove cylinder head cover. Remove timing belt. See TIMING BELT. Remove distributor/camshaft position
sensor. Reference mark camshafts, caps and sprockets, and remove sprockets. Loosen camshaft bearing cap
bolts evenly in 5-6 steps, in sequence. See Fig. 10
or Fig. 11 . Remove camshafts.
Inspection
Check camshaft end play. Check camshaft journal diameters and bearing clearances. Check camshaft lobes for
wear. See CAMSHAFT
under ENGINE SPECIFICATIONS. If any measurement is not within specification,
replace camshaft and/or cylinder head.
Installation
To install, reverse removal procedure. On both camshafts, apply small amount of silicone sealant to contact area
of cylinder head/camshaft seal cover cap. Tighten camshaft bearing cap bolts evenly in sequence to
specification. See Fig. 10
or Fig. 11 . See TORQUE SPECIFICATIONS. NOTE: On Miata, exhaust camshaft has a slot for camshaft position sensor drive. On
Protege, exhaust camshaft has a slot for distributor drive. On all models, match
mark camshafts and sprockets for installation reference.

1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.

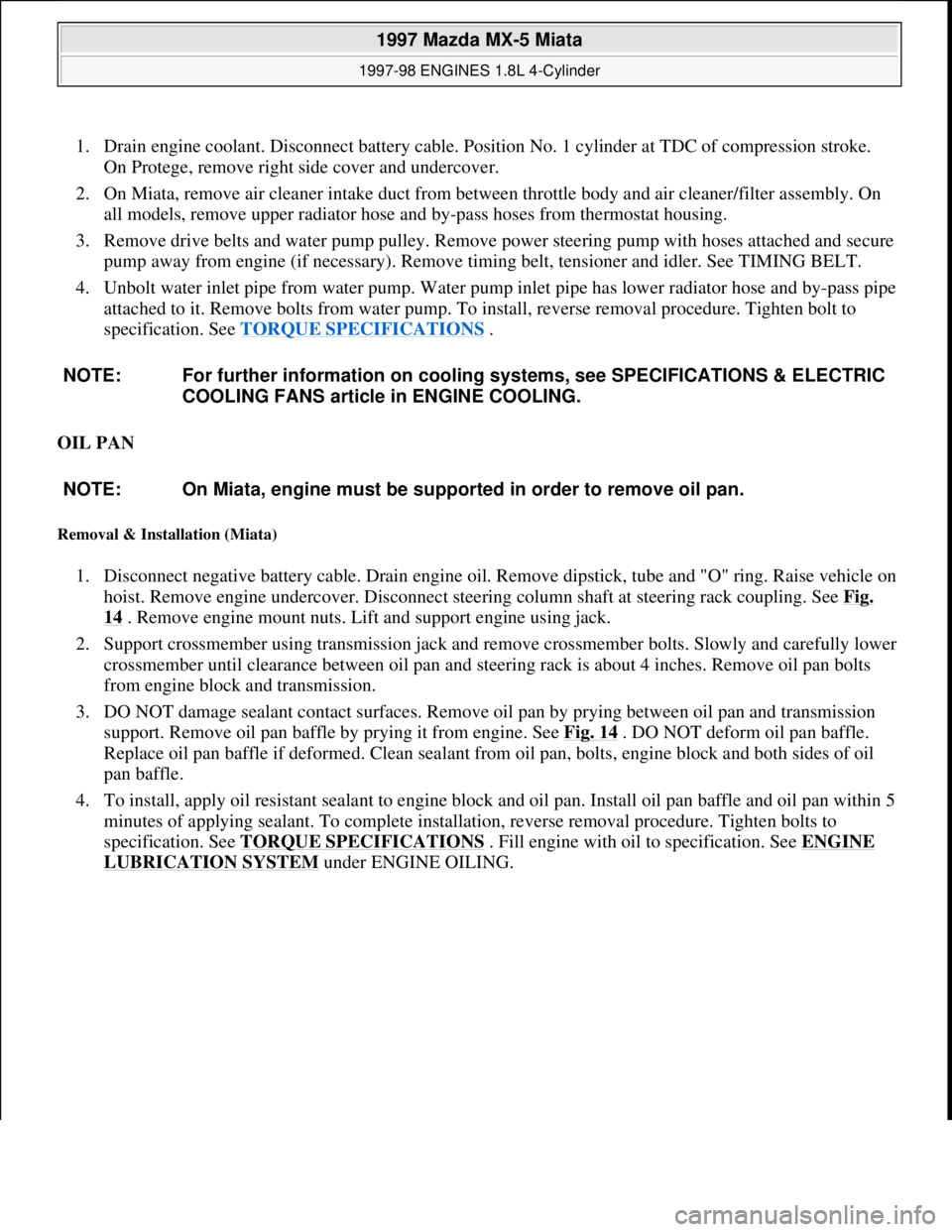

1. Drain engine coolant. Disconnect battery cable. Position No. 1 cylinder at TDC of compression stroke.
On Protege, remove right side cover and undercover.
2. On Miata, remove air cleaner intake duct from between throttle body and air cleaner/filter assembly. On
all models, remove upper radiator hose and by-pass hoses from thermostat housing.
3. Remove drive belts and water pump pulley. Remove power steering pump with hoses attached and secure
pump away from engine (if necessary). Remove timing belt, tensioner and idler. See TIMING BELT.
4. Unbolt water inlet pipe from water pump. Water pump inlet pipe has lower radiator hose and by-pass pipe
attached to it. Remove bolts from water pump. To install, reverse removal procedure. Tighten bolt to
specification. See TORQUE SPECIFICATIONS
.
OIL PAN
Removal & Installation (Miata)
1. Disconnect negative battery cable. Drain engine oil. Remove dipstick, tube and "O" ring. Raise vehicle on
hoist. Remove engine undercover. Disconnect steering column shaft at steering rack coupling. See Fig.
14 . Remove engine mount nuts. Lift and support engine using jack.
2. Support crossmember using transmission jack and remove crossmember bolts. Slowly and carefully lower
crossmember until clearance between oil pan and steering rack is about 4 inches. Remove oil pan bolts
from engine block and transmission.
3. DO NOT damage sealant contact surfaces. Remove oil pan by prying between oil pan and transmission
support. Remove oil pan baffle by prying it from engine. See Fig. 14
. DO NOT deform oil pan baffle.
Replace oil pan baffle if deformed. Clean sealant from oil pan, bolts, engine block and both sides of oil
pan baffle.
4. To install, apply oil resistant sealant to engine block and oil pan. Install oil pan baffle and oil pan within 5
minutes of applying sealant. To complete installation, reverse removal procedure. Tighten bolts to
specification. See TORQUE SPECIFICATIONS
. Fill engine with oil to specification. See ENGINE
LUBRICATION SYSTEM under ENGINE OILING. NOTE: For further information on cooling systems, see SPECIFICATIONS & ELECTRIC
COOLING FANS article in ENGINE COOLING.
NOTE: On Miata, engine must be supported in order to remove oil pan.

1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.

OIL PUMP
Removal & Disassembly
1. Disconnect negative battery cable. Remove dipstick, tube and "O" ring. Drain engine oil and coolant.
Remove drive belts, crankshaft and water pump pulleys. Remove generator, A/C compressor and
mounting bracket. Without disconnecting A/C hoses, secure A/C compressor away from engine. Remove
timing belt and related components. See TIMING BELT
under REMOVAL & INSTALLATION.
2. Hold crankshaft sprocket in place and remove crankshaft sprocket bolt. Remove crankshaft sprocket
using steering wheel puller. Leave crankshaft Woodruff key in place.
3. Remove oil pan and oil pump pick-up tube. See OIL PAN
under REMOVAL & INSTALLATION.
Remove oil pump housing assembly. Using a screwdriver protected with a rag, drive oil seal out from
inside of oil pump housing assembly.
4. Remove pump cover screws (use a manual impact screwdriver, if necessary). See Fig. 22
. Remove pump
cover. Note location of alignment marks on inner and outer rotors. Remove inner and outer rotors. To
remove pressure relief valve, remove spring seat, pressure spring and control plunger.
Inspection
Replace pressure relief valve spring if length is not as specified. See OIL PUMP SPECIFICATIONS. Ensure
plunger slides freely in bore. Replace oil pump housing assembly if clearances are not as specified. See OIL
PUMP SPECIFICATIONS .
Reassembly & Installation
1. Apply oil to friction surfaces. Install inner and outer rotors with marks aligned. See Fig. 23 . Install
pressure relief valve components. Apply oil to lip of NEW oil seal. Press oil seal into bore until even with
face of oil pump housing assembly.
2. Install pump cover. Tighten screws to 53-78 INCH lbs. (6-9 N.m). To complete installation, reverse
removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS
.
OIL PUMP SPECIFICATIONS
ApplicationW/O Filter Qts. (L)W/Filter Qts. (L)
Miata & Protege3.8 (3.6)4.0 (3.8)
ApplicationMaximum Clearance In. (mm)
Maximum Rotor Tip Clearance (1) .0079 (.20)
Maximum Rotor-To-Pump Body Clearance (2) .0079 (.20)
Maximum Rotor Side Clearance (3) .0055 (.14)
Pressure Relief Spring Free Length1.809 (45.94)
(1)See Fig. 23 .
(2)Insert feeler gauge between outer rotor and pump body.
Place straightedge across pump body and check clearance between straightedge and both rotors.

1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 33 © 2005 Mitchell Repair Information Company, LLC.

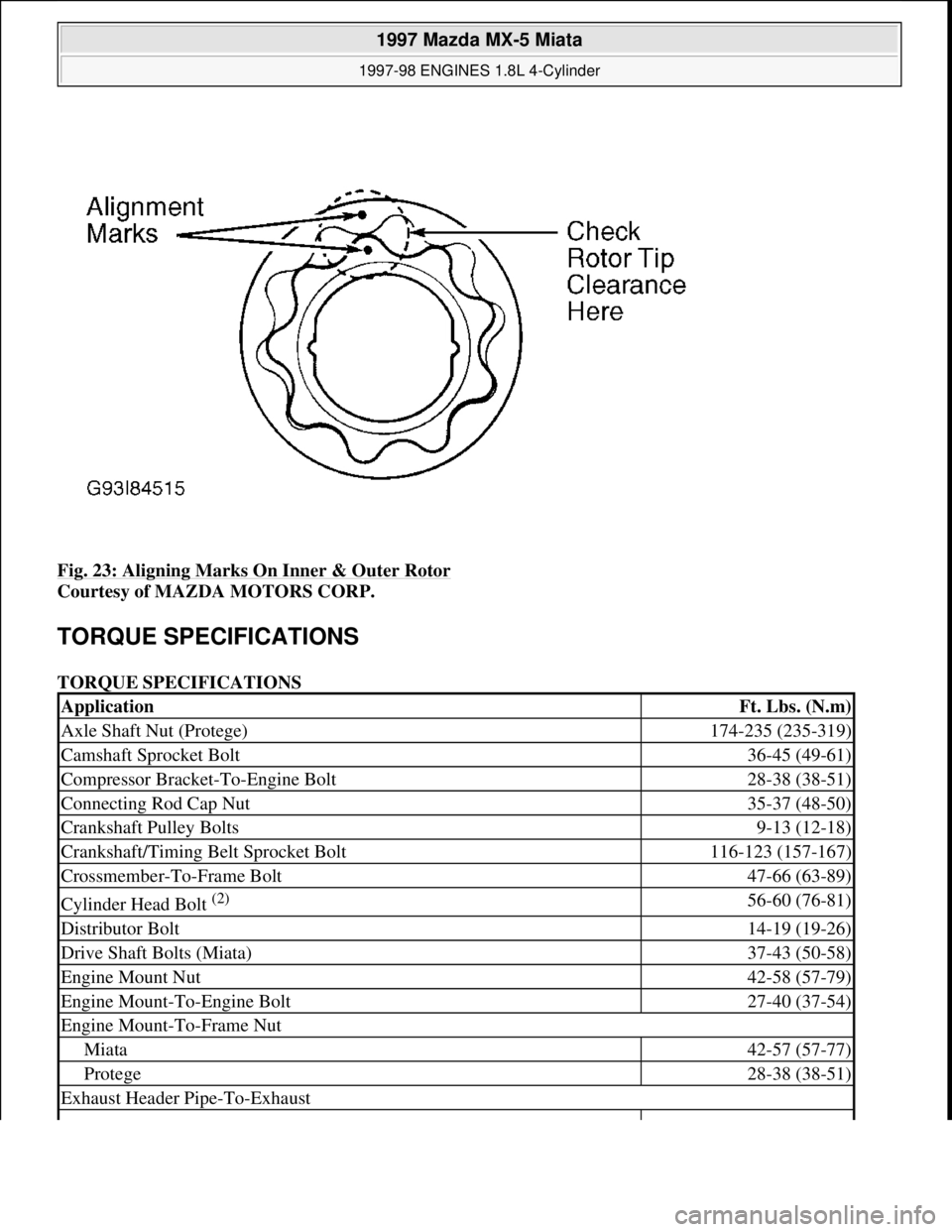

Fig. 23: Aligning Marks On Inner & Outer Rotor
Courtesy of MAZDA MOTORS CORP.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
ApplicationFt. Lbs. (N.m)
Axle Shaft Nut (Protege)174-235 (235-319)
Camshaft Sprocket Bolt36-45 (49-61)
Compressor Bracket-To-Engine Bolt28-38 (38-51)
Connecting Rod Cap Nut35-37 (48-50)
Crankshaft Pulley Bolts9-13 (12-18)
Crankshaft/Timing Belt Sprocket Bolt116-123 (157-167)
Crossmember-To-Frame Bolt47-66 (63-89)
Cylinder Head Bolt (2) 56-60 (76-81)
Distributor Bolt14-19 (19-26)
Drive Shaft Bolts (Miata)37-43 (50-58)
Engine Mount Nut42-58 (57-79)
Engine Mount-To-Engine Bolt27-40 (37-54)
Engine Mount-To-Frame Nut
Miata42-57 (57-77)
Protege28-38 (38-51)
Exhaust Header Pipe-To-Exhaust

1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 35 © 2005 Mitchell Repair Information Company, LLC.

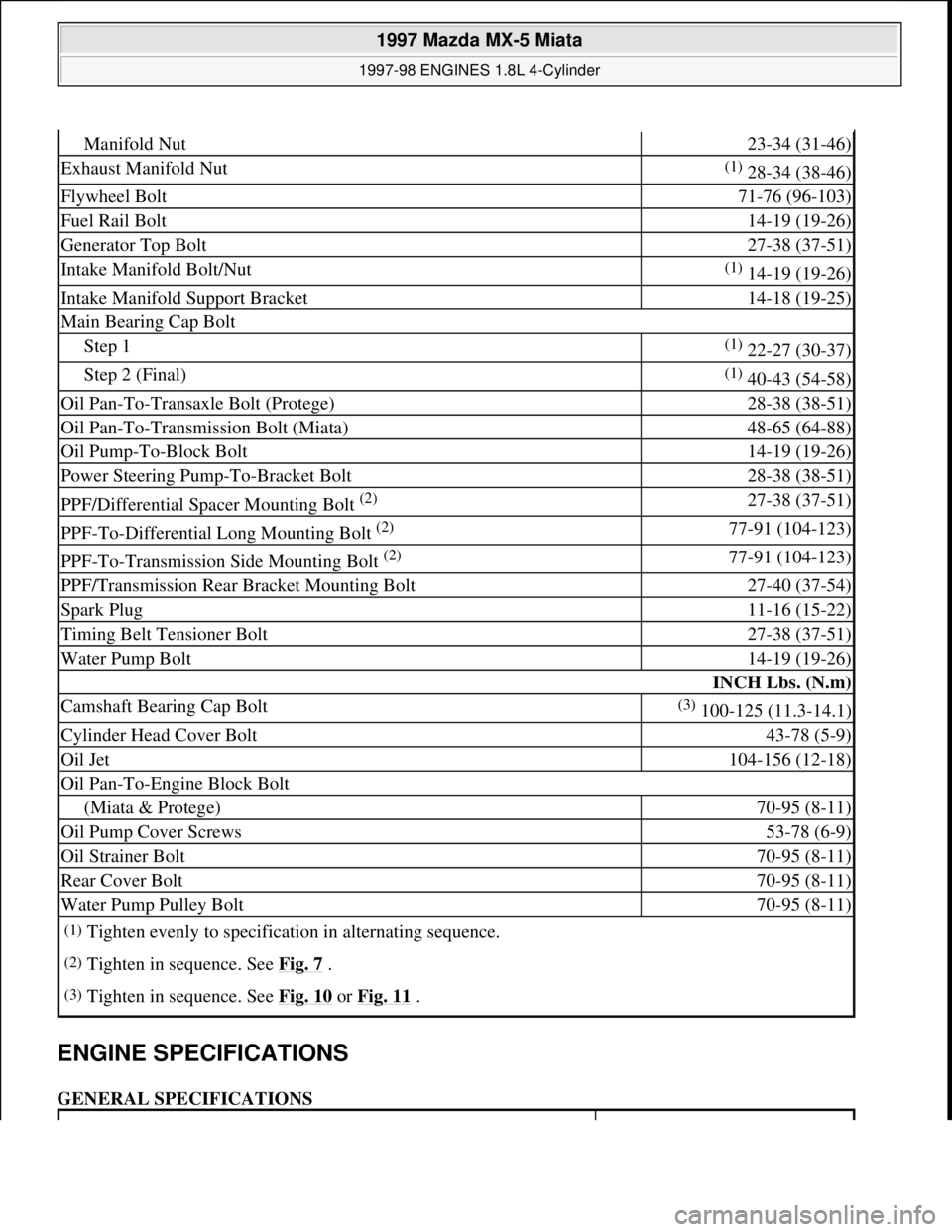

ENGINE SPECIFICATIONS
GENERAL SPECIFICATIONS
Manifold Nut23-34 (31-46)
Exhaust Manifold Nut(1) 28-34 (38-46)
Flywheel Bolt71-76 (96-103)
Fuel Rail Bolt14-19 (19-26)
Generator Top Bolt27-38 (37-51)
Intake Manifold Bolt/Nut(1) 14-19 (19-26)
Intake Manifold Support Bracket14-18 (19-25)
Main Bearing Cap Bolt
Step 1(1) 22-27 (30-37)
Step 2 (Final)(1) 40-43 (54-58)
Oil Pan-To-Transaxle Bolt (Protege)28-38 (38-51)
Oil Pan-To-Transmission Bolt (Miata)48-65 (64-88)
Oil Pump-To-Block Bolt14-19 (19-26)
Power Steering Pump-To-Bracket Bolt28-38 (38-51)
PPF/Differential Spacer Mounting Bolt (2) 27-38 (37-51)
PPF-To-Differential Long Mounting Bolt (2) 77-91 (104-123)
PPF-To-Transmission Side Mounting Bolt (2) 77-91 (104-123)
PPF/Transmission Rear Bracket Mounting Bolt27-40 (37-54)
Spark Plug11-16 (15-22)
Timing Belt Tensioner Bolt27-38 (37-51)
Water Pump Bolt14-19 (19-26)
INCH Lbs. (N.m)
Camshaft Bearing Cap Bolt(3) 100-125 (11.3-14.1)
Cylinder Head Cover Bolt43-78 (5-9)
Oil Jet104-156 (12-18)
Oil Pan-To-Engine Block Bolt
(Miata & Protege)70-95 (8-11)
Oil Pump Cover Screws53-78 (6-9)
Oil Strainer Bolt70-95 (8-11)
Rear Cover Bolt70-95 (8-11)
Water Pump Pulley Bolt70-95 (8-11)
(1)Tighten evenly to specification in alternating sequence.
(2)Tighten in sequence. See Fig. 7 .
(3)Tighten in sequence. See Fig. 10 or Fig. 11 .
