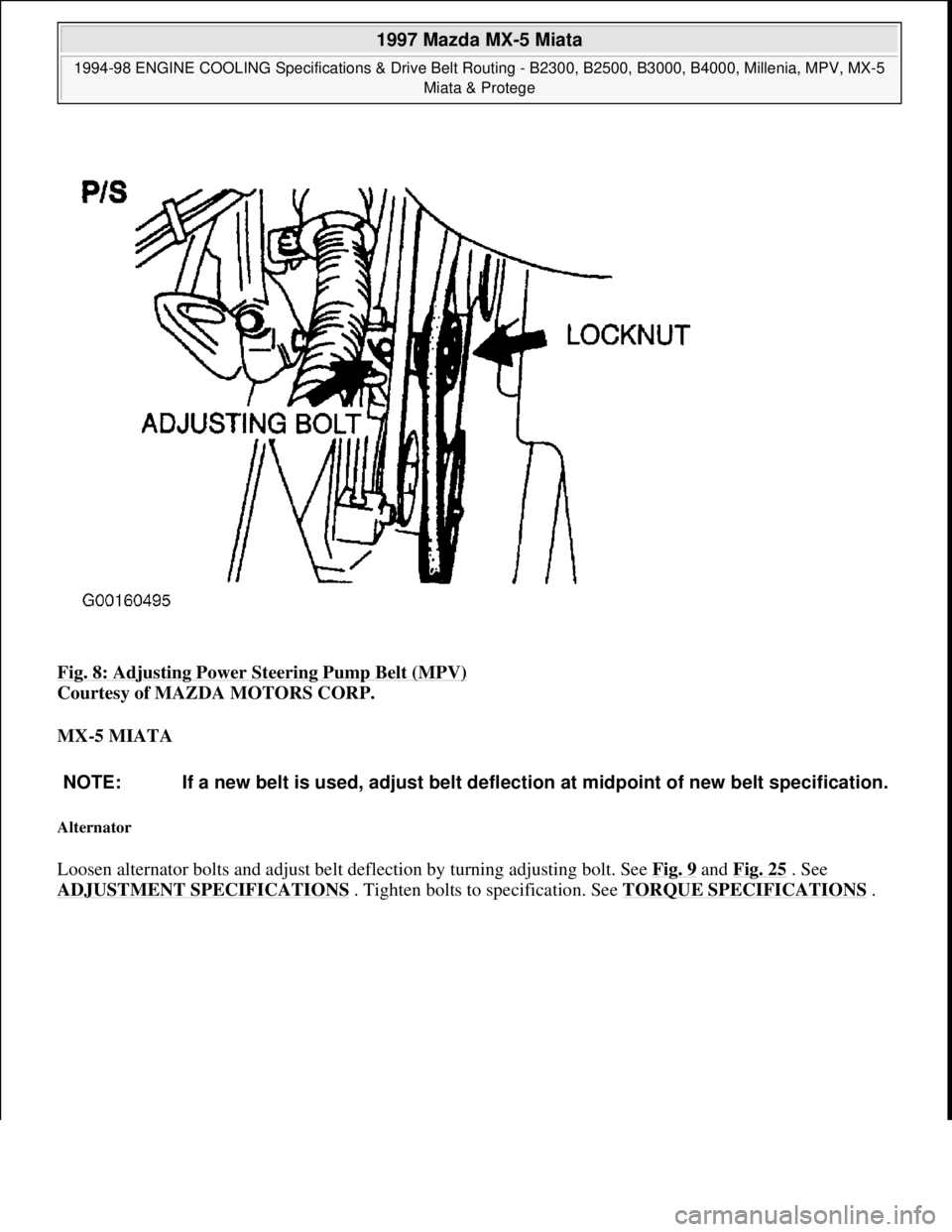

Fig. 8: Adjusting Power Steering Pump Belt (MPV)
Courtesy of MAZDA MOTORS CORP.
MX-5 MIATA
Alternator
Loosen alternator bolts and adjust belt deflection by turning adjusting bolt. See Fig. 9 and Fig. 25 . See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
NOTE: If a new belt is used, adjust belt deflection at midpoint of new belt specification.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 9 © 2005 Mitchell Repair Information Company, LLC.
Page 258 of 514

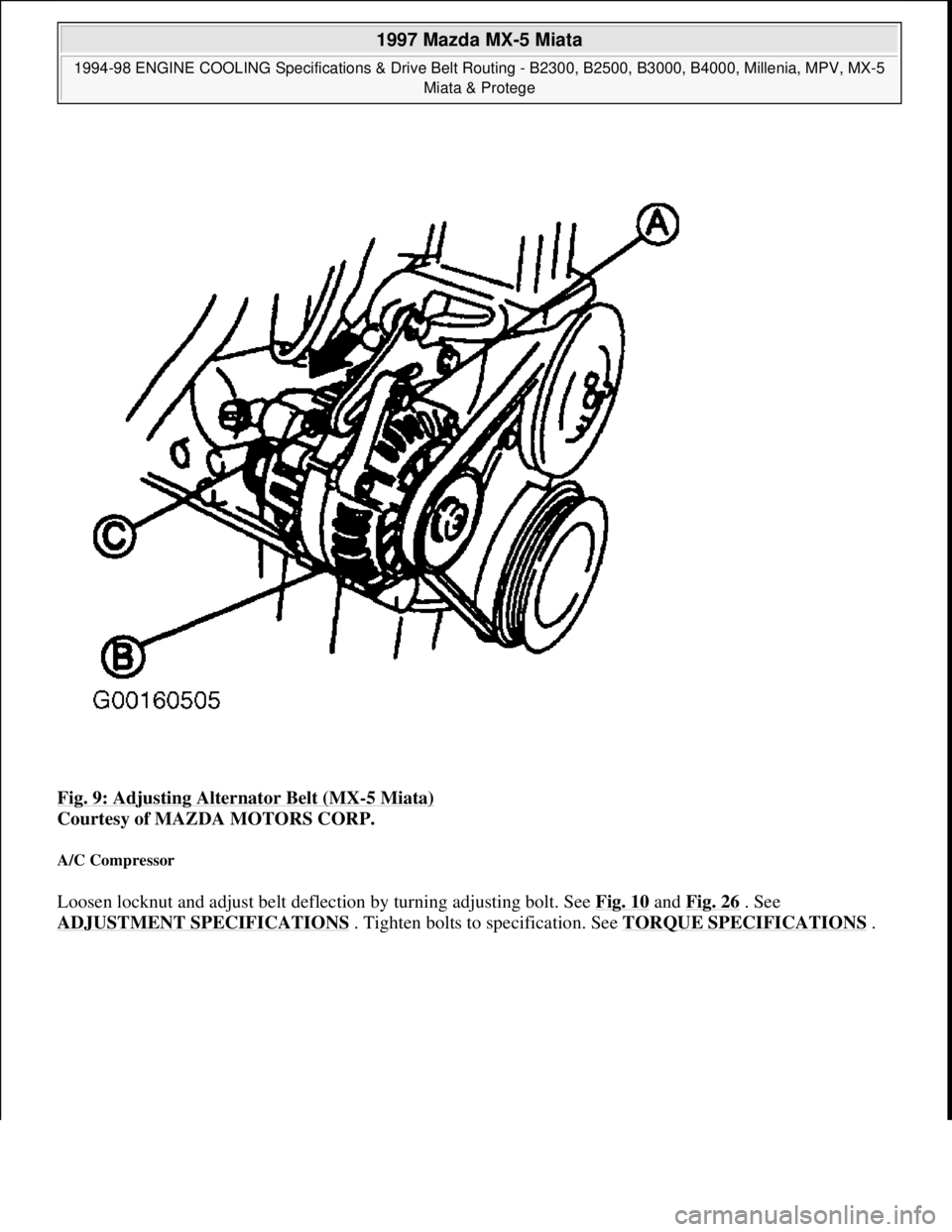

Fig. 9: Adjusting Alternator Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.
A/C Compressor
Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig. 10 and Fig. 26 . See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 10 © 2005 Mitchell Repair Information Company, LLC.
Page 259 of 514

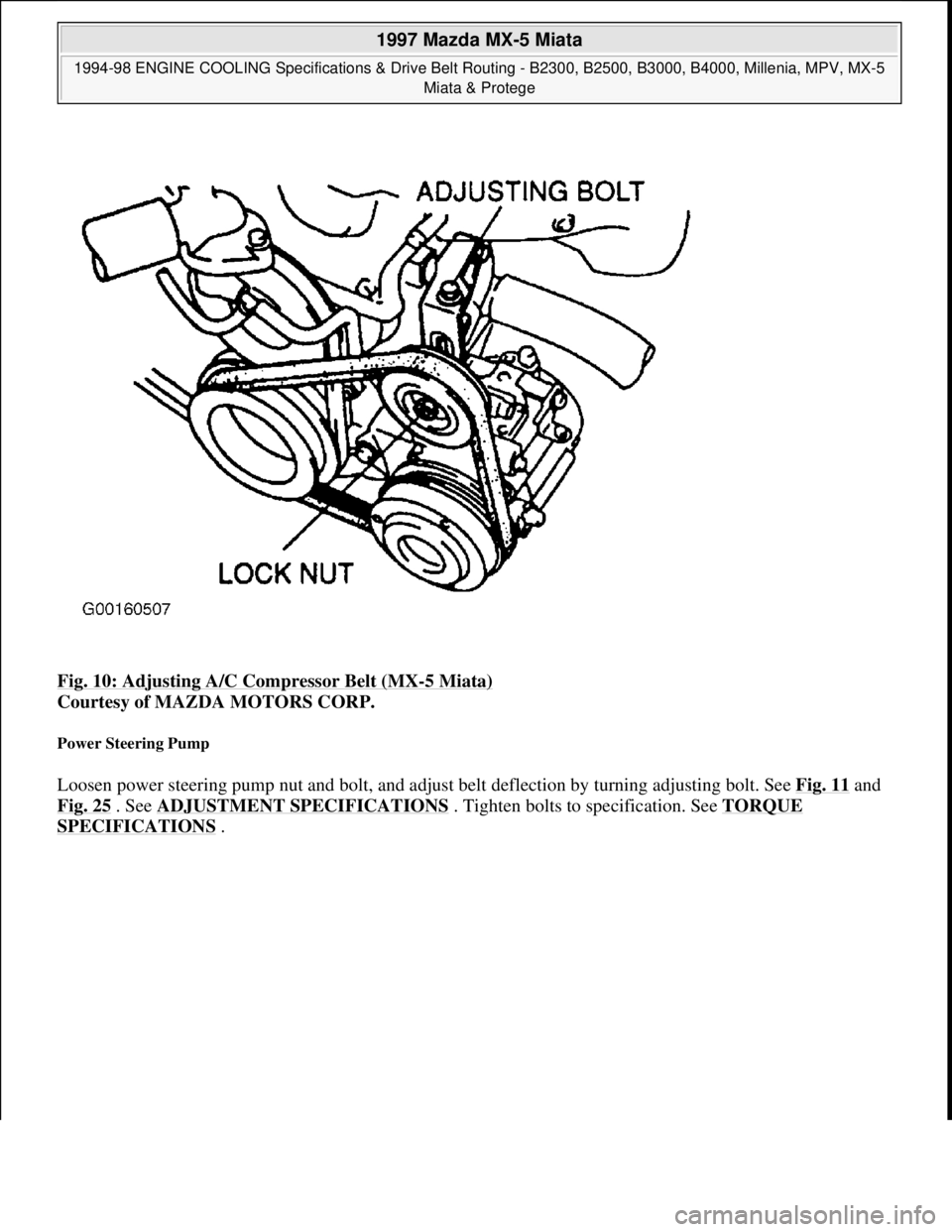

Fig. 10: Adjusting A/C Compressor Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.
Power Steering Pump
Loosen power steering pump nut and bolt, and adjust belt deflection by turning adjusting bolt. See Fig. 11 and
Fig. 25
. See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE
SPECIFICATIONS .
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 11 © 2005 Mitchell Repair Information Company, LLC.
Page 260 of 514

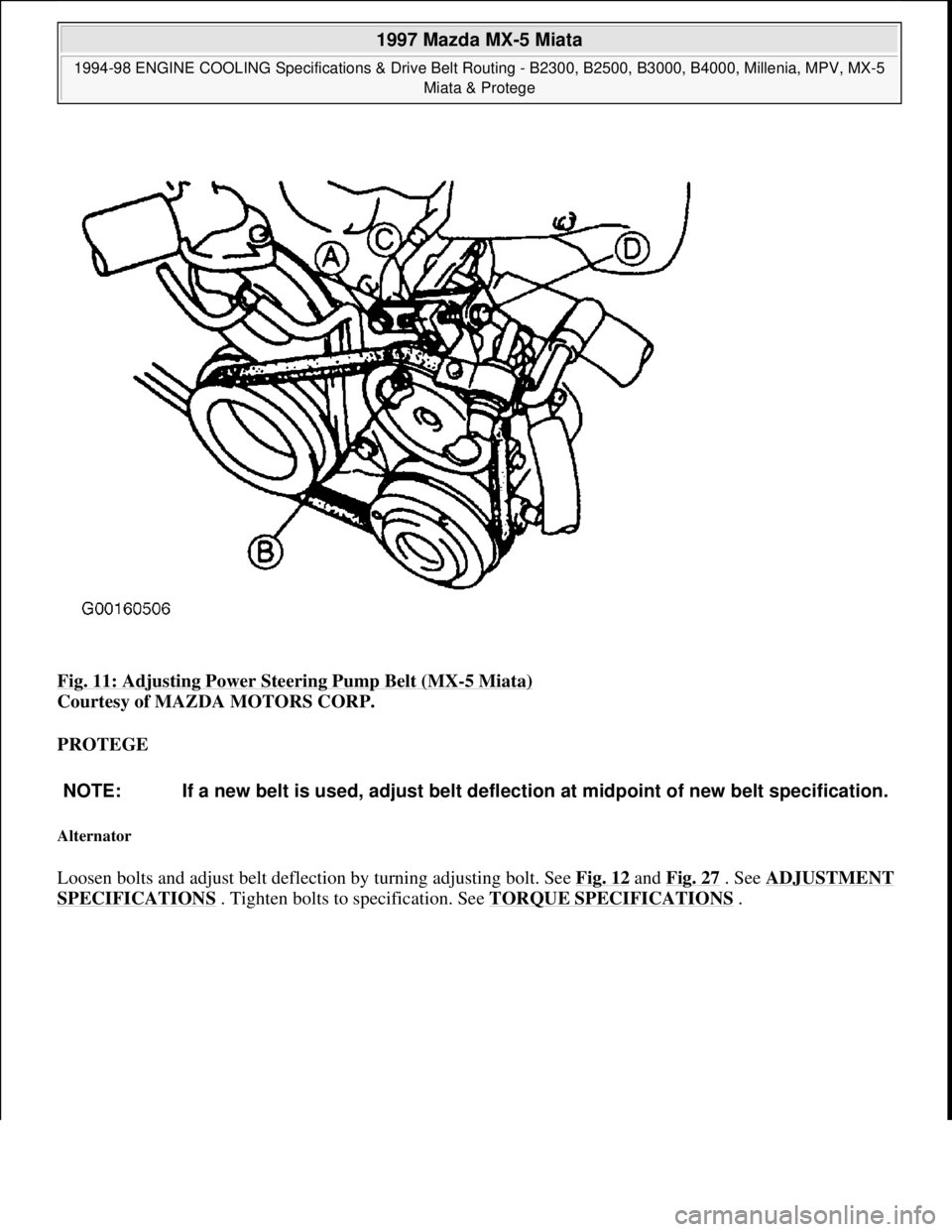

Fig. 11: Adjusting Power Steering Pump Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.
PROTEGE
Alternator
Loosen bolts and adjust belt deflection by turning adjusting bolt. See Fig. 12 and Fig. 27 . See ADJUSTMENT
SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .
NOTE: If a new belt is used, adjust belt deflection at midpoint of new belt specification.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 12 © 2005 Mitchell Repair Information Company, LLC.
Page 261 of 514

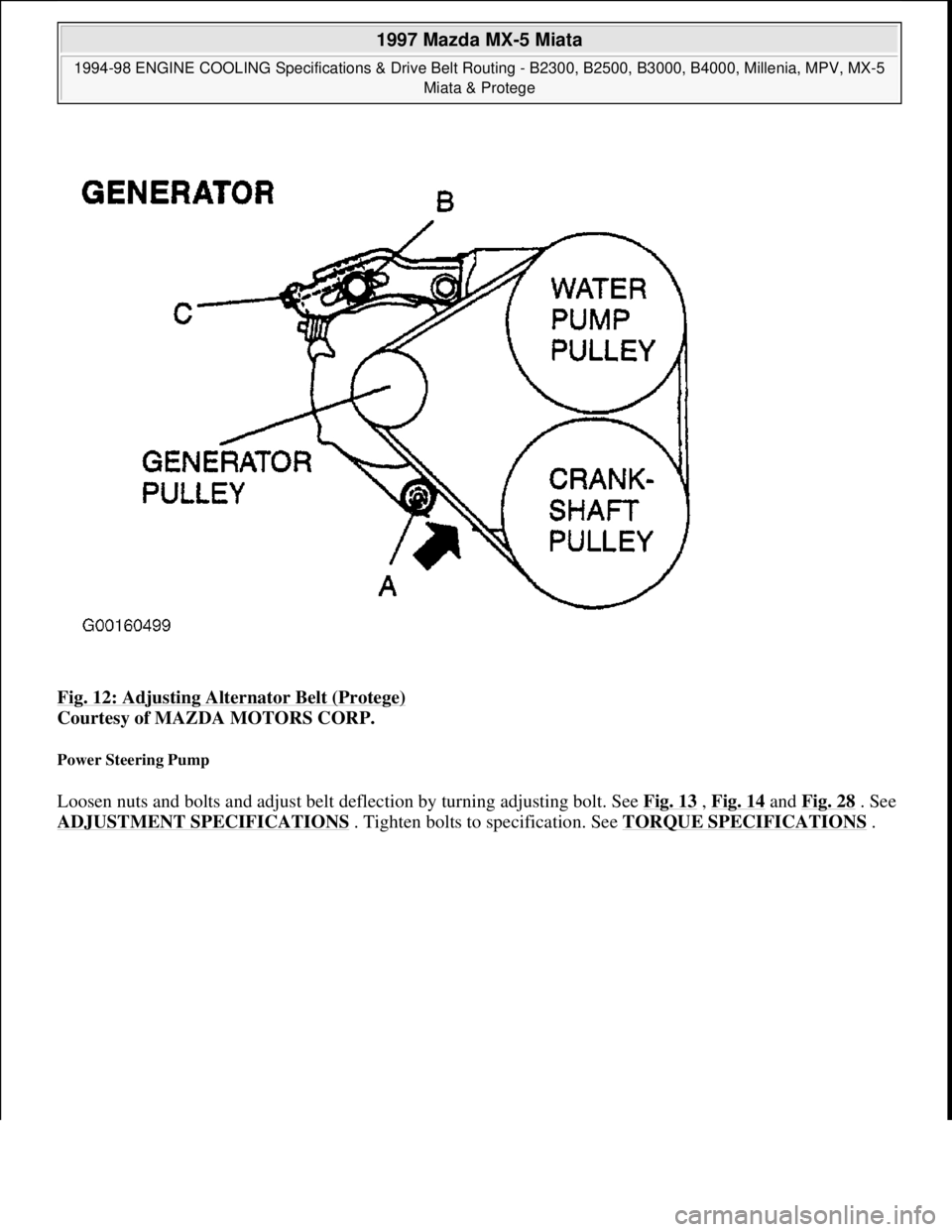

Fig. 12: Adjusting Alternator Belt (Protege)
Courtesy of MAZDA MOTORS CORP.
Power Steering Pump
Loosen nuts and bolts and adjust belt deflection by turning adjusting bolt. See Fig. 13 , Fig. 14 and Fig. 28. See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 13 © 2005 Mitchell Repair Information Company, LLC.
Page 262 of 514

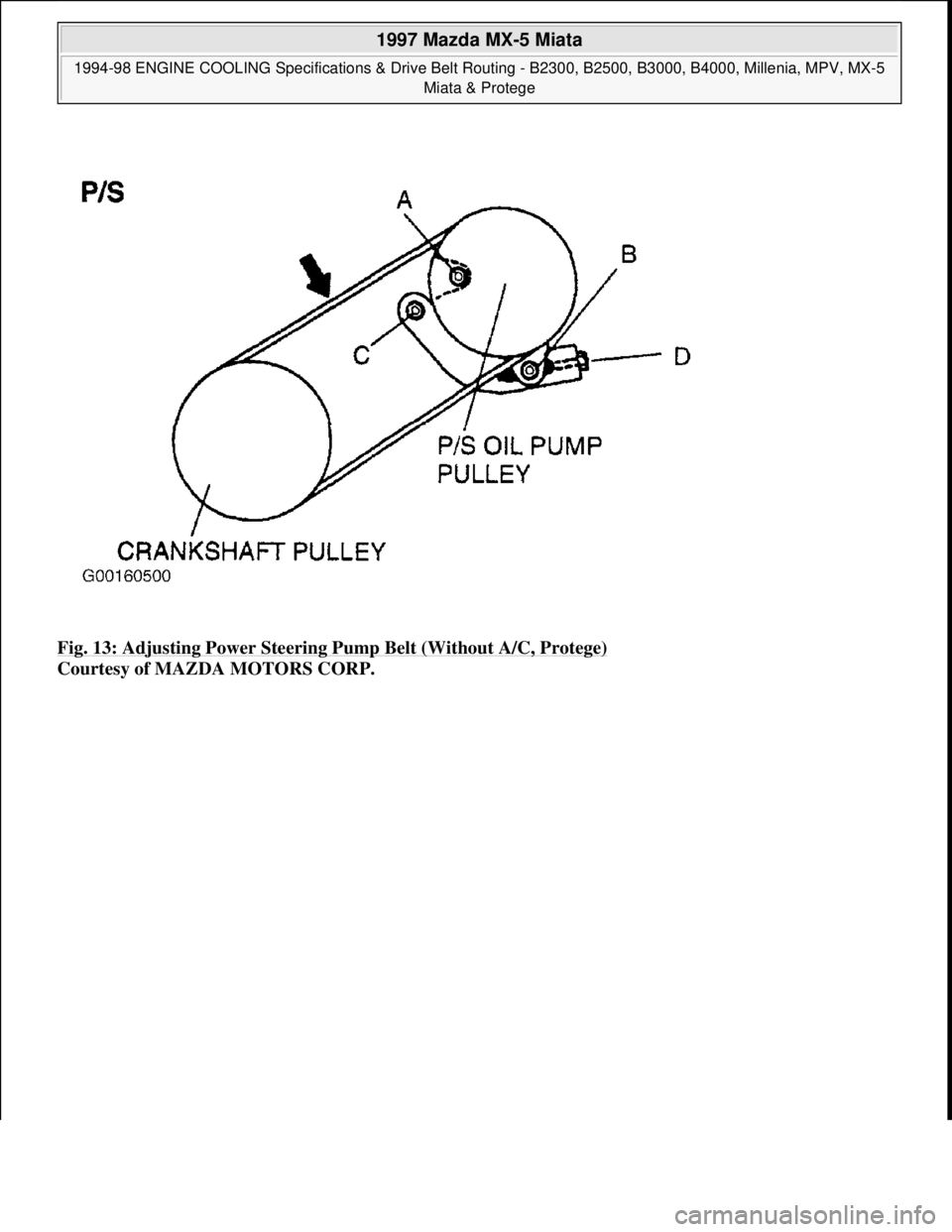

Fig. 13: Adjusting Power Steering Pump Belt (Without A/C, Protege)
Courtesy of MAZDA MOTORS CORP.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 14 © 2005 Mitchell Repair Information Company, LLC.
Page 263 of 514

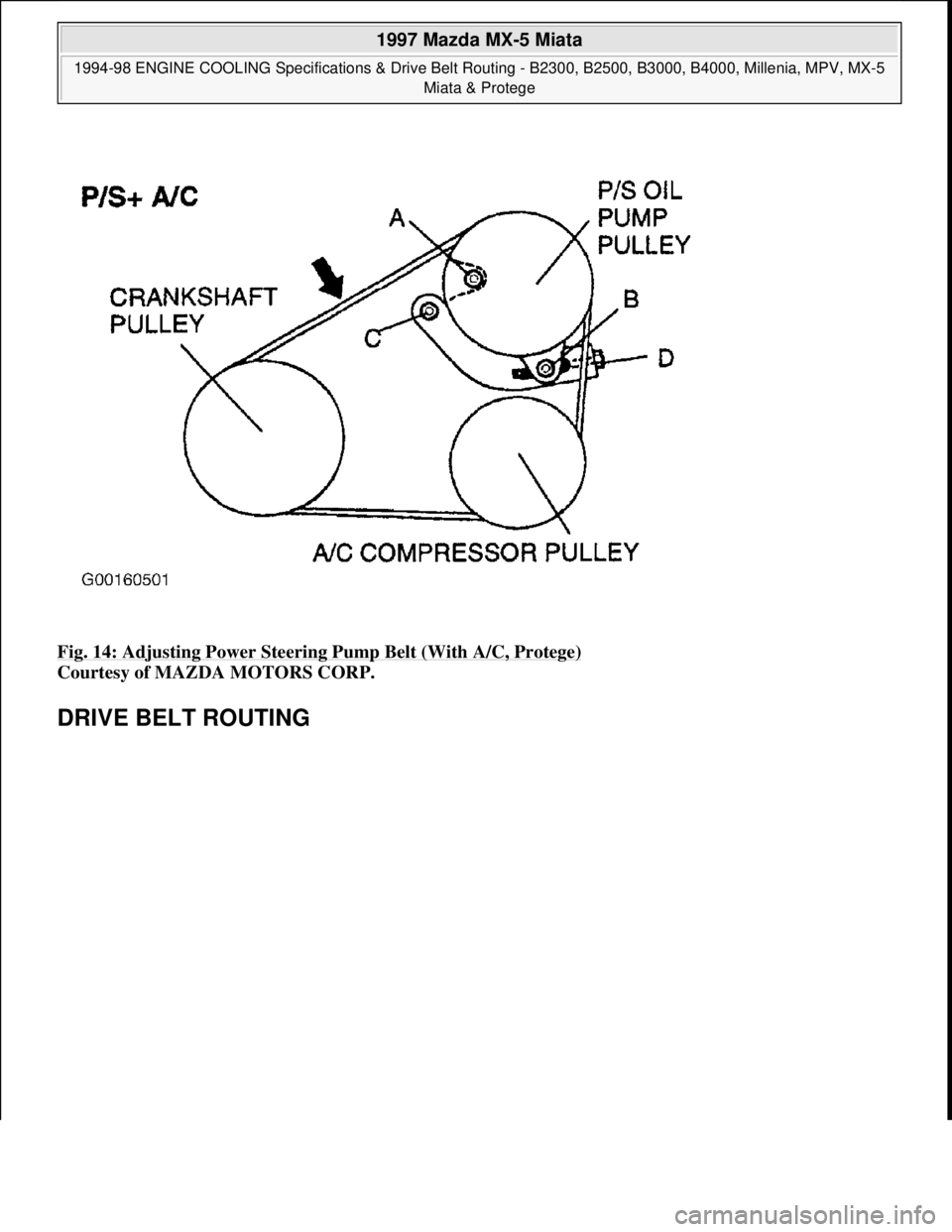

Fig. 14: Adjusting Power Steering Pump Belt (With A/C, Protege)
Courtesy of MAZDA MOTORS CORP.
DRIVE BELT ROUTING
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.
Page 264 of 514

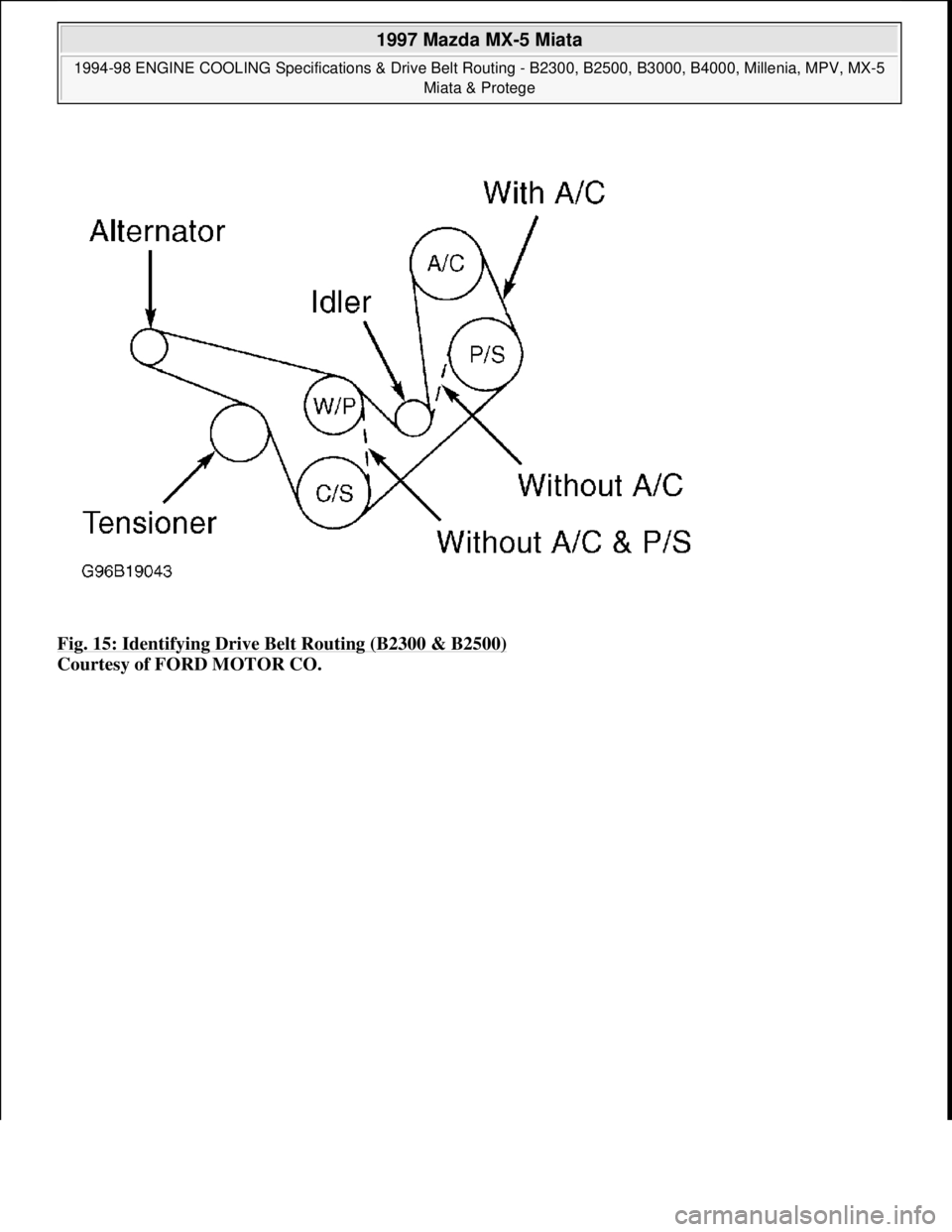

Fig. 15: Identifying Drive Belt Routing (B2300 & B2500)
Courtesy of FORD MOTOR CO.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.
