1997 LINCOLN TOWN CAR Owners Manual

20Zone map
Factors Affecting Compass AccuracyThe compass reading can be affected when you
drive near a number of things Ð such as large
buildings, bridges, power lines, and powerful
antennas.
Your compass can also be affected by magnetic or
metallic objects placed in or on the compass sensor
(the sensor is loacated on the inside rearview mirror
bracket). If the compass is giving inaccurate
readings, perform the calibration procedure.SpeedometerThe speedometer tells you how many miles
(kilometers) per hour your vehicle is moving. It
indicates the speed up to 120 mph or up to
199 km/h.
You can press the E/M (English/Metric) button
located just below the message center display to
show the speed you are going in either miles per
hour or kilometers per hour.
File:03fnist.ex
Update:Mon Jun 17 13:46:47 1996

21
OdometerThe odometer tells you the total number of miles or
kilometers your vehicle has been driven. If the
cluster is replaced, and the accumulated mileage on
the odometer is unknown, the replacement cluster
will have the circled ªSº illuminated with zero
miles on the odometer. If the actual vehicle mileage
can be verified, then an authorized service center
can program the actual mileage into the odometer
of the replacement cluster. The actual mileage (if
known) or an estimated mileage (if unknown) is
shown on a label affixed on the door pillar.
Press the E/M (English/Metric) button located just
below the message center display to show miles or
kilometers.
If the odometer displays the word ªERRORº contact
your dealer for service.

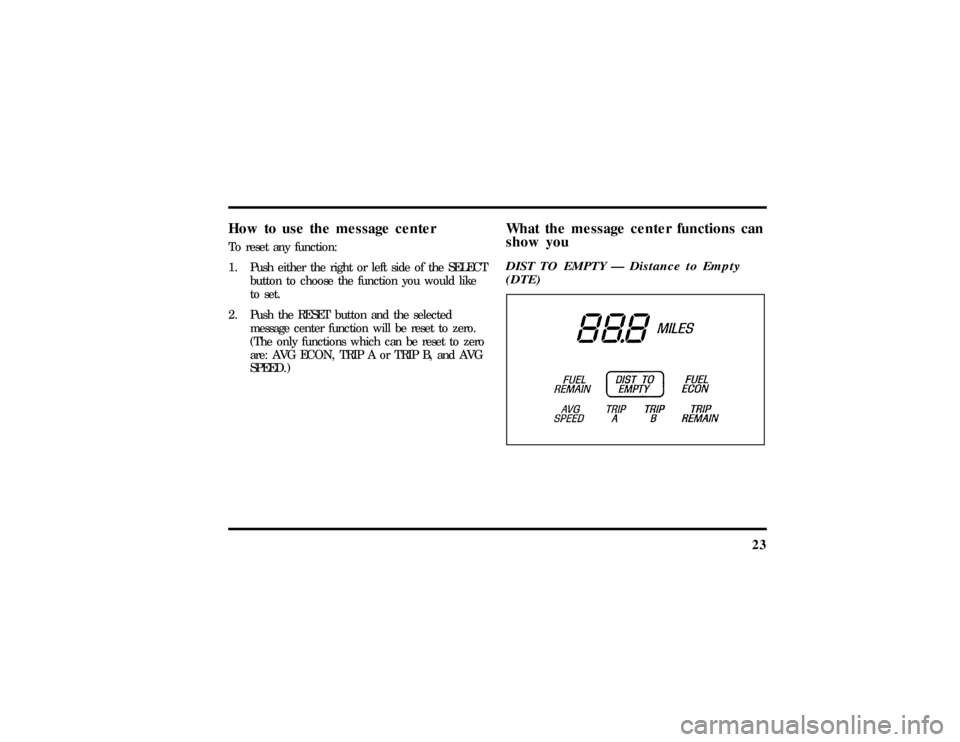

The Electronic Message CenterAlong with information the warning lights and
gauges provide, the electronic message center lets
you:q
see problems such as Door Ajar, Air Suspension,
Trunk Ajar, Washer Fluid
q
see how many miles/kilometers you can drive
with the fuel remaining in your tank
q
see how many gallons/liters of fuel are
remaining
q
monitor your average fuel economy
q
monitor your instantaneous fuel economy
q
monitor your average speed
q
check the distance you have travelled during a
trip on either Trip A or Trip B
q
check the distance remaining from a set value
during a trip
File:03fnist.ex
Update:Mon Jun 17 13:46:47 1996

22All of the message center functions are controlled
by the three switches located just below the radio
controls in the center of the instrument panel.q
E/MÐ Changes the electronic instrument
cluster and the electronic temperature control
display to read in either English or Metric units.
q
ResetÐ Sets the selected function to zero (if
resettable).
q
SelectÐ Selects the function. This is a dual
action switch, the right side advances function
to the right, the left side advances function to
the left.
File:03fnist.ex
Update:Mon Jun 17 13:46:47 1996

23
How to use the message centerTo reset any function:
1. Push either the right or left side of the SELECT
button to choose the function you would like
to set.
2. Push the RESET button and the selected
message center function will be reset to zero.
(The only functions which can be reset to zero
are: AVG ECON, TRIP A or TRIP B, and AVG
SPEED.)
What the message center functions can

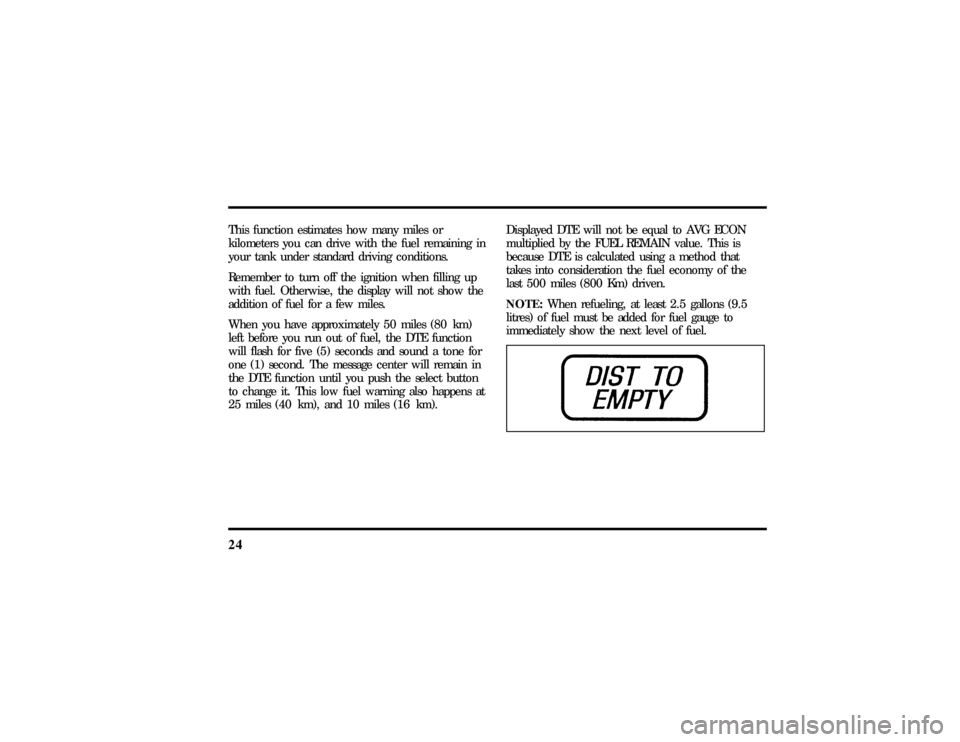

show youDIST TO EMPTY Ð Distance to Empty
(DTE)
File:03fnist.ex
Update:Mon Jun 17 13:46:47 1996

24This function estimates how many miles or
kilometers you can drive with the fuel remaining in
your tank under standard driving conditions.
Remember to turn off the ignition when filling up
with fuel. Otherwise, the display will not show the
addition of fuel for a few miles.
When you have approximately 50 miles (80 km)
left before you run out of fuel, the DTE function
will flash for five (5) seconds and sound a tone for
one (1) second. The message center will remain in
the DTE function until you push the select button
to change it. This low fuel warning also happens at
25 miles (40 km), and 10 miles (16 km).Displayed DTE will not be equal to AVG ECON
multiplied by the FUEL REMAIN value. This is
because DTE is calculated using a method that
takes into consideration the fuel economy of the
last 500 miles (800 Km) driven.
NOTE:When refueling, at least 2.5 gallons (9.5
litres) of fuel must be added for fuel gauge to
immediately show the next level of fuel.
File:03fnist.ex
Update:Mon Jun 17 13:46:47 1996

25
If ªCOº or ªCSº is displayed, this means that there
is a problem with the fuel indication system and
you should contact your dealer for service as soon

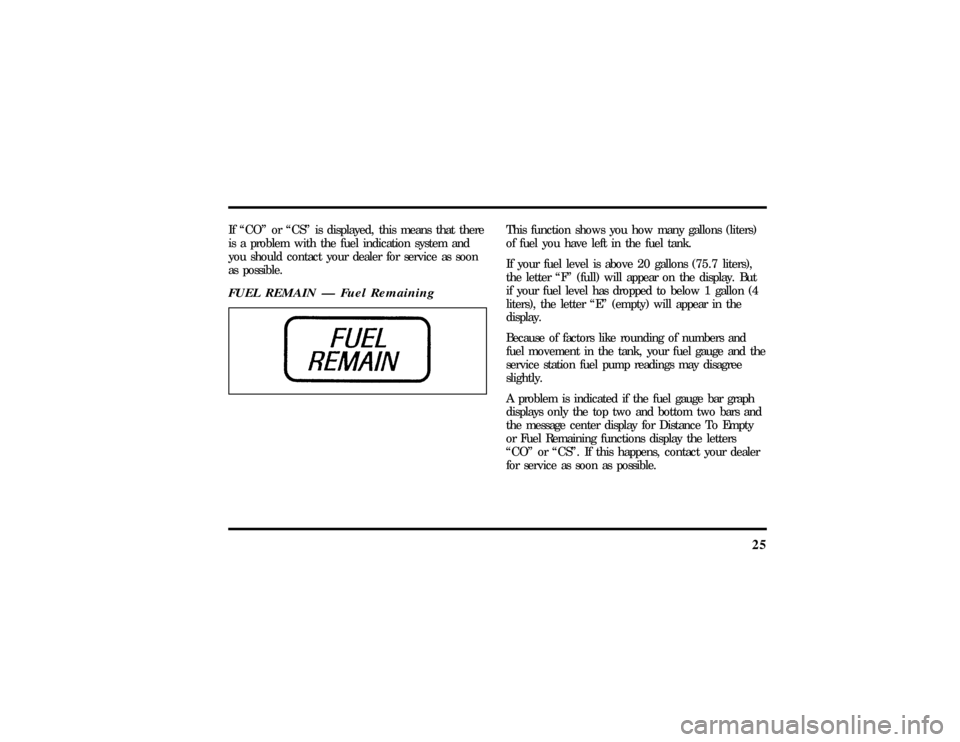

as possible.FUEL REMAIN Ð Fuel Remaining
This function shows you how many gallons (liters)
of fuel you have left in the fuel tank.
If your fuel level is above 20 gallons (75.7 liters),
the letter ªFº (full) will appear on the display. But
if your fuel level has dropped to below 1 gallon (4
liters), the letter ªEº (empty) will appear in the
display.
Because of factors like rounding of numbers and
fuel movement in the tank, your fuel gauge and the
service station fuel pump readings may disagree
slightly.
A problem is indicated if the fuel gauge bar graph
displays only the top two and bottom two bars and
the message center display for Distance To Empty
or Fuel Remaining functions display the letters
ªCOº or ªCSº. If this happens, contact your dealer
for service as soon as possible.
File:03fnist.ex
Update:Mon Jun 17 13:46:47 1996

26FUEL ECON Ð Fuel Economy FunctionsThe FUEL ECON selection indicates two functions,
Average Fuel Economy and Instantaneous Fuel
Economy.
Average Economy is entered by pressing the
SELECT> button from the DISTANCE TO EMPTY
display. This function is indicated by the AVG
indicator being illuminated to the left of the
Message Center digital display.
Instantaneous Fuel Economy is displayed by pressing
the SELECT> button again from the Average
Economy display and is indicated by INST being
illuminated replacing AVG.
File:03fnist.ex
Update:Mon Jun 17 13:46:47 1996

27

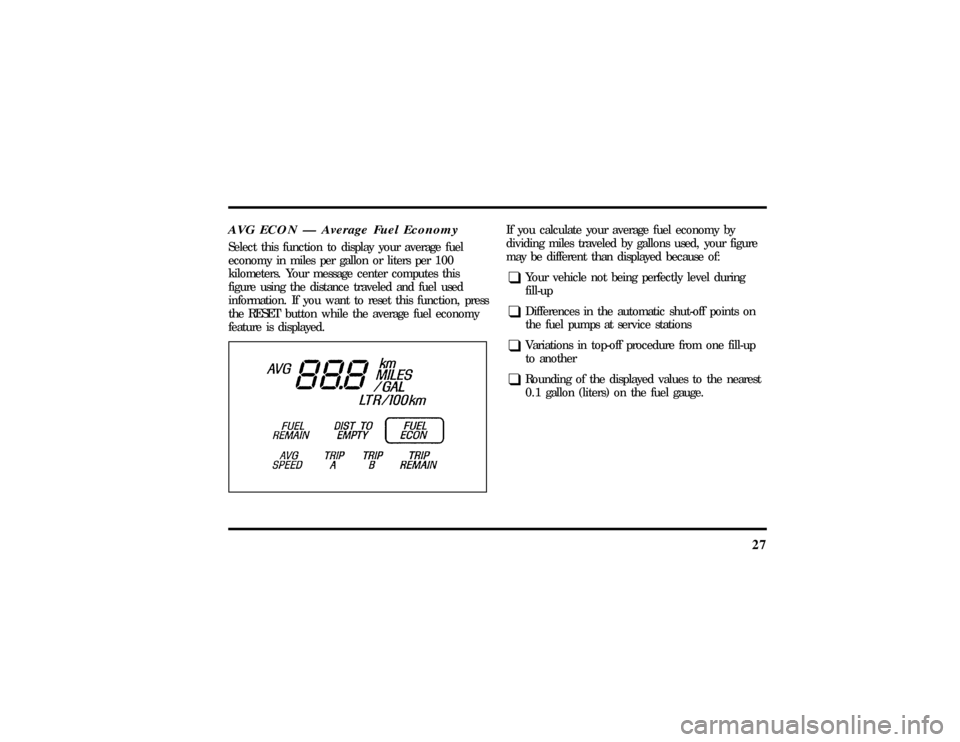

AVG ECON Ð Average Fuel EconomySelect this function to display your average fuel
economy in miles per gallon or liters per 100
kilometers. Your message center computes this
figure using the distance traveled and fuel used
information. If you want to reset this function, press
the RESET button while the average fuel economy
feature is displayed.
If you calculate your average fuel economy by
dividing miles traveled by gallons used, your figure
may be different than displayed because of:q
Your vehicle not being perfectly level during
fill-up
q
Differences in the automatic shut-off points on
the fuel pumps at service stations
q
Variations in top-off procedure from one fill-up
to another
q
Rounding of the displayed values to the nearest
0.1 gallon (liters) on the fuel gauge.
File:03fnist.ex
Update:Mon Jun 17 13:46:47 1996
