1997 CHEVROLET MALIBU Owners Manual

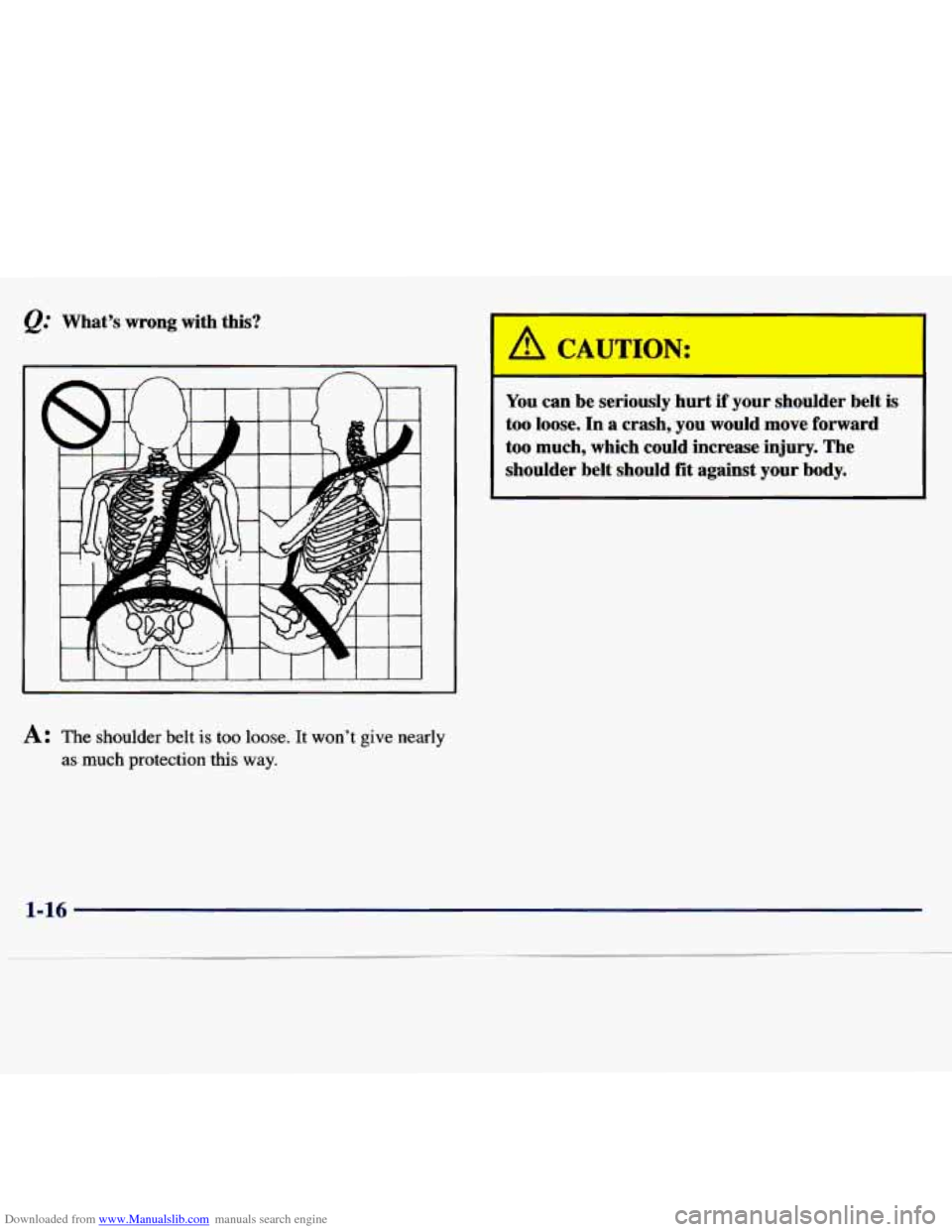

Downloaded from www.Manualslib.com manuals search engine Q: What’s wrong with this?
1 CAUTION:
You can be seriously hurt if your shoulder belt is
too
loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should
fit against your body.
A: The shoulder belt is too loose. It won’t give nearly
as much protection this way.
1-16

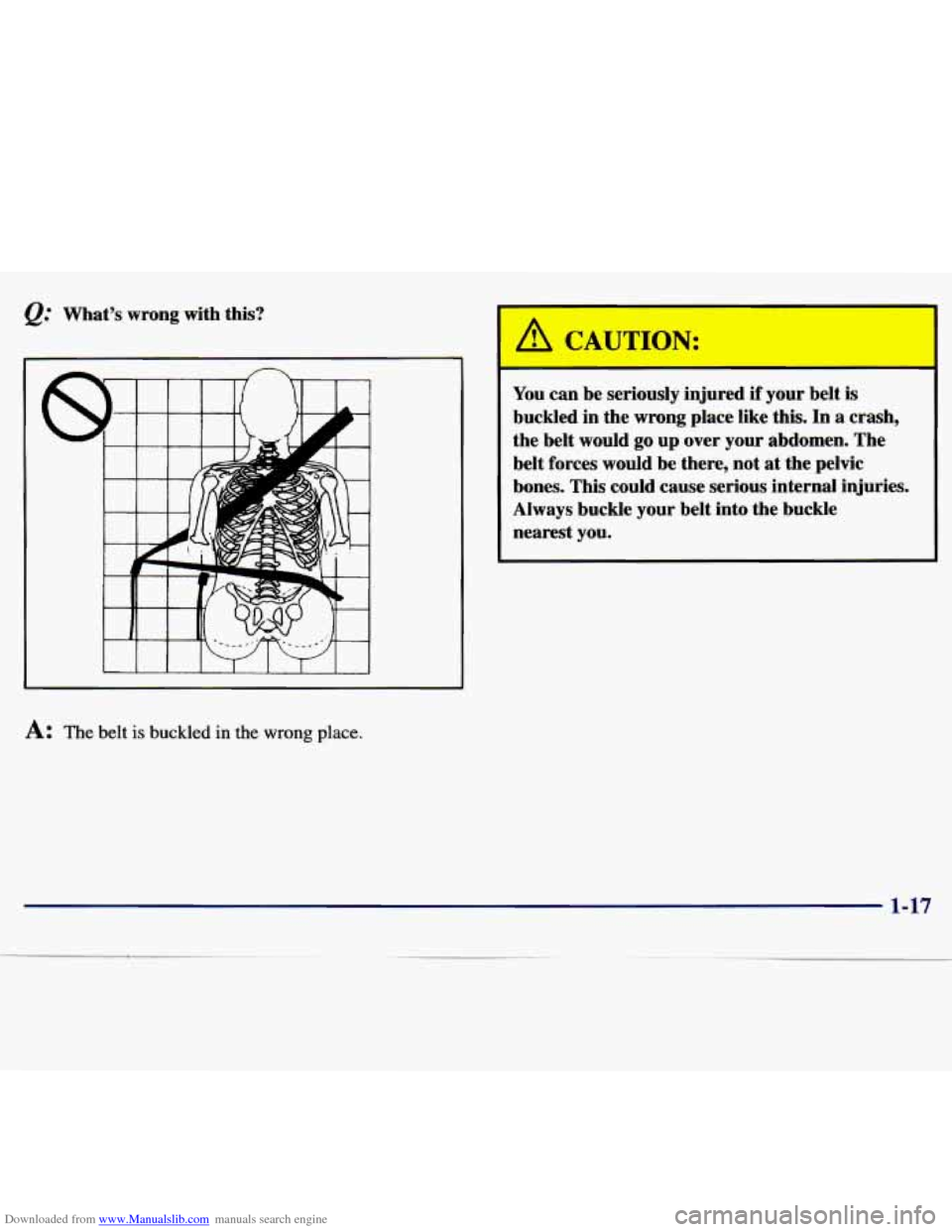

Downloaded from www.Manualslib.com manuals search engine Q: What’s wrong with this?
You can be seriously injured if your belt is
buckled in the wrong place like this. In
a crash,
the belt would
go up over your abdomen. The
belt forces would be there, not at the pelvic
bones. This could cause serious internal injuries.
Always buckle your belt into the buckle
nearest you.
A: The belt is buckled in the wrong place.
1-17

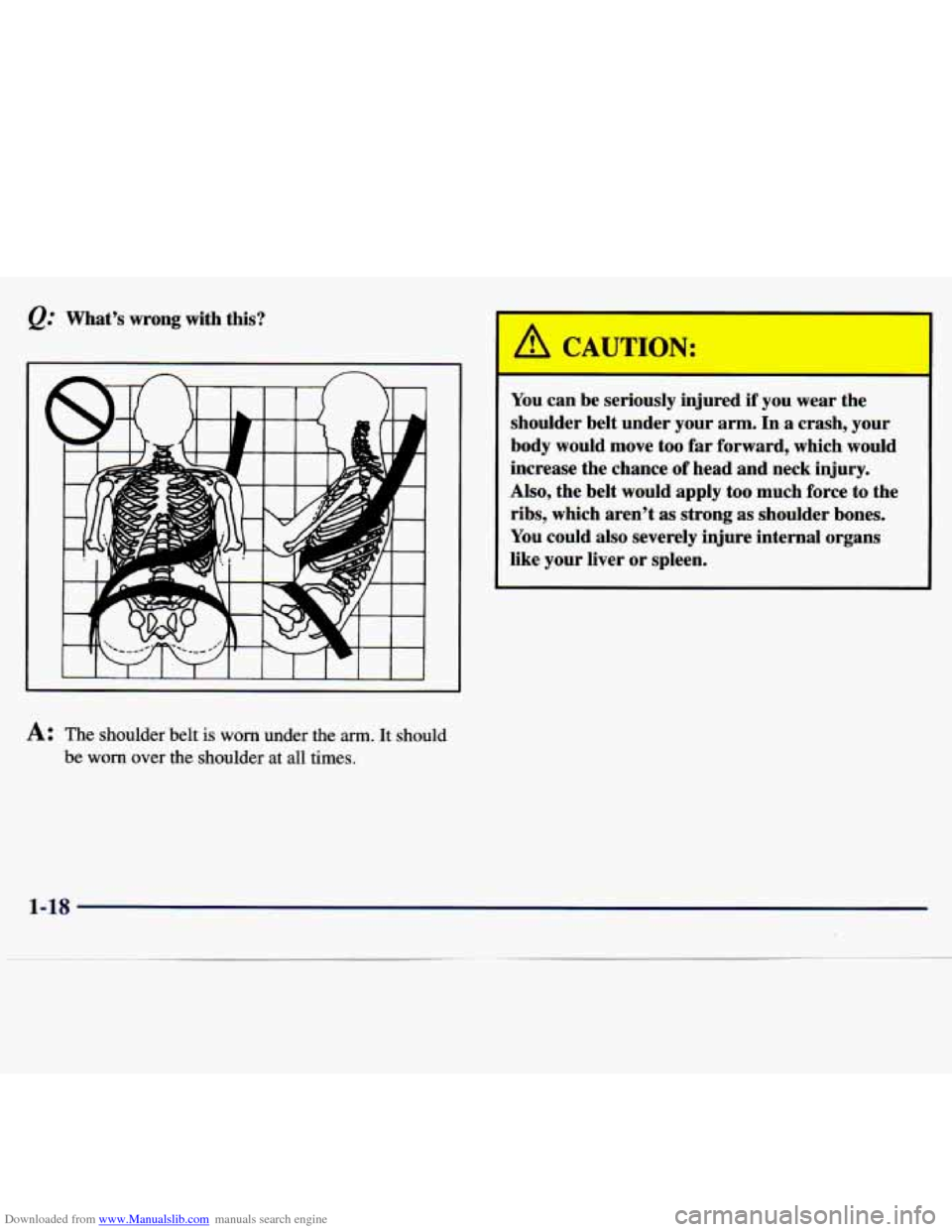

Downloaded from www.Manualslib.com manuals search engine @’ What’s wrong with this?
A CAUTION:
You can be seriously injured if you wear the
shoulder belt under your arm. In
a crash, your
body would move too
far forward, which would
increase the chance
of head and neck injury.
Also, the belt would apply too much force to the
ribs, which aren’t
as strong as shoulder bones.
You could
also severely injure internal organs
like your liver or spleen.
A: The shoulder belt is worn under the arm. It should
be
worn over the shoulder at all times.
1-18

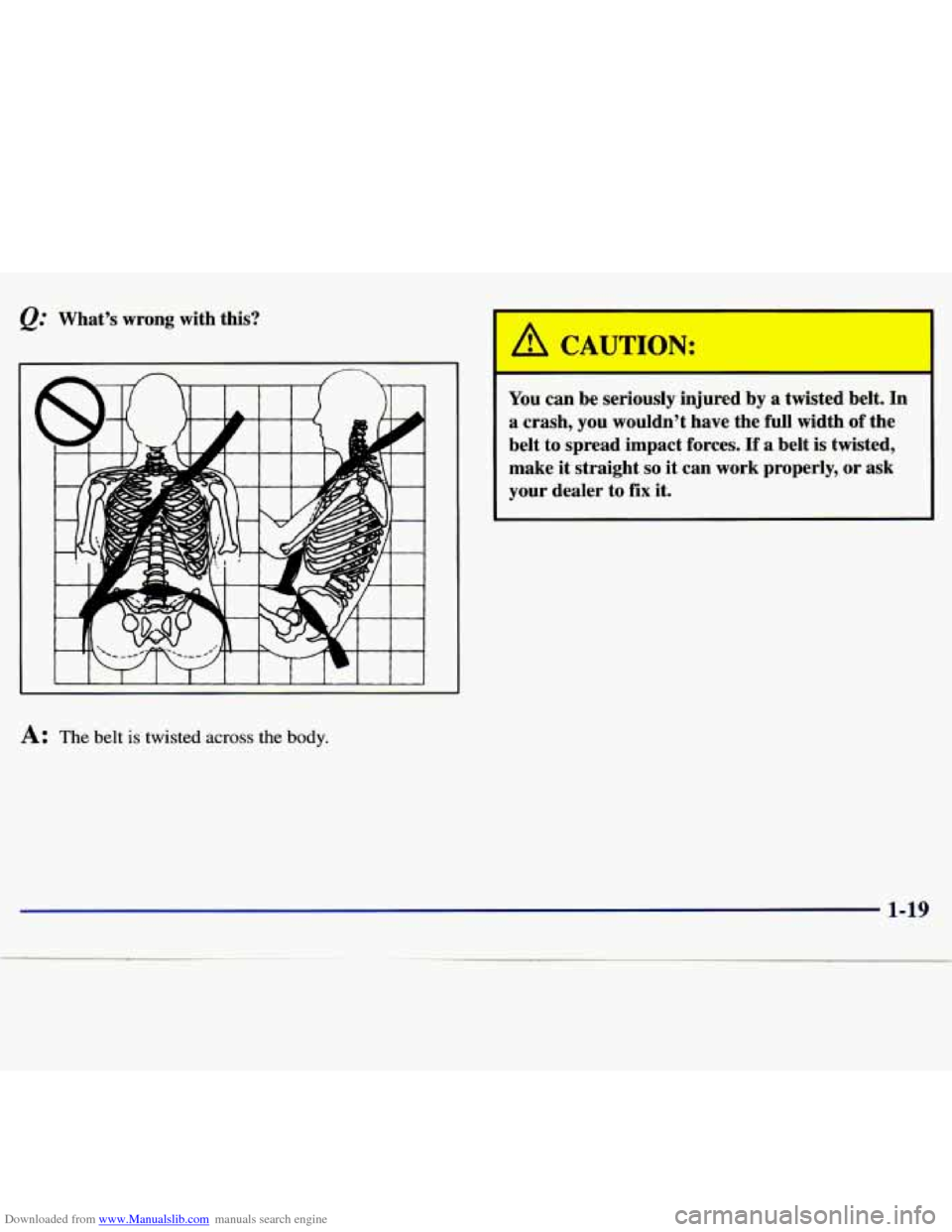

Downloaded from www.Manualslib.com manuals search engine @' What's wrong with this?
A: The belt is twisted across the body.
You can be seriously injured by a twisted belt. In
a crash, you wouldn't have the full width of the
belt to spread impact forces. If a belt is twisted,
make
it straight so it can work properly, or ask
your dealer to
fix it.
1-19

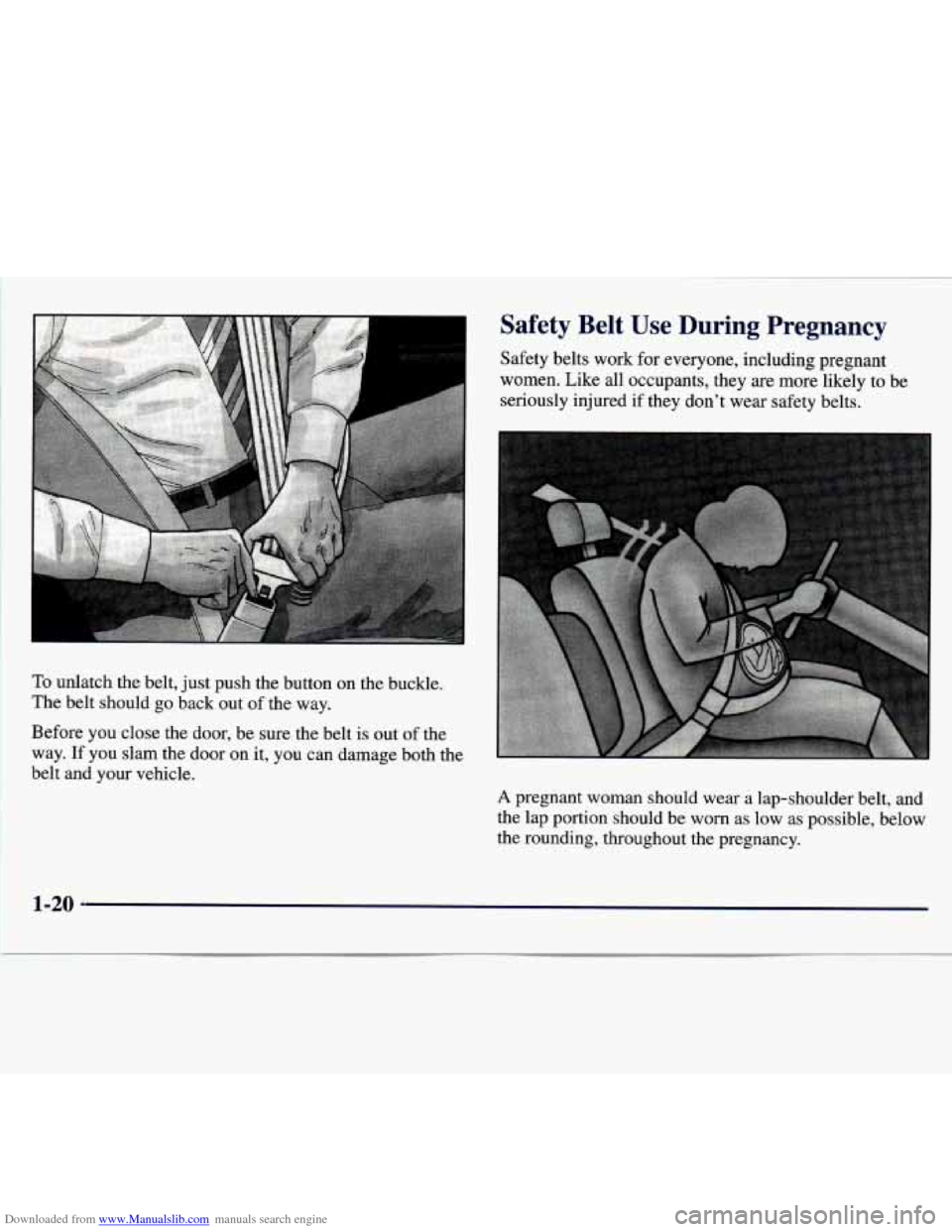

Downloaded from www.Manualslib.com manuals search engine To unlatch the belt, just push the button on the buckle.
The belt should go back out of the way.
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts.
Before you close the door, be sure the belt
is out of the
way. If you slam the door on it, you can damage both the
belt and your vehicle.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be
worn as low as possible, below
the rounding, throughout the pregnancy.
I
1-20

Downloaded from www.Manualslib.com manuals search engine The best way to protect the fetus is to protect the
mother. When a safety belt
is worn properly, it’s more
likely that the fetus won’t be hurt in a crash. For
pregnant women, as for anyone, the key to malung
safety belts effective is wearing them properly.
Right Front Passenger Position
The right front passenger’s safety belt works the same
way as the driver’s safety belt. See “Driver Position,”\

earlier
in this section.
Supplemental Restraint System (SRS)
This part explains the Supplemental Restraint System
(SRS) or air bag system.
Your Chevrolet has two air bags
-- one air bag for the
driver and another air bag for the right front passenger. Here are
the most important things
to know about the air
bag system:
‘ A CAUTION:
--- - I
You can be severely injured or killed in a crash if
you aren’t wearing your safety belt
-- even if you
have air bags. Wearing your safety belt during
a
crash helps reduce your chance of hitting things
inside the vehicle or being ejected from
it. Air
bags are “supplemental restraints’’ to the safety
belts. All air bags are designed to work with
safety belts, but don’t replace them. Air bags are
designed to work only in moderate to severe
crashes where the front of your vehicle hits
something. They aren’t designed to inflate at all
in rollover, rear, side
or low-speed frontal
crashes. Everyone in your vehicle should wear
a
safety belt properly -- whether or not there’s an
air bag for that person.

Downloaded from www.Manualslib.com manuals search engine Air bags inflate with great force, faster than the
blink
of an eye. If you’re too close to an inflating
air bag, it could seriously injure you. Safety belts
help keep you in position before and during a
crash. Always wear your safety belt, even with air
bags, The driver should
sit as far back as possible
while still maintaining control of the vehicle.
An inflating
air bag can seriously injure small
children. Always secure children properly in your
vehicle. To read how, see the part of this manual
called “Children” and the caution label on the
right front passenger’s safety belt.
There is an air bag readiness
light
on the instrument
panel, which shows the air bag symbol.
The system checks the air bag electrical system for
malfunctions. The light tells you if there is an electrical
problem. See “Air Bag Readiness Light”
in the Index
for more information.
1-22

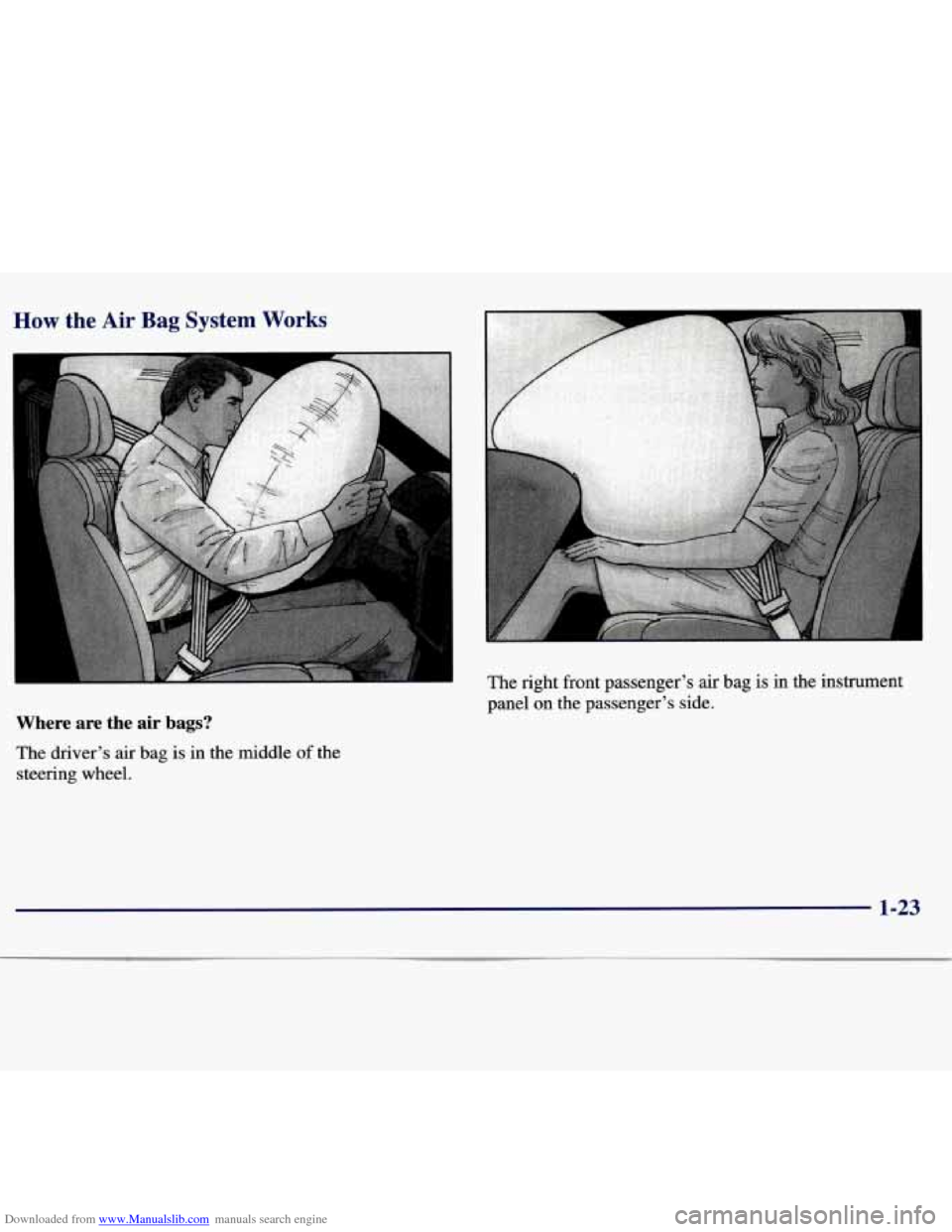

Downloaded from www.Manualslib.com manuals search engine How the Air Bag System Works
E
I The right front passenger’s air bag is in the instrument
panel on the passenger’s side.
Where are the air bags?
The driver’s air bag is in the middle of the
steering wheel.
1-23
