1997 CHEVROLET MALIBU Owners Manual

Downloaded from www.Manualslib.com manuals search engine 1

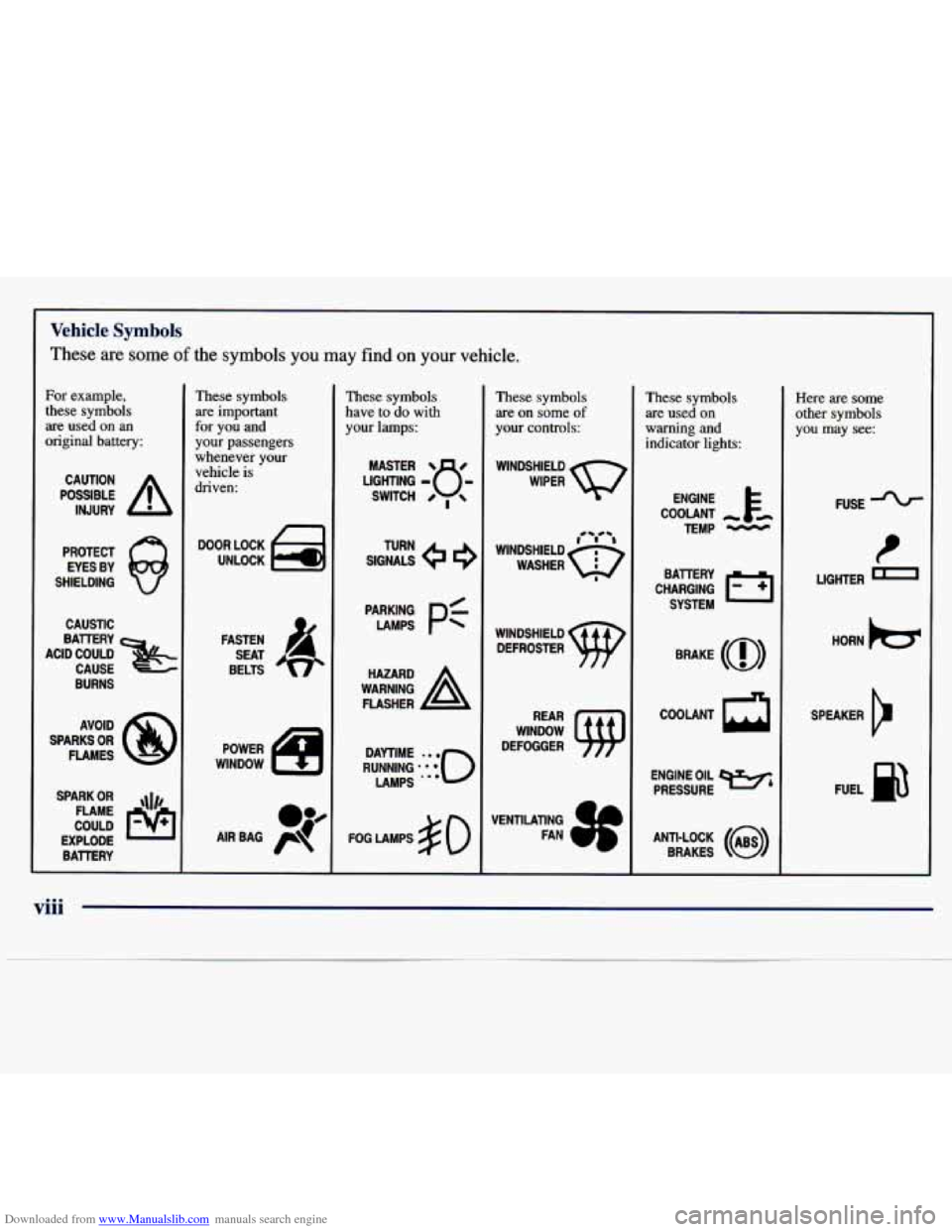

Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols
are used
on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
Q
CAUSTIC
BURNS
AVO1 D
SPARKS
OR
FLAMES
SPARK
OR ,111,
COULD [-sr=l
FLAME
EXPLODE BAlTERY
...
These symbols
are important
for you and
your passengers
whenever your vehicle
is
driven:
DOOR LOCK
UNLOCK
These symbols
have
to do with
your lamps:
SIGNALS @ e
TURN
FOG LAMPS
$0
These symbols are
on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols
are used on
warning
and
indicator lights:
ENGINE t
COOLANT kt-
TEMP -
CHARGING I-1
BAlTERY
SYSTEM
BRAKE (@)
COOLANT a
ENGINE OIL e,
PRESSURE
ANTI-LOCK
(a)
BRAKES
Here are some
other symbols
you may see:
FUSE
P
LIGHTER
HORN
)cr
SPEAKER
Er
FUEL B

Downloaded from www.Manualslib.com manuals search engine Section 1 Seats and Seat Restraints
Here you’ll find information about the seats in your Chevrol\
et and how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safety belts.
1-2
1-2
1-3
1-4
1-5
1-8 1-11
1-12 1-15 Seats and Controls
Manual Seats
Power Seats
Reclining Front Seatbacks
Rear Seats
Why Safety Belts Work
Questions Many People Ask About
Safety Belts
How to Wear Safety Belts Properly
Shoulder Belt Height Adjuster 1-20
1-23
1-30
1-34
1-36
1-37
1-47
1-47 1-47 Safety Belt Use During Pregnancy
Questions and Answers About Air Bags Safety Belt Comfort Guides
How to Use Child Restraints
Important Information for Buckling Children in Child Restraints
Child Restraint Top Straps
How to Obtain a Safety Belt Extender
Checking Your Restraint Systems
Replacing Parts After a Crash
1-1
-----

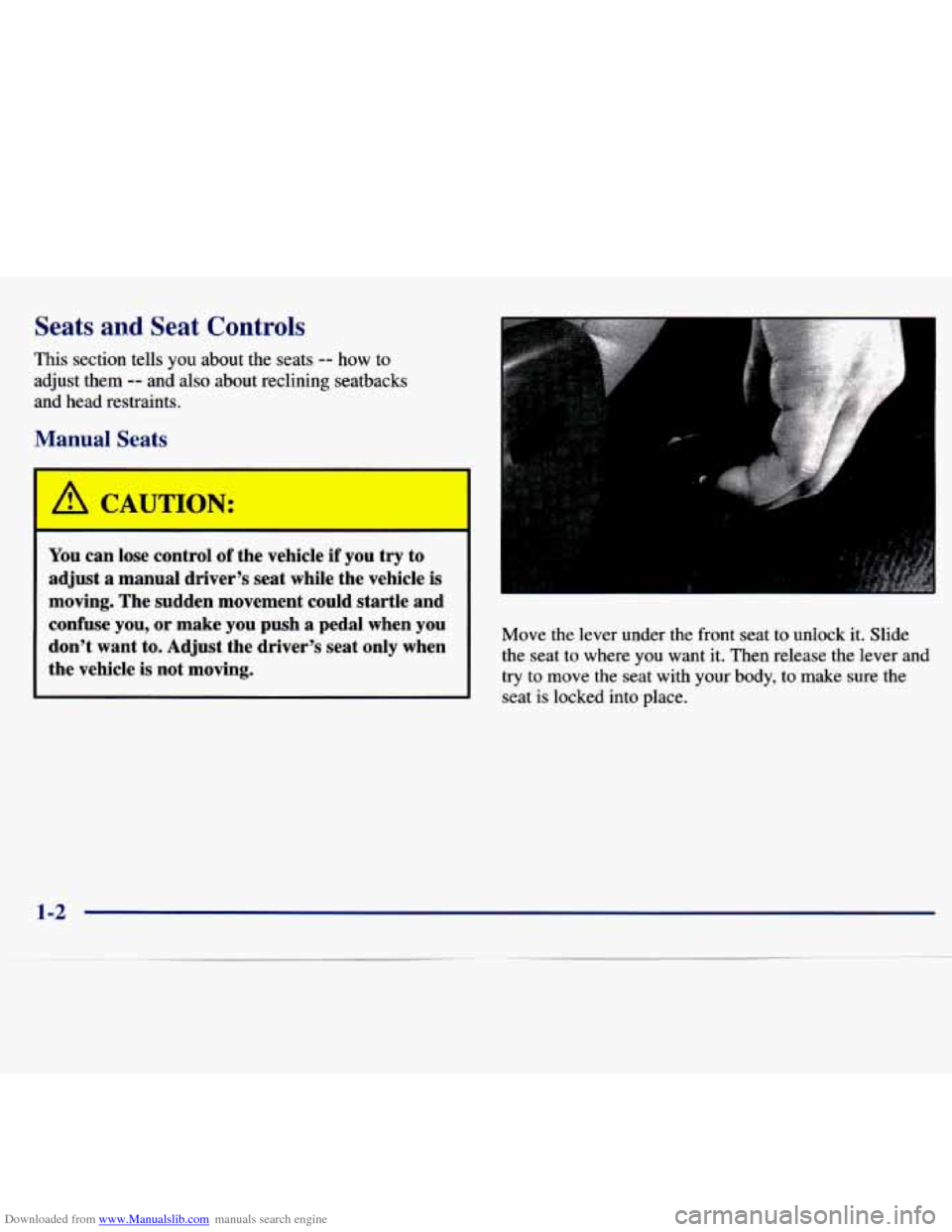

Downloaded from www.Manualslib.com manuals search engine Seats and Seat Controls
This section tells you about the seats -- how to
adjust
them -- and also about reclining seatbacks
and head restraints.
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push
a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving. Move the lever under the front sear IO unlock it. Slide
the seat to where you want it. Then release the lever and
try to move the seat with your body, to make sure
the
seat is locked into place.
1-2

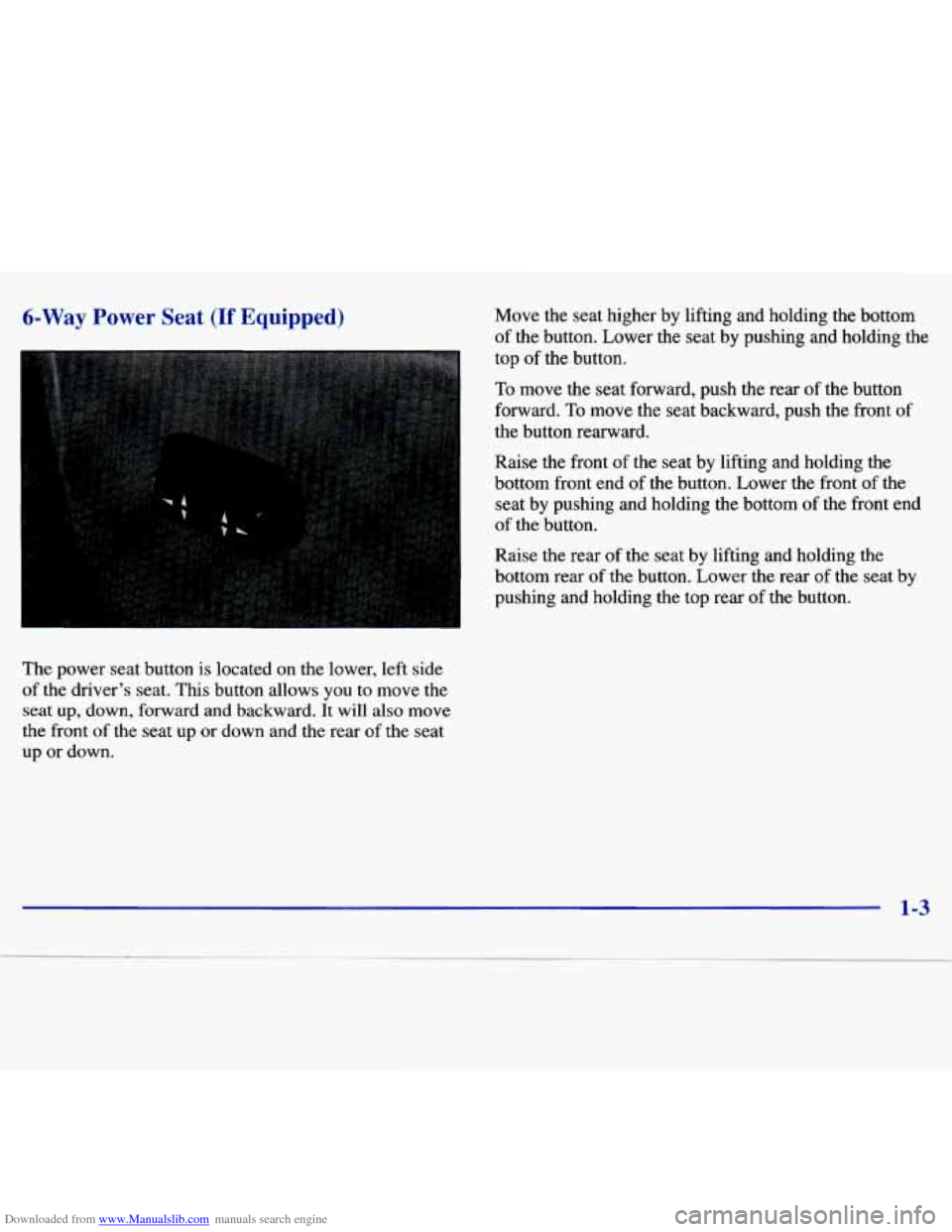

Downloaded from www.Manualslib.com manuals search engine 6-Way Power Seat (If Equipped)
The power seat button is located on the lower, left side
of the driver’s seat. This button allows you to move the
seat up, down, forward and backward.
It will also move
the front of the seat up or down and the rear of the seat
up or down. Move the seat higher by lifting and holding the bottom
of the button. Lower the seat by pushing and holding the
top of the button.
To move the seat forward, push the rear of the button
forward. To move the seat backward, push the front of
the button rearward.
Raise the front of the seat by lifting and holding the
bottom front end of the button. Lower the front of the
seat
by pushing and holding the bottom of the front end
of the button.
Raise the rear
of the seat by lifting and holding the
bottom rear of the button. Lower
the rear of the seat by
pushing and holding the top rear of the button.
1-3

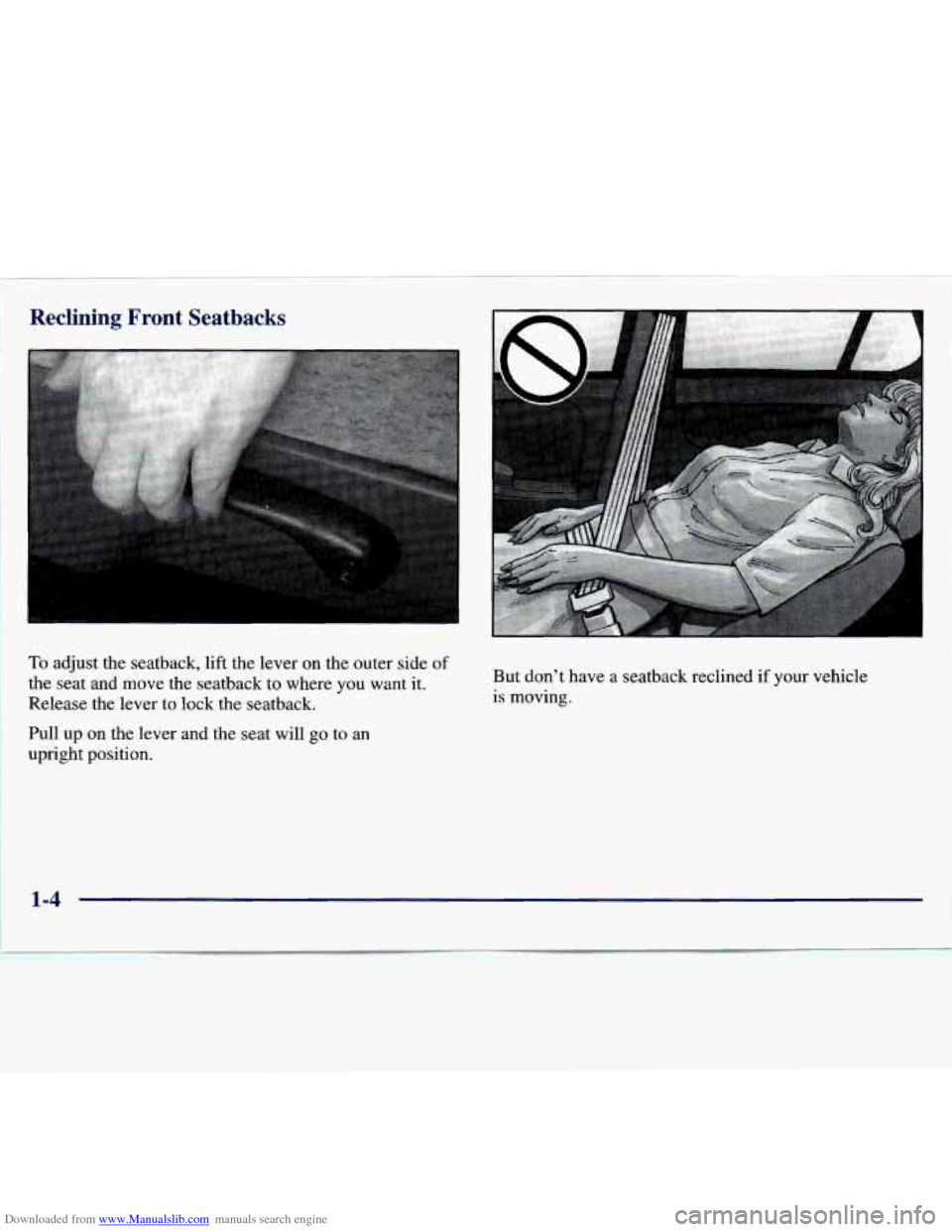

Downloaded from www.Manualslib.com manuals search engine Reclining Front Seatbacks
To adjust the seatback, lift the lever on the outer side of
the seat and move the seatback to where you want it.
Release the lever to lock the seatback.
Pull up on the lever and the seat will
go to an
upright position. But don’t have a seatback reclined
if your vehicle
is moving.
1-4

Downloaded from www.Manualslib.com manuals search engine I
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job because
it
won’t be against your body. Instead, it will be in
front
of you. In a crash you could go into it,
receiving neck
or other injuries.
The lap belt can’t do its job either.
In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
CAUTION: (Continued) For proper
protection when the vehicle is
in motion, have the seatback upright. Then
sit well back in the seat and wear your safety
belt properly.
Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest
to the top of your ears. This position
reduces the chance
of a neck injury in a crash.
1-5

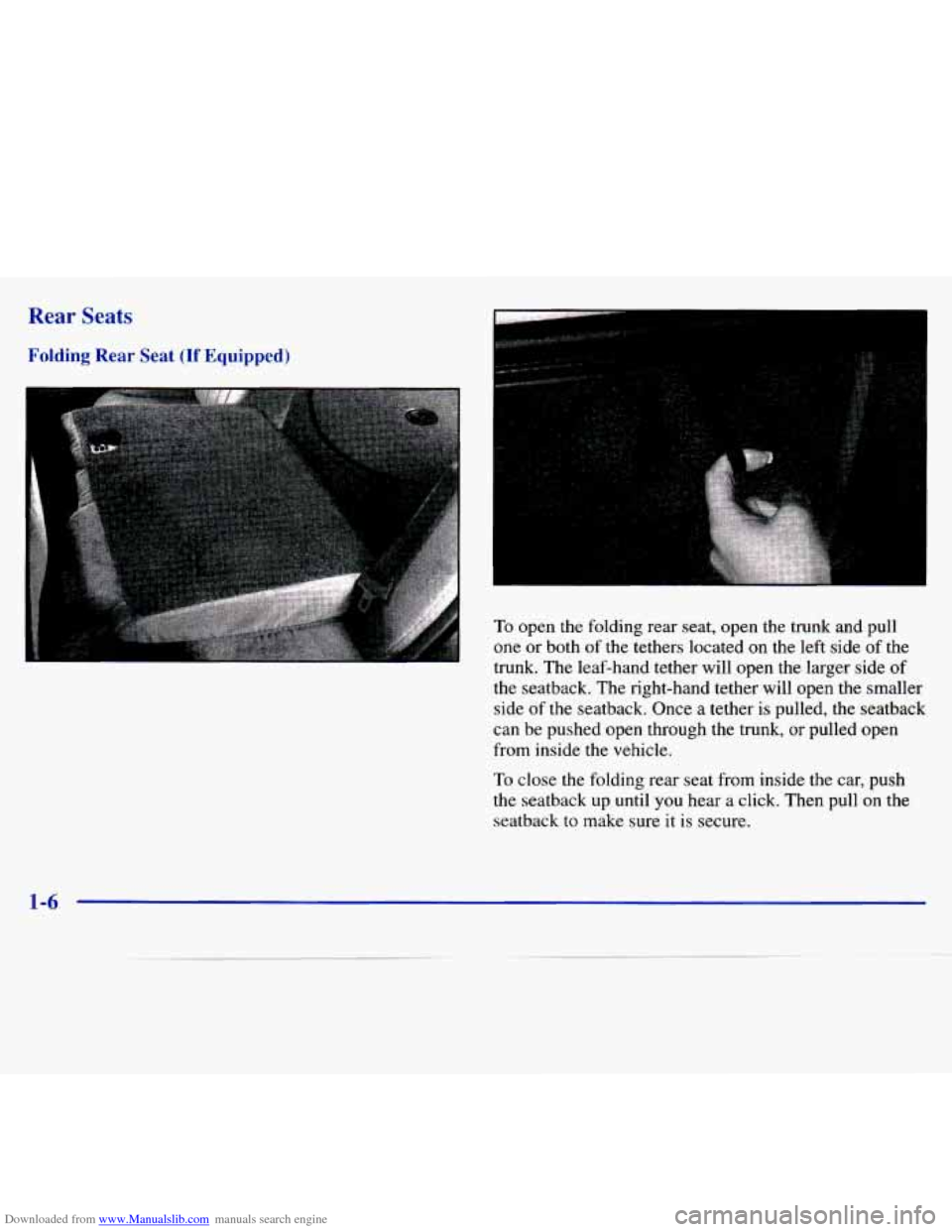

Downloaded from www.Manualslib.com manuals search engine Rear Seats
Folding Rear Seat (If Equipped)
To open the folding rear seat, open the trunk and pull
one or both
of the tethers located on the left side of the
trunk. The leaf-hand tether will open the larger side
of
the seatback. The right-hand tether will open the smaller
side of the seatback. Once a tether is pulled, the seatback
can be pushed open through the trunk,
or pulled open
from inside the vehicle.
To close the folding rear seat from inside the car, push
the seatback
up until you hear a click. Then pull on the
seatback
to make sure it is secure.

Downloaded from www.Manualslib.com manuals search engine Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not
do
with safety belts.
And it explains the Supplemental Restraint System
(S ;), or air bag system.
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.
Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle
is in a seat and using a
safety belt properly.
1-7
