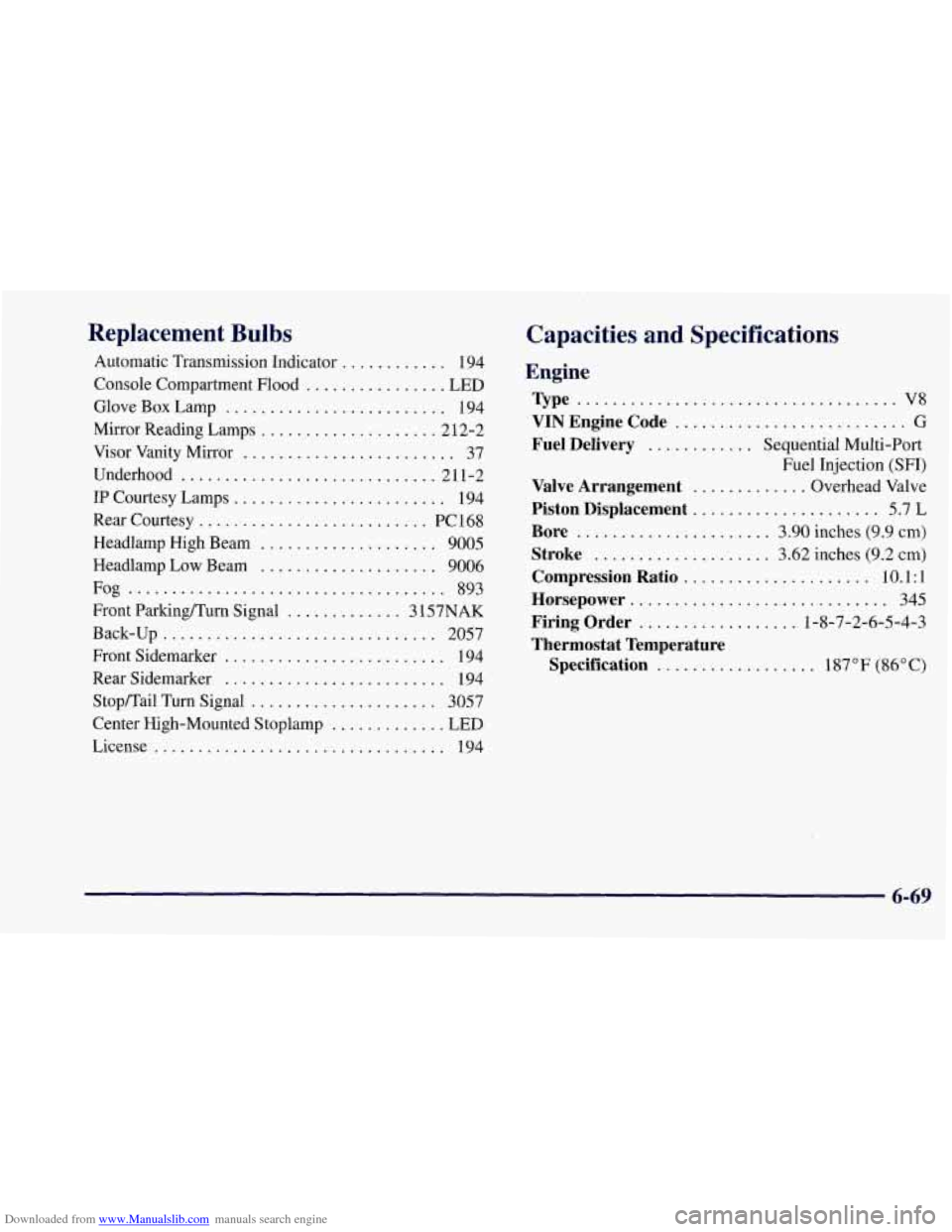

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Automatic Transmission Indicator ............ 194
Console Compartment Flood
................ LED
Glove Box Lamp ......................... 194
Mirror Reading Lamps
.................... 212-2
Visor Vanity Mirror
........................ 37
Underhood
............................. 211-2
IP Courtesy Lamps
........................ 194
Headlamp High Beam
.................... 9005
Headlamp Low Beam .................... 9006
Fog .................................... 893
Rear Courtesy .......................... PC168
Front ParlunglTurn Signal
............. 3 157NAK
Back-up
............................... 2057
Front Sidemarker
......................... 194
Rear Sidemarker
......................... 194
Stopflail Turn Signal
..................... 3057
Center High-Mounted Stoplamp
............. LED
License
................................. 194
Capacities and Specifications
Engine
Type .................................... V8
Fuel Delivery ............ Sequential Multi-Port
VIN Engine Code .......................... G
Fuel Injection (SFI)
Valve Arrangement ............. Overhead Valve
Piston Displacement ..................... 5.7 L
Bore ...................... 3.90 inches (9.9 cm)
Stroke .................... 3.62 inches (9.2 cm)
Compression Ratio ..................... 10.1 : 1
Horsepower ............................. 345
Firing Order .................. 1-8-7-2-6-5-4-3
Thermostat Temperature
Specification
.................. 1 87 O F (86 O C)
6-69
