1997 CHEVROLET CORVETTE air filter

Downloaded from www.Manualslib.com manuals search engine What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don’t
let used oil stay on your skin
for very long. Clean your slun and nails with soap and
water, or a good hand cleaner. Wash or throw away
clothing or rags containing used engine oil. (See the
manufacturer’s warnings about the use and disposal
of
oil products.)
Used
oil can be a real threat to the environment. If you
change your own oil, be sure to drain all free-flowing oil
from the filter before disposal. Don’t ever dispose of oil
by putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it
by taking it to a place that collects used oil. If
you have a problem properly disposing of your used oil,
ask your dealer, a service station or a local recycling
center for help.
Air Cleaner
Refer to the Maintenance Schedule to determine when to
replace the air filter.
See “Scheduled Maintenance Services” in the Index.
6-16

Downloaded from www.Manualslib.com manuals search engine ‘

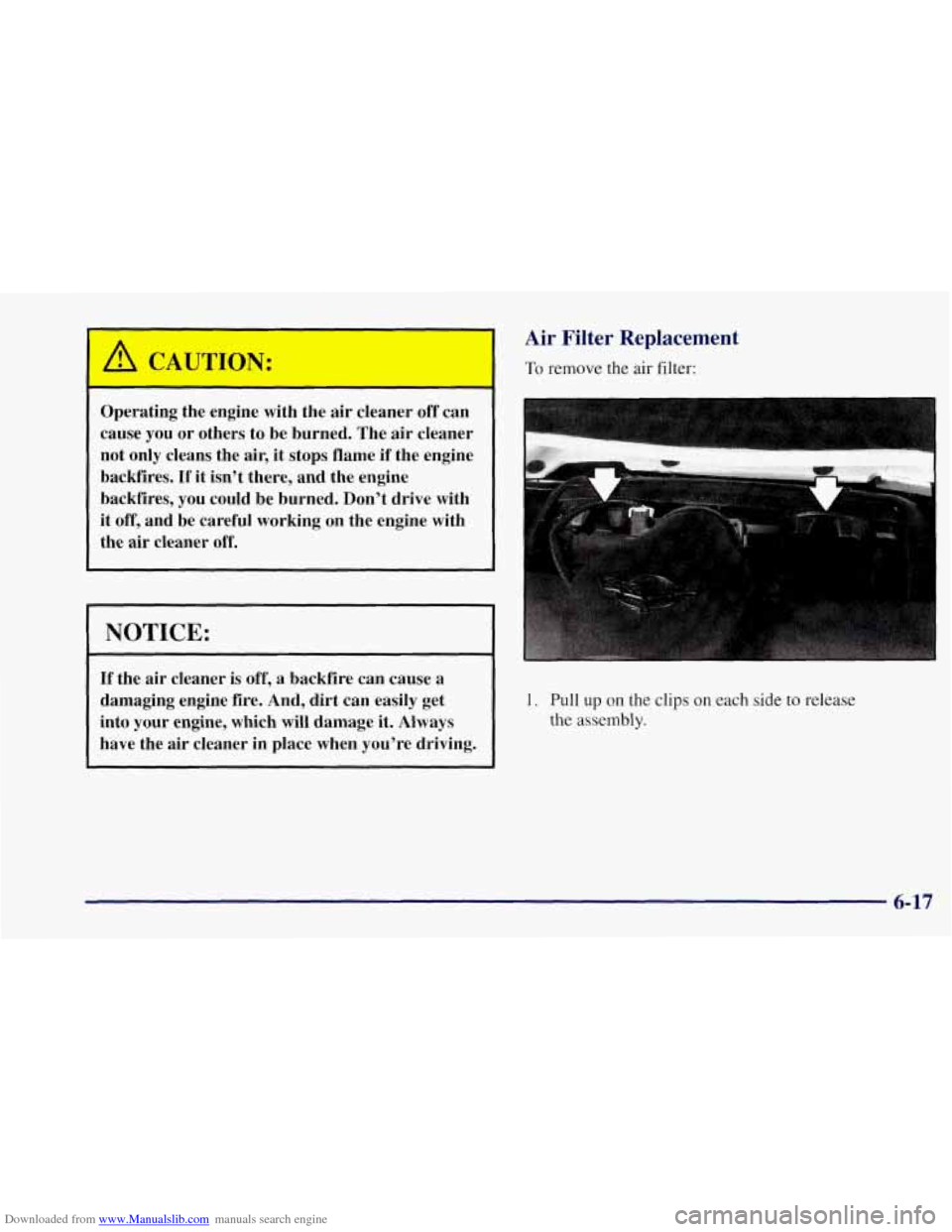

A CAUTION:
- -
Operating the engine with the air cleaner off can
cause you
or others to be burned. The air cleaner
not only cleans the air, it stops flame if the engine
backfires.
If it isn’t there, and the engine
backfires, you could be burned. Don’t drive with
it off, and be careful working on the engine with
the air cleaner off.
NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily get
into your engine, which will damage it. Always
have the air cleaner in place when you’re driving.
Air Filter Replacement
To remove the air filter:
1. Pull up on the clips on each side to release
the assembly.
6-17

Downloaded from www.Manualslib.com manuals search engine 2. Pull the assembly out.
3. Replace the filter.
4. Push the assembly back into place.
5. Fasten the clips.
Automatic Transmission Fluid
How to Check
Because this operation is difficult, you may choose to
have this done at your Chevrolet dealer service
department. It is not necessary to check the transmission
fluid level.
A transmission fluid leak is the only reason
for fluid loss. If a leak occurs, take the vehicle to your
Chevrolet dealer service department and have it repaired
as soon
as possible.
There is
a special procedure for checking and changing the
transmission fluid, Contact your Chevrolet dealer for
Corvette Service Manual.
To purchase a service manual,
see “Service and Owner Publications” in the Index.
- additional information or the procedure can be found in a
NOTICE:
We recommend that only fluid labeled
DEXR0N’-I11 be used, because fluid with that
label
is made specially for your automatic
transmission. Damage caused by fluid other than DEXRON@-I11 is not covered by your new
vehicle warranty.

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Air Cleaner Filter ...................... A917C
Battery ............................. 78A-72H
Coolant Surge Tank Cap ................. RC75
Engine Oil Filter ........................ PF44
15
psi (105
kPa)
PCV Valve ............................. 799C
Serpentine Belt
AC Compressor
......... GM Part No. 12556609
or equivalent
Water Pump, Generator, Power Steering Pump
... GM Part No. 12555225
or equivalent
Thermostat .............. GM Part No. 125557 17
or equivalent
Windshield Wiper Blade Spark Plug
............. 4 1-93 1 (0.60 inch Gap)
Length
................... .22 inches (55.9 cm)
Type
............ 9 mm x 3 mm Shephard’s Hook
Wheel Nuts
Wheel Nut Torque .......... 100 lb-ft (140 Nsm)
Capacities (Approximate)
The following approximate capacities are given in
United States. and metric conversions.
Air Conditioning ... See the refrigerant information
label under the hood.
Automatic Transmission
Drain and Refill ............... 5 quarts (4.7 L)*
Overhaul
................ 10.8 quarts (10.2 L)*
With M30 Automatic Transmission
.... 12.6 quarts
With MM6 Manual Transmission
...... 12.9 quarts
(12.2 L)
With Filter Change
.......... 6.5 quarts (6.1 L)*
Fuel Tank ................. 19.1 gallons (72.3 L)
Coolant System
(11.9 L)
Crankcase
Manual Transmission Rear Axle (Overhaul)
................ 4.1 quarts
(3.81 L)*
Lubricant
.................. 1.5 quarts (1.42 L)
Limited-Slip Additive
....... 4.0 ounces (1 18 ml)
Tire Pressures ...... See Tire-Loading Information
label on rear edge of driver’s door.
*Recheck fluid level after filling. See Section
6 or the Index.
Add enough to bring the fluid level to the full line.

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule I
10,000 Miles (1 6 000 km)
0 Check the Engine Oil Life Monitor. If
engine oil and filter are changed, reset the
Engine Oil Life Monitor. See “Engine Oil”
in the Index.
An Emission Control Service. (See footnote *.)
driving in dusty conditions. Replace
filter if necessary.
An Emission Control Service. (See footnote T.)
Inspect air cleaner filter if you are
b
DATE
SERVICED BY: ACTUAL MILEAGE
20,000 Miles (32 000 km)
17 Check the Engine Oil Life Monitor. If
engine oil and filter are changed, reset the
Engine Oil Life Monitor. See “Engine Oil”
in the Index.
An Emission Control Service. (See footnote *.)
driving in dusty conditions. Replace filter
if necessary.
An Emission Control Sewice. (See footnote “f)
Inspect air cleaner filter if you are
DATE SERVICED BY: ACTUAL MILEAGE

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule 1
30,000 Miles (48 000 km)
0 Check the Engine Oil Life Monitor. If
engine oil and filter are changed, reset the
Engine Oil Life Monitor. See “Engine Oil”
in the Index.
An Emission Control Service. (See footnote *.)
Replace air cleaner filter.
Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
40,000 Miles (64 000 km)
Cl Check the Engine Oil Life
Monitor. If
engine oil and filter are changed, reset the
Engine Oil Life Monitor. See “Engine Oil”
in the Index.
An Emission Control Service. (See footnote *.)
0 Inspect air cleaner filter if you are
driving in dusty conditions. Replace
filter if necessary.
An Emission Control Service. (See footnote “f)
DATE
ACTUAL MILEAGE SERVICED BY:
7-7

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
50,000 Miles (80 000 km)
Check the Engine Oil Life Monitor. If
engine oil and filter are changed, reset the
Engine Oil Life Monitor. See “Engine Oil”
in the Index.
An Emission Control Service. (See footnote *.)
0 Inspect air cleaner filter if you are driving
in dusty conditions. Replace filter
if
necessary.
An Emission Control Service. (See footnote y.)
0 Change automatic transmission fluid and
filter
if the vehicle is mainly driven under
one or more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90°F
(32°C) or higher.
- In hilly or mountainous terrain.
- Uses such as high performance operation.
vyou do not use your vehicle under any of these
conditions, the fluid and filter do not require change.
Manual transmissiorz fluid doesn
’t require change.
I DATE ACTUAL MILEAGE SERVICED BY

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule I
60,000 Miles (96 000 km)
Check the Engine Oil Life Monitor. If
engine oil and filter are changed, reset the
Engine Oil Life Monitor. See “Engine Oil”
in the Index.
An Emission Control Service. (See footnote *.)
0 Replace air cleaner filter.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
0 Inspect engine accessory drive belt.
An Emission Control Service.
I DATE I ACTUAL MILEAGE ISERVICED BY:(
7-9
