1997 CHEVROLET BLAZER cruise control

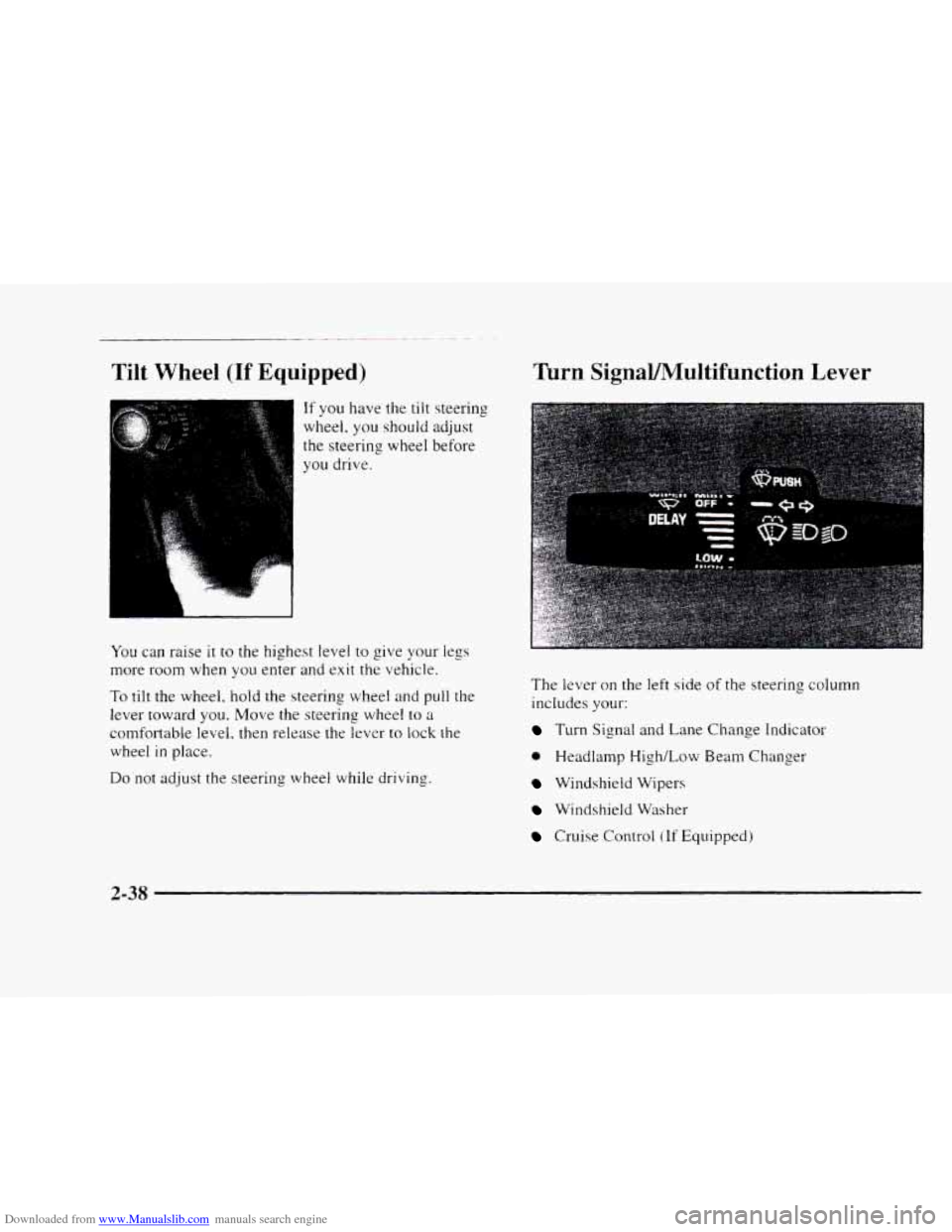

Downloaded from www.Manualslib.com manuals search engine Tilt Wheel (If Equipped)
I
If you have the tilt steering
wheel.
you should adjust
the steering wheel before
you drive.
You can raise it to the highest level to give your legs
more room when you enter and exit the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever toward
you. Move the steering wheel to a
comfortable level. then release the lever to lock the
wheel
in place.
Do not adjust the steering wheel while driving.
Turn SignaVMultifunction Lever
The level- on the left side of the steering column
includes
your:
Turn Signal and Lane Change Indicator
0 Headlamp High/Low Beam Changer
Windshield Wipers
Windshield Washer
Cruise Control (If Equipped)
2-38

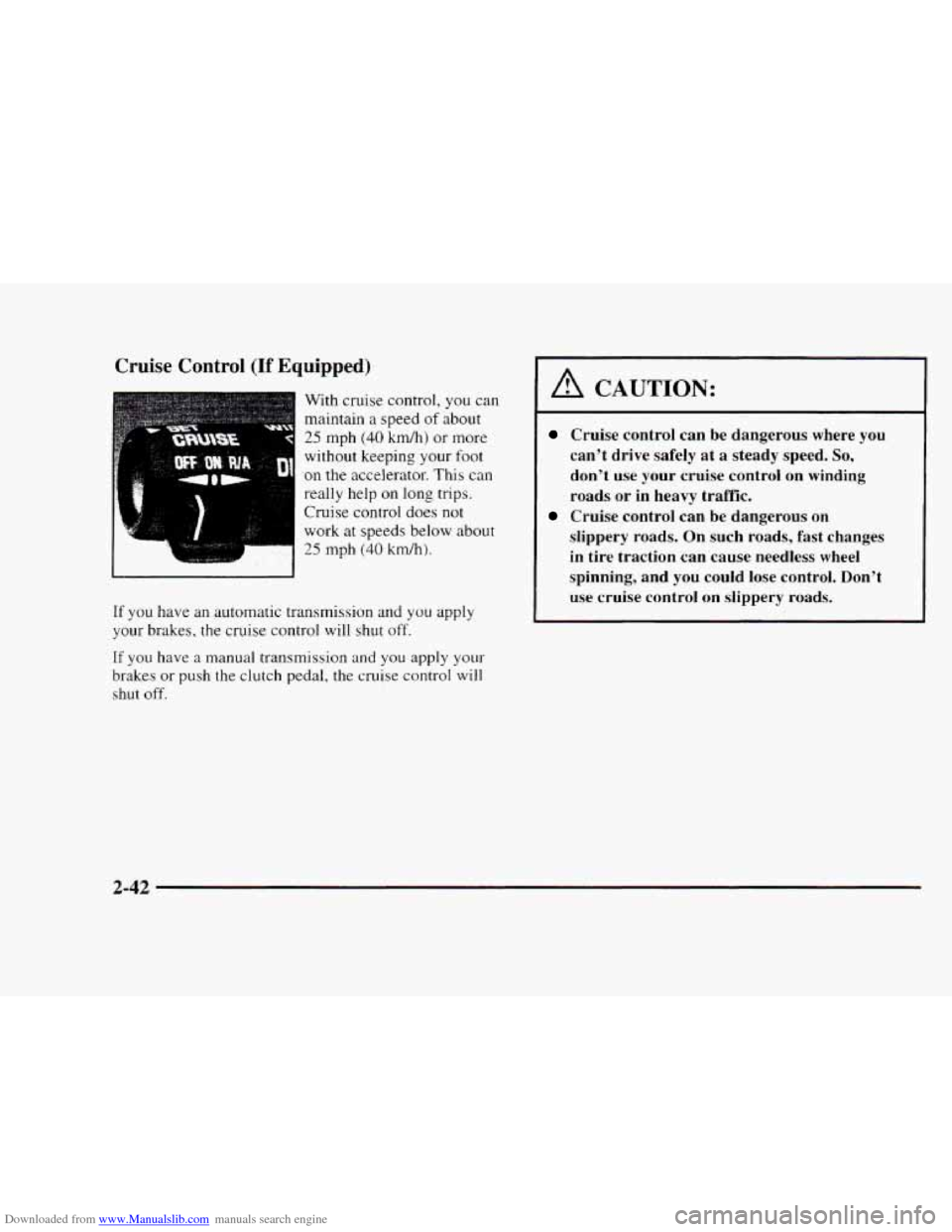

Downloaded from www.Manualslib.com manuals search engine Cruise Control (If Equipped)
With cruise control, you can
maintain a speed
of about
25 mph (40 km/h) or more
without keeping
your foot
on the accelerator. This can
really help on long trips.
Cruise control does
not
work at speeds below about
25 mph (40 krdh).
If you have an automatic transmission and you apply
your brakes, the cruise control
will shut off.
If you have a manual transmission and you apply your-
brakes or push the clutch pedal, the cruise control will
shut off.
A CAUTION:
Cruise control can be dangerous where you
can't drive safely at a steady speed.
So,
don't use your cruise control on winding
roads
or in heavy traffic.
slippery roads. On
such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don't
use cruise control on siippery roads.
Cruise control can be dangerous on
2-42

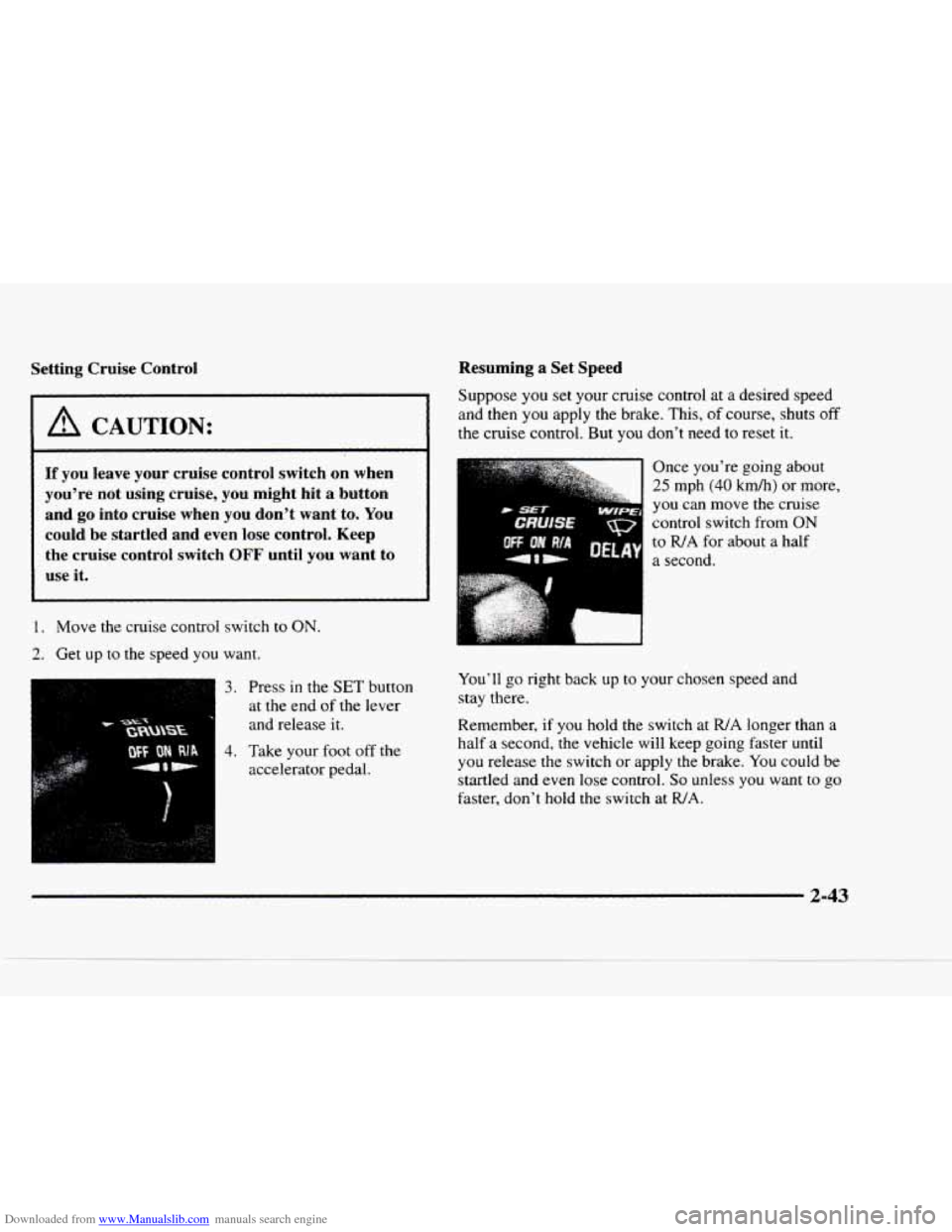

Downloaded from www.Manualslib.com manuals search engine Setting Cruise Control Resuming a Set Speed
Suppose you set your cruise control at a desired
speed
and
then you apply the brake. This, of course, shuts off
the cruise control. But you don't need to reset it. 1 A CAUTION:
If you leave your cruise control switch on when
you're not using cruise, you might hit a button
and go into cruise when
you don't want to. You
could be startled and even lose control. Keep
the cruise control switch
OFF until you want to
use it.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3. Press in the SET button
at the end
of the lever
and release it. Once
you're going about
25 mph (40 kmh) or more,
you can
move the cruise
control switch from
ON
to WA for about a half
I a second.
You'll
go right back up to your chosen speed and
stay there.
Remember, if you hold the switch at
R/A longer than a
half a second, the vehicle will keep going faster until
you release the switch or apply the brake. You could be
startled and even lose control.
So unless you want to go
faster, don't hold the switch at WA.
2-43

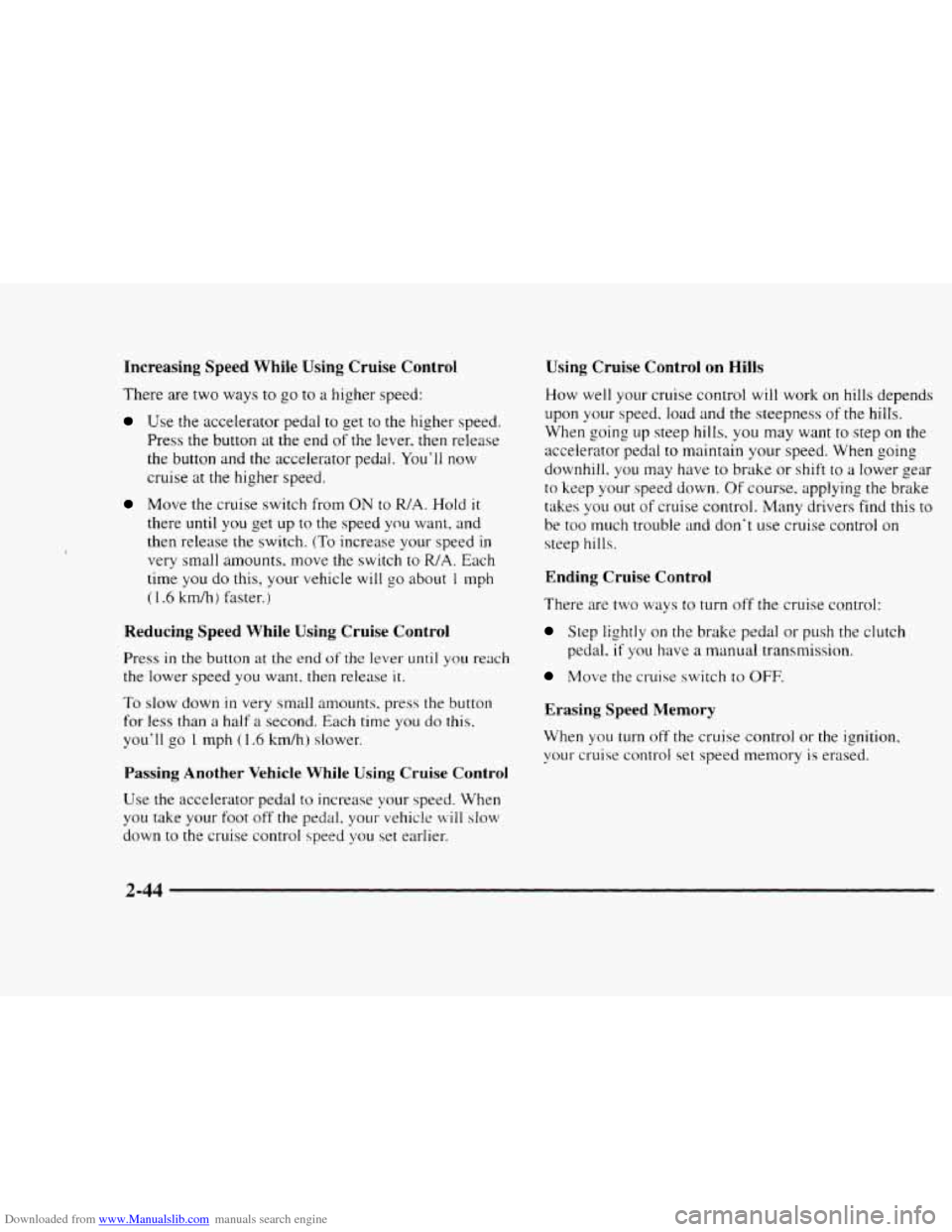

Downloaded from www.Manualslib.com manuals search engine Increasing Speed While Using Cruise Controi
There are two ways to go to a higher speed:
Use the accelerator pedal to get to the higher speed.
Press the button at the end of the lever, then release
the button and
the accelerator pedal. You'll now
cruise at the higher speed.
Move the cruise switch from ON to R/A. Hold it
there until you get up to the speed you want. and
then release the switch.
(To increase your speed in
very small amounts. move the switch to R/A. Each
time
you do this, your vehicle will go about 1 mph
(1.6
km/h) faster.)
Reducing Speed While Using Cruise Control
Press in the button at the end of the lever until you reach
the lower speed you want. then release it.
To slow down in very small amounts, press the button
for less than a half a second. Each time you do this.
you'll
go 1 mph ( I .6 kndh) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal tu increase your speed. When
you take your foot off the pedal. your vehicle \vi11 slow
down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed. load and the steepness
of the hills.
When going
up steep hills. you may want to step on the
accelerator pedal to maintain your speed. When going
downhill, you may have
to brake or shift to a lower gear
to keep your speed down. Of course. applying the brake
takes
you out of cruise control. Many drivers find this to
be too rnuch trouble and don't use cruise control on
steep hills.
Ending Cruise Control
There are two ways to turn off the cruise control:
Step lightly on the brake pedal or push the clutch
pedal,
if you have a manual transmission.
Move the cruise switch to OFF.
Erasing Speed Memory
When you turn oft' the cruise control or the ignition.
your cruise control set speed memory
is erased.
2-44

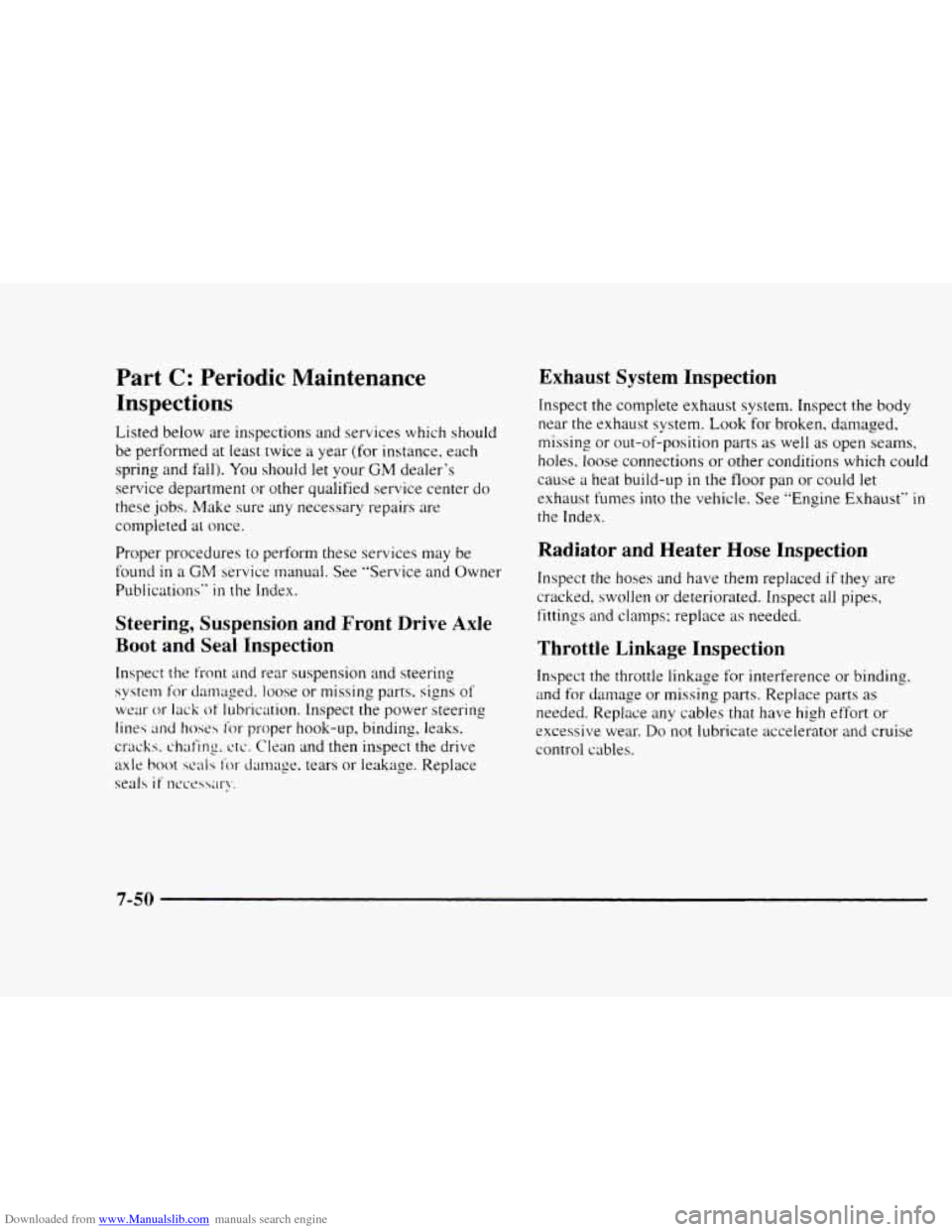

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice
a year (for instance. each
spring and
fall). You should let your GM dealer's
service department or other qualified service center do
these
jobs. Make sure any necessary repairs are
completed at
cme.
Proper procedures to perform these services may be
found
in a CM service manual. See "Service and Owner
Publications"
in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front md rear suspension and steering
system for datna_ced. loose or missing parts. signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks.
chafing. ctc. Clean and then inspect the drive
axle
hoot seals for dm~age. tears or leakage. Replace
seal5
if nccessq'.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system.
Look for broken, damaged.
missing or out-of-position parts
as well as open seams,
holes. loose connections or other conditions which could
cause a heat build-up in the floor pan or could let
exhaust
fumes into the vehicle. See "Engine Exhaust" in
the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect
all pipes,
fittings and clamps; replace
as needed.
Throttle Linkage Inspection
Inspect the throttle linkaze for interference or binding.
and for damage or missing parts. Replace parts
as
needed. Replace any cables that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control
cables.

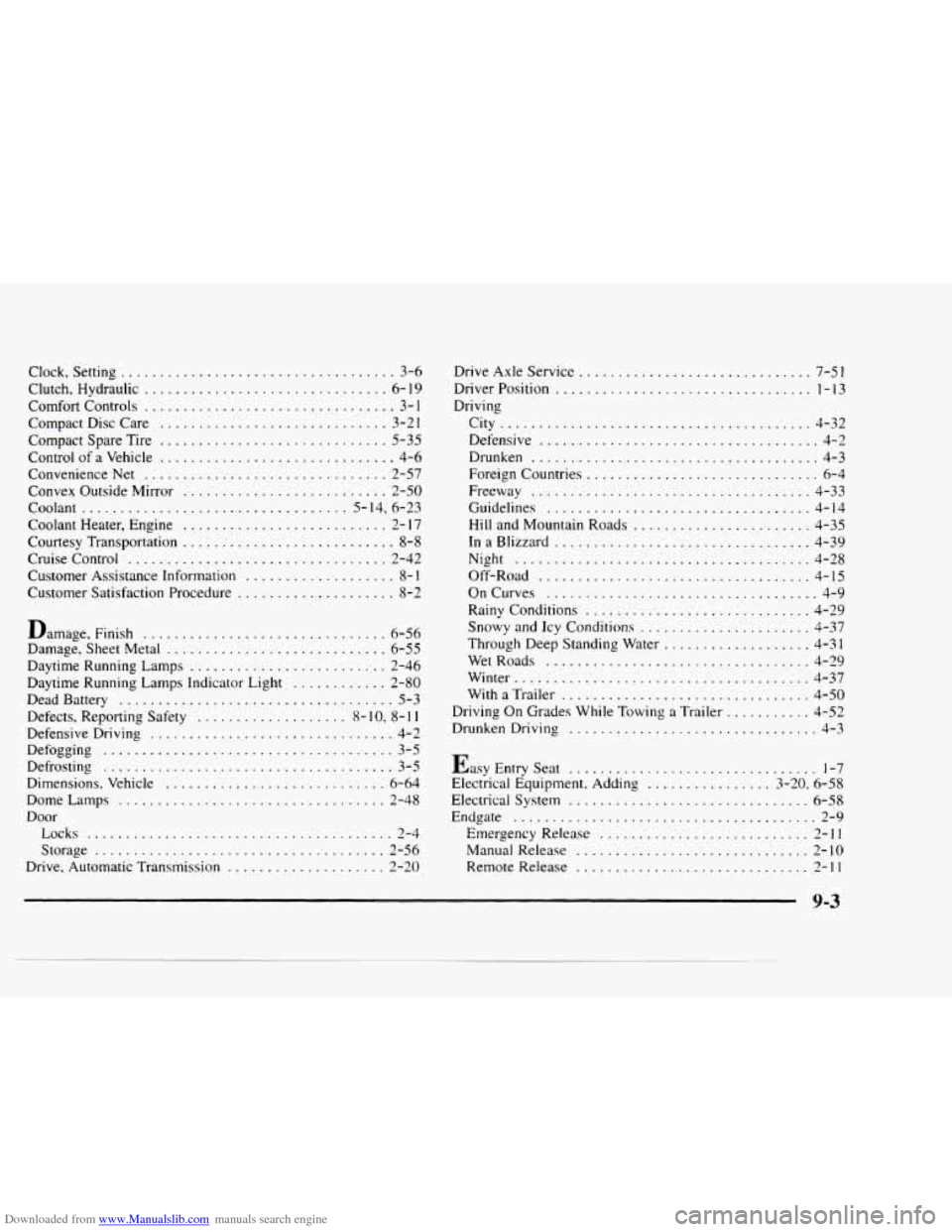

Downloaded from www.Manualslib.com manuals search engine Clock. Setting ................................... 3-6
Clutch. Hydraulic
............................... 6- 19
Comfort Controls
................................ 3- 1
Compact Disc Care ............................. 3-21
Control of
a Vehicle .............................. 4-6
Convenience Net
............................... 2-57
Convex Outside Mirror
.......................... 2-50
Coolant .................................. 5-14. 6-23
Coolant Heater. Engine
.......................... 2- 17
Courtesy Transportation ........................... 8-8
Cruise Control
................................. 2-42
Customer Assistance Information
................... 8- I
Customer Satisfaction Procedure .................... 8-2
Compact Spare Tire
............................. 5-35
Damage.
Finish ............................... 6-56
Damage. Sheet Metal
............................ 6-55
Daytime Running Lamps
......................... 2-46
Daytime Running Lamps Indicator Light
............ 2-80
Dead Battery
................................... 5-3
Defects. Reporting Safety
................... 8- IO. 8- 1 I
Defensive Driving ............................... 4-2
Defogging
..................................... 3-5
Dimensions. Vehicle
............................ 6-64
Dome Lamps
.................................. 2-48
Door Locks
....................................... 2-4
Storage
..................................... 2-56
Drive. Automatic Transmission
.................... 2-20
Defrosting
..................................... 3-5 Drive Axle
Service
..............................
City ........................................ 4-32
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Foreign Countries
.............................. 6-4
Freeway .................................... 4-33
Guidelines
.................................. 4-14
Hill and Mountain Roads
....................... 4-35
InaBlizzard
................................. 4-39
Night
...................................... 4-28
Off-Road
................................... 4-15
OnCurves
................................... 4-9
Rainy Conditions
............................. 4-29
Snowy and Icy Conditions
...................... 4-37
Through Deep Standing Water
................... 4-31
WetRoads
.................................. 4-29
Winter
...................................... 4-37
With
a Trailer ................................ 4-50
Driving On Grades While Towing
a Trailer ........... 4-52
Drunken Driving
................................ 4-3
Easy Entry Seat
................................ 1-7
Electrical Equipment, Adding
................ 3-20. 6-58
Electrical System
............................... 6-58
Endgate
....................................... 2-9
Emergency Release
........................... 2-11
Manual Release .............................. 2-10
Remote Release
.............................. 2-11
9-3
