1997 BUICK REGAL Owners Manual

NOTICE:
Adding some electrical equipment to your vehicle
can damage it
or keep other things from working
as they should. This wouldn’t be covered by your
warranty. Check with your dealer before adding
electrical equipment and never use anything that
exceeds the fuse rating.

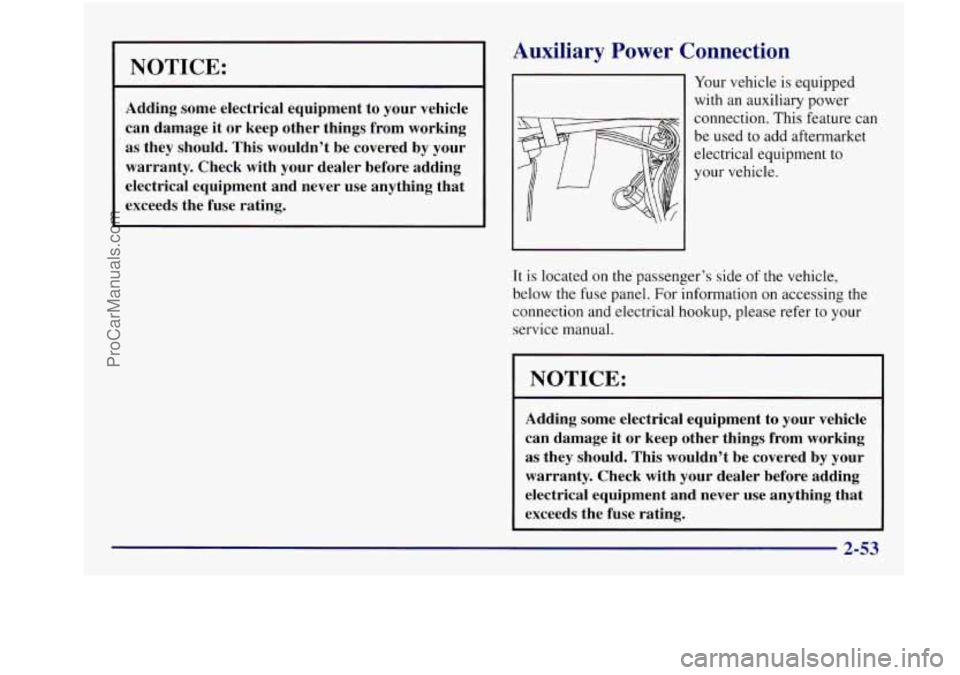

Auxiliary Power Connection
Your vehicle is equipped
with an auxiliary power
connection. This feature can
be used
to add aftermarket
electrical equipment to your vehicle.
It is located on the passenger’s side
of the vehicle,
below the fuse panel.
For information on accessing the
connection and electrical hookup, please refer to your
service manual.
I NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn’t be covered by your
warranty. Check with your dealer before adding
electrical equipment and never use anything that
exceeds the fuse rating.
2-53
ProCarManuals.com

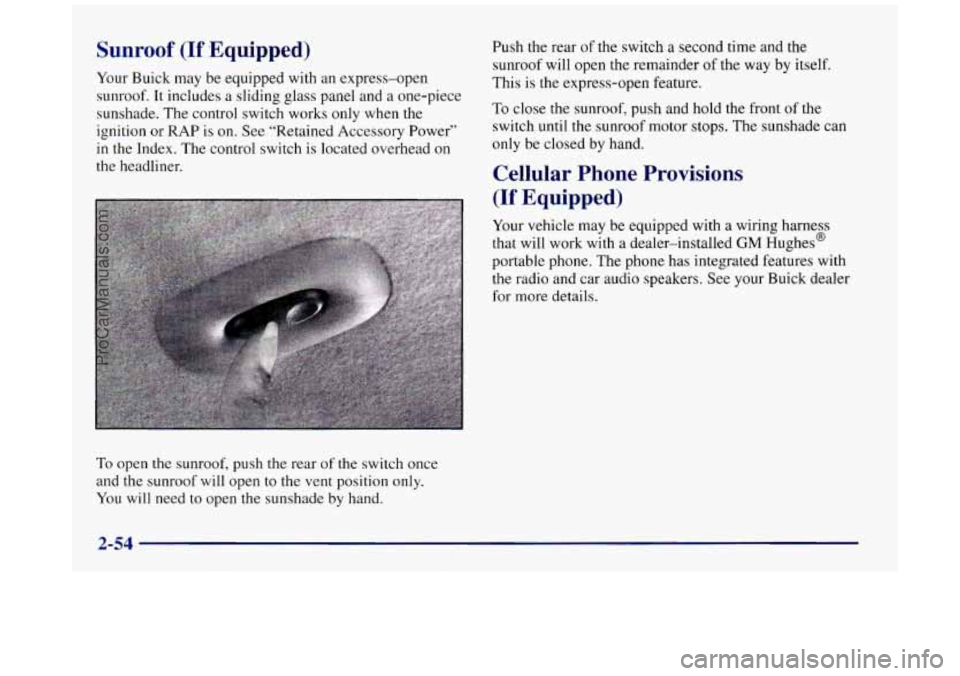

Sunroof (If Equipped)
Your Buick may be equipped with an express-open
sunroof. It includes a sliding glass panel and a one-piece
sunshade. The control switch works only when
the
ignition or RAP is on. See “Retained Accessory Power”
in the Index. The control switch is located overhead on
the headliner.
To open the sunroof, push the rear of the switch once
and the sunroof will open to the vent position only.
You will need to open the sunshade by hand. Push the rear
of the
switch a second time and the
sunroof will open the remainder
of the way by itself.
This is the express-open feature.
To close the sunroof, push and hold the front of the
switch until the sunroof motor
stops. The sunshade can
only be closed by hand.
Cellular Phone Provisions
(If Equipped)
Your vehicle may be equipped with a wiring harness
that will work with a dealer-installed
GM Hughes@
portable phone. The phone has integrated features with
the radio and car audio speakers. See your Buick dealer
for more details.
2-54
ProCarManuals.com

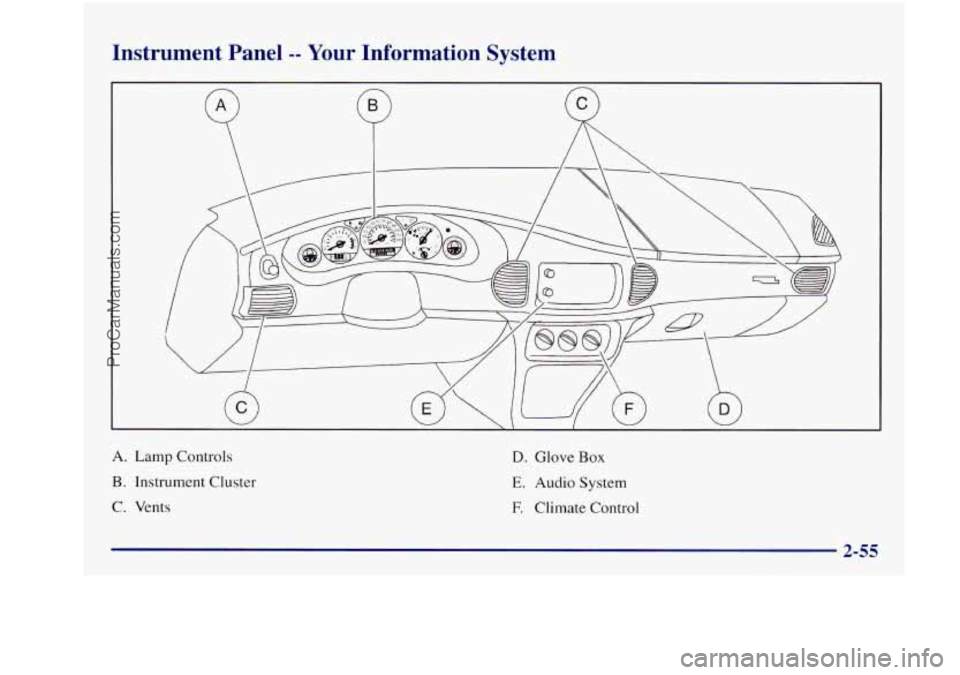

Instrument Panel -- Your Information System
A. Lamp Controls
B. Instrument Cluster
C. Vents
D. Glove Box
E. Audio System
F. Climate Control
ProCarManuals.com

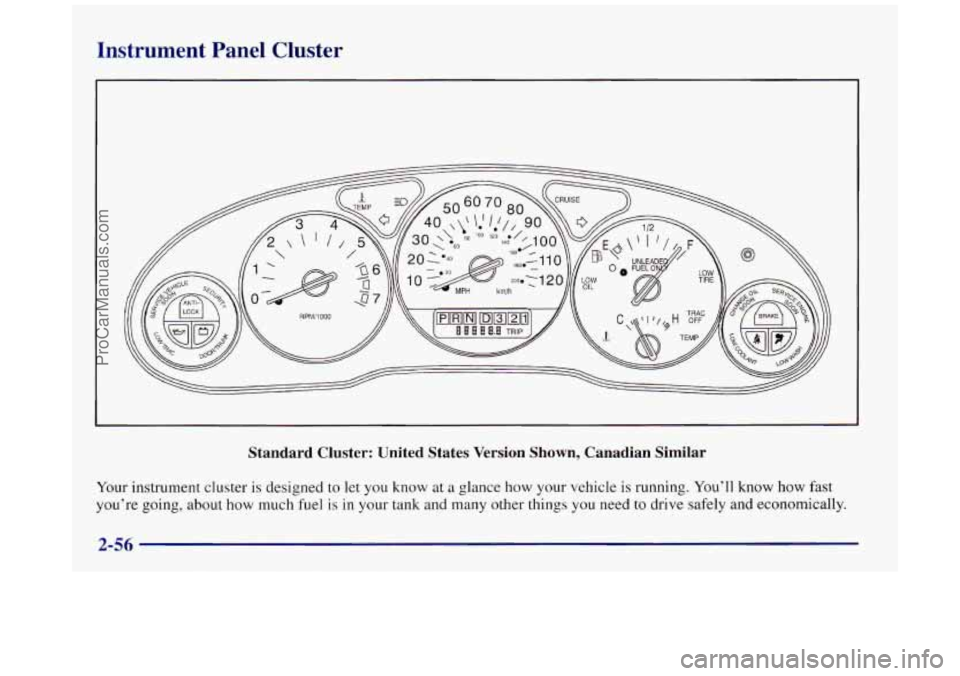

Instrument Panel Cluster
Standard Cluster: United States Version Shown, Canadian Similar
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, about how much fuel
is in your tank and many other things you need to drive safely and economically.
2-56
ProCarManuals.com

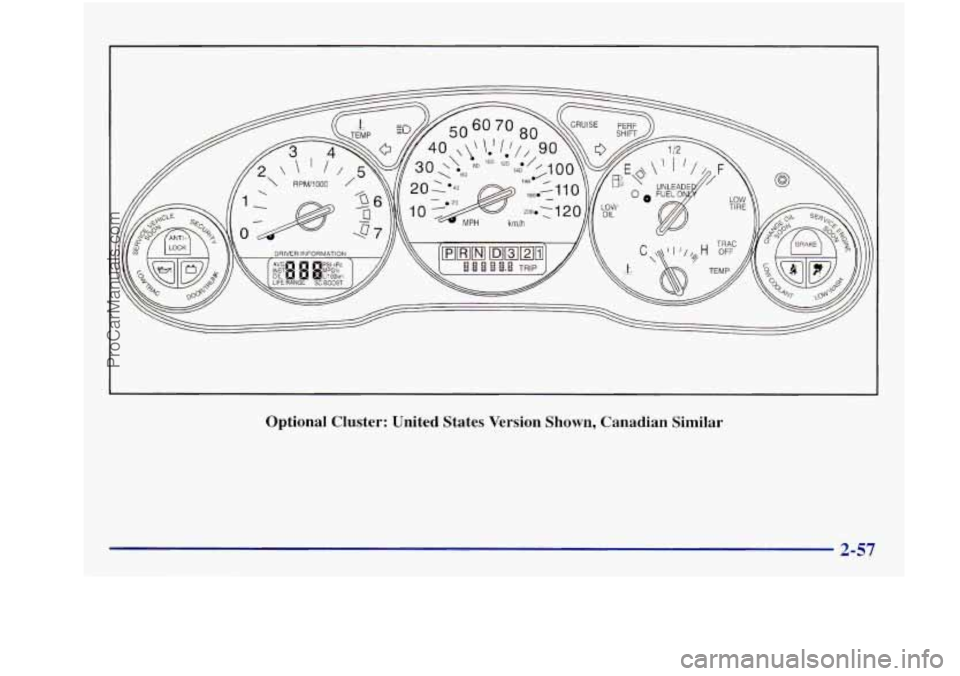

Optional Cluster: United States Version Shown, Canadian Similar
ProCarManuals.com

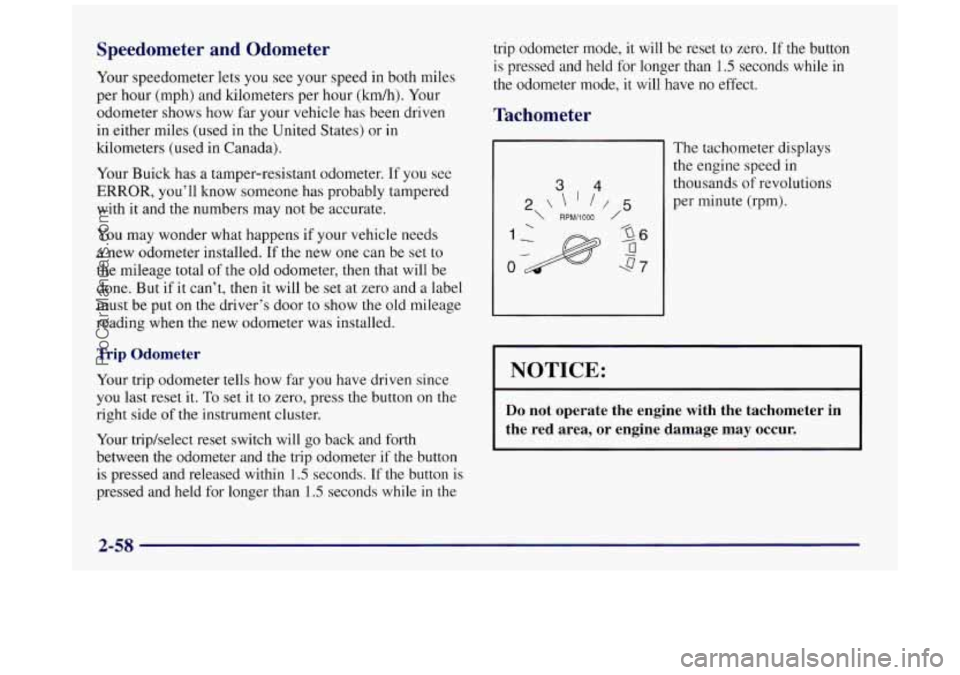

Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven
in either miles (used
in the United States) or in
kilometers (used in Canada).
Your Buick has a tamper-resistant odometer. If you see
ERROR, you’ll know someone has probably tampered
with it and the numbers may not be accurate.
You may wonder what happens if your vehicle needs
a new odometer installed. If the new one can be set to
the mileage total of the old odometer, then that will be
done. But if it can’t, then it will be set at zero and
a label
must be put
on the driver’s door to show the old mileage
reading when the new odometer was installed.
Trip Odometer
Your trip odometer tells how far you have driven since
you last reset it.
To set it to zero, press the button on the
right side
of the instrument cluster.
Your triphelect reset switch will
go back and forth
between the odometer and the trip odometer if the button
is pressed and released within 1.5 seconds. If the button is
pressed and held for longer than
1.5 seconds while in the trip
odometer mode, it will be reset to zero. If the button
is pressed and held for longer than 1.5 seconds while in
the odometer mode, it will have no effect.
Tachometer
1
0
5 /
The tachometer displays
the engine speed
in
thousands of revolutions
per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer in
the red area, or engine damage may occur.
2-58
ProCarManuals.com

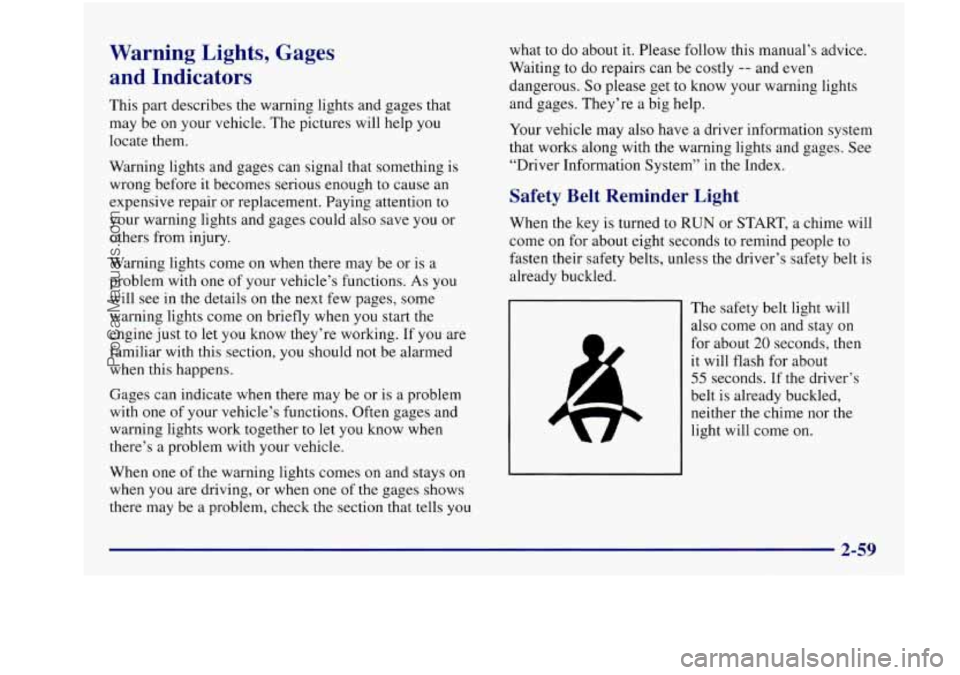

Warning Lights, Gages
and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough
to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save
you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions.
As you
will see in the details on the next few pages, some
warning lights come
on briefly when you start the
engine just to let you know they’re working. If you are
familiar with this section,
you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle’s functions. Often gages and
warning lights work together
to let you know when
there’s a problem with your vehicle.
When one of the warning lights comes on and stays on
when
you are driving, or when one of the gages shows
there may be a problem, check the section that tells
you
what to do about it. Please follow this manual’s advice.
Waiting to
do repairs can be costly -- and even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
Your vehicle may also have a driver information system
that works along with the warning lights and gages. See
“Driver Information System’’ in the Index.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also come on and stay on
for about
20 seconds, then
it will flash for about
55 seconds. If the driver’s
belt is already buckled,
neither the chime nor the
light will come on.
2-59
ProCarManuals.com

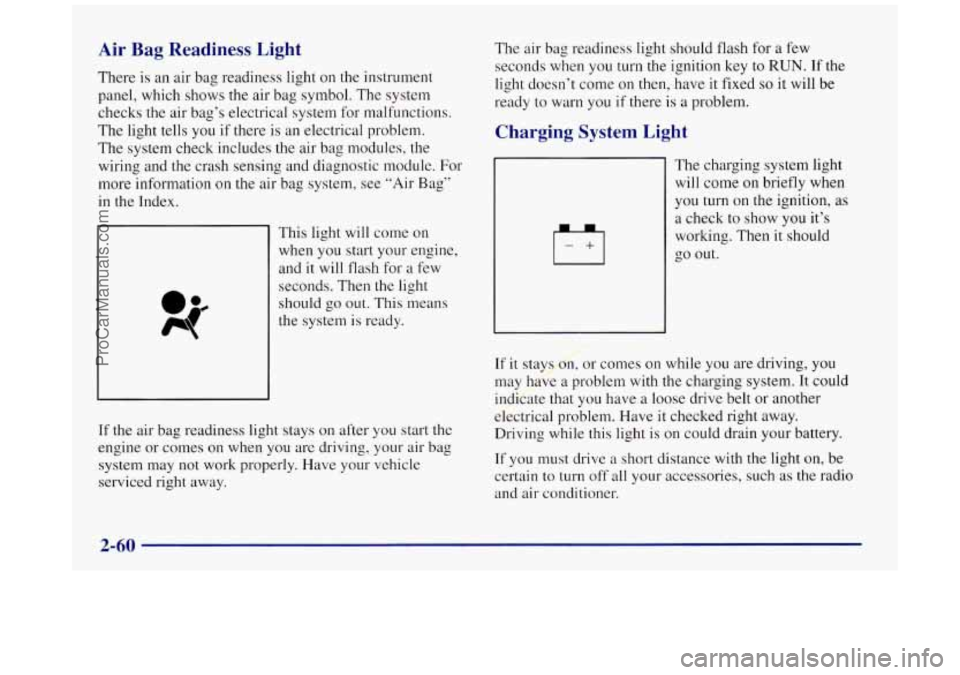

Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows the air bag symbol.
The system
checks the air bag’s electrical system for malfunctions.
The light tells you if there is an electrical problem.
The system check includes the air bag modules, the
wiring and the crash sensing and diagnostic module. For
more information on the air bag system, see “Air Bag”
in the Index.
This light will come on
when you start your engine,
and
it will flash for a few
seconds. Then the light
should
go out. This means
the system is ready.
If the air bag readiness light stays on after you start the
engine or comes on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away. The
air bag readiness light should flash for
a few
seconds when you turn the ignition key to
RUN. If the
light doesn’t come on then, have it fixed
so it will be
ready to warn you
if there is a problem.
Charging System Light
The charging system light
will come
on briefly when
you turn on the ignition,
as
a check to show you it’s
working. Then it should
1+1 go out.
##
If it stavgdn, or comes on while you are driving, you
may b&e
a problem with the charging system. It could
inqk6ate that you have
a loose drive belt or another
dectrical problem. Have it checked right away.
Driving while this light is on could drain your battery.
If you must drive a short distance with the light on, be
certain to turn off all your accessories, such
as the radio
and air conditioner.
