Page 160 of 406

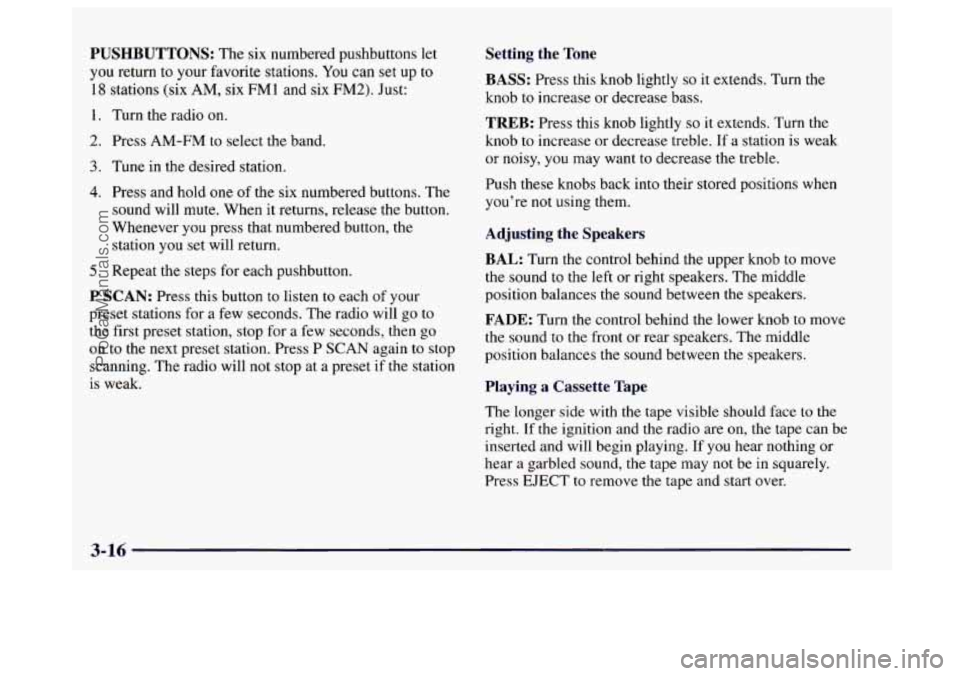

PUSHBUTTONS: The six numbered  pushbuttons let
you return  to your  favorite  stations.  You can set up to
18 stations (six AM, six FM 1 and six FM2). Just:
1. Turn  the radio on.
2. Press  AM-FM  to  select the band.
3. Tune in the desired  station.
4. Press and hold one of the six numbered buttons. The
sound  will mute. When  it returns, release the button.
Whenever  you press that numbered button, the
station
you set will return.
5. Repeat the  steps  for each pushbutton.
P SCAN: Press this button to listen to each of your
preset  stations  for a few  seconds.  The  radio will go to
the  first  preset station,  stop  for  a  few  seconds,  then
go
on to  the  next preset station.  Press P SCAN again to stop
scanning.  The  radio  will
not stop  at  a preset if the station
is weak.
Setting  the  Tone
BASS:
Press this knob lightly so it  extends.  Turn the
knob
to increase  or decrease bass.
TREB: Press this knob lightly so it  extends.  Turn the
knob to increase  or  decrease  treble. If a station is weak
or noisy,  you  may  want to  decrease  the treble.
Push these knobs back  into their stored positions  when
you’re not using them.
Adjusting  the  Speakers
BAL: Turn  the control  behind the upper knob  to move
the sound
to the left  or right  speakers.  The  middle
position balances the sound between the speakers.
FADE: Turn the  control behind the lower knob  to move
the sound to the front  or rear speakers. The middle
position balances the sound between the speakers.
Playing  a  Cassette  Tape
The longer side  with the tape visible should  face to the
right.  If the ignition and the  radio are on, the tape can  be
inserted and will begin playing.  If
you hear nothing or
hear  a garbled sound,
the tape  may  not  be  in  squarely.
Press EJECT to remove the tape and start  over.
3-16
ProCarManuals.com


        Page 169 of 406

0 E20: It is  dirty,  scratched or wet.
E20: There's  too much moisture in the air.  (Wait
If any  error  occurs'  fbpeatedly or if an error can't  be
corrected, please  contact your dealer.
If your radio
displays an  error number, write it down and provide  it  to
your dealer when reporting the problem.
PREV (1): Press this button to go to  the start  of the
current track  if more than  eight seconds  have played.  If
you  hold the button  or press  it more than once, the
player will continue moving back through  the disc.  The
sound  will mute while seeking.
NEXT (2): Press this button to  go to the next track.  If
you hold  the button  or press
it more than once, the
player  will continue  moving forward through the disc.
The  sound will mute while seeking.
The
SEEK down and up  arrows will also  find  the
previous  and next selections  on the disc.
about an hour and
try again.)
44 (3): Press and hold this button to quickly reverse
within a track.  You will hear  sound.
.. (4): Press and hold this button  to quickly  advance
within a track.
You will  hear  sound.
RAND (6): Press this button to hear the tracks  in
random,  rather  than sequential, order. Press
RAND
again to turn  off random  play.
RECALL: Press this button to  see which  track is
playing. Press it again within five seconds to see  how
long  it has been playing.
To change  what is normally
shown  on the display (track  or elapsed time), press the
button until you
see the display  you want,  then hold the
button until  the display flashes.
AM-FM: Press this button to play the radio when a disc
is  in  the  player.
SOURCE: Press this button  to change  to the disc
function when  the radio
is on.  When  a disc is inserted,
the disc will play until  you press
AM-FM. Then the disc
will stop playing  and the radio  will  play.  Press
SOURCE
again to play a disc again. CD PLAY  will show on
the  display.
E JECR Press this button to remove the disc.  The  raalo
will  play.
If  you  turn  off  the ignition or radio with a disc in the
player,  it will stay  in the  player.  When you turn on the
ignition  or system, the  disc will start playing where it
stopped,
if it was  the last-selected  audio source.  If you
leave a compact  disc
in the player  while listening to  the
radio,  it may become warm.
3-25
ProCarManuals.com


        Page 175 of 406

AM-FM: Press  this button to play the radio when a d
is in  the player.
SOURCE: Press  this button  to  change to the disc
function  when the  radio  is  on.  When  a  disc is inserted .i
, sc
9
the  disc
will play until you  press AM-FM.  Then the disc
will  stop  playing and  the  radio will play.  Press  SOURCE
again to play  a  disc  again. CD PLAY  will show on
the
display.
EJECT Press this button to remove  the  disc.  The  radio
will  play.
If  you  turn  off the ignition  or  radio with a  disc  in  the
player, it will stay  in the player. When  you turn on the
ignition  or  system,  the  disc will start playing where  it
stopped,  if it was  the  last-selected  audio  source.
Also,
as a protection  feature, if a CD is  ejected  and left
in the player,
it will be pulled back in the player with the
ignition on or off. If you leave  a  compact  disc in the
player  while listening  to the radio, it  may become warm.
Theft-Deterrent  Feature
THEFTLOCK”  is designed to discourage theft of your
radio.
It works  by using  a secret  code to disable  all radio
functions  whenever battery power is removed.
If THEFTLOCK  is  active, the THEFTLOCK  indicator
will
flash when the ignition is off.
The THEFTLOCK  feature  for the radio  may  be  used
or
ignored. If ignored,  the system plays normally and the
radio  is not  protected  by the  feature.
If THEFTLOCK  is
activated,  your radio  will
not operate  if stolen.
When  THEFTLOCK  is  activated, the radio  will display
LOC
to indicate a locked  condition  anytime battery
power  is removed.
If your battery loses power for any
reason,
you must unlock the  radio with the secret code
before
it will  operate.
Activating  the  Theft-Deterrent  Feature
The  instructions  which follow, explain how to enter  your
secret  code  to  activate  the THEFTLOCK  system.  It is
recommended  that  you read through all nine steps
before  starting  the procedure.
3-31
