1997 AUDI A4 Instrument Cluster OBD From Model Year 2000 Workshop Manual

Pa
ge 65 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

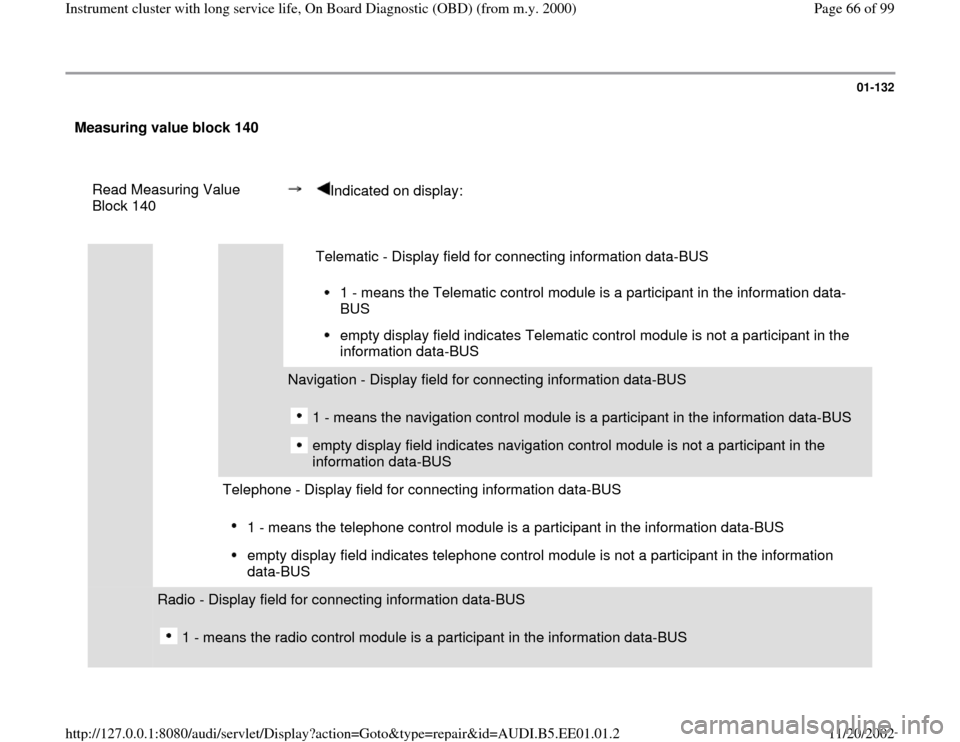

01-132
Measuring value block 140

Read Measuring Value
Block 140
Indicated on display:




Telematic - Display field for connecting information data-BUS
1 - means the Telematic control module is a participant in the information data-
BUS empty display field indicates Telematic control module is not a participant in the
information data-BUS



Navigation - Display field for connecting information data-BUS
1 - means the navigation control module is a participant in the information data-BUS empty display field indicates navigation control module is not a participant in the
information data-BUS

Telephone - Display field for connecting information data-BUS

1 - means the telephone control module is a participant in the information data-BUS
empty display field indicates telephone control module is not a participant in the information
data-BUS


Radio - Display field for connecting information data-BUS
1 - means the radio control module is a participant in the information data-BUS
Pa
ge 66 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

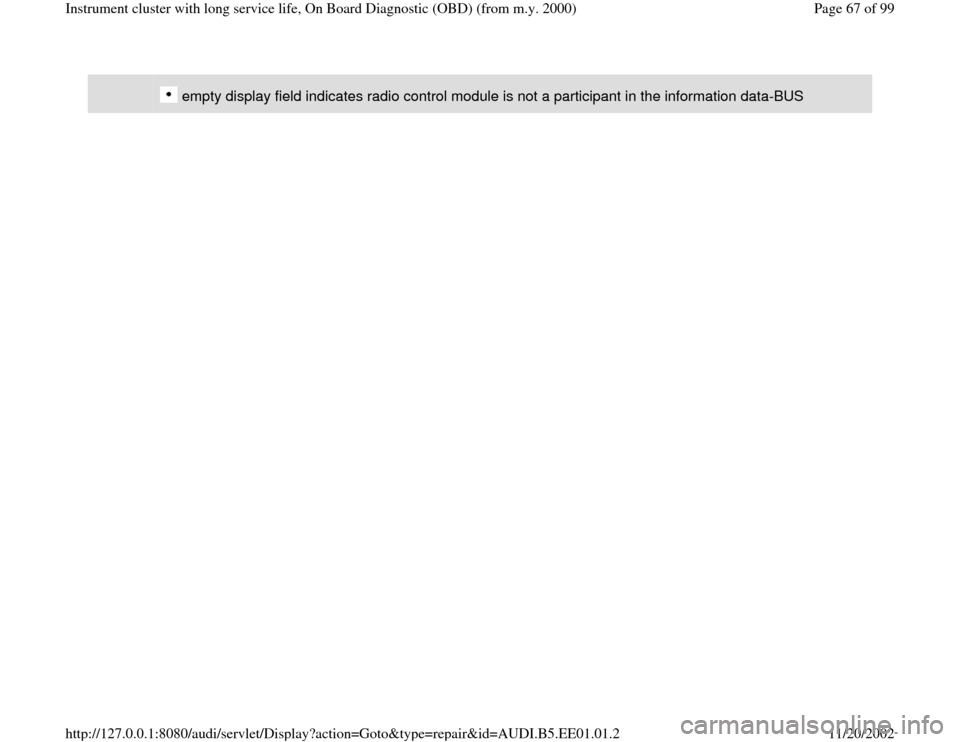

empty display field indicates radio control module is not a participant in the information data-BUS

Pa
ge 67 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

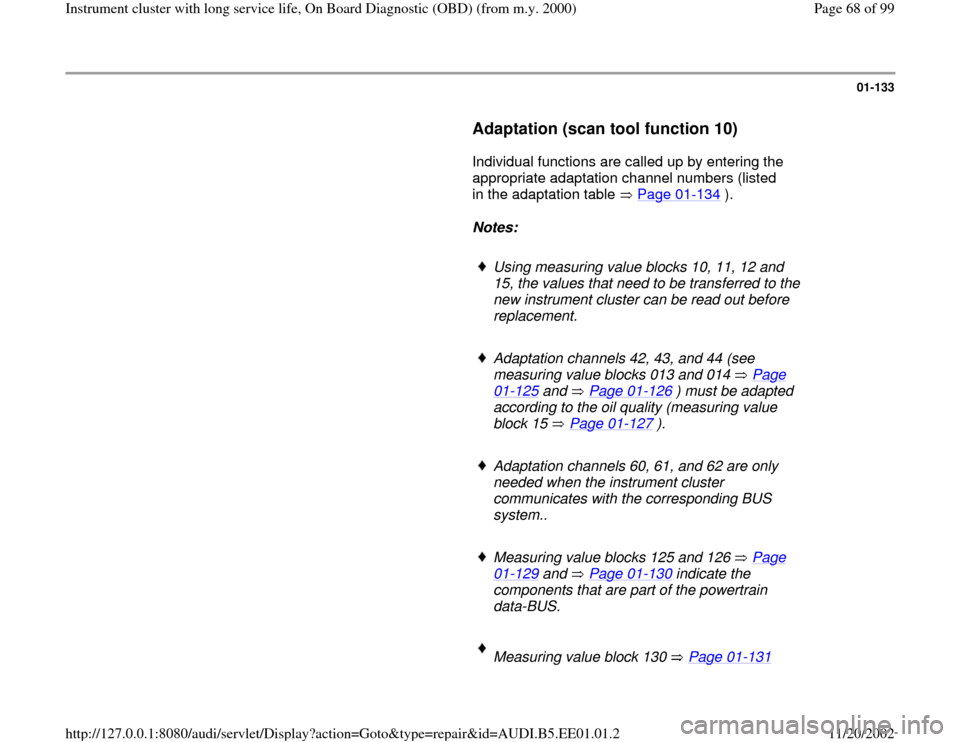

01-133

Adaptation (scan tool function 10)

Individual functions are called up by entering the
appropriate adaptation channel numbers (listed
in the adaptation table Page 01
-134
).

Notes:

Using measuring value blocks 10, 11, 12 and
15, the values that need to be transferred to the
new instrument cluster can be read out before
replacement.
Adaptation channels 42, 43, and 44 (see
measuring value blocks 013 and 014 Page 01
-125
and Page 01
-126
) must be adapted
according to the oil quality (measuring value
block 15 Page 01
-127
).

Adaptation channels 60, 61, and 62 are only
needed when the instrument cluster
communicates with the corresponding BUS
system..
Measuring value blocks 125 and 126 Page 01
-129
and Page 01
-130
indicate the
components that are part of the powertrain
data-BUS.

Measuring value block 130 Page 01
-131

Pa
ge 68 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

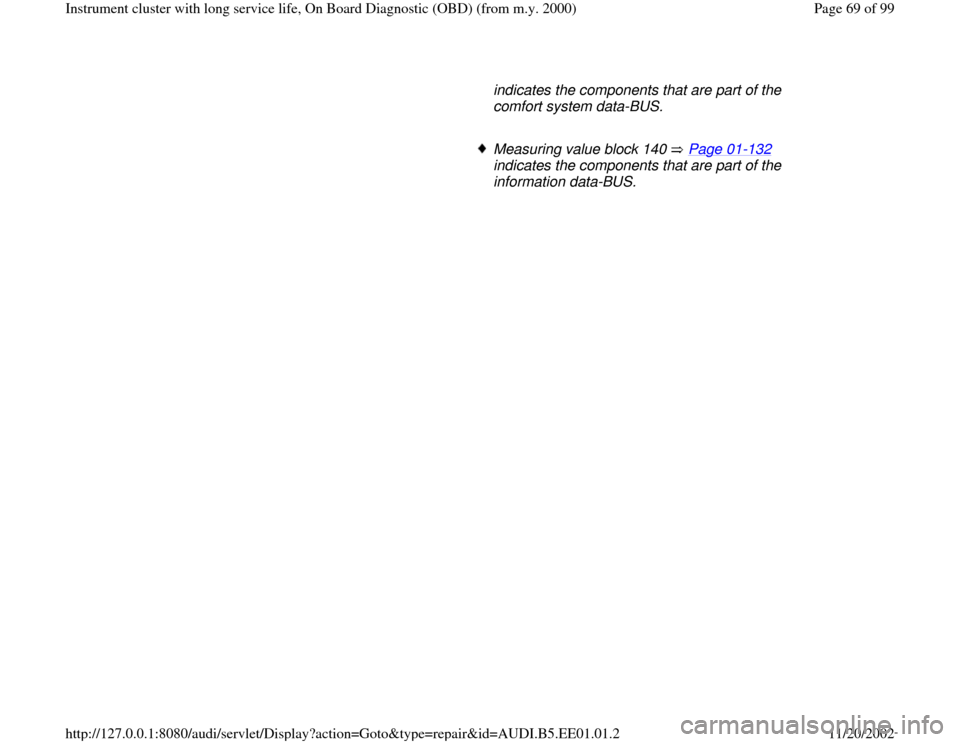

indicates the components that are part of the
comfort system data-BUS.
Measuring value block 140 Page 01
-132

indicates the components that are part of the
information data-BUS.
Pa
ge 69 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-134
Adaptation table: Adaptation channel
Adaptation function
02 Resetting SRI after service Page 01
-136

03 Adaptation of fuel gauge Page 01
-140

04 Language version of driver information display Page 01
-143

09 Odometer Page 01
-148

18 Adaptation of auxiliary heater Page 01
-152

30 Adaptation of fuel gauge sender resistance range Page 01
-155

35 Adaptation of engine speed threshold Page 01
-158

40 Adaptation for distance driven since service Page 01
-161

41 Adaptation for time since service Page 01
-164

42 Adaptation for minimum mileage performance Page 01
-167

43 Adaptation for maximum mileage performance Page 01
-170

44 Adaptation for maximum time interval Page 01
-173

45 Adaptation for oil quality Page 01
-176

46 Adaptation for total consumption quantity (only gasoline engines) Page 01
-179

60 Adaptation powertrain data-BUS Page 01
-181

61 Adaptation comfort system data-BUS Page 01
-185

62 Adaptation information data-BUS Page 01
-188

Pa
ge 70 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

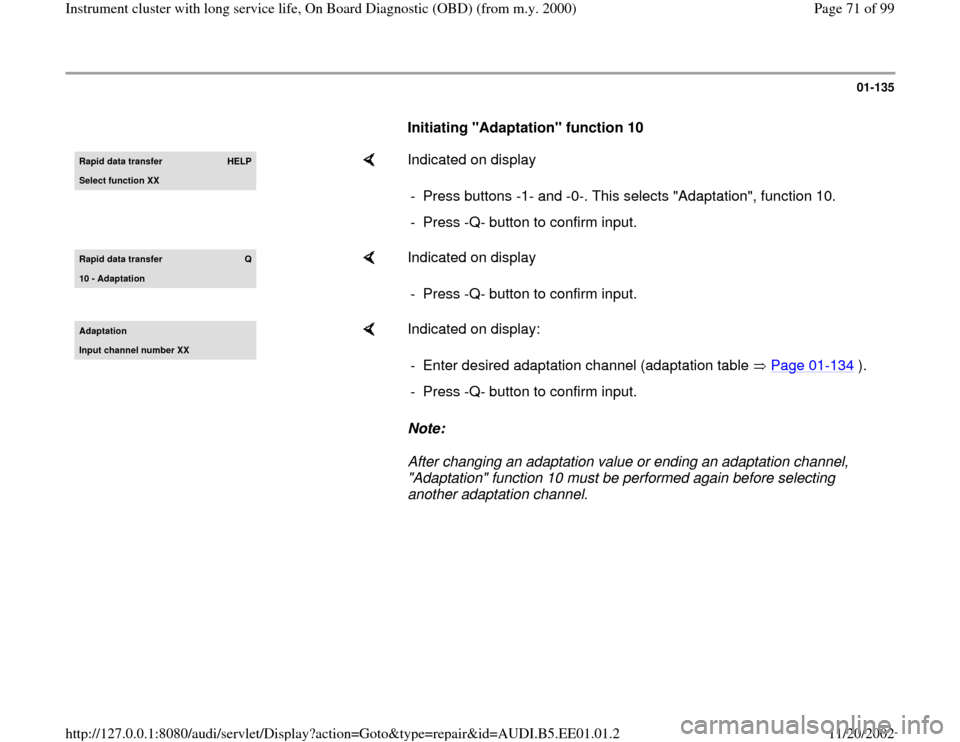

01-135

Initiating "Adaptation" function 10 Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0-. This selects "Adaptation", function 10.
- Press -Q- button to confirm input.
Rapid data transfer
Q
10 - Adaptation

Indicated on display
- Press -Q- button to confirm input.
Adaptation Input channel number XX

Indicated on display:
Note:
After changing an adaptation value or ending an adaptation channel,
"Adaptation" function 10 must be performed again before selecting
another adaptation channel. - Enter desired adaptation channel (adaptation table Page 01
-134
).
- Press -Q- button to confirm input.
Pa
ge 71 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

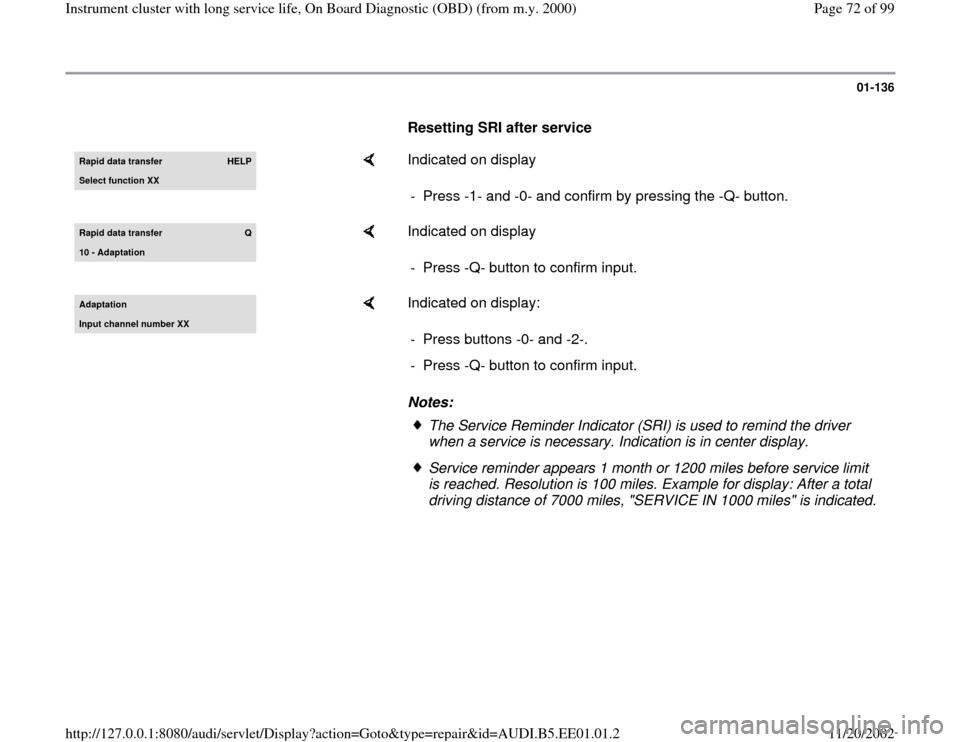

01-136

Resetting SRI after service Rapid data transfer
HELP
Select function XX

Indicated on display
- Press -1- and -0- and confirm by pressing the -Q- button.
Rapid data transfer
Q
10 - Adaptation

Indicated on display
- Press -Q- button to confirm input.
Adaptation Input channel number XX

Indicated on display:
Notes: - Press buttons -0- and -2-.
- Press -Q- button to confirm input.
The Service Reminder Indicator (SRI) is used to remind the driver
when a service is necessary. Indication is in center display. Service reminder appears 1 month or 1200 miles before service limit
is reached. Resolution is 100 miles. Example for display: After a total
driving distance of 7000 miles, "SERVICE IN 1000 miles" is indicated.
