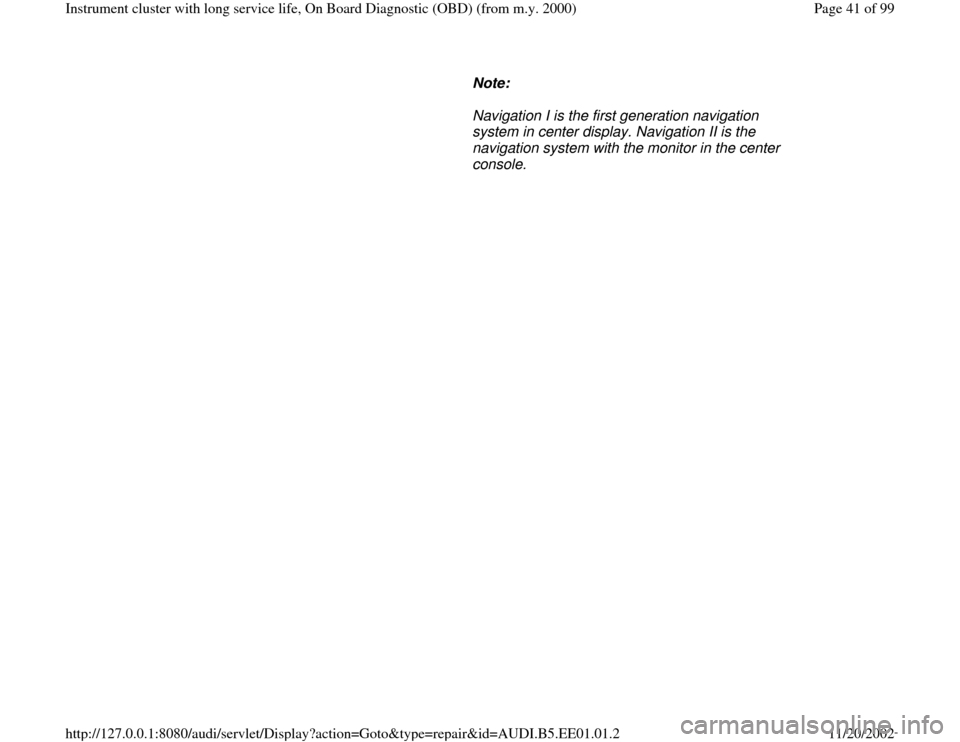

Note:
Navigation I is the first generation navigation
system in center display. Navigation II is the
navigation system with the monitor in the center
console.
Pa
ge 41 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-113

X Cylinder count
4
6 4-cylinder
6-cylinder
X Engine versions
0
2
4 TDI-engine
gas engine
Turbo-engine

Notes:

Coding can be modified to allow for various
combinations of optional equipment, depending
on what is installed in the vehicle.
If vehicle is equipped with more than one item
of optional equipment and/or transmission
variant that needs to be coded, the overall
coding will be the total of the individual coding
numbers.

Example:
Seat belt warning active and navigation I 02
+ 16 = 18
Pa
ge 42 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-114

Read Measuring Value Block (scan tool
function 08)


Initiating "Read Measuring Value Block"
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8-. This selects "Read measuring value block",
function 08.
- Press -Q- button to confirm input.
Rapid data transfer
Q
08 - Measured value block

Indicated on display
- Press -Q- button to confirm input.
Read measured value block Input displa
y group number XXX

Indicated on display:
The selected measuring value block is now displayed in standard form. - Enter display group number (from table Page 01
-115
) and press -Q-
button to confirm input.
Pa
ge 43 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-115

Display group overview:

Display group
number Indicated on display
001 1 = Speed
2 = Engine RPM
3 = Oil pressure switch
4 = Time
002 1 = Trip odometer
2 = Fuel gauge
3 = Tank sensor
4 = Outside air
temperature
003 1 = Coolant temperature
010 1 = Channel 30
2 = Adaptation tank
sensor
3 = Channel 9
4 = Trip odometer
011 1 = Channel 4
Pa
ge 44 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

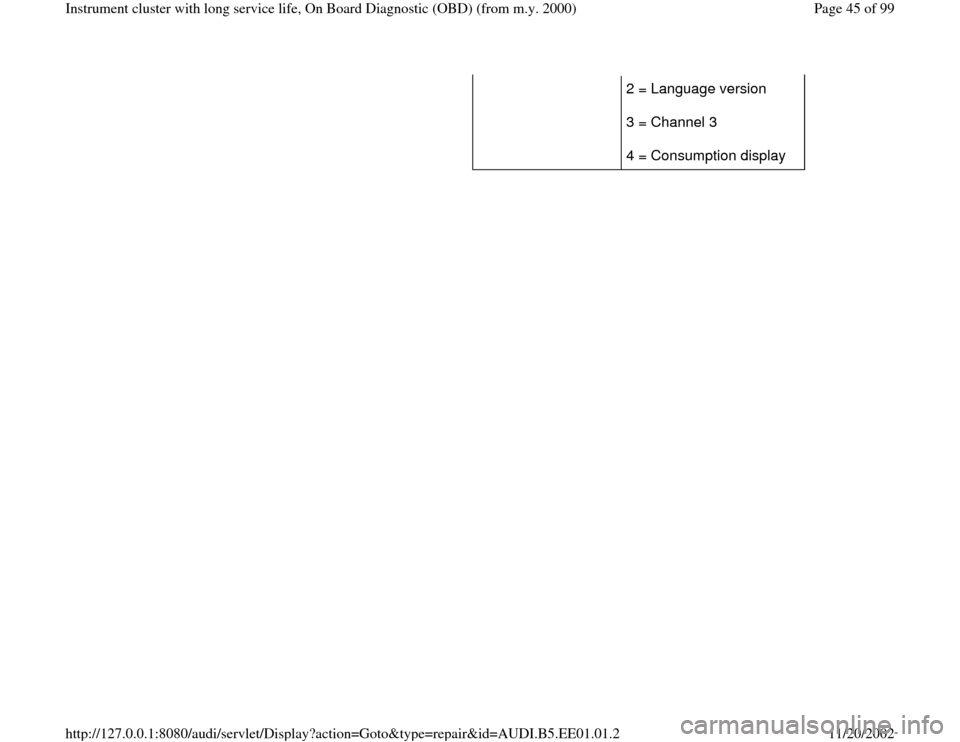

2 = Language version
3 = Channel 3
4 = Consumption display
Pa
ge 45 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-116

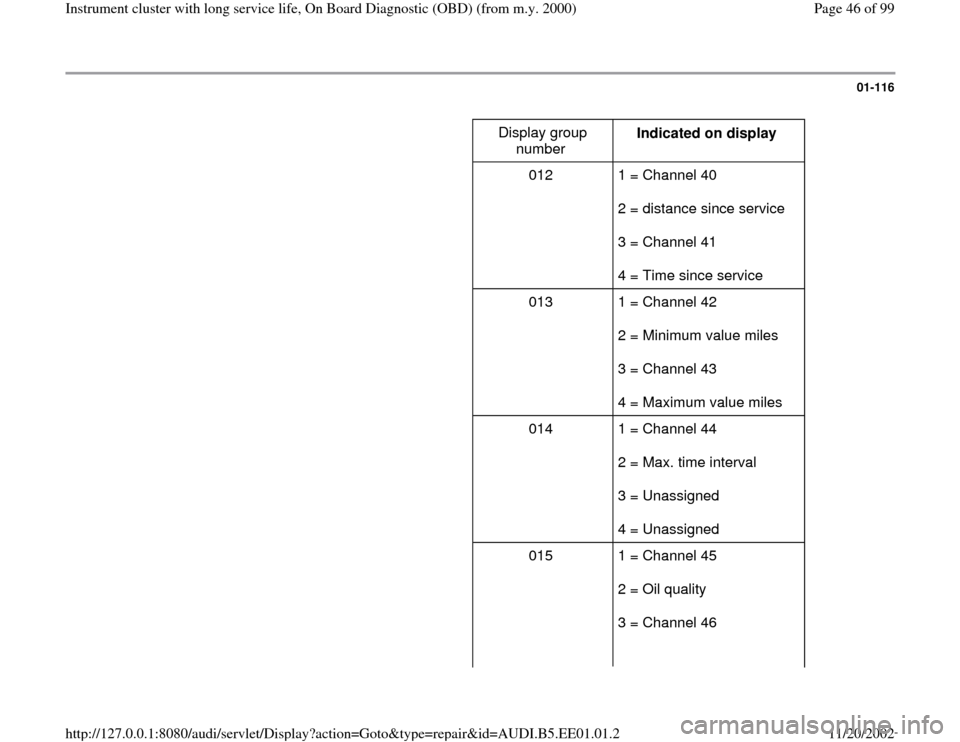

Display group
number Indicated on display
012 1 = Channel 40
2 = distance since service
3 = Channel 41
4 = Time since service
013 1 = Channel 42
2 = Minimum value miles
3 = Channel 43
4 = Maximum value miles
014 1 = Channel 44
2 = Max. time interval
3 = Unassigned
4 = Unassigned
015 1 = Channel 45
2 = Oil quality
3 = Channel 46
Pa
ge 46 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

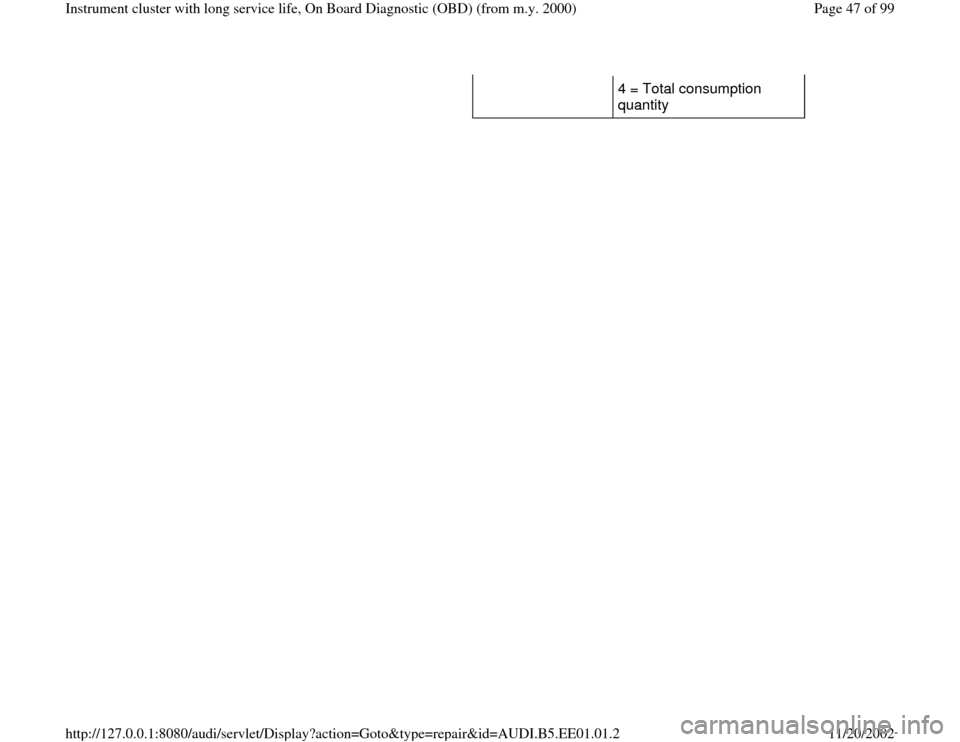

4 = Total consumption
quantity
Pa
ge 47 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-117

Display group
number Indicated on display
050 1 = Trip odometer
2 = Engine RPM
3 = Oil temperature
4 = Coolant temperature
125 1 = Engine
2 = Transmission
3 = ABS
4 = ADR
126 1 = A/C
130 1 = Tire pressure
2 = Auxiliary heater
3 = Unassigned
4 = Parking assistance
140 1 = Radio
2 = Telephone
3 = Navigation
Pa
ge 48 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2
