01-160

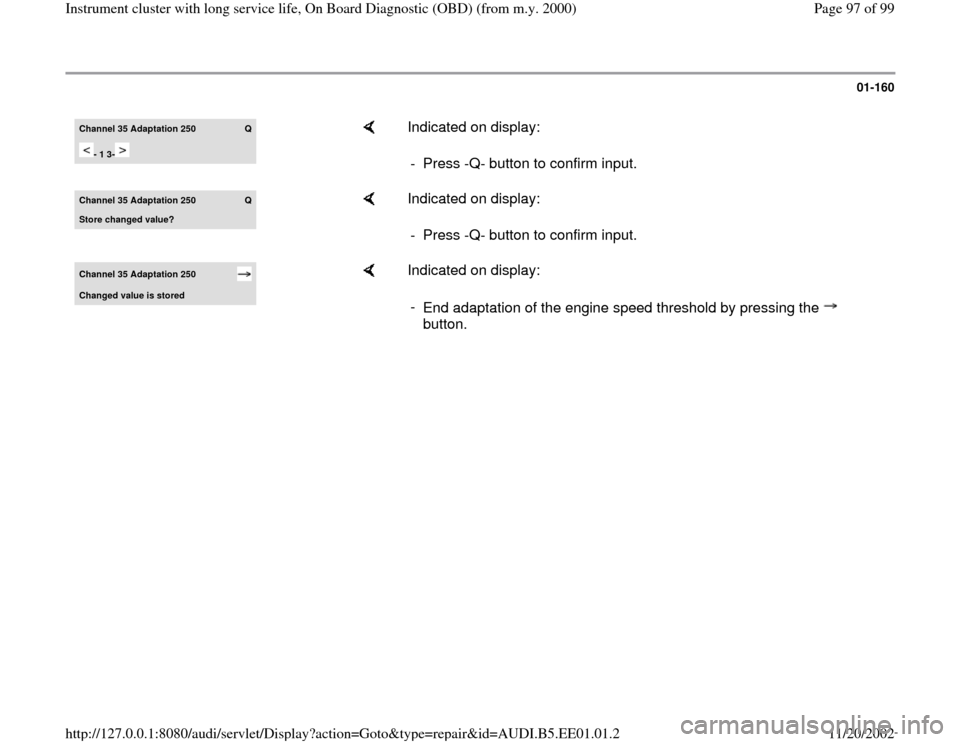

Channel 35 Adaptation 250
Q
- 1 3-

Indicated on display:
- Press -Q- button to confirm input.
Channel 35 Adaptation 250
Q
Store changed value?

Indicated on display:
- Press -Q- button to confirm input.
Channel 35 Adaptation 250 Changed value is stored

Indicated on display:
-
End adaptation of the engine speed threshold by pressing the
button.
Pa
ge 97 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-161

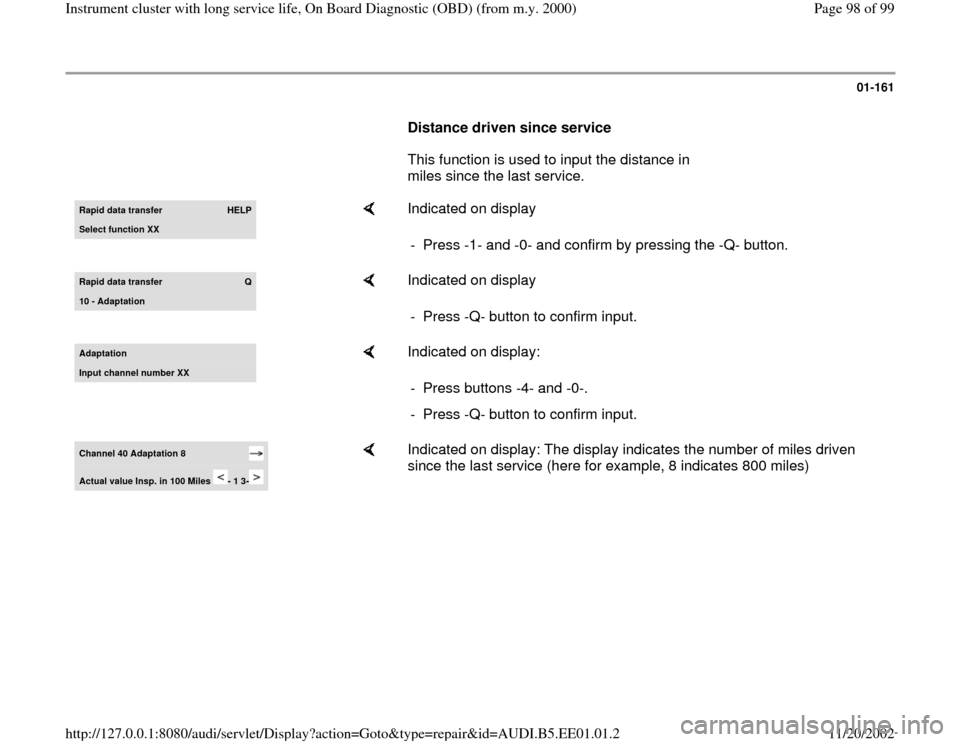

Distance driven since service
This function is used to input the distance in
miles since the last service. Rapid data transfer
HELP
Select function XX

Indicated on display
- Press -1- and -0- and confirm by pressing the -Q- button.
Rapid data transfer
Q
10 - Adaptation

Indicated on display
- Press -Q- button to confirm input.
Adaptation Input channel number XX

Indicated on display:
- Press buttons -4- and -0-.
- Press -Q- button to confirm input.
Channel 40 Adaptation 8 Actual value Insp. in 100 Miles - 1 3-

Indicated on display: The display indicates the number of miles driven
since the last service (here for example, 8 indicates 800 miles)
Pa
ge 98 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-162

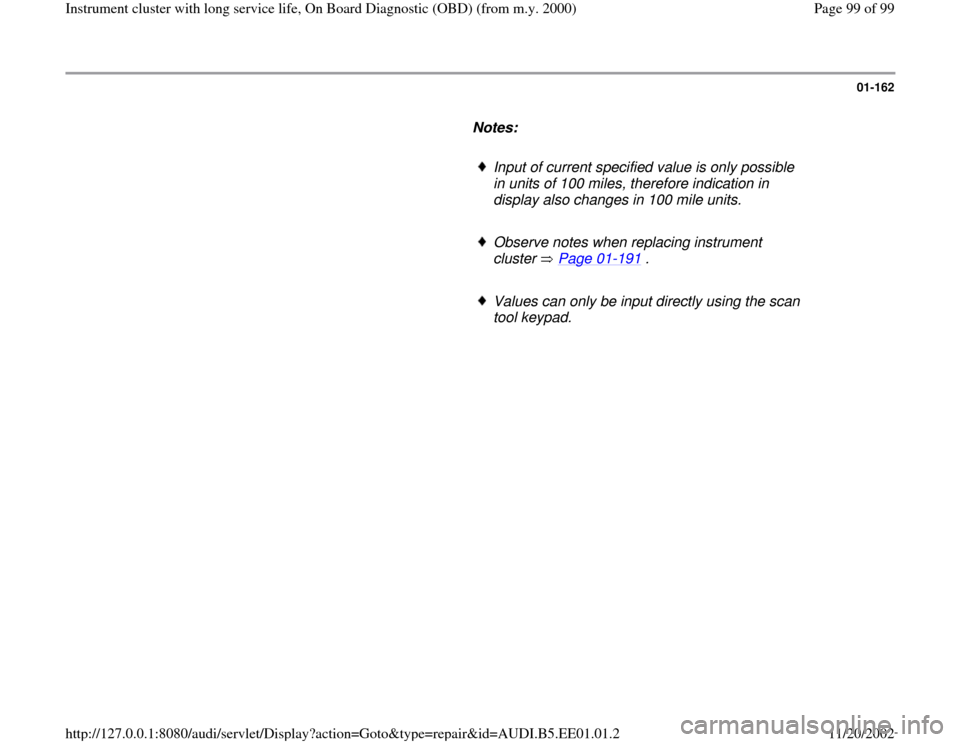

Notes:

Input of current specified value is only possible
in units of 100 miles, therefore indication in
display also changes in 100 mile units.
Observe notes when replacing instrument
cluster Page 01
-191
.

Values can only be input directly using the scan
tool keypad.
