1997 AUDI A4 Instrument Cluster OBD From Model Year 2000 Workshop Manual

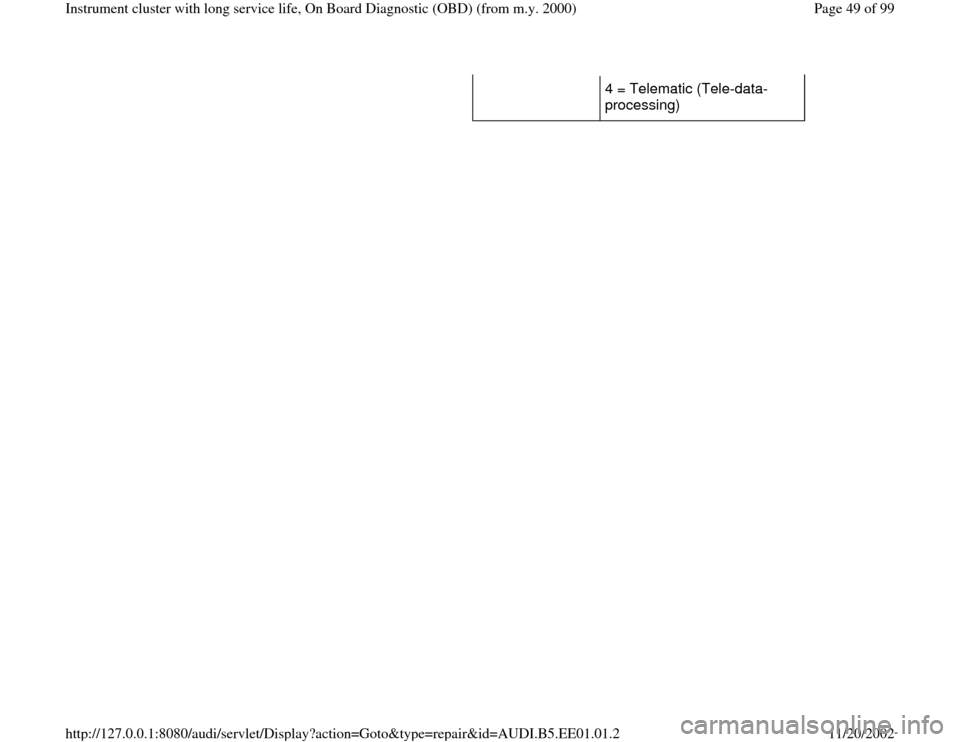

4 = Telematic (Tele-data-
processing)
Pa
ge 49 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-118

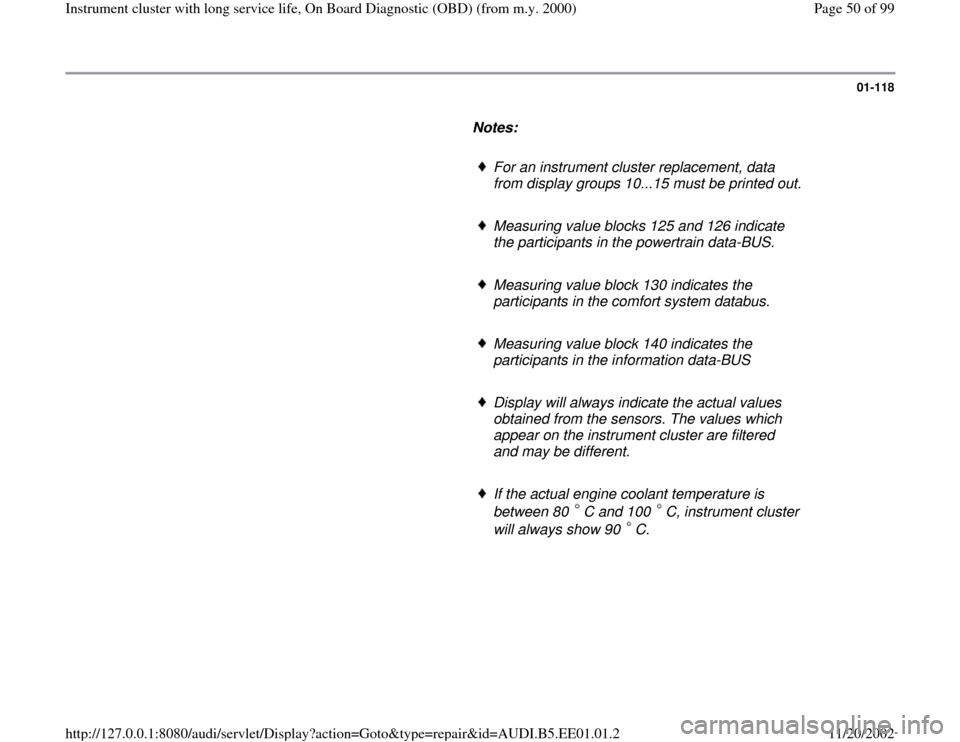

Notes:

For an instrument cluster replacement, data
from display groups 10...15 must be printed out.
Measuring value blocks 125 and 126 indicate
the participants in the powertrain data-BUS.
Measuring value block 130 indicates the
participants in the comfort system databus.
Measuring value block 140 indicates the
participants in the information data-BUS
Display will always indicate the actual values
obtained from the sensors. The values which
appear on the instrument cluster are filtered
and may be different.
If the actual engine coolant temperature is
between 80 C and 100 C, instrument cluster
will always show 90 C.
Pa
ge 50 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-119
Measuring value block 001

Read Measuring Value Block 1

Indicated on display:

30 MPH 2400 RPM Oil p2

Time



Oil pressure switch 2
Oil p2 < min. Oil p2 OK

Engine speed (RPM)

0 - 9990 RPM


Speed
0 - 187 MPH

Pa
ge 51 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-120

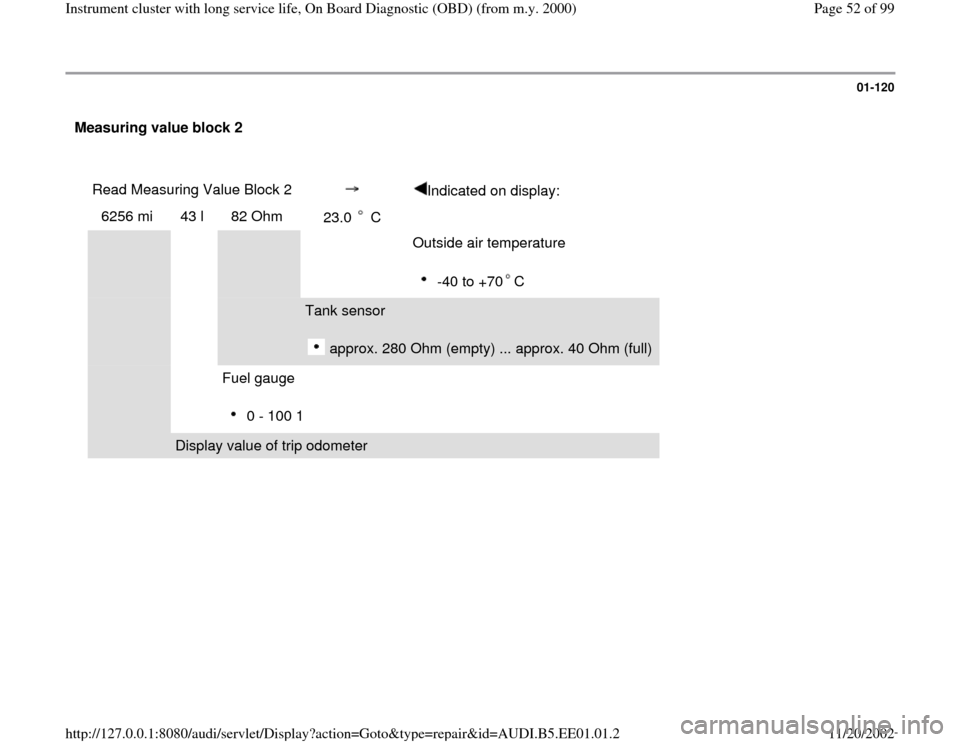

Measuring value block 2

Read Measuring Value Block 2

Indicated on display:

6256 mi 43 l 82 Ohm
23.0 C



Outside air temperature
-40 to +70 C




Tank sensor
approx. 280 Ohm (empty) ... approx. 40 Ohm (full)

Fuel gauge

0 - 100 1


Display value of trip odometer

Pa
ge 52 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-121

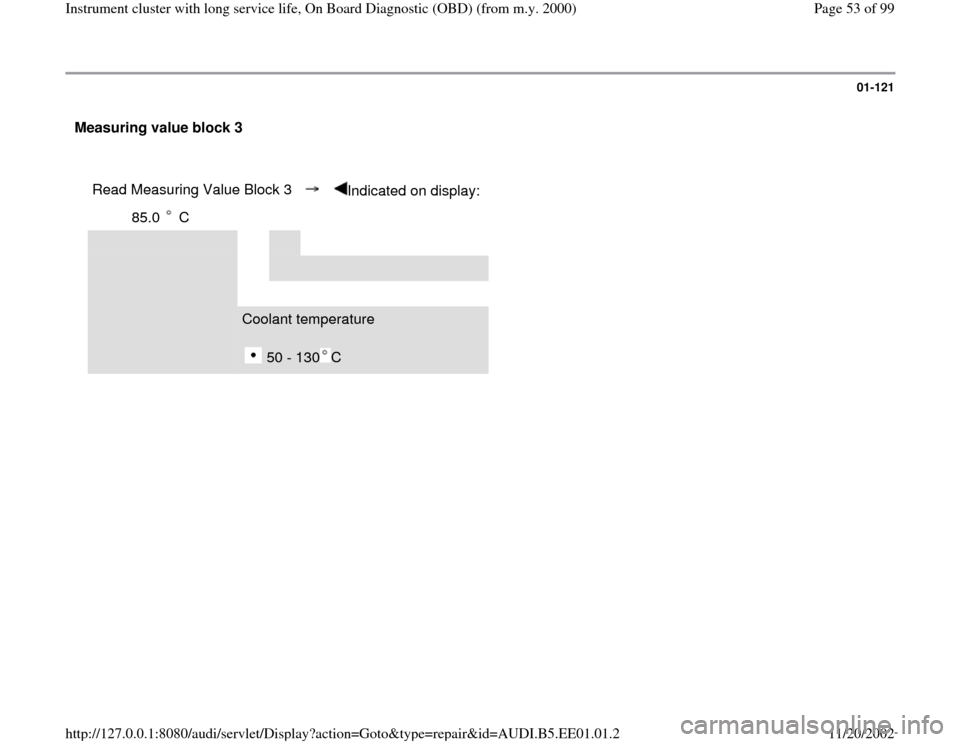

Measuring value block 3

Read Measuring Value Block 3

Indicated on display:


85.0 C











Coolant temperature

50 - 130 C


Pa
ge 53 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-122

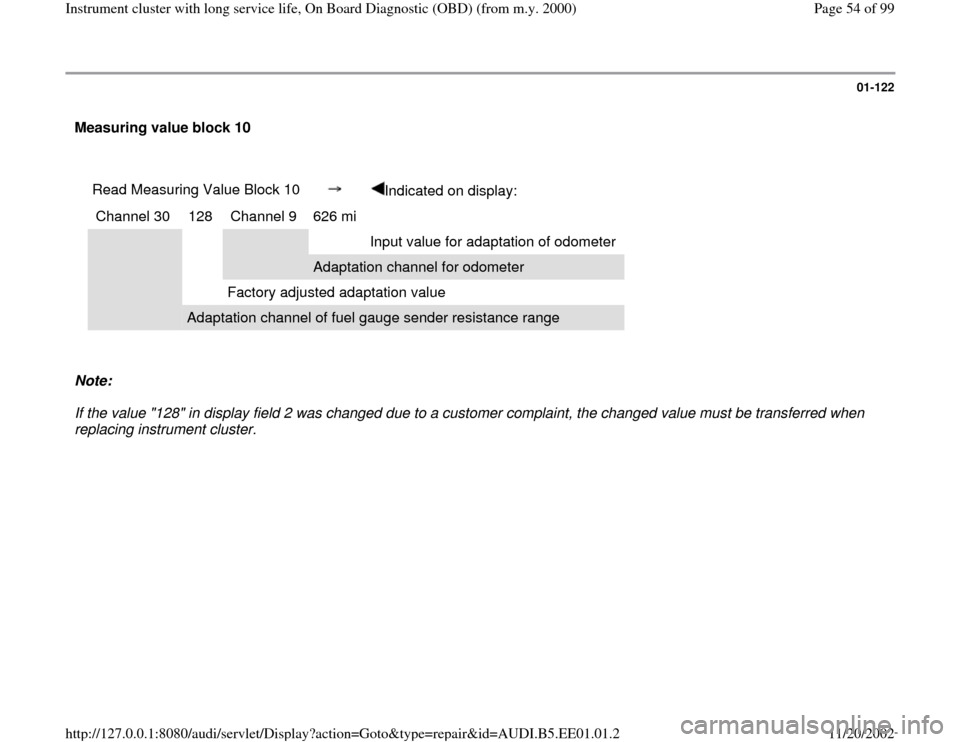

Measuring value block 10

Read Measuring Value Block 10

Indicated on display:

Channel 30 128 Channel 9 626 mi


Input value for adaptation of odometer



Adaptation channel for odometer

Factory adjusted adaptation value

Adaptation channel of fuel gauge sender resistance range

Note:
If the value "128" in display field 2 was changed due to a customer complaint, the changed value must be transferred when
replacing instrument cluster.
Pa
ge 54 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-123

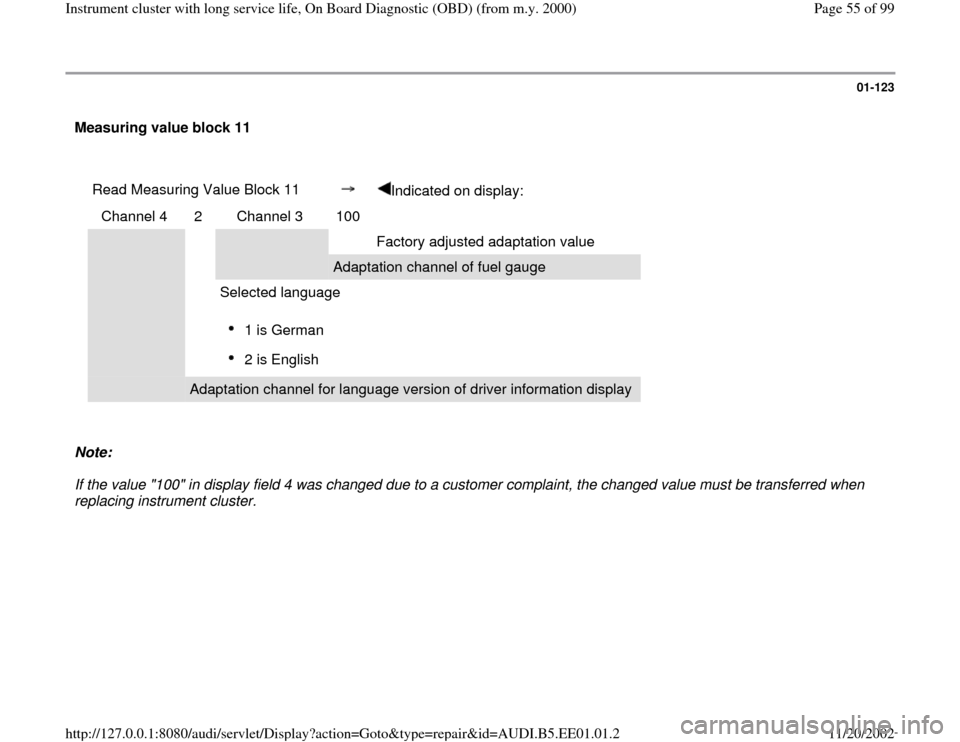

Measuring value block 11

Read Measuring Value Block 11

Indicated on display:

Channel 4 2 Channel 3 100


Factory adjusted adaptation value



Adaptation channel of fuel gauge

Selected language

1 is German
2 is English


Adaptation channel for language version of driver information display

Note:
If the value "100" in display field 4 was changed due to a customer complaint, the changed value must be transferred when
replacing instrument cluster.
Pa
ge 55 of 99 Instrument cluster with lon
g service life, On Board Dia
gnostic
(OBD
) (from m.
y. 2000
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.2

01-124

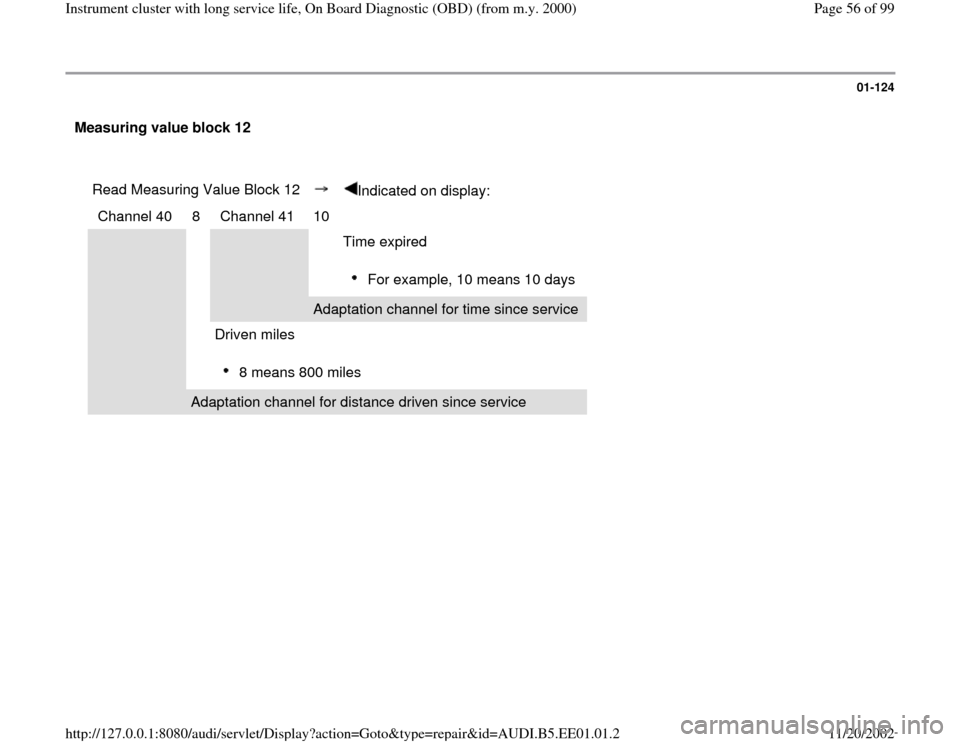

Measuring value block 12

Read Measuring Value Block 12

Indicated on display:

Channel 40 8 Channel 41 10


Time expired
For example, 10 means 10 days



Adaptation channel for time since service

Driven miles

8 means 800 miles


Adaptation channel for distance driven since service
