1997 AUDI A4 Airbag Service Workshop Manual

69-57

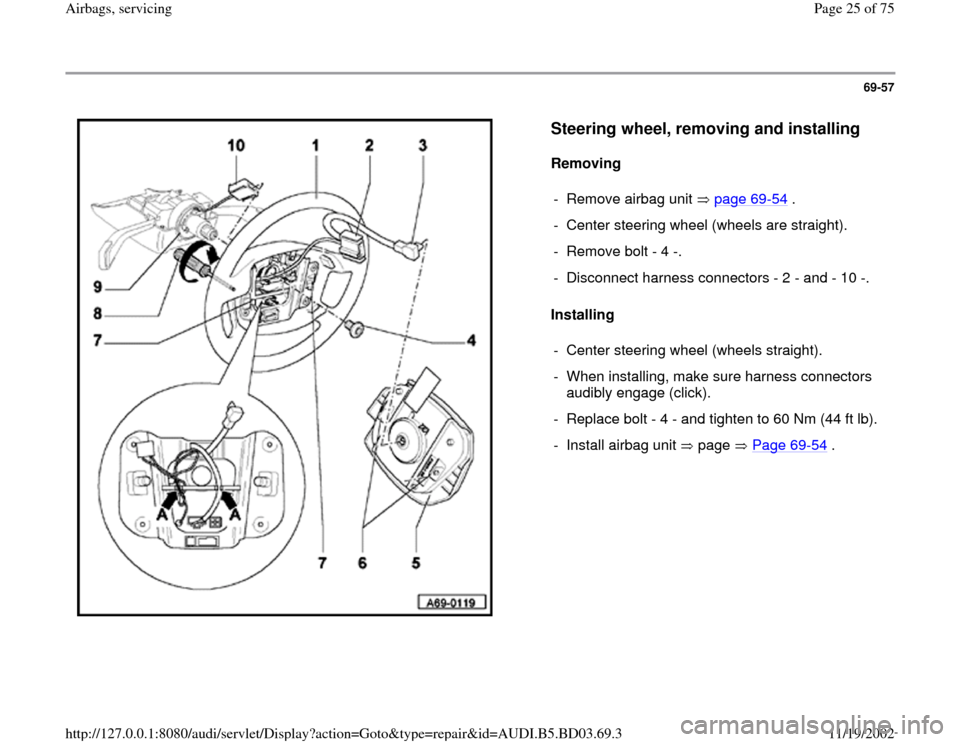

Steering wheel, removing and installing

Removing
Installing - Remove airbag unit page 69
-54
.
- Center steering wheel (wheels are straight).
- Remove bolt - 4 -.
- Disconnect harness connectors - 2 - and - 10 -.
- Center steering wheel (wheels straight).
- When installing, make sure harness connectors
audibly engage (click).
- Replace bolt - 4 - and tighten to 60 Nm (44 ft lb).
- Install airbag unit page Page 69
-54
.
Pa
ge 25 of 75 Airba
gs, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.3

69-58


Driver-side airbag for sport steering wheel
( m.y. 1998), removing and installing

WARNING!
Follow all safety precautions when working on
airbags page 69
-40
.
1 -
Bolts to secure upper part of carrier unit
5 Nm (44 in. lb)
2 -
Harness connector for airbag unit
3 -
Airbag unit
4 -
Nut for steering wheel 42 Nm (31 ft lb)
5 -
Bolts to secure lower part of carrier unit. 5 Nm (44 in. lb).
6 -
Torx bolt (T30) 6 Nm (53 in. lb)
7 -
Securing cable for spiral spring
Pa
ge 26 of 75 Airba
gs, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.3

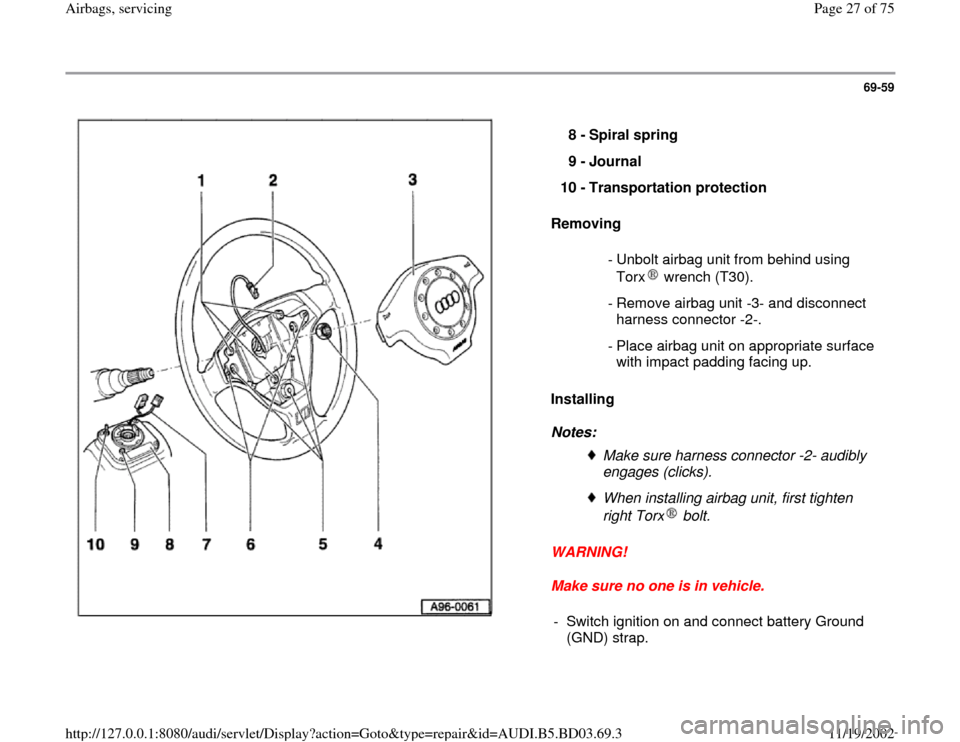

69-59


Removing
Installing
Notes:
WARNING!
Make sure no one is in vehicle. 8 -
Spiral spring
9 -
Journal
10 -
Transportation protection
- Unbolt airbag unit from behind using
Torx wrench (T30).
- Remove airbag unit -3- and disconnect
harness connector -2-.
- Place airbag unit on appropriate surface
with impact padding facing up.
Make sure harness connector -2- audibly
engages (clicks). When installing airbag unit, first tighten
right Torx bolt.
- Switch ignition on and connect battery Ground
(GND) strap.
Pa
ge 27 of 75 Airba
gs, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.3

69-60

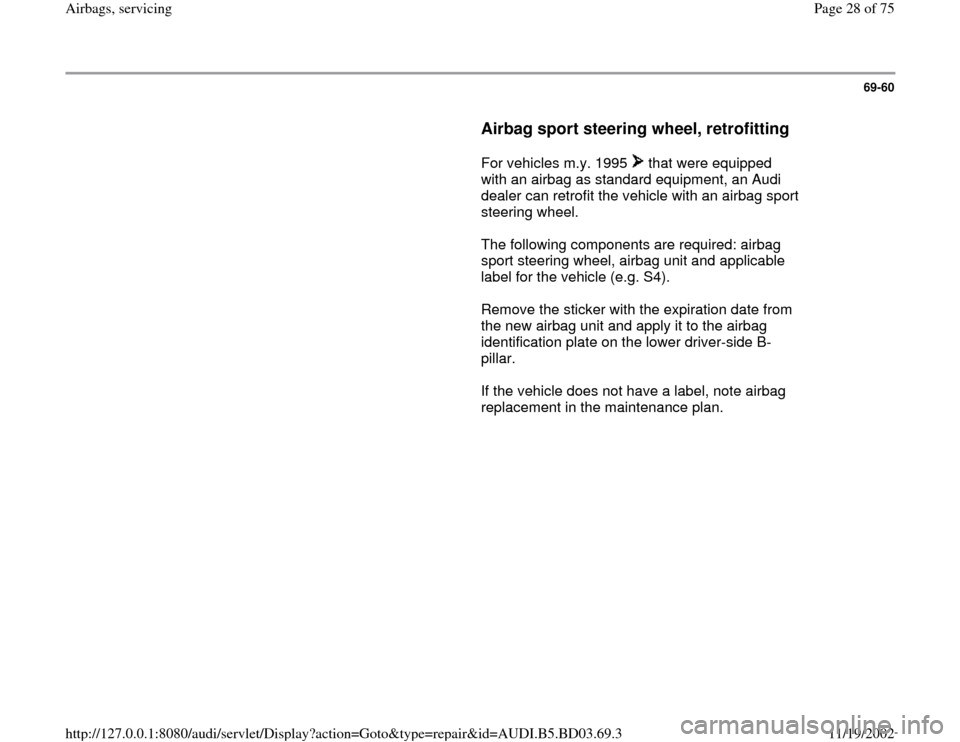

Airbag sport steering wheel, retrofitting


For vehicles m.y. 1995 that were equipped
with an airbag as standard equipment, an Audi
dealer can retrofit the vehicle with an airbag sport
steering wheel.
The following components are required: airbag
sport steering wheel, airbag unit and applicable
label for the vehicle (e.g. S4).
Remove the sticker with the expiration date from
the new airbag unit and apply it to the airbag
identification plate on the lower driver-side B-
pillar.
If the vehicle does not have a label, note airbag
replacement in the maintenance plan.
Pa
ge 28 of 75 Airba
gs, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.3

69-61

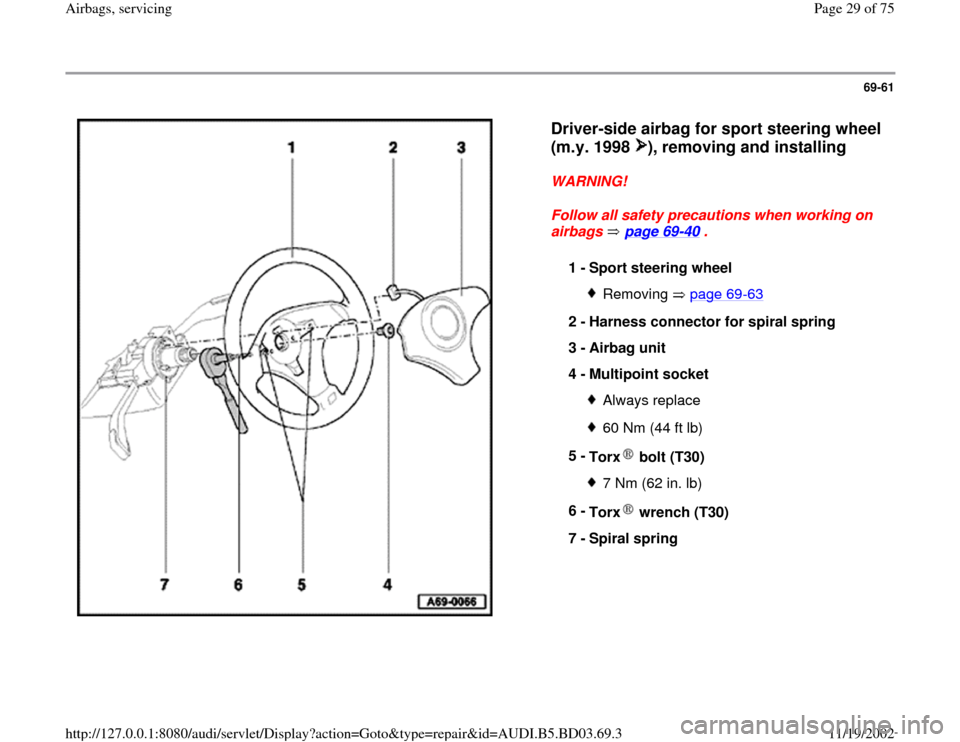

Driver-side airbag for sport steering wheel
(m.y. 1998 ), removing and installing

WARNING!
Follow all safety precautions when working on
airbags page 69
-40
.
1 -
Sport steering wheel
Removing page 69
-63
2 -
Harness connector for spiral spring
3 -
Airbag unit
4 -
Multipoint socket
Always replace60 Nm (44 ft lb)
5 -
Torx bolt (T30) 7 Nm (62 in. lb)
6 -
Torx wrench (T30)
7 -
Spiral spring
Pa
ge 29 of 75 Airba
gs, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.3

69-62


Removing
WARNING!
Follow all safety precautions when working on
airbags page 69
-40
.
Installing
WARNING!
Make sure no one is in vehicle.
-
Unbolt airbag unit using Torx wrench (T30).- Disconnect harness connector - 2 -.
- Place airbag unit on appropriate surface with
impact padding facing up.
- Make sure harness connector - 2 - audibly
engages (clicks).
- Install airbag unit and tighten to 7 Nm (62 in. lb).
- Switch ignition on and connect battery Ground
(GND) strap.
Pa
ge 30 of 75 Airba
gs, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.3

69-63

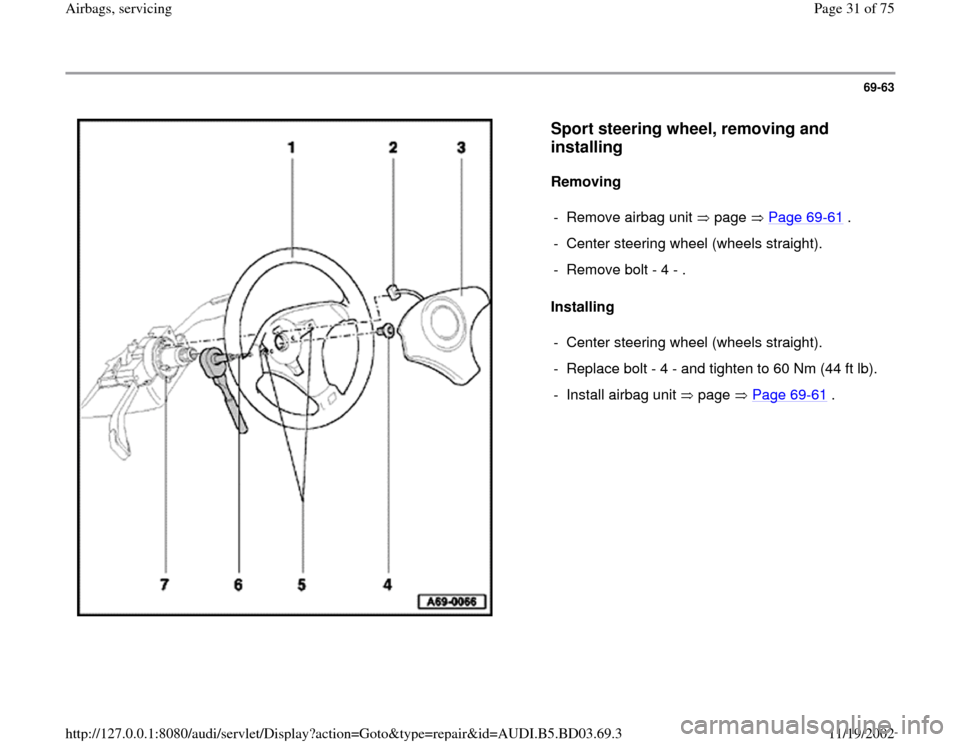

Sport steering wheel, removing and
installing

Removing
Installing - Remove airbag unit page Page 69
-61
.
- Center steering wheel (wheels straight).
- Remove bolt - 4 - .
- Center steering wheel (wheels straight).
- Replace bolt - 4 - and tighten to 60 Nm (44 ft lb).
- Install airbag unit page Page 69
-61
.
Pa
ge 31 of 75 Airba
gs, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.3

69-64

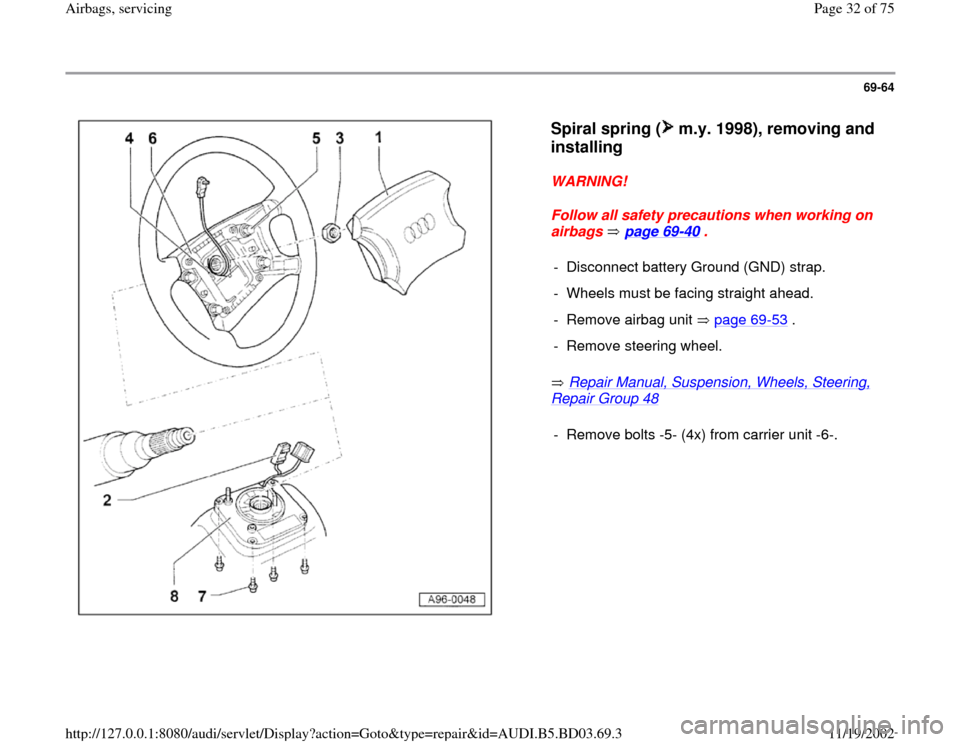

Spiral spring ( m.y. 1998), removing and
installing

WARNING!
Follow all safety precautions when working on
airbags page 69
-40
.
Repair Manual, Suspension, Wheels, Steering,
Repair Group 48

- Disconnect battery Ground (GND) strap.
- Wheels must be facing straight ahead.
- Remove airbag unit page 69
-53
.
- Remove steering wheel.- Remove bolts -5- (4x) from carrier unit -6-.
