1996 TOYOTA CAMRY Owners Manual

Part 6Maintenance requirements
171
VEHICLE
MAINTENANCE
AND CARE

Maintenance requirements

General maintenance

Does your vehicle need
repairing?
For scheduled maintenance
information, please refer to the
separate Owner's Manual
Supplement/Maintenance
Scheduleº.
Your Toyota vehicle has been designed
for fewer maintenance requirements with
longer service intervals to save both your
time and money. However, each regular
maintenance, as well as day-to-day
care, is more important than ever before
to ensure smooth, trouble-free, safe, and
economical drivings.
It is the owner's responsibility to make
sure the specified maintenance, including
general maintenance service, is per-
formed. Note that both the new vehicle
and emission control system warranties
specify that proper maintenance and care
must be performed. See Owner's Guide,
Owner 's Manual Supplement or Warranty
Booklet for complete warranty informa-
tion.
General maintenance
General maintenance items are those
day-to-day care practices that are impor-
tant to your vehicle for proper operation.
It is the owner's responsibility to ensure
that the general maintenance items are
performed regularly.
These checks or inspections can be done
either by yourself or a qualified technician,
or if you prefer, your Toyota dealer will be
pleased to do them at a nominal cost.Scheduled maintenance
The scheduled maintenance items listed
in the Owner's Manual Supplement/
Maintenance Scheduleº are those re-
quired to be serviced at regular intervals.
For details of your maintenance Sched-
ule, read the separate ºOwner's Manual
Supplement/Maintenance Scheduleº.
It is recommended that any replace-
ment parts used for maintenance or
for the repair of the emission control
system be Toyota supplied.
The owner may elect to use non-Toyo-
ta supplied parts for replacement pur-
poses without invalidating the emis-
sion control system warranty.
However, use of replacement parts
which are not of equivalent quality
may impair the effectiveness of the
emission control systems.
You may also elect to have mainte-
nance, replacement, or repair of the
emission control devices and system
performed by any automotive repair
establishment or individual without
invalidating this warranty. See Own-
er's Guide, Owner's Manual Supple-
ment or Warranty Booklet for complete
warranty information.
ProCarManuals.com

172Where to go for service?
Toyota technicians are well-trained spe-
cialists and are kept up to date with the lat-
est service information through technical
bulletins, service tips, and in-dealership
training programs. They learn to work on
Toyotas before they work on your vehicle,
rather than while they are working on it.
You can be confident that your Toyota
dealer's service department performs the
best job to meet the maintenance require-
ments on your vehicleÐreliably and eco-
nomically.
Your copy of the repair order is proof that
all required maintenance has been per-
formed for warranty coverage. And if any
problems should arise with your vehicle
while under warranty, your Toyota dealer
will promptly take care of it. Again, be sure
to keep a copy of the repair order for any
service performed on your Toyota.
What about do-it-yourself mainte-
nance?
Many of the maintenance items are easy
to do yourself if you have a little mechani-
cal ability and a few basic automotive
tools. Simple instructions for how to per-
form them are presented in Part 7.If you are a skilled do-it-yourself me-
chanic, the Toyota service manuals are
recommended. Please be aware that do-
it-yourself maintenance can affect your
warranty coverage. See Owner's Guide,
Owner 's Manual Supplement or Warranty
Booklet for the details.Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any un-
usual noise, smell or vibration, you should
investigate the cause or take your vehicle
to your Toyota dealer or a qualified service
shop immediately. It is recommended that
any problem you notice be brought to the
attention of your dealer or the qualified
service shop for their advice.
Make these checks only where
adequate ventilation can be ob-
tained if you run the engine.CAUTION
!
OUTSIDE THE VEHICLE
Items listed below should be per-
formed from time to time, unless
otherwise specified.
Tire pressure
Check the pressure with a gauge every
two weeks, or at least once a month. See
Chapter 7-2 for additional information.
General maintenance
ProCarManuals.com

173 Tire surface and wheel nuts
Check the tires carefully for cuts, damage
or excessive wear. See Chapter 7-2 for
additional information. When checking
the tires, make sure no nuts are missing,
and check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tires every 12000 km (7500
miles). See Chapter 7-2 for additional in-
formation.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has been
parked for a while. If you smell fuel fumes
or notice any leak, have the cause found
and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid op-
erate smoothly and all latches lock se-
curely. Make sure the engine hood secon-
dary latch secures the hood from opening
when the primary latch is released.
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing peri-
odic services, cleaning the vehicle,
etc.Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warn-
ing buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position. For folding-down
or swing-up rear seatbacks or rear seat
cushion, check that the latches lock se-
curely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure that the
belt webbing is not cut, frayed, worn or
damaged.Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the lever (lever type) or pedal
(pedal type) has the proper travel and
that, on a safe incline, your vehicle is held
securely with only the parking brake ap-
plied.
Automatic transmission Parkº mech-
anism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your ve-
hicle is held securely with the selector
lever in Pº position and all brakes re-
leased.ProCarManuals.com

174IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See Chapter 7-3 for additional infor-
mation.
Engine coolant level
Make sure the coolant level is between
the FULLº and LOWº lines on the see-
through reservoir. See Chapter 7-2 for
additional information.
Battery electrolyte level
Make sure the electrolyte level of all bat-
tery cells is between upper and lower level
lines on the case. Add only distilled water
when replenishing. See Chapter 7-3 for
additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See Chapter 7-2 for additional informa-
tion.
Engine oil level
Check the level on the dipstick with the en-
gine turned off and the vehicle parked on
a level spot. See Chapter 7-2 for addition-
al information.Power steering fluid level
Check the level through the reservoir. The
level should be in the HOTº or COLDº
range depending on the fluid temperature.
See Chapter 7-2 for additional informa-
tion.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See engine exhaust cautions in
Part 2.)ProCarManuals.com

175 Be on the alert for changes in perfor-
mance, sounds, and visual tip-offs that in-
dicate service is needed. Some important
clues are as follows:

Engine missing, stumbling, or pinging

Appreciable loss of power

Strange engine noises

A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)

Change in exhaust sound (This may
indicate a dangerous carbon monox-
ide leak. Drive with the windows open
and have the exhaust system checked
immediately.)

Flat-looking tire; excessive tire squeal
when cornering; uneven tire wear

Vehicle pulls to one side when driving
straight on a level road

Strange noises related to suspension
movement

Loss of brake effectiveness; spongy
feeling brake or clutch pedal; pedal al-
most touches floor; vehicle pulls to one
side when braking

Engine coolant temperature continual-
ly higher than normalIf you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.

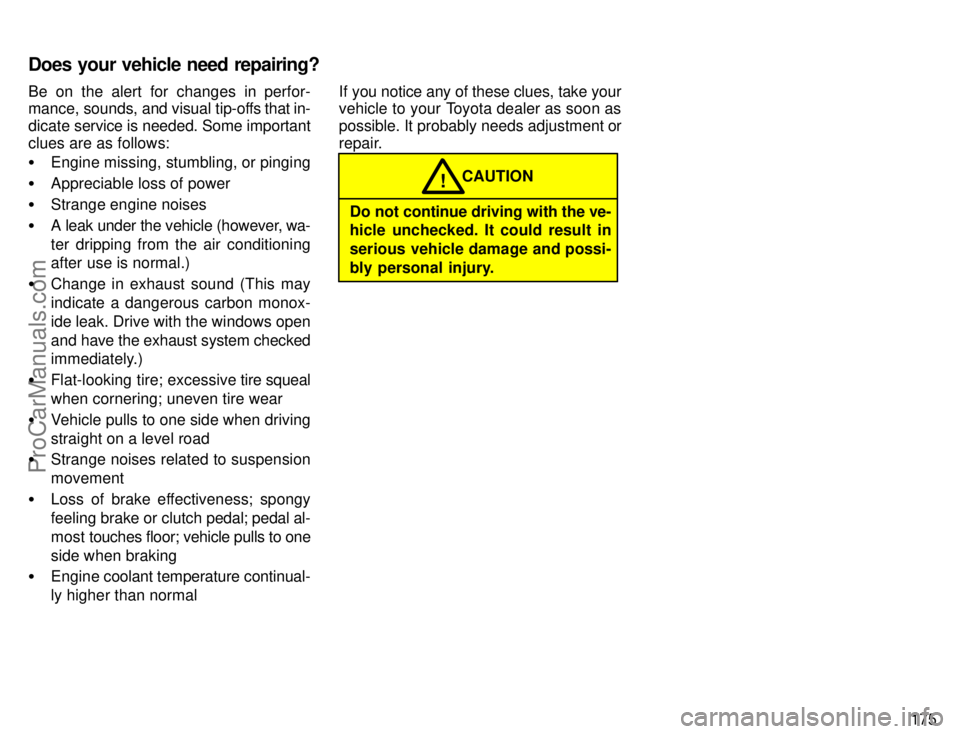

Do not continue driving with the ve-
hicle unchecked. It could result in
serious vehicle damage and possi-
bly personal injury.CAUTION
! Does your vehicle need repairing?
ProCarManuals.com

176ProCarManuals.com

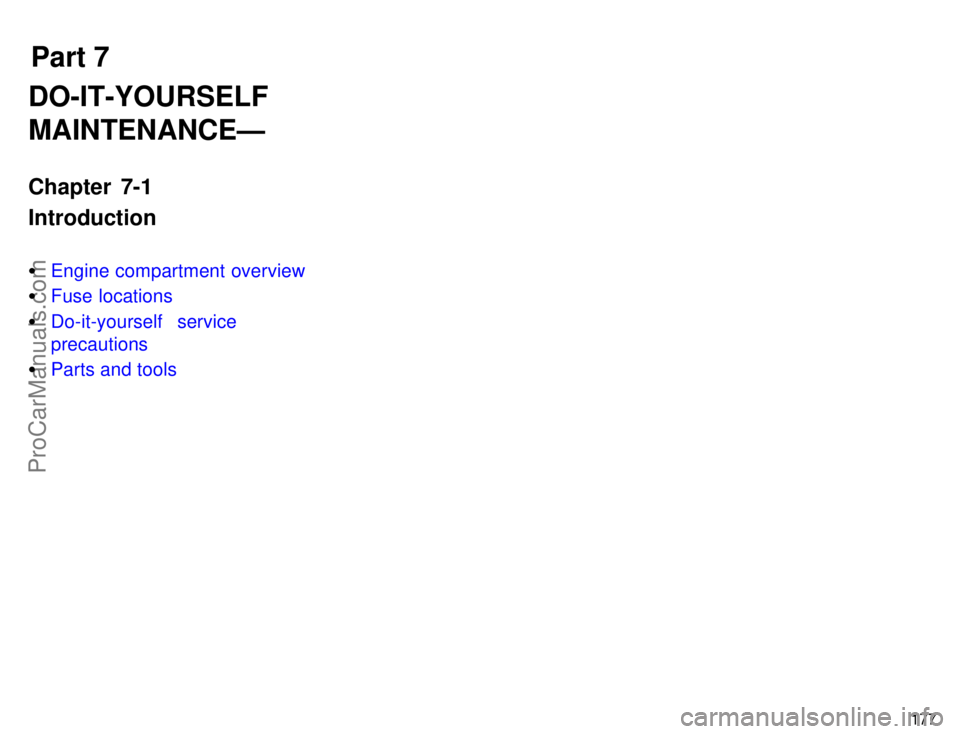

Part 7
177
DO-IT-YOURSELF
MAINTENANCEÐ
Chapter 7-1
Introduction

Engine compartment overview

Fuse locations

Do-it-yourself service
precautions

Parts and tools
ProCarManuals.com

178
Engine compartment overview (5S-FE engine)
