1996 TOYOTA 4RUNNER Owners Manual

8
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock systemÐ
All the side doors and back door lock and
unlock simultaneously with either front
door. In the driver's door lock, turning the
key once will unlock the driver's door and
twice in succession will unlock all the side
doors simultaneously.LOCKING AND UNLOCKING WITH IN-
SIDE LOCK BUTTON Move the lock button.
To lock: Push the button downward.
To unlock: Pull the button upward.
Closing the door with the lock button
pushed in w ill also lock the door. Be care-
ful not to lock your keys in the vehicle.
Vehicles with power door lock systemÐ The front doors cannot be locked if you
leave the key in the ignition switch.
With power window
Side doors

9
Without power windowLOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear side
All the
doors lock or unlock simultaneously.
REAR DOOR CHILD-PROTECTORS
Move the lock lever to the LOCKº
position as shown on the label.
This feature allows you to lock a rear door
so it can be opened from the outside only,
not from inside. We recommend using this feature whenever small children are in thevehicle.

10

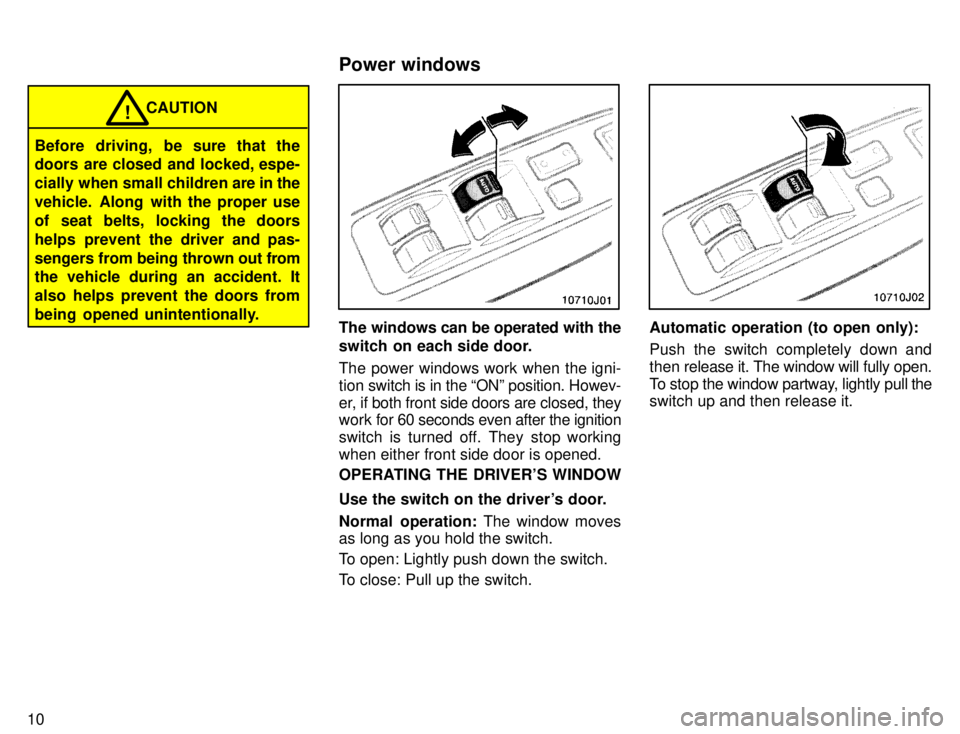

CAUTION!
Before driving, be sure that the
doors are closed and locked, espe-
cially when small children are in the
vehicle. Along with the proper use
of seat belts, locking the doors
helps prevent the driver and pas-
sengers from being thrown out from
the vehicle during an accident. It
also helps prevent the doors from
being opened unintentionally.
The windows can be operated with the
switch on each side door.
The power windows work when the igni- tion switch is in the ONº position. Howev-
er, if both front side doors are closed, they work for 60 seconds even after the ignition
switch is turned off. They stop working
when either front side door is opened.
OPERATING THE DRIVER'S WINDOW
Use the switch on the driver's door.
Normal operation: The window moves
as long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation (to open only):
Push the switch completely down and
then rel ease it. The window will fully open.
To stop the window partway, lightly pull the
switch up and then release it.
Power windows

11
OPERATING THE PASSENGERS' WIN-
DOWS
Use the switch on the passenger's
door. The driver's door also has a
switch that controls the passenger's
window.
The window moves as long as you hold the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock button on
the driver's door, the passenger's window cannot be operated.
CAUTION!
To avoid serious personal injury,
you must do the following. Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone's
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows
safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock button
to prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the
ignition key still inserted. They
could use the power window
switches and get trapped in a win-
dow. Unattended children can be- come involved in serious acci- dents.

12
The back window can be operated with
the inner switch on the center console
or outer switch on the back door.
OPERATING FROM INSIDE
The ignition key must be in the ONº posi- tion.
The back window moves as long as you
hold the inner switch.
To open: Push the switch on the DOWNº side.
To close: Push the switch on the UPº side.You can also open the back window when
the back window wiper is working. At that
time, the wi
per stops working until the win-
dow is closed again.
If you push in the window lock button on
the driver's door (with power window) or
on the instrument panel (without power
window), the back window can be oper- ated.With power window (driver's door)
Without power window (instrument panel)
Power back window

13
OPERATING FROM OUTSIDE
The back window moves as long as you
hold the outer switch.
To open: Turn the key counterclockwise.
To close: Turn the key clockwise.
You can also open the back window when the back window wiper is working. At the
time, the wiper stops working until the win-
dow is closed again.

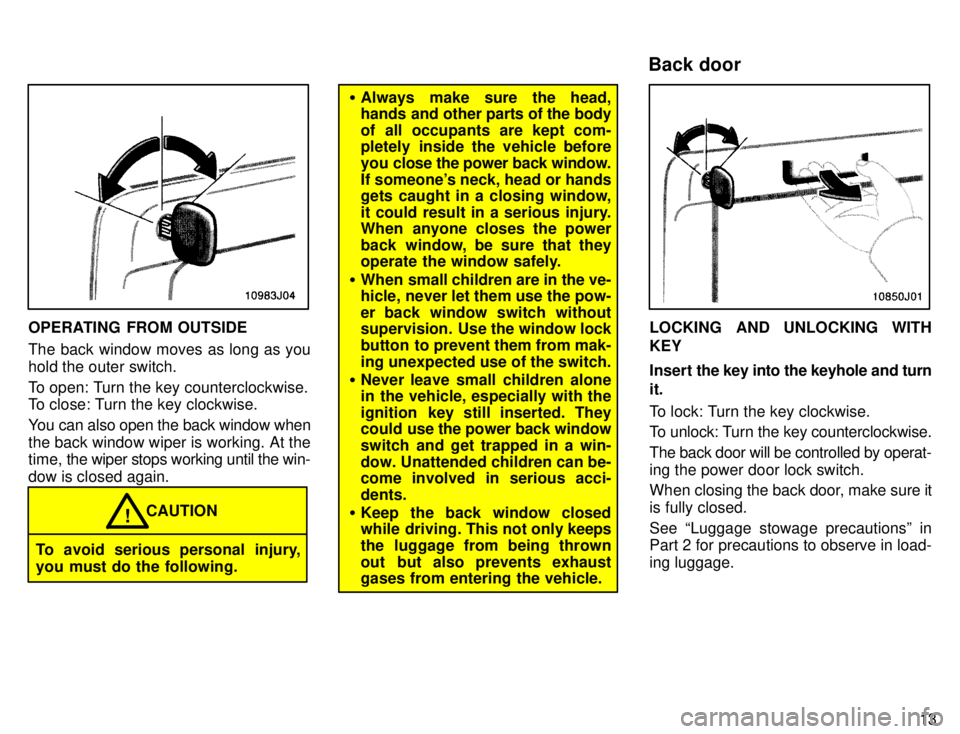

CAUTION!
To avoid serious personal injury,
you must do the following.
Always make sure the head,
hands and other parts of the body
of all occupants are kept com-
pletely inside the vehicle before
you close the power back window.
If someone's neck, head or hands
gets caught in a closing window,
it could result in a serious injury.
When anyone closes the power
back window, be sure that they
operate the window safely.
When small children are in the ve-
hicle, never let them use the pow-
er back window switch without
supervision. Use the window lock
button to prevent them from mak-ing unexpected use of the switch.
Never leave small children alone
in the vehicle, especially with the
ignition key still inserted. They
could use the power back window
switch and get trapped in a win-
dow. Unattended children can be- come involved in serious acci- dents.
Keep the back window closed
while driving. This not only keeps
the luggage from being thrown
out but also prevents exhaust gases from entering the vehicle.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise. The back door will be controlled by operat-
ing the power door lock switch.
When closing the back door, make sure it is fully closed. See Luggage stowage precautionsº in
Part 2 for precautions to observe in load- ing luggage.
Back door

14

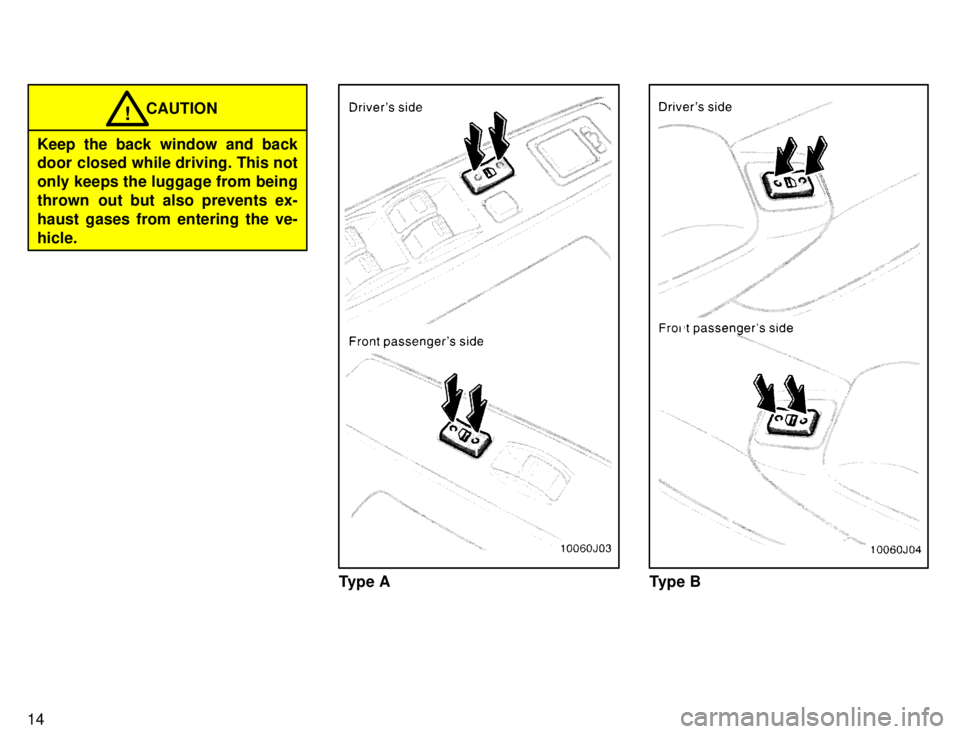

CAUTION!
Keep the back window and back
door closed while driving. This not
only keeps the luggage from being
thrown out but also prevents ex-
haust gases from entering the ve-hicle.
Type AType B

15
Type C
LOCKING AND UNLOCKING WITH
POWER BACK DOOR LOCK SWITCH Push the switch.
To lock: Push the switch on the LOCKº side.
To unlock: Push the switch on the UN-
LOCKº side.
Vehicles with a power door lock sys-
temÐOperating the power door lock
switch simultaneously locks or unlocks the back door (see Side doorsº).To open the hood, do the following.
1. Pull the hood lock release lever.
The hood will spring up slightly.2. In front of the vehicle, pull up on the
auxiliary catch lever and lift the hood.
Hood
