1996 TOYOTA 4RUNNER Owners Manual

39
In the following cases, contact your Toyo-
ta dealer as soon as possible: The SRS airbags have been inflated.
The front part of the vehicle (shaded in the illustration) was involved in an ac-
cident not of the extent to cause the
SRS airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratch- ed, cracked, or otherwise damaged. Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a child
restraint system.

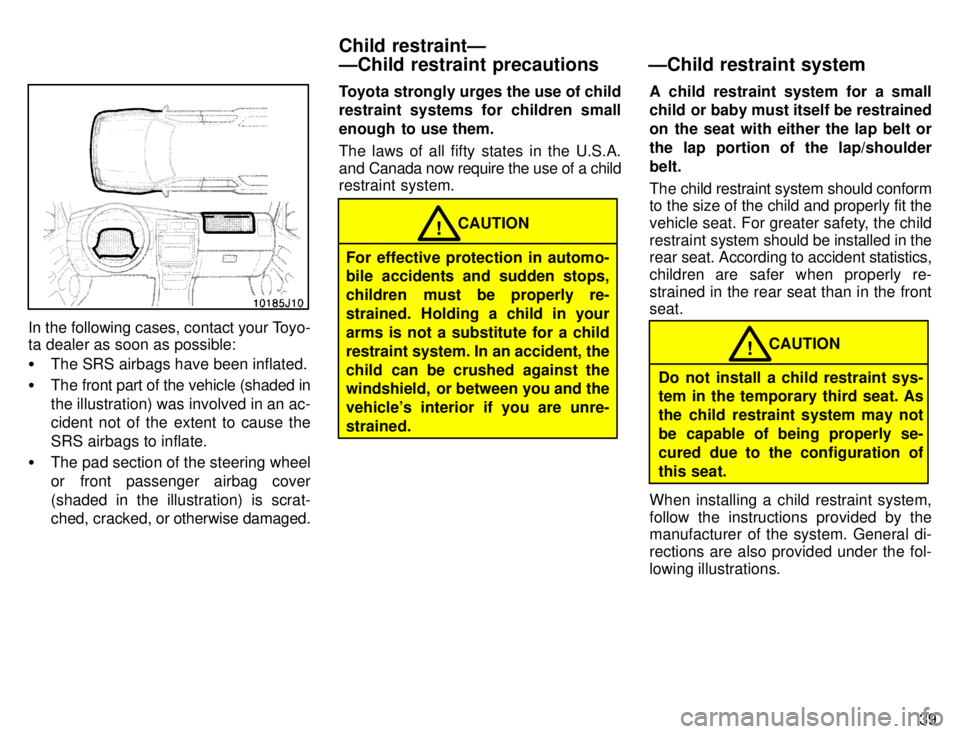

CAUTION!
For effective protection in automo-
bile accidents and sudden stops,
children must be properly re-
strained. Holding a child in your
arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the
windshield, or between you and the
vehicle's interior if you are unre-strained. A child restraint system for a small
child or baby must itself be restrained
on the seat with either the lap belt or
the lap portion of the lap/shoulderbelt.
The child restraint system should conform
to the size of the child and properly fit the
vehicle seat. For greater safety, the child
restraint
system should be installed in the
rear seat. According to accident statistics,
children are safer when properly re-strained in the rear seat than in the front seat.
CAUTION!
Do not install a child restraint sys-
tem in the temporary third seat. As
the child restraint system may not
be capable of being properly se-
cured due to the configuration of
this seat.
When installing a child restraint system,
follow the instructions provided by the
manufacturer of the system. General di- rections are also provided under the fol-
lowing illustrations.
Child restraintÐ
ÐChild restraint precautions ÐChild restraint system

39
In the following cases, contact your Toyo-
ta dealer as soon as possible: The SRS airbags have been inflated.
The front part of the vehicle (shaded in the illustration) was involved in an ac-
cident not of the extent to cause the
SRS airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scrat-
ched, cracked, or otherwise damaged. Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a child
restraint system.
CAUTION!
For effective protection in automo-
bile accidents and sudden stops,
children must be properly re-
strained. Holding a child in your
arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the
windshield, or between you and the
vehicle's interior if you are unre-strained. A child restraint system for a small
child or baby must itself be restrained
on the seat with either the lap belt or
the lap portion of the lap/shoulderbelt.
The child restraint system should conform
to the size of the child and properly fit the
vehicle seat. For greater safety, the child
restraint
system should be installed in the
rear seat. According to accident statistics,
children are safer when properly re-strained in the rear seat than in the front seat.
CAUTION!
Do not install a child restraint sys-
tem in the temporary third seat. As
the child restraint system may not
be capable of being properly se-
cured due to the configuration of
this seat.
When installing a child restraint system,
follow the instructions provided by the
manufacturer of the system. General di- rections are also provided under the fol-
lowing illustrations.
Child restraintÐ
ÐChild restraint precautions ÐChild restraint system

40

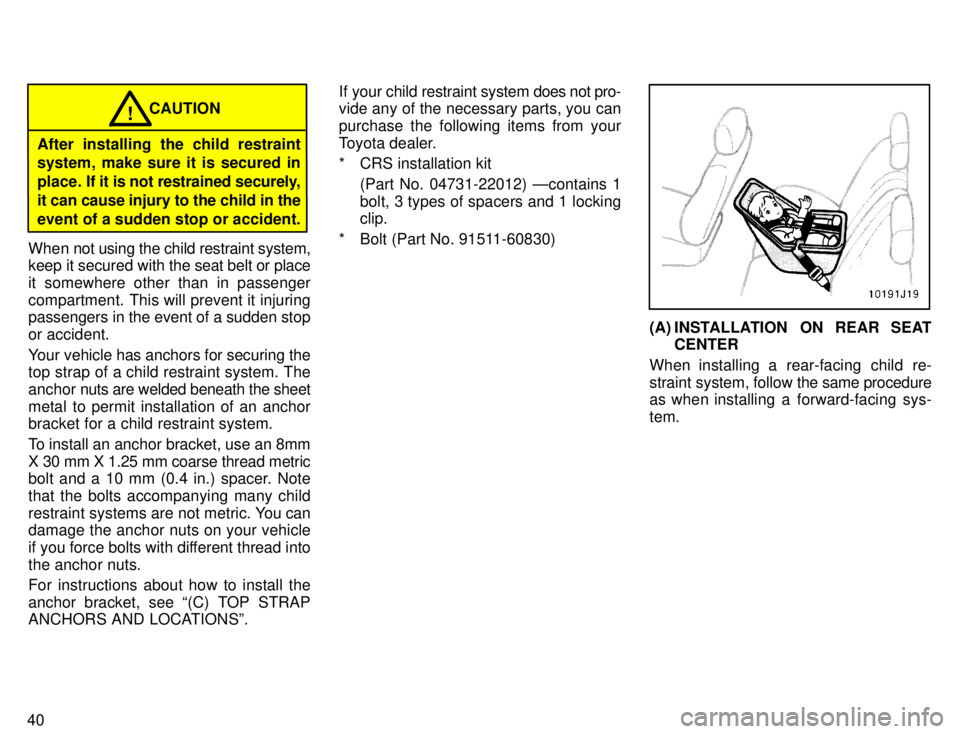

CAUTION!
After installing the child restraint system, make sure it is secured in
place. If it is not restrained securely,
it can cause injury to the child in theevent of a sudden stop or accident.
When not using the child restraint system, keep it secured with the seat belt or place
it somewhere other than in passenger
compartment. This will prevent it injuring passengers in the event of a sudden stop or accident.
Your vehicle has anchors for securing the
top strap of a child restraint system. The
anchor nuts are welded beneath the sheet
metal to permit installation of an anchor
bracket for a child restraint system.
To install an anchor bracket, use an 8mm
X 30 mm X 1.25 mm coarse thread metric
bolt and a 10 mm (0.4 in.) spacer. Note that the bolts accompanying many child
restraint systems are not metric. You can
damage the anchor nuts on your vehicle
if you force bolts with different thread intothe anchor nuts.
For instructions about how to install the
anchor bracket, see (C) TOP STRAP
ANCHORS AND LOCATIONSº. If your child restraint system
does not pro-
vide any of the necessary parts, you can
purchase the following items from your
Toyota dealer.
* CRS installation kit
(Part No. 04731-22012) Ðcontains 1 bolt, 3 types of spacers and 1 locking clip.
* Bolt (Part No. 91511-60830)
(A) INSTALLATION ON REAR SEAT CENTER
When installing a rear-facing child re-
straint system, follow the same procedure
as when installing a forward-facing sys-tem.

41

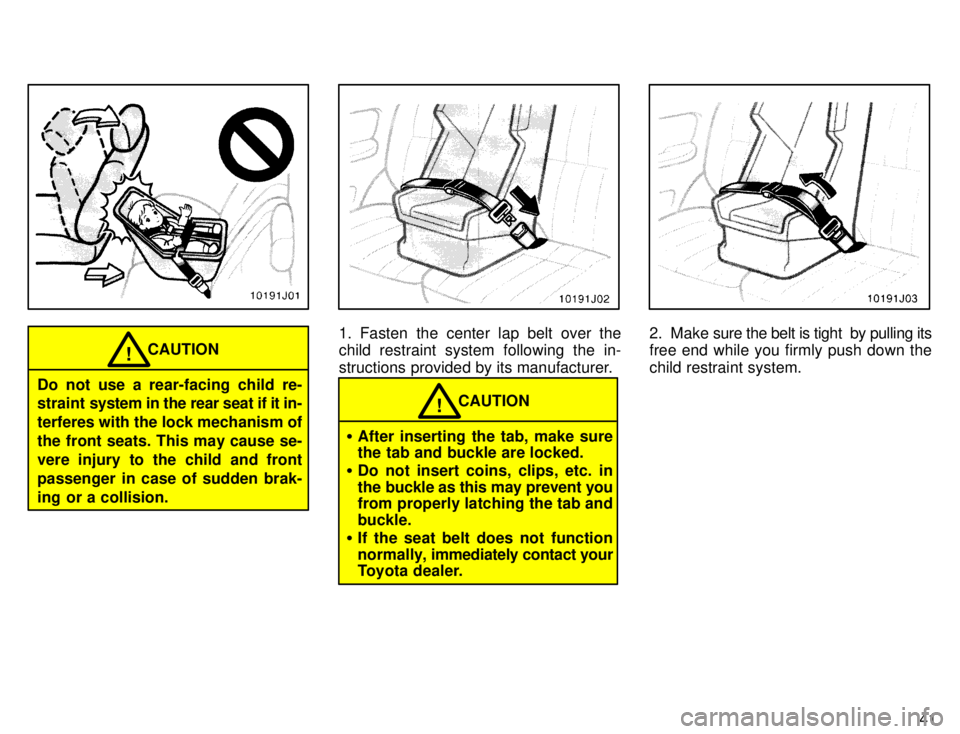

CAUTION!
Do not use a rear-facing child re-
straint system in the rear seat if it in-
terferes with the lock mechanism of
the front seats. This may cause se-
vere injury to the child and front
passenger in case of sudden brak-
ing or a collision.
1. Fasten the center lap belt over the
child restraint system following the in-
structions provided by its manufacturer.
CAUTION!
After inserting the tab, make sure
the tab and buckle are locked.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and buckle.
If the seat belt does not function
normally, imm ediately contact your
Toyota dealer.
2. Make sure the belt is tight by pulling its
free end while you firmly push down the
child restraint system.

42

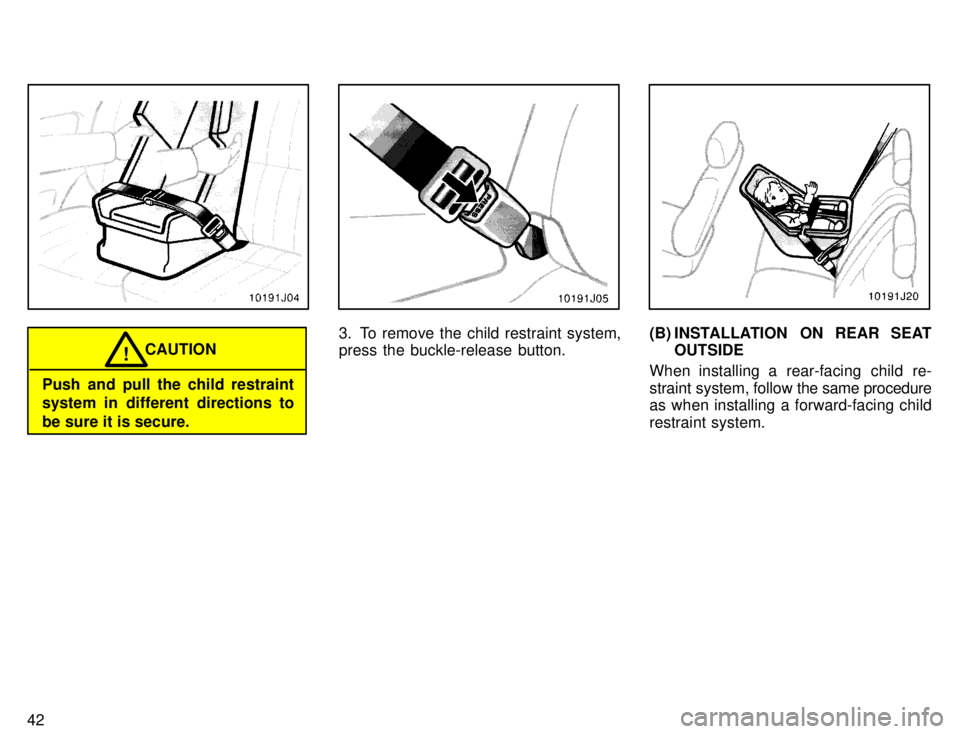

CAUTION!
Push and pull the child restraint
system in different directions to
be sure it is secure.
3. To remove the child restraint system, press the buckle-release button.(B) INSTALLATION ON REAR SEAT OUTSIDE
When installing a rear-facing child re-
straint system, follow the same procedure
as when installing a forward-facing child
restraint system.

43

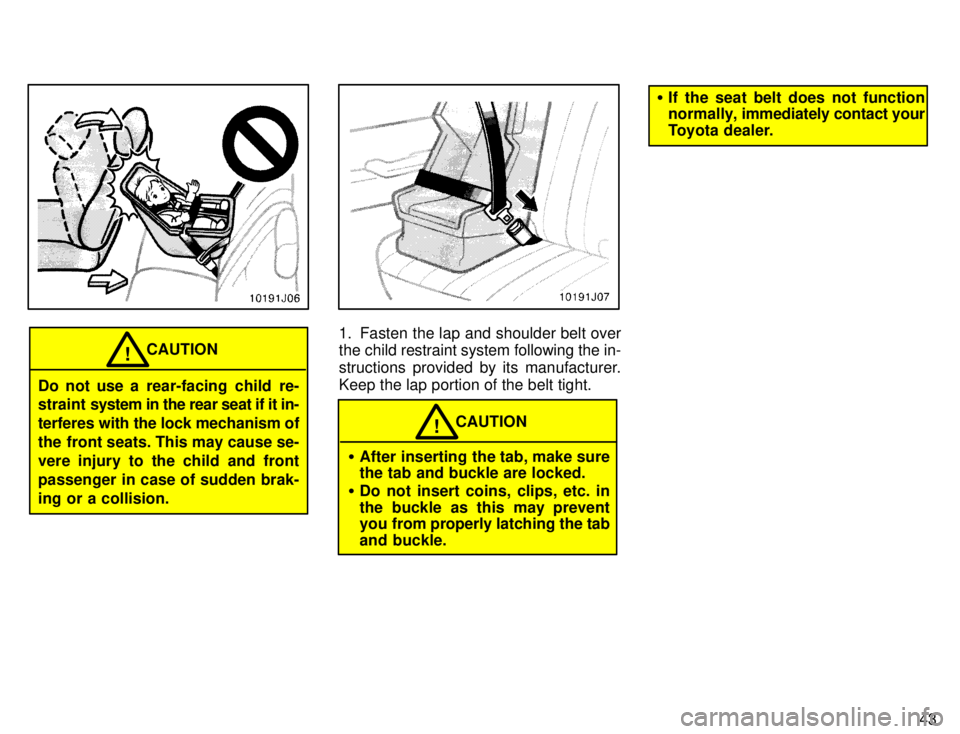

CAUTION!
Do not use a rear-facing child re-
straint system in the rear seat if it in-
terferes with the lock mechanism of
the front seats. This may cause se-
vere injury to the child and front
passenger in case of sudden brak-ing or a collision.
1. Fasten the lap and shoulder belt over
the child restraint system following the in-
structions provided by its manufacturer.
Keep the lap portion of the belt tight.
CAUTION!
After inserting the tab, make sure the tab and buckle are locked.
Do not insert coins, clips, etc. in
the buckle as this may prevent
you from properly latching the tab
and buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer.

44
2. Fully extend the shoulder belt to put it in the lock mode.3. Place the shoulder belt between the vehicle seatback and the child restraint
system and allow it to retract. To hold the
child restraint system securely, let the
shoulder belt retract as far as it will go
while firmly pushing down the child re-
straint system.4. If your child restraint system requires
the use of a top strap, latch the hook onto
the anchor bracket and tighten the topstrap.

45

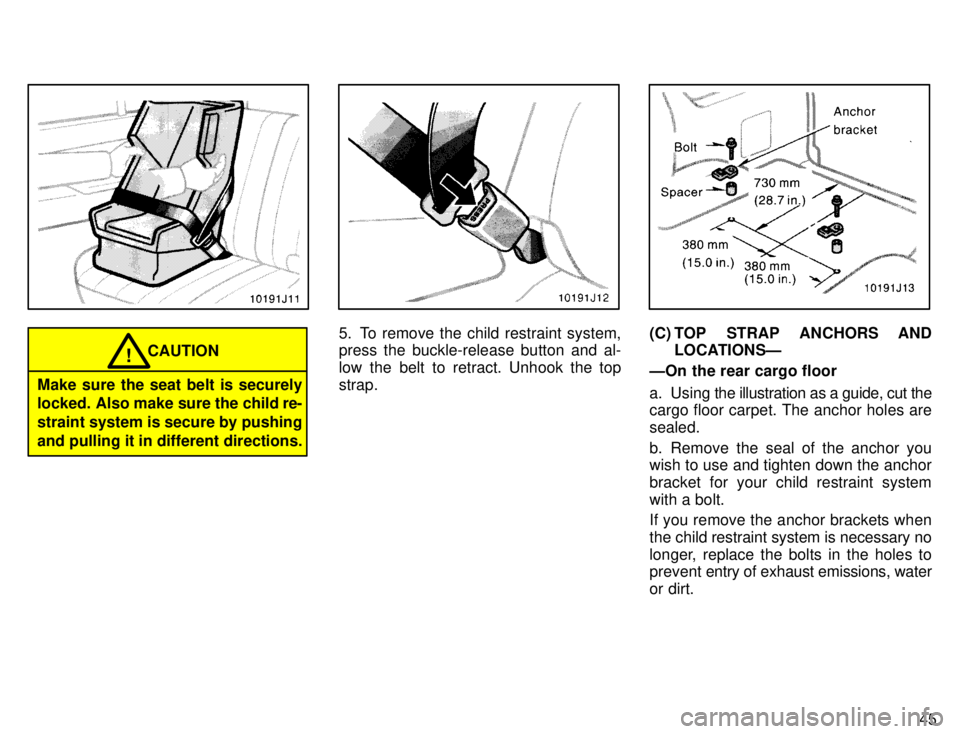

CAUTION!
Make sure the seat belt is securely
locked. Also make sure the child re- straint system is secure by pushingand pulling it in different directions.
5. To remove the child restraint system, press the buckle-release button and al-
low the belt to retract. Unhook the topstrap.(C) TOP STRAP ANCHORS AND LOCATIONSÐ
ÐOn the rear cargo floor
a. Using the illustration as a guide, cut the
cargo floor carpet. The anchor holes are sealed.
b. Remove the seal of the anchor you
wish to use and tighten down the anchor
bracket for your child restraint systemwith a bolt. If you remove the anchor brackets when
the child restraint system is necessary no
longer, replace the bolts in the holes to
prevent en try of exhaust emissions, water
or dirt.
