1996 PONTIAC PONTIAC Owners Manual

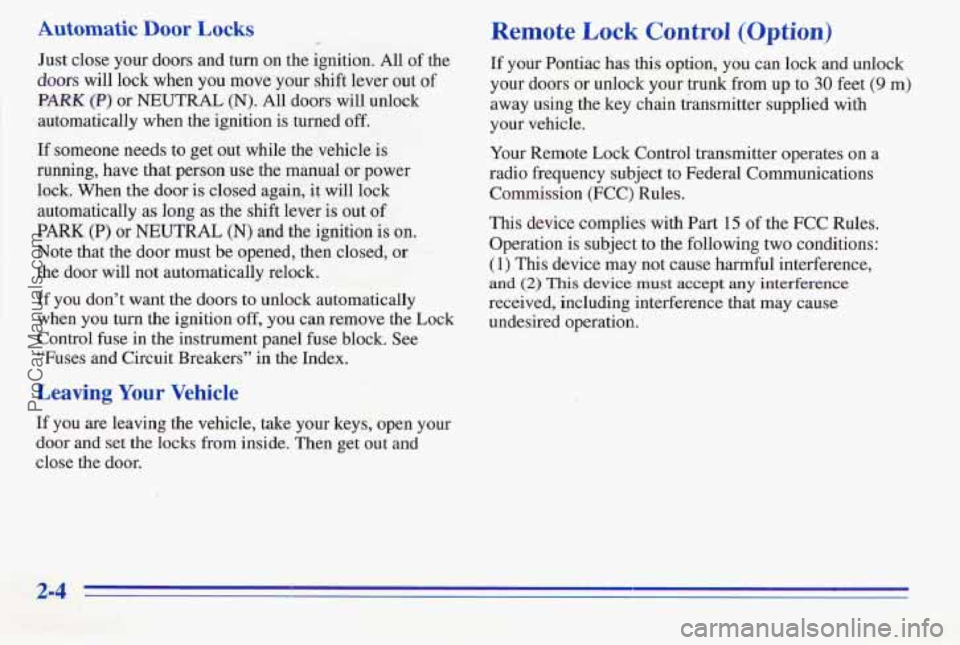

Automatic Door Locks
Just close your doors and turn on the ignition. All of the
doors will lock when you move your shift lever out of
PARK (P) or NEUTRAL (N). All doors will unlock
automatically when the ignition is turned
off.
If someone needs to get out while the~ehicle is
running, have that person uste the manual or power
lock. When the door is cl’osed again, it will lock
automatically as
long as the shift lever is out of
PARK (P) or NEUTRAL (N) and the ignition is on.
Note that the door must be opened, then closed,
or
the door will not automatically relock.
If you don’t want the doors to unlock automatically
when you turn the ignition,off,
you can remove the Lock
Control fuse in the instrument panel fuse block. See
“Fuses and Circuit Breakers” in the Index.
Remote Lock Control (Option)
If your Pontiac has this option, you can lock and unlock
your doors
or unlock your trunk from up to 30 feet (9 m)
away using the key chain transmitter supplied with
your vehicle.
Your Remote Lock Control transmitter operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to
the following two conditions:
(1)
This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and
set the locks from inside. Then get out and
close the door.
2-4
ProCarManuals.com

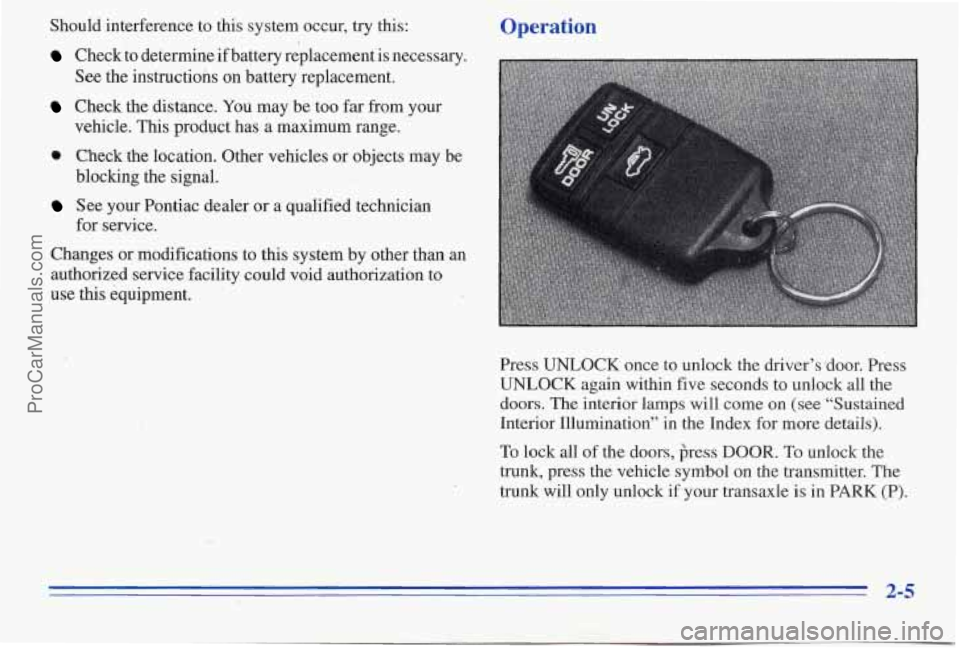

Should interference to this system occur, try this:
Check to determine if battery replacement is necessary.
See the instructions on battery replacement.
vehicle. This product has
a maximum range.
blocking the signal.
for service.
Check the distance. You may be too far from your
m Check the location. Other vehicles or objects may be
See your Pontiac dealer or a qualified technician
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
Operation
Press UNLOCK once to unlock the driver’s:door. Press
UNLOCK
again within five seconds to unlock all the
doors. The interior lamps will come on (see “Sustained
Interior Illumination” in the Index for more details).
To lock all of the doors, cress DOOR. To unlock the
trunk, press the vehicle symbol on
the transmitter. The
trunk will only unlock if your transaxle is in PARK (P).
I‘-
2-5
ProCarManuals.com

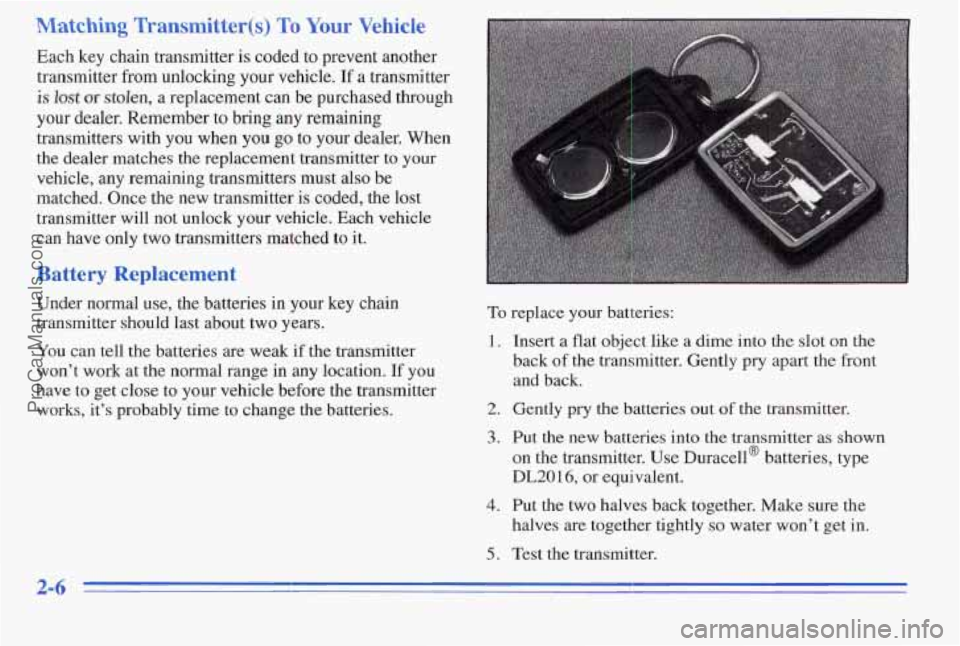

Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost ur stolen, a replacement can be purchased through
your dealer. Remember to bring
any remaining
transmitters with you when you go to your dealer. When
the dealer matches the replacement transmitter to your
vehicle, any remaining transmitters must also be
matched. Once the new transrnitter
is coded, the lost
transmitter will not unlock your vehicle. Each vehicle
can have only
two transmitters matched to it.
Battery Replacement
Under normal use, the batteries in your key chain
transmitter should last about two years.
You can tell the batteries are weak if the transmitter
won’t work at the normal range in any location.
If you
have to get close to your vehicle before the transmitter
works, it’s probably time to change the batteries.
P
To replace your batteries:
1. Insert a flat object like a dime into the slot on the
back
of the transmitter. Gently pry apart the front
and back.
2. Gently pry the batteries out of the transmitter.
3. Put the new batteries into the transmitter as shown
on the transmitter. Use Duracell@ batteries, type
DL201 6, or equivalent.
4. Put the two halves back together. Make sure the
halves are together tightly
so water won’t get in.
5. Test the transmitter.
ProCarManuals.com

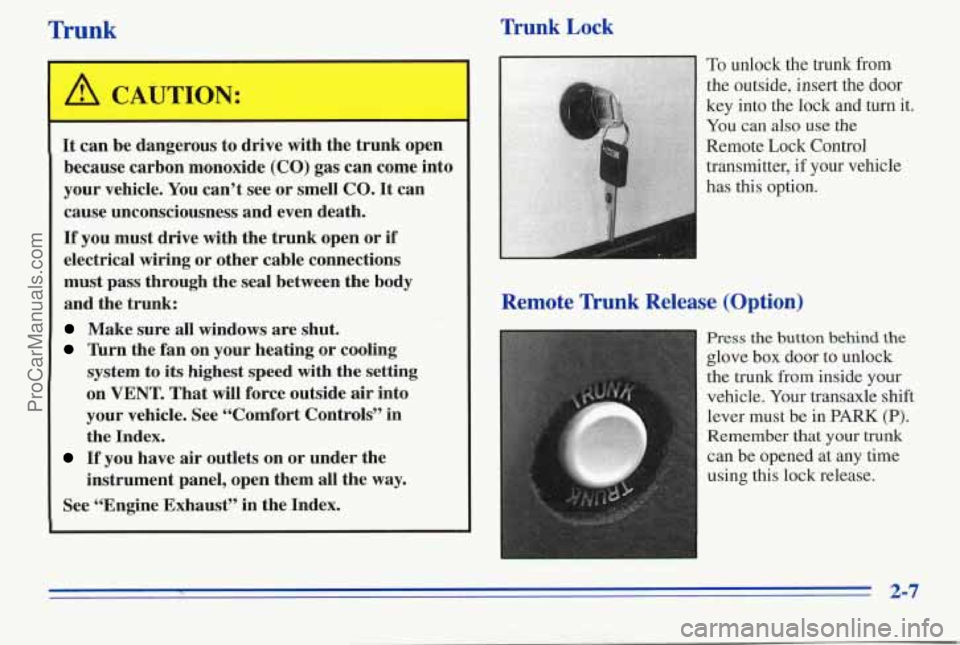

Trunk Trunk Lock
A CAUTION:
It can be dangerous to drive with the trunk open
because carbon monoxide (CO) gas can come into
your vehicle. You can’t see or smell CO.
It can
cause unconsciousness and even death.
If you must drive with the trunk open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the trunk:
Make sure all windows are shut.
7hrn the fan on your heating or cooling
system to
its highest speed with the setting
on
VENT. That will force outside air into
your vehicle. See “Comfort Controls” in
the Index.
instrument panel, open them
all the way.
If you have air outlets on or under the
See “Engine Exhaust” in the Index.
To unlock the trunk from
the outside, insert the door
key into the lock and turn it.
You can also use the
Remote Lock Control
transmitter, if your vehicle
has this option.
Remote Trunk Release (Option)
Press the button behind the
glove box door to unlock
the trunk from inside your
vehicle.
Your transaxle shift
lever
must be in PARK (P).
Remember that your trunk
can be opened at any time
using this lock release.
2-7
ProCarManuals.com

Theft
Vehicle theft is big business, especially in some cities.
Although your Pontiac has
a number of theft-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for joy riders or professional thieves
-- so
don’t do it.
When you park your Pontiac and open the driver’s door,
you’ll hear a chime reminding you to remove
your key
from
the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition and transaxle., And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember
to keep your valuables out of sight.
Put them in
a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best
to lock it up and take your keys.
But what if you have to leave your ignition
key? what if
you have to leave something valuable in your vehicle?
0 Put your valuables in a storage area, like your trunk
0 Lock the glove box.
Lock all the doors except the driver’s.
0 Then take the door key with you.
or
glove box.
PASS-Key@ I1
Your vehicle is equipped
with the PASS-Key
I1
(Personalized Automotive
Security System)
theft-deterrent system.
PASS-Key
I1 is a passive
tbeft-deterrent system.
It works when you insert
or remove the key from
the ignition.
I I I ”
PASS-Key 11 uses a resistor pellet in the ignition key
ProCarManuals.com

When the PASS-Key I1 system senses that someone is
using the wrong key, it shuts down the vehicle’s starter
and fuel systems. For about three minutes, the starter
won’t work and fuel won’t
go to the engine. If someone
tries to start your vehicle again or uses another key
during this time, the vehicle will not start. This
discourages someone from randomly trying different
keys with different resistor pellets in an attempt to make
a match.
The ignition key must be clean and dry before it’s
inserted in the ignition or the engine may not start.
If the
engine does not start and the SECURITY light is on,
the
key may be dirty or wet. Turn the ignition off.
Clean and dry the, key. Wait about three minutes and try
again. The SECURITY light may remain on during this
time.
If the starter still won’t work, and the key appears
to be clean and dry, wait about
three minutes and try
another ignition key. At this time, you may also want to
check the fuse (see “Fuses and Circuit Breakers” in the
Index).
If the starter won’t work with the other key, your
vehicle needs ‘service. If your vehicle does start, the first
ignition key may
be faulty. See your Pontiac dealer or a
locksmith who can service
the PASS-Key 11.
If you accidentally use a key that has a damaged or
missing resistor pellet, the starter won’t work and the
SECURITY light will flash. But you don’t have to wait
three minutes before trying another ignition key.
See your Pontiac dealer
or a locksmith who can service
the PASS-Key
11 to have a new key made.
If you’re ever driving and
the SECURITY light comes
on, you will be able to restart your engine
if you turn
it off. Your PASS-Key 11 system, however, is not
working properly and must
be serviced by your
Pontiac dealer. Your vehicle is not protected by the
PASS-Key
I1 system.
If you lose or damage a PASS-Key
II ignition key,
see your Pontiac dealer or a locksmith who can service
PASS-Key I1 to have a new key made. In an emergency,
call the Pontiac Roadside Assistance Program at
1-800-ROADSIB or 1-800-762-3743.
2-9
ProCarManuals.com

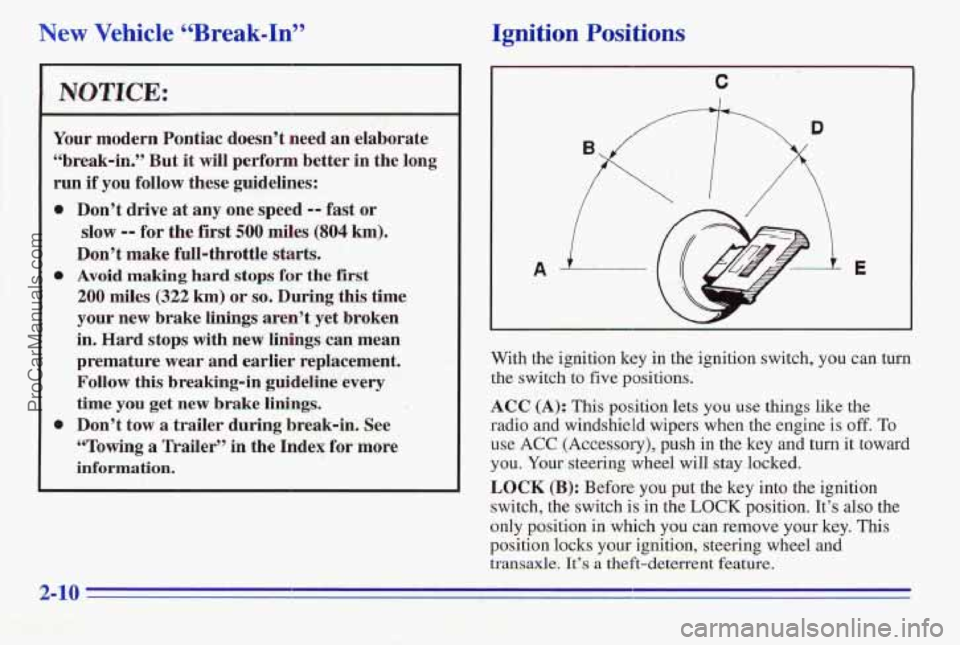

New Vehicle 66Break-InS’ Ignition Positions
Your modern Pontiac doesn’t need an elaborate
“break-in.” But
it will perform better in the long
run
if you follow these guidelines:
Don’t drive at any one speed
-- fast or
slow
-- for the first 500 miles (804 km).
Don’t make full-throttle starts.
Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren’t
yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time
you get new brake linings.
Don’t tow a trailer during break-in, See
‘‘Towing a Trailer’’ in the Index for more
information.
C
A i E
With the ignition key in the ignition switch, you can twn
the switch to five positions.
ACC (A): This position lets you use things like the
radio and windshield wipers when the engine is
off. To
use ACC (Accessory), push in the key and turn it toward
you. Your steering wheel will stay locked.
LOCK (B): Before you put the key into the ignition
switch, the switch
is in the LOCK position. It’s also the
only position in which you can remove your key.
This
position locks your ignition, steering wheel and
transaxle. It’s a theft-deterrent feature.
ProCarManuals.com

OFF (C): This position lets you turn off the engine but
still tuin the steering wheel. It doesn’t lock the steering
wheel like
LOCK. Use OFF if you must have your
vehcle pushed
or towed.
RUN (D): This position is where the key returns
after you start your vehicle. With the engine
off, you
can use
RUN to display some of your warning and
indicator lights.
: START (E): This position starts your engine.
A warning chime will sound
if you open the driver’s
door when the ignition is in the
OFF, LOCK or ACC
position and the key
is in the ignition.
NOTICE:
If your key seems stuck in LOCK and you can’t
turn it, be sure it
is all the way in. If it is, then
turn the steering wheel left and right while you
turn the key hard. But turn the key only with
your hand. Using
a tool to force it could break
the key or the ignition switch.
If none of this
works, then your vehicle needs service.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position -- that’s a
safety feature.
To restart when you’re already moving,
use
NEUTRAL (N) only.
NOTICE:
Don’t try to shift to PARK (P) if‘ your Pontiac
is moving.
If you do, you could damage the
transaxle. Shift to PARK
(P) only when your
vehicle is stopped.
1. Without pushing the accelerator pedal, turn your
ignition key
to START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
2-11
ProCarManuals.com
