1996 PONTIAC GRAND-AM Owners Manual

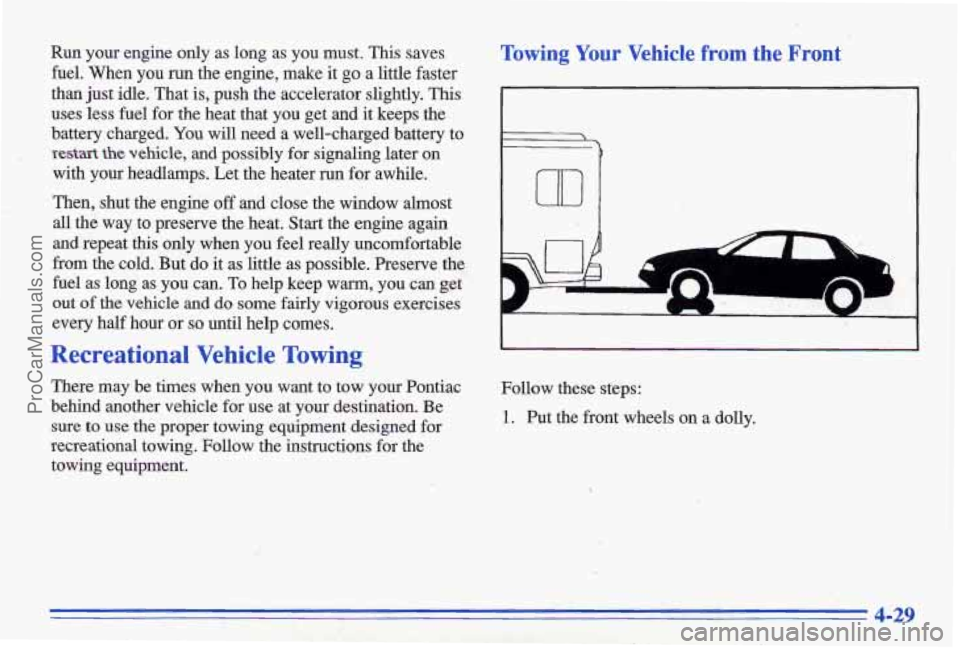

Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well-charged battery to
rest& the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for awhile.
Then, shut the engine
off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the co1d:But do it as little as possible. Preserve the
fuel
as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or
so until help comes.
Recreational Vehicle Towing
There may be times when you want to tow your Pontiac
behind another vehicle for use at your destination. Be
sure
to use the proper towing equipment designed for
recreational towing. Follow the instructions for the
towing equipment.
Towing Your Vehicle from the Front
Follow these steps:
1. Put the front wheels on a dolly.
i '_ .-
4-29
ProCarManuals.com

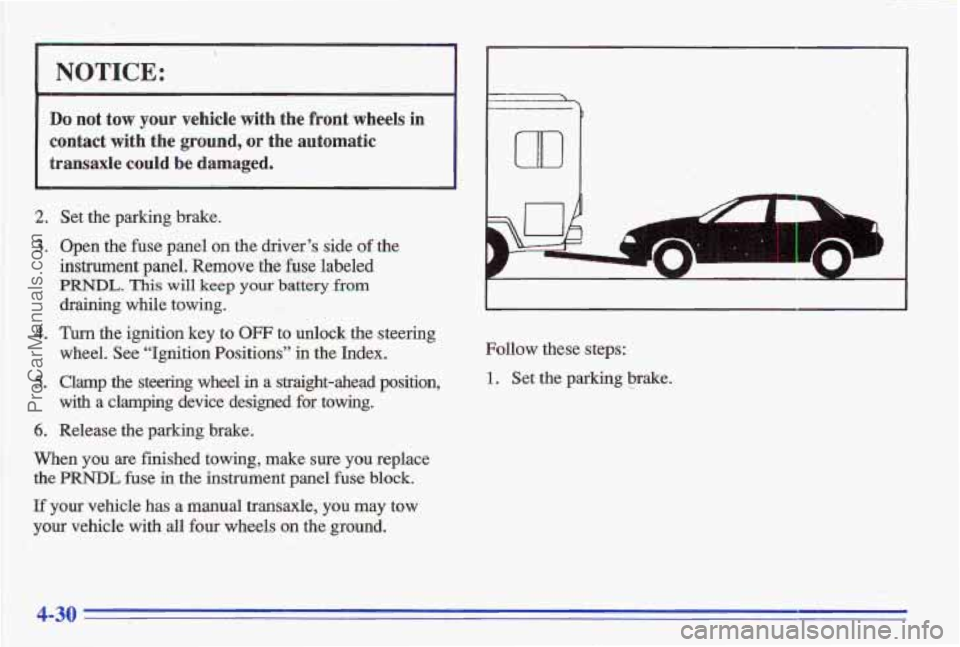

NOTICE:
Do not tow your vehicle with the front wheels in
contact with the
ground, or the automatic
transaxle
could be damaged.
2. Set the parking brake.
3. Open the fuse panel on the driver’s side of the
instrument
panel. Remove the fuse labeled
PRNDL. This will keep your battery from
draining while towing.
wheel. See “Ignition Positions”
in the Index.
with
a clamping device designed for towing.
4. Turn the ignition key to OFF to unlock the steering
5. Clamp the steering wheel in a straight-ahead position,
6. Release the parking brake.
When you are finished towing, make sure you replace
the PRNDL fuse in the instrument panel fuse block.
If your vehicle has a manual transaxle, you may tow
your vehicle with all four wheels on the ground.
m
Follow these steps:
1. Set the parking brake. .
4-30
ProCarManuals.com

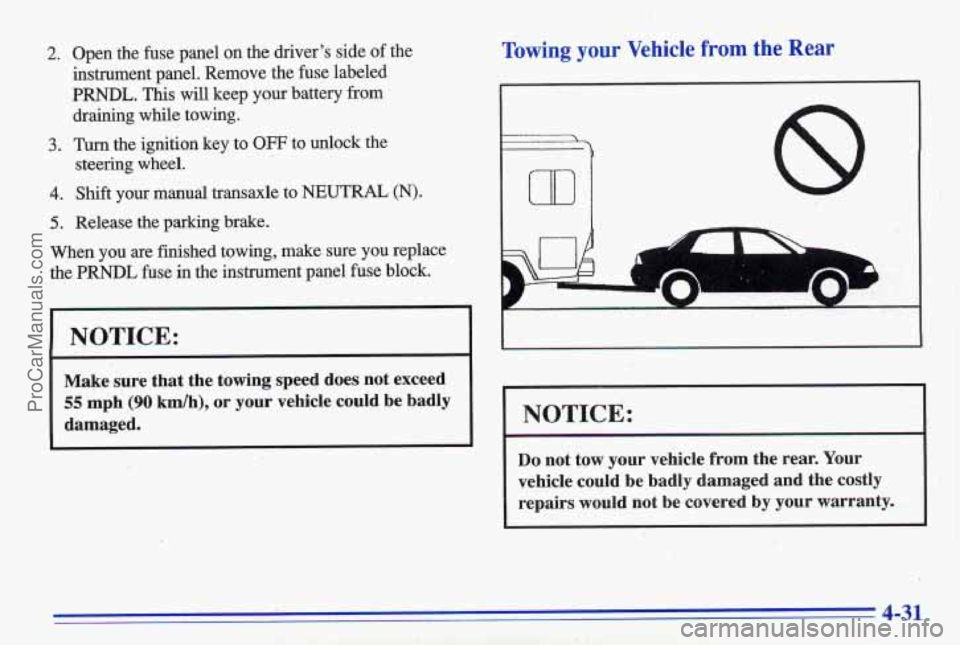

2.
3.
4.
5.
Open the fuse panel on the driver's side of the
instrument panel. Remove the fuse labeled
PRNDL. This will keep your battery from
draining while towing.
Tum the ignition key to OFF to unlock the
steering wheel.
Shift your manual transaxle to
NEUTRAL (N).
Release the parking brake.
When you
are finished towing, make sure you replace
the
PRNDL fuse in the instrument panel fuse block.
NOTICE:
Make sure that the towing speed does not exceed
55 mph (90 kdh), or your vehicle could be badly
damaged.
Towing your Vehicle from the'Rear
'b
8
,NOTICE:
~~ ~
Do not tow your vehicle from the rear. Your
vehicle could be badly damaged and the costly
repairs would not be covered by your warranty.
, .. P 'I
4-31
ProCarManuals.com

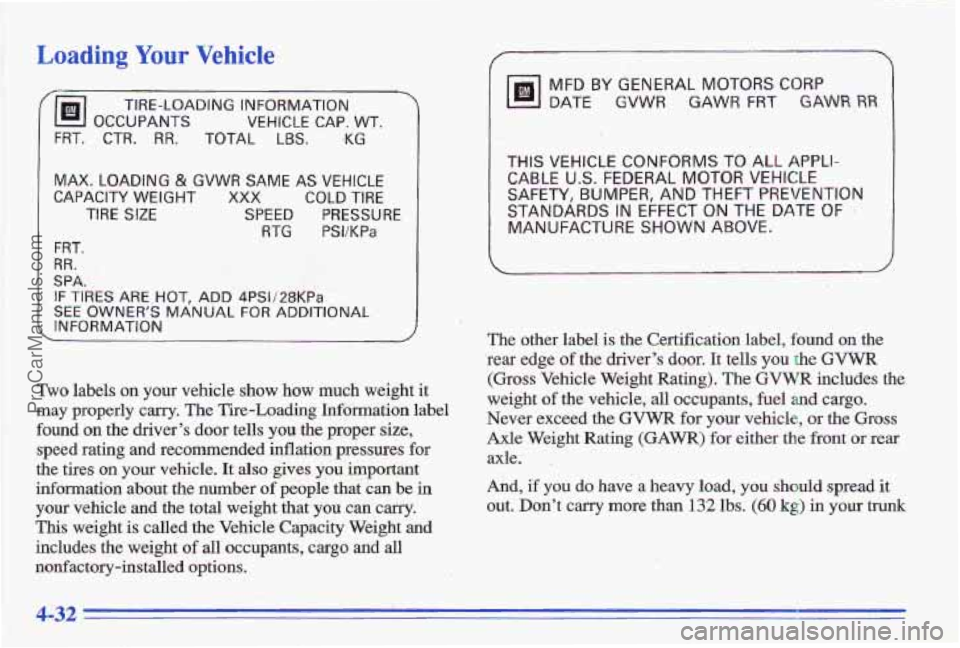

Loading Your Vehicle
/@!!!I OCCUPANTS VEHICLE CAP. WT.

TIRE-LOADING INFORMATION
FRT. CTR. RR. TOTAL LBS. *KG
. ..
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT XXX COLD TIRE
TIRE SIZE SPEED PRESSURE
FRT.
RTG PSI/KPa
RR.
SPA.
IF TIRES ARE,HOT, ADD 4PS1/28KPa
SEE OWNER'S MANUAL FOR ADDITIONAL
INFORMATION
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found on the driver's door tells
you the proper size,
speed rating and recommended inflation pressures for
the tires on
your vehicle. It also gives you important
information about
the number of people that can be in
your vehicle and the total weight that you can carry.
This weight is called the Vehicle Capacity Weight and
includes the weight of all occupants, cargo and all
nonfactory-installed
options.
THIS VEHICLE CONFORMS TO ALL APPLI-
SAFETY, BUMPER, AND THEFT PREVENTION
MANUFACTURE SHOWN ABOVE.
CABLE- U.S. FEDERAL MOTOR VEHICLE
STANDARDS IN EFFElCT ON THE DATE OF
The other label is the Certification label, found on the
rear edge of the driver's door. It tells you the GVMrR
(Gross Vehicle Weight Rating). The GVWa includes the
weight of the vehicle, all occupants, fuel and cargo.
Never exceed the
GVWa for your vehicle, or the Gruss
Axle Weight Rating (GAWR) for either the front or rear
axle.
.
And, if you do have a heavy load, you should spread it
out. Don't carry
more than 132 lbs. (60 kg) in your trunk
4-32
ProCarManuals.com

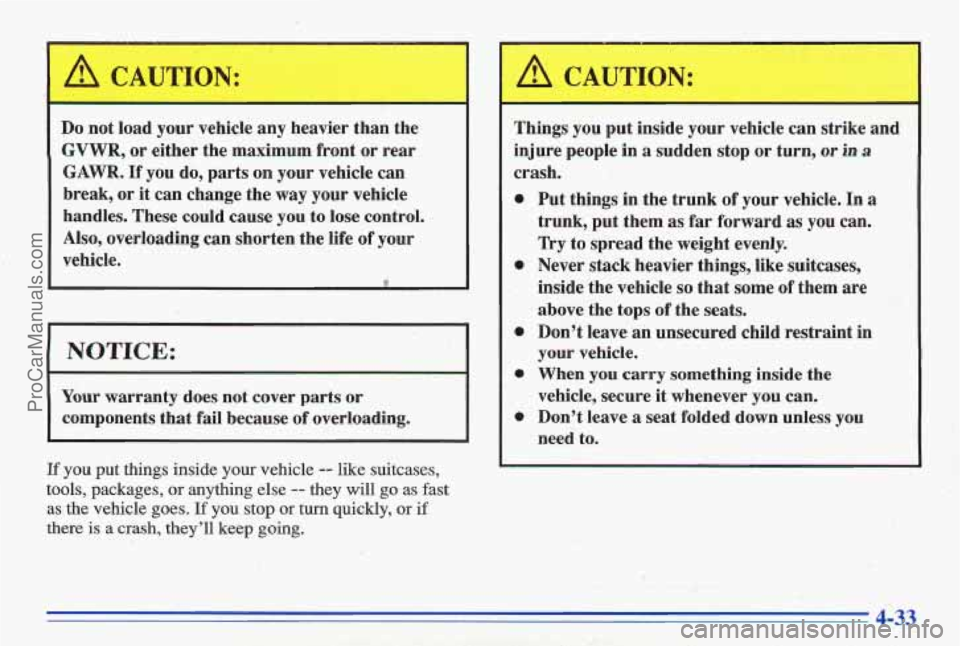

Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, or it can change the way your vehicle
handles. These could cause you to lose control.
Also, overloading can shorten the life of your
vehicle.
I NOTICE: I
I
Your warranty does not cover parts or
components that fail because of overloading.
If you put things inside your vehicle -- like suitcases,
tools, packages, or anything else -- they will go as fast
as the vehicle goes. If you stop or turn quickly, or if
there
is a crash, they'll keep going.
A CAUTION:
Things you put inside your vehicle can strike and
injure people in
a sudden stop or turn, or in a
crash. 3 ' :: ,.." . . ;.-. . ,. .,_.. i- , . .: .'. . . .. , , ..? - >. . . . . . . . . .. . .. - ' . .q. ..
0
0
0
0
0
Put things in the trunk of your vehicle. In a
trunk, put them as far forward as you can.
Try to spread the weight evenly.
Never stack heavier things, like suitcases,
inside the vehicle
so that some of them are
above the tops
of the seats.
Don't leave an unsecured child restraint in
your vehicle.
When you carry something inside the
vehicle, secure it whenever you can.
Don't leave
a seat folded down unless you
need to.
ProCarManuals.com

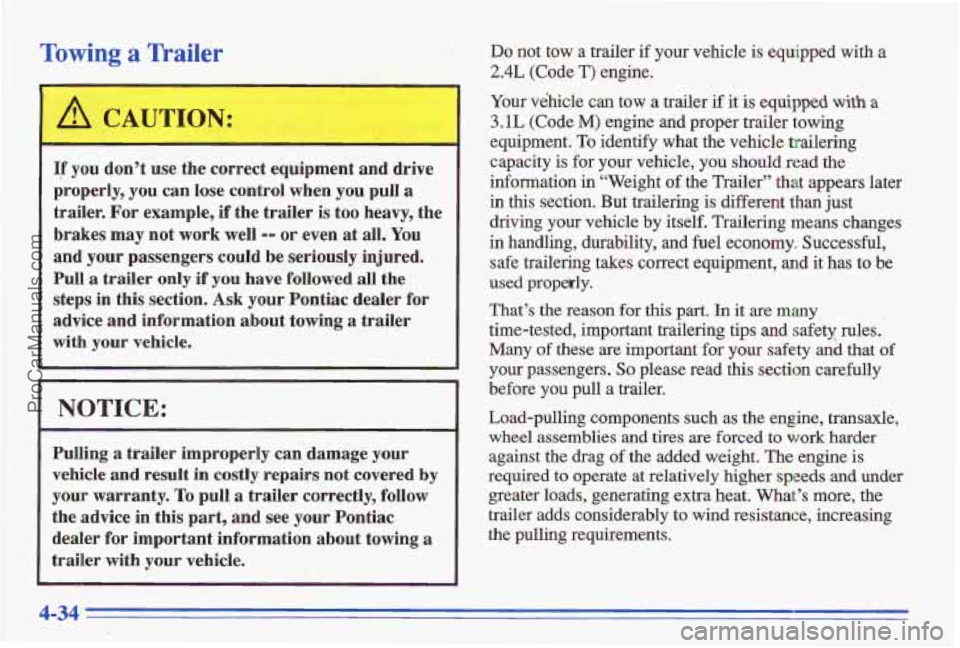

Towing a Trailer
A CAUTION:
If you don't use the correct equipment and drive
properly, you can lose control when
you pull a
trailer. For example, if the trailer is too heavy, the
brakes may not
work well -- or even at all.. You
and your passengers could be seriously injured.
Pull
a trailer only if you have followed all the
steps in this section.
Ask your Pontiac dealer for
advice and information about towing
a trailer
with your vehicle.
Pulling
a traikr improperly can damage your
vehicle and result in costly repairs not covered
by
your warranty. To pull a trailer correctly, follow
the advice in this part, and
see yumr Pontiac
dealer for important information about towing
a
trailer with your vehicle.
Bo not tow a trailer if your vehicle is equipped with a
2.4L (Code T) engine.
Your vehicle can tow a trailer if it is equipped with a
3.1L (Code M) -engine and proper trailer towing
equipment,
To identify what the vehicle trailering
capacity
is for your vehicle, you should read the
information
in "Weight of the Trailer'' that appears later
in this section. But trailering is different than just
driving your vehicle
by itself. Trailering means changes
in handling, durability, md fuel economy. Successful,
safe trailering takes correct equipment, and it has to be
used propetly.
That's the reason for this
part. In it are many
time-tested, important trailering tips and safe% rules.
Many of these are important for your safety and that of
your passengers. So please read this section carefully
before you pull a trailer.
Load-pulling components such as the engine, transaxle,
wheel assemblies and tires are forced to work harder
against
the drag of the added weight. The engine is
required to operate at relatively
higher speeds and under
greater loads, generating extra heat. What,'s more, the
trailer adds considerably to wind resistance, increasing
the gulling requjsernents.
1'
4-34
ProCarManuals.com

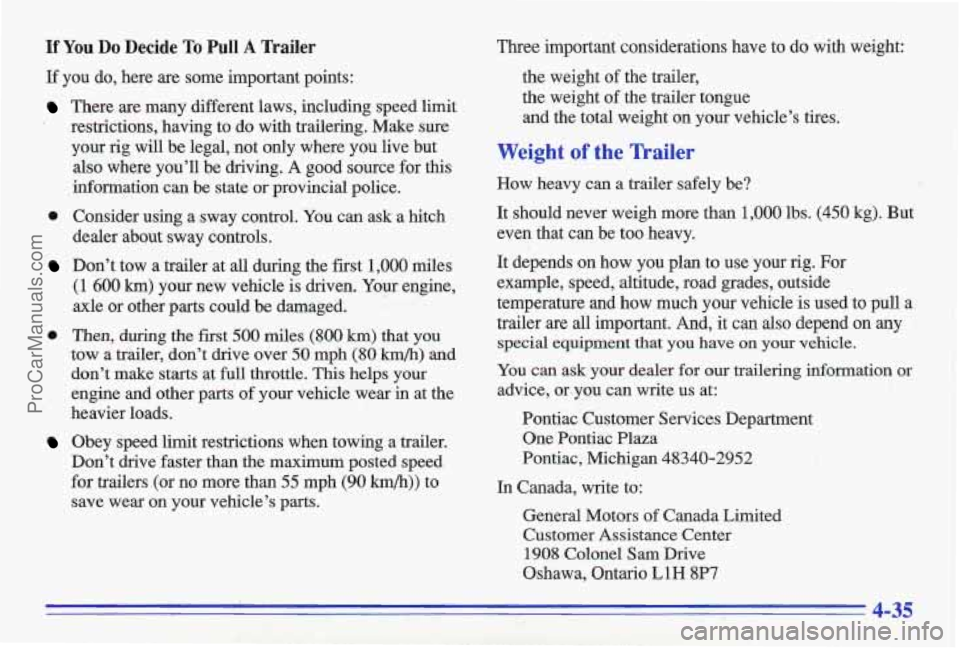

If You Do Decide To Pull A Trailer
If you do, here are some important points:
Three important considerations have to do with weight:
the weight
of the trailer,
There are many different laws, including speed limit
’ restrictions, having to do with trailering. Make sure
your
rig will be legal, not only where you live but Weight of the Trailer
also where you’ll be driving. A good source for this
inforrnation can be state or provincial police. How heavy can a trailer safely be? the weight
of the trailer tongue
and the total weight on your vehicle’s tires.
0 Consider using a sway control. You can ask a hitch It should never weigh more than 1,000 lbs. (450 kg). But
dealer about sway Controls’. even that can be
too heavy.
Don’t tow a trailer at all during the first 1,000 miles It depends on how YOU plan
to use Your fig. For
(1 600 km) your new vehicle is driven. Your engine, exmPle,
speed, altitude, road grades, outside
axle or other parts could
be damaged. temperature and how much your vehicle
is used to pull a
tow a trailer, don’t drive over 50 mph (80 h/h) and
don’t make starts at full throttle. This helps your
You can ask your dealer for our trailering information or
engine and other parts of your vehicle wear in at the advice, Or-You Can write
US at:
heavier loads. Pontiac Customer Services Department
Don’t drive faster than the maximum posted speed Pontiac, Mi\
chigan 48340-2952 trailer are
all important. And,
it can also depend on any 0 Then, during the first 500 miles (800 km) that you
special equipment that you have on your vehicle.
Obey speed limit restrictions when towing a trailer. One Pontia\
c Plaza
for trailers (or no more than 55 mph (90 lun/hj) to
save wear on your vehicle’s parts. In Canada, write to:
General Motors of Canada Limited
Customer Assistance Center
1908 Colonel Sam Drive
Oshawa, Ontario
L1H 8P7
4-35
ProCarManuals.com

Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total capacity
weight of your vehicle. The capacity weight includes the
curb weight of the vehicle, any cargo you may carry
in
it, and the people who will be riding in the vehicle. And
if you will tow a trailer, you must subtract the tongue _.
load from your vehicle’s capacity weight because your
vehicle will be carrying that weight,
too. See “Loading
Your Vehicle” in the Index for more information about
yow vehicle’s maximum load capacity.
B
If you’re using a “dead-weight” hitch, the trailer
tongue
(A) should weigh 10% of the total loaded trailer
weight
(€3). If you have a “weight-distributing” hitch,
the trailer tongue
(A) should weigh 12% of the total
loaded
trailer weight (B).
After you’ve loaded your trailer, weigh the trailer and
then the tongue, separately, to see if the weights me
proper. If they aren’t, you may be able to get them right
simply
by moving some items around in the trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inflated to the
recornended pressure for cold tires. You’ll find these
numbers on
the Certification label at the rear edge of the
driver’s door or see “Loading Your Vehicle” in the
Index. Then be sure you don’t
go over the GVW limit
for your vehicle, including the weight
of the trailer r
tongue.
.’ . :
