1996 PONTIAC GRAND-AM Owners Manual

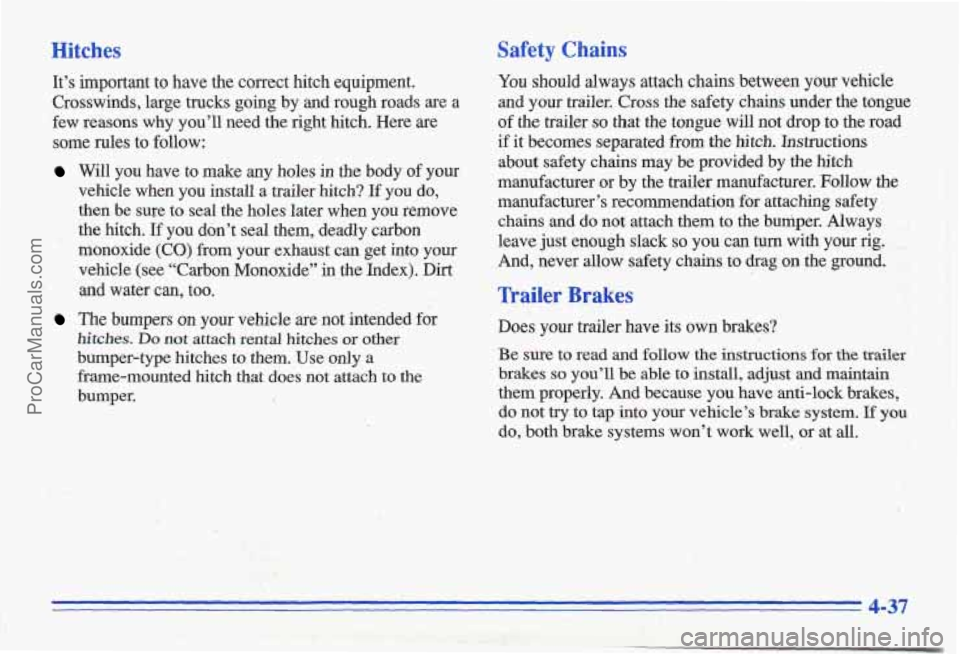

Hitches Safety Chains
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by
and rough roads are a
few reasons why you’ll need the right hitch. Here are
some rules to follow:
Will you have to make any holes in the body of your
vehicle when
you install a trailer hitch? If you do,
then be sure to seal the holes later when you remove
the hitch.
If you don’t seal them, deadly carbon
monoxide
(CO) from your exhaust can get into your
vehicle (see “Carbon Monoxide” in the Index). Dirt
’ and water can, too.
The bumpers on your vehicle are not intended for
hitches. Do not attach rental hitches or other
bumper-type hitches to them. Use only a
frame-mounted hitch that
does not attach to the
bumper.
i
You should always attach chains between your vehicle
and your trailer.
Cross the safety chains under the tongue
of the trailer so that the tongue will not drop to the road
if it becomes separated from the hitch. Instructions
about safety chains may be provided by the hitch
manufacturer or by the trailer manufacturer. Follow the
manufacturer’s recommendation for attaching safety chains and do not attach
them to the bumper. Always
leave just enough slack
so you can prn with your rig.
And, never allow safety chains to drag on the ground.
Trailer Brakes
Does your trailer have its own brakes?
Be sure
to read and follow the instructions for the trailer
brakes so you’ll be able to install, adjust and maintain
them properly.
And because you have anti-lock brakes,
do not try to tap into your vehicle’s brake system. If you
do, both brake systems won’t work well, or at all.
4-34
ProCarManuals.com

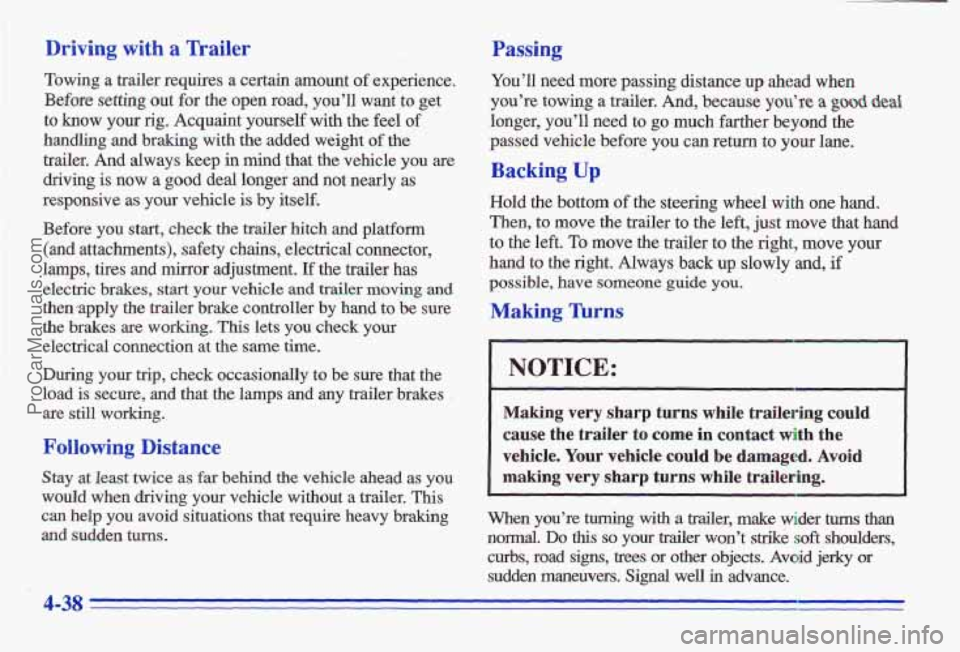

Driving with a Trailer
Towing a trailer requires a certain amount of experience.
Before setting out for the open road, you’ll want’to get
to know your rig. Acquaint yourself with the feel of
handling and braking with the added weight of the
trailer.
And always keep in mind that the vehicle you are
driving is now a good deal longer and not nearly as
responsive as your vehicle is by itselfi.
Before you
start, check the trailer hitch and platform
(and attachments), safety
chains, electrical connector,
lamps, tires and
mirror adjustment, If the trailer has
electric brakes, start your vehicle and trailer moving and
then/apply the trailer brake controller by hand to be sure
the brakes are working. This lets you check your
electrical connection at the
same tirne.
During your trip, check occasionally to be sure that the
load
is secure, and that the lamps and any trailer brakes ,
are still working.
Following Distance
Stay at least twice as far b’ehind the vehicle ahead as you
would when driving your vehicle without a trailer,
This
can help you avoid situations that require heavv braking
and sudden
turns.
Passing
You’ll need more passing distance up ,ahead when
you’re towing a trailer. And, because
you’re a good
longer, you’ll need to go much farther beyond the
passed vehicle before you can return to your lane.
Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that
hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if
possible, have someone guide you.
Making Thrns
I NOTICE:
Making very sharp turns while trailering could
cause th’e trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
~ ~~ ~~ ~~~
When you’re turning with a trailer, make wider hms than
normal. Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees or
other objects. Avoid jerky or
sudden maneuvers.
Siggd well in advance.
4-38
ProCarManuals.com

Turn Signals When Towing a Trailer
The green arrows on your instrument panel will flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps
will also flash, telling other
drivers you’re about to
turn, change lanes or stop.
When towing a trailer, the green arrows
on your ’.
instrument panel will flash for turns even if the bulbs on
the trailer are burned out. Thus, you may think drivers
behind you are seeing your signal when they are not.
It’s important to check occasionally to be sure the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes
so much that
they would
get hot and no longer work well.
On a long uphill grade, use the highest gear possible. If you
cannot maintain posted speeds, driving at a lower speed
may help avoid overheating your engine and bxmsaxle.
If you have a manual transaxle with FWTH (5) gear,
it’s better not to use
FIFTH (5) gear. Just drive in
FOURTH (4) gear (or- as vou need to, a lower gear).
Parking on Hills
You really should not park your vehicle, with a trailer
attached, on a
hill. If something goes wrong, your rig
could start to move. People can be injured, and both
your vehicle and the trailer can be damaged.
But if you ever have to park your rig on a hill, here’s
how to
do it:
1.
2.
3.
4.
5.
Apply your regular brakes, but don’t shift into
PARK (P) yet, or into a gear for a manual transaxle.
Have someone place chocks under the trailer wheels. When the wheel chocks are in place, release the
regular brakes until the chocks absorb
the load.
Reapply the regular brakes. Then apply your
parking
brake, and then shift to PARK (P), or REVERSE (R)
for a manual transaxle.
Release the regular brakes.
4-39
ProCarManuals.com

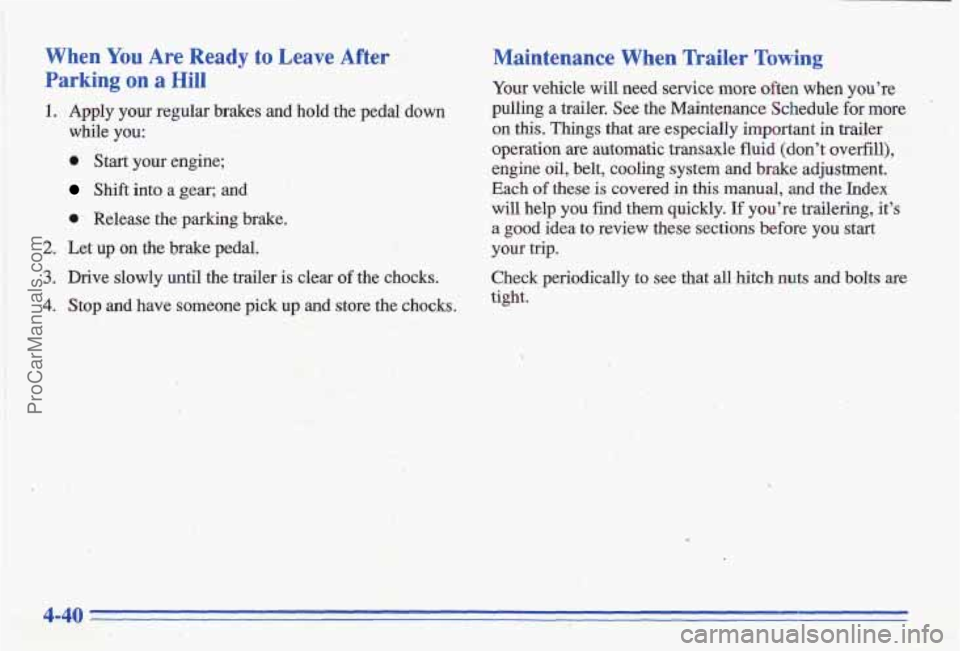

When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold,the pedal down
while
you:
0 Start your engine;
Shift into a gear; and
I. Release the parking brake.
2. Let up on the brake pedal..
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you're
pulling a trailer. See the Maintenance Schedule for more
on this. Things that are especially important in trailer
operation are automatic transaxle
fluid (don't ovel-fill),
engine oil, belt, cooling system and brake adjustment.
Each of these is covered in this manual, and the Index
will
help you find them quickly. If you're trailering, it's
a good idea to review these sections before you start
<* ~ I ,,; ;-':'. .a t , ,--: .. ;::l.$.:$ 5
Check periodically to see that all hitch nuts and bolts are
tight.
your trip. ! . .i . :$ ,,- .,,. . . f ~
_I.,
4-40
ProCarManuals.com

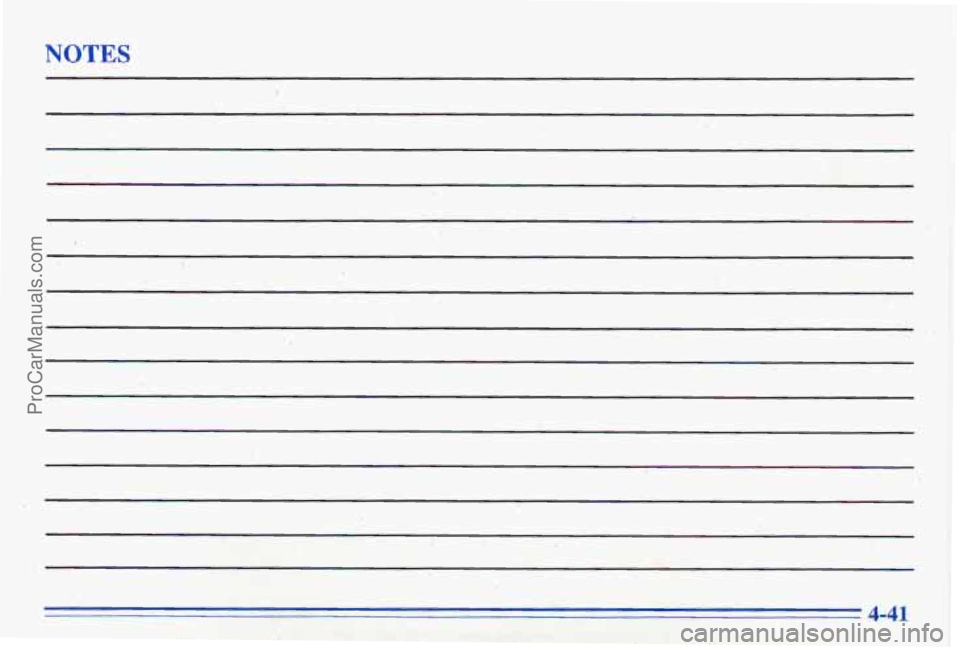

NOTES
4-41
ProCarManuals.com

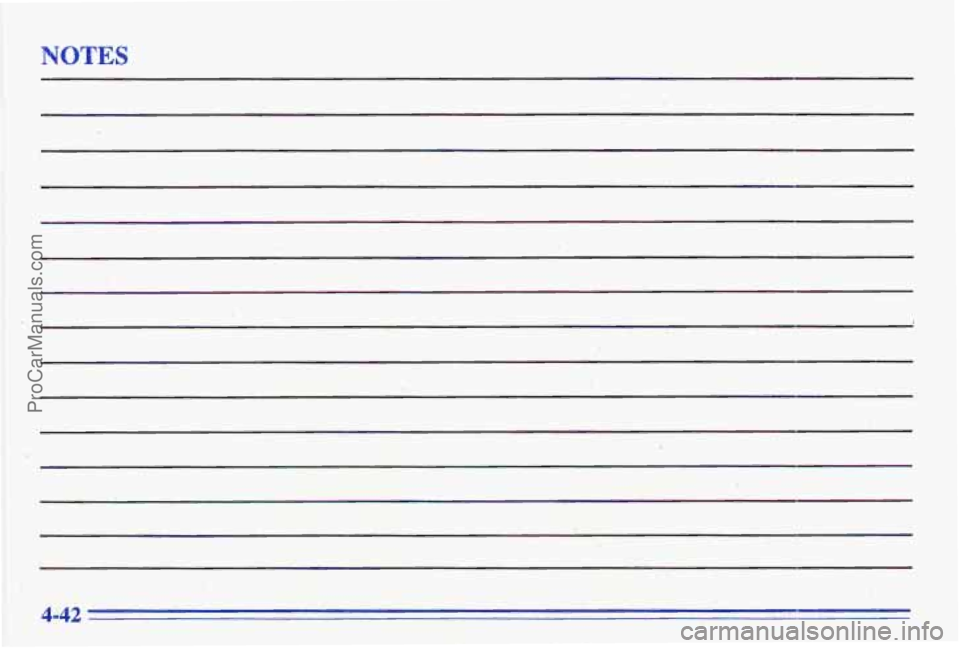

NOTES
,
4-42
ProCarManuals.com

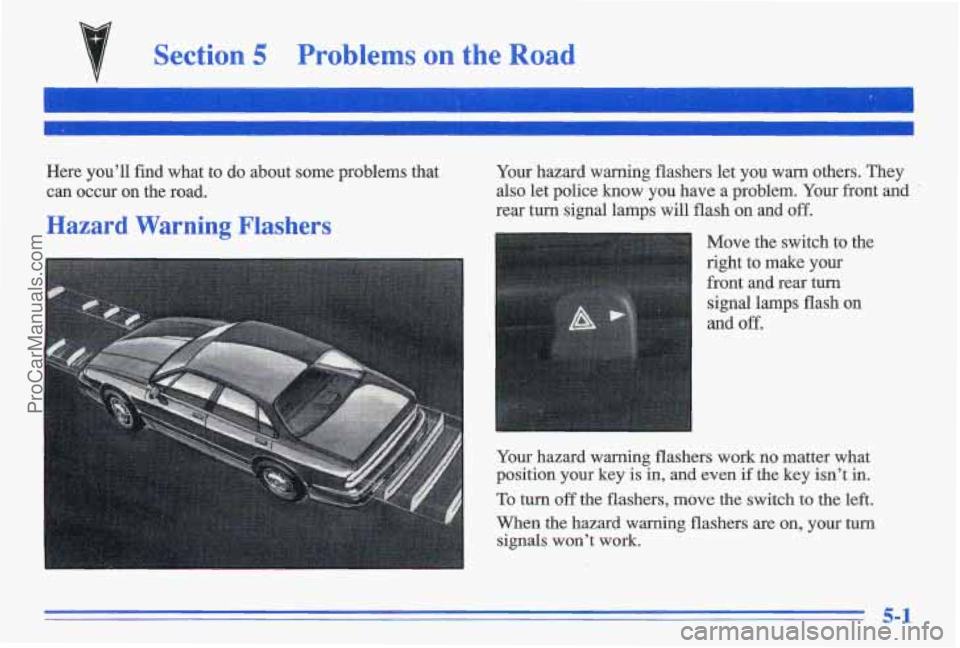

Section 5 Problems on the Road
Here you’ll find what to do about some problems that
can occur on the road.
Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front
and
rear turn signal lamps will flash on and off.
Move the switch to the
right to
make your
front and rear turn
Your hazard warning flashers work no matter what
position
your key is in, and even if the key isn’t in.
To turn off the flashers, move the switch to the left.
When the hazard warning flashers are on, your turn
signals won’t work.
5-1
ProCarManuals.com

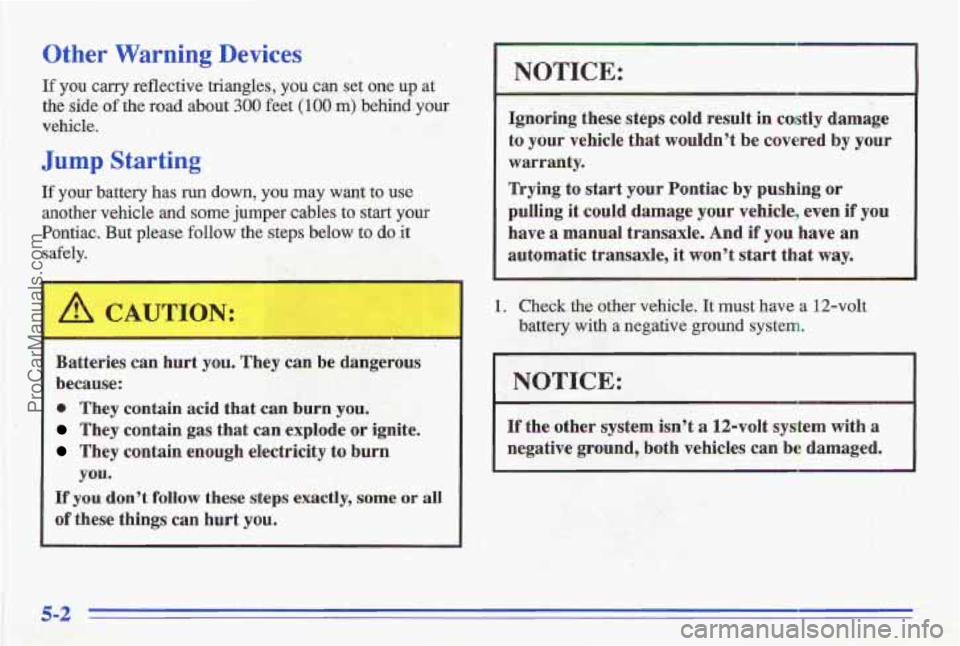

Other Warning Devices
If you carry reflective triangles, you can set one up at
the side
of the road about 300 feet (100 m) behind your
vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle
and some jumper cables to start your
Pontiac. But please follow the steps below
to do it
safely.
Batteries can hurt'you. They can be dangerous
because:
0 They contain acid that can burn you.
They contain gas that can explode or ignite,
They contain enough electricity to burn
you.
If you don't follow these steps exactly, some or all
of these things can hurt you.
I NOTICE:
Ignoring these steps cold result in costly damage
to your vehicle that wouldn't be covered
by your
warranty.
"kying to start your Pontiac by pushing or
pulling it could damage your vehicle, even if you
have
a manual transaxle. And if you have an
automatic transaxle, it won't Start that way.
1. Check.the other vehicle. It must have a 12-volt
battery with
a negativ'e ground system.
I NOTICE:
If the other system isn't a 12-volt system with a
negative ground, both vehicles can be damaged.
5-2
..
