1996 PONTIAC BONNEVILLE check engine

Radiator Pressure Cap
NOTICE:
Your radiator cap is a 15 psi (105 kPa)
pressure-type cap and must be tightly installed
to prevent coolant loss and possible engine
damage from overheating. Be sure the arrows
on the cap line up with the overflow tube on
the radiator filler neck.
1 I --$,. .: :; ' -%.Thermostat .
Engine coolant temperature is controlled by a thermostat
in the engine coolaxit system. The thermostat stops the
flow of coolant through the radiator until the coolant
reaches a preset temperature.
Power Steering Fluid
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there is a leak in the system or
you hear
an unusual noise. A fluid loss in this system
could indicate
a problem. Have the system inspected
and repaired.
6-26
ProCarManuals.com

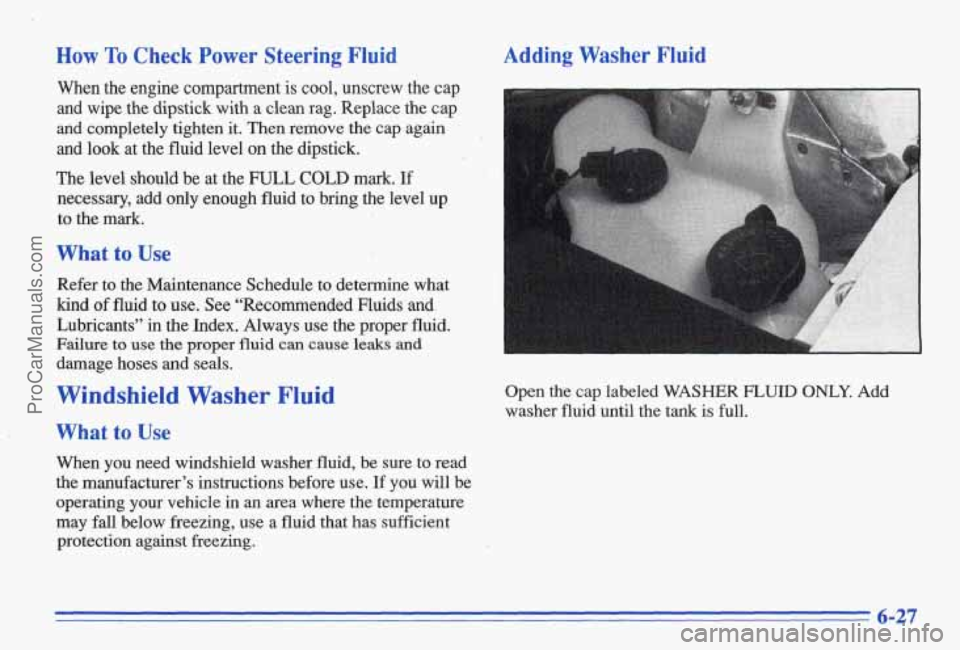

How To Check Power Steering Fluid
When the engine compartment is cool, unscrew the cap
and wipe the dipstick with a clean rag. Replace the cap
and completely tighten it. Then remove the cap again
and look at the fluid level
on the dipstick.
The level should be at the
FULL COLD mark. If
necessary, add only enough fluid to bring the level up
to the
mark.
What to Use
Refer to the Maintenance Schedule to determine what
kind of fluid to use. See “Recommended Fluids and
Lubricants”
in the Index. Always use the proper fluid.
Failure to use the proper fluid can cause leaks and
dam’age hoses and seals.
Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer’s instructions before use.
If you will be
operating your vehicle
in an area where the temperature
may
fall below freezing, use a fluid that has sufficient
protection
against freezing.
Adding Washer Fluid
Open the cap labeled WASHER FLUID ONLY Add
washer fluid until the tank
is full.
6-27
ProCarManuals.com

L36 Engine Accessory Belt
C
The L36 engine uses an engine accessory belt. This
diagram shows the features connected and the routing.
See “Maintenance Schedule”
in the Index for when to
check the belt.
A.
B.
C.
D.
E.
E
Power Steering
Alternator
Air Conditioning
Idle
Crank
Coolant
Pump
6-67
ProCarManuals.com

L67 Engine Accessory Belt
The Supercharged 3800 (L67) engine uses two accessory
drive
belts. The inner belt drives the alternator, power steering
pump, coolant pump and air conditioning. The
outer belt drives the supercharger, Each belt has its
own
tensioner and idler pulley. See “Maintenance Schedule”
in the Index for when to check the accessory drive belts
and the supercharger oil level. Have your dealer check
the oil level in the supercharger.
1. Front Belt
2. Back Belt
A. Alternator
B. Power Steering Pump
C. Crank
D. Supercharger
E. Coolant Pump
E Air Conditioning
ProCarManuals.com

Maintenance Schedule
I Short Trip/City Definition
Follow the Short Trip/City Maintenance Schedule if my
one of these conditions is true for your vehicle:
Most trips are less than 5 to 10 miles (8 to 16 h).
This is particularly important when outside
temperatures
are below freezing.
I
Most trips are through dusty areas.
You frequently tow a trailer QT use a carrier on top of
your vehicle. (With some models, you should never
tow a trailer. See “Towing
a Trailer” in the Index.)
taxi, or other commercial application.
If the vehicle is used for delivery service, police,
One of the reasom you should follow this schedule if you
operate your vehicle under any of these conditions is that
these conditions cause engine
oil to break down suoner.
Short Trip/City Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change (or 3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Chassis Lubrication
(or
6 months, whichever occurs first).
At 6,000 Miles (10 000 km) - Then Every
12,000 Miles (20 000 km): Tire Rotation.
Every 15,000 Miles (25 000 km): Air- Cleaner Filter
Inspection, if driving in dusty conditions.
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement Fuel
Tank, Cap and Lines Inspection.
Supercharger
Oil Check (or’every 36 months,
whichever occurs first)
(3.8L Code 1 engine only).
Every 50,000 Miles (83 000 h): Automatic Tramaxle
Service
(severe conditiom only).
Every 60,000 Miles (I00 000 km): Engine Accessory
Drive Belt Inspection,
Every 100,000 Miles (166 000 km): Cooling System
Service
(or every 60 months, whichever.occurs fist).
Spark Plug Wire Inspection. Spark Plug Replacement.
These intervals only summarize maintenance services.
Be sure to follow the comglbte maintenance schedule on
the following pages.
7-4
ProCarManuals.com

Maintenance Schedule
Follow this maintenance schedule only if none 01 the
conditions from
the Short Trip/City Maintenance
Schedule is true.
Driving a vehicle with a fully warmed engine
under highway conditions causes engine
oil to break
down slower.
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change
(or every 12 months, whichever occurs first).
Chassis Lubrication (or every
12 months, whichever
occurs
first).
At 7,500 Miles (12 500 km) - Then Every
15,000 Miles (25 000 km): Tire Rotation.
Every 30,000 Miles (50 000 km): Supercharger Oil
Check (or every
36 months, whichever occurs first)
(3.8L Code 1 engine only). Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
Spark Plug Wire Inspection.
Spark Plug Replacement.
These intervals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule on
the following pages.
7-5
ProCarManuals.com

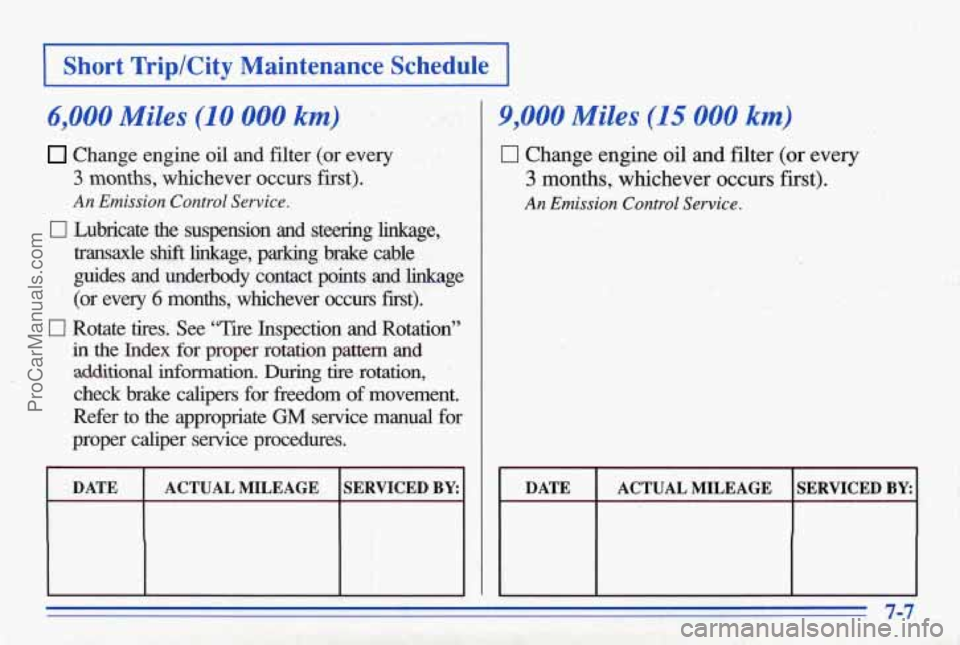

I Short TriplCity Maintenance Schedule I
6,000 Miles (10 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering linkage,
transaxle
shift linkage, parking brake cable
guides and underbody contact
points and linkage
(or every 6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation”
in the Index for. proper rotation pattern and
additional information. During tire rotation,
check brake calipers for freedom of movement.
Refer to the appropriate
GM service manual for
proper caber service procedures.
t I I I
DATE ACTUAL MILEAGE SERVICED BY:
9,000 Miles (15 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
ProCarManuals.com

I Short Trip/City Maintenance Schedule I I
18,000 Miles.(30 000 km)
c1. Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Cl Lubricate the suspension and steering -linkage,
transaxle
shift linkage, parking brake cable
guides
.and underbody contact points and linkage
(or every 6 months, whichever occurs first).
Rotate tires. See "Tire Inspection and Rotation"
in the Index for proper rotation pattern and
additional
inf'ormation. During tire rotation,
check brake calipers
for Ereedom of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
21,000 Miles (35 000 km)
0 Change engine oil and filter (or every
3 months, whichevef occurs first).
An Emission Control Service.
DATE . ACTUAL MILEAGE SERVICED BY: I
