Headlamps
The headlamp wiring is protected by an internal circuit
breaker. An electrical overload will cause the lamps to go
on and
off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and
a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until
the motor cools. If
the overload is caused by some electrical problem, be
sure
to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load
is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by
a combination of fuses, circuit breakers,
and fusible thermal links. This greatly reduces the
chance of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the band
is broken or melted, replace the fuse. Be sure you replace
a bad fuse with a new one of the identical size and rating.
lr you ever have a problem on the road and don’t have
a spare fuse, you can borrow one that has the same
amperage. Just pick some feature of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace
it as soon as you can.

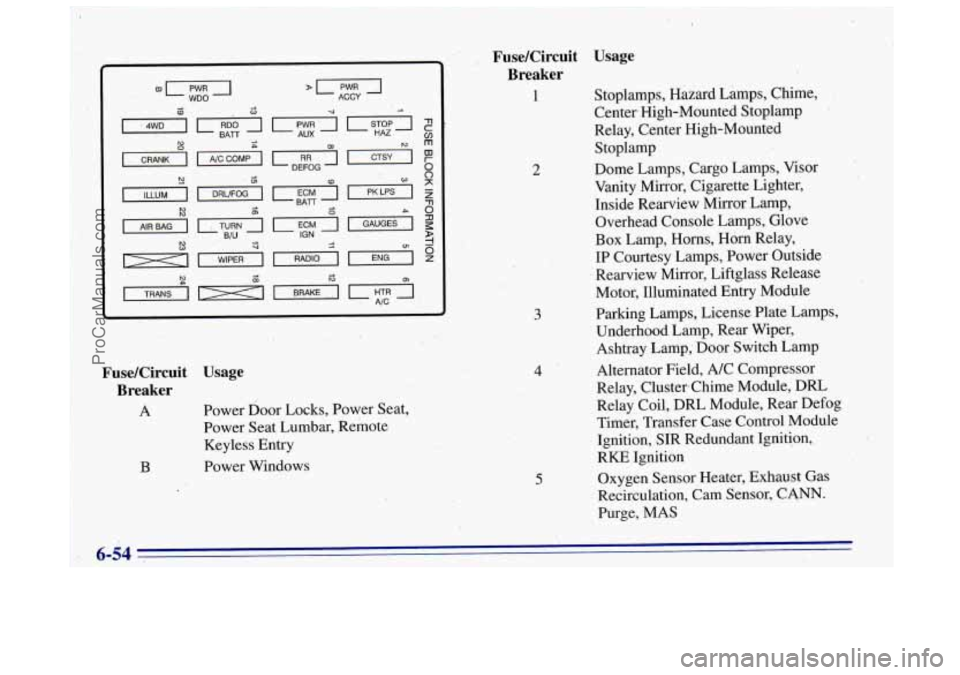

Instrument Panel Fuse Block
The fuse block is at the
driver’s end of the
instrument panel.
Remove the cover by turning
the fastener
counterclockwise. Extra fuses and the fuse extractor are
provided in the cover.
To reinstall the fuse panel cover,
push
in and turn the fastener clockwise.
6-53
ProCarManuals.com

2
ProCarManuals.com

Fuse/Circuit Usage Breaker
6 Blower Motor, Temperature Door
Motor, HI Blower Relay Coil
7
8
9
10
11
12
13
14
15
Power Auxiliary Outlets, Assembly
Line Diagnostic Link
Rear Window Defogger
PCM/VCM Battery, ABS Battery
PCM/VCM Ignition, Injectors, Crank
Sensor, Coil Driver Module
Radio, Inside Rearview Mirror Map
Lamp, Overhead Console Reading
Lamps, Rear Wiper, Rear Washer,
Overhead Console Display
DRAC, Anti-Lock Braking System,
Clock, Radio, Battery,
CD Player
A/C Compressor Battery Feed
Daytime Running Lamps,
Fog Lamps,
Fog Lamp Relay
VCM
IGN-3
FuseKircuit Usage
Breaker
16
17
19
20
21
22
24
Turn Signals and Back-up Lamps,
Brake-Transmission Shift
Interlock Solenoid
Windshield Washer, Windshield
Wiper Motor
Not Used
Crank Signal, Air Bag System
Cluster Illumination, Radio
Illumination, Heater Lamp, Chime
Module,
Fog Lamp Illumination,
Rear Wiper Switch, Rear Defog
Switch Illumination, Liftglass Release
Switch Illumination, Overhead
Console Illumination
Air Bag System
PRNDL Power, 4L60E Automatic
Transmission
ProCarManuals.com

Replacement Bulbs'
Lamps
Halogen Heaalamps, Lomposite Low Beam
Halogen Headlamps, Composite High Beam
Tail and Stoplamps
Turn Signal Lamp
Underhood Lamp
Visor Vanity Mirror Lamps
Overhead Console Reading Lamps
Quantity
2
2
4
2
1
4
2
Number
9006 HB4
9005 HB3
3057
3 157 NA
93
74
194
6-56
ProCarManuals.com

Capacities and Specifications
Engine Description ............ “VORTEC” 4300
Type
.................................... V6
VINCode
................................. W
Firing Order
...................... 1-6-5-4-3-2
Horsepower
................... 190 at 4,400 rpm
Thermostat Specification
........... 195°F (9 1 “C)
Spark Plug Gap
.......... 0.045 inches (0.114 cm)
Wheels and Tires
Wheel Nut Torque ............ 95 Ib-ft (1 30 Nem)
Tire Pressure ...................... Look at the
CertificatiodTire label.
See “Loading Your Vehicle” in
the Index.
Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are
based on the latest information available at the time of
printing, and are subject to change.
If a part listed in this
manual is not the same as the part used in your vehicle
when
it was built, or if you have any questions, please
contact your retailer.
Oil Filter..
............................. PF52
Air Cleaner Filter
...................... A 1 163C
PCV Valve
.......................... CV746C
Automatic Transmission Filter
Kit ...... 24200796
Spark Plugs
.......................... .41-932
Fuel Filter
............................. GF48 1
Windshield Wiper Blade
, . Trico (20 inched50.8 cm) .
Backglass Wiper Blade ... Trico (14 inched35.6 cm)
6-57
ProCarManuals.com

Capacities (Approximate)
Cooling System* ............. 11.7 quarts (1 1.1 L)
Crankcase with Filter* .......... 4.5 quarts (4.3 L)
Automatic Transmission
(Drain and Refill)*
........... 5.0 quarts (4.7 L)
Differential Fluid (Rear) ......... 4.0 pints ( 1.9 L)
Differential Fluid (Front) ......... 2.6 pints (1.2 L)
Fuel Tank ..................... 18 gallons (68 L)
A/C Refrigerant ........ 30 oz. or 2 lbs. (0.9 kg) of
R- 134a
*After refill, the level
must be checked.
A- I Co:~ ~ Jitioning Refrigerants
not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re
not sure, ask your Oldsmobile retailer.
Vehicle Dimensions*
Wheelbase .............. 107.0 inches (271.8 cm)
Length
................. 180.9 inches (459.5 cm)
Height ................... 63.2 inches (160.5 cm)
Width ................... 67.6 inches (17 1.7 cm)
Front Tread
............... 57.3 inches (145.4 cm)
Rear Tread
............... 55.1 inches (139.9 cm)
*Figures reflect base equipment
only.
