1996 GMC SAVANA Owners Manual

Mirrors.
To use the lamp as a flashlight, pull down on the lever
located under the lamp, unlocking the lamp and pull the
lamp out. The cord will unreel as you pull the lamp.
When
you are done using the lamp, reel the cord back
into the housing by turning the handle.
Then, slide the lamp into the holder and press the
lever marked
PUSH at the bottom of the holder to
lock into place.
Inside Mirror
Push or pull the tab under the mirror to reduce glare
from headlamps behind you after
dark.
Outside Mirrors
Adjust your outside mirrors so you can just see the
side of your vehicle, and have
a clear view of objects
behind you. Some mirrors can be folded in to enter
narrow doorways.
Electric Outside Rearview Mirrors (Option)
If you have electric mirrors, they can be adjusted to
point where you want from inside the vehicle.
2-39
ProCarManuals.com

Select the mirror you want
to move
by rotating the
switch counterclockwise to
adjust the passenger side
mirror and clockwise to
adjust the driver side
mirror. The center position
is neutral.
Then, adjust the mirror angle
by pressing the outer
arrows
on the switch until the mirror is adjusted
where you want it.
Your electric outside
rearview mirrors can be
defrosted
by pressing the
switch next to the heater
controls. (See “Comfort
Controls”
in the Index.)
Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface
is curved so you can see more from the
driver’s seat.
A convex mirror can make things (like other
1 vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
~ could hit a vehicle on your right. Check your
~ inside mirror or glance over your shoulder before
~
changing lanes.
2-40
ProCarManuals.com

Storage Compartments
Your front storage compartment is at the center of the
instrument panel extension,
by the floor. To open the
compartment,
squeeze and pull the handle at the top.
Storage compartments may also be included on the
inside
of each front door.
Sun Visors
To block out glare, you can swing down the visors. You
can also swing them from side to side. Your visors have
elastic straps
you can use to hold items such as maps.
2-4 1
ProCarManuals.com

Visor Vanity Mirror (Option)
Some visors have illuminated mirrors on them. Pull the
visor down and lift the mirror cover (if there is one), to
use the mirror.
Cigar4 . te LightedAshtrays
The front ashtray is located in the instrument panel
extension, at the center
of the instrument panel. Lift up
on the ashtray door
to open it.
I NOTICE:
To use the cigarette lighter, push it in all the way, and let
go. When it’s ready, it will pop back by itself.
I NOTICE:
Papers and other things that burn into your
ashtrays could be set on fire by cigarettes or
other smoking materials. That could cause a
fire and possibly damage your vehicle.
Do not
store papers and other things that burn in
your ashtrays. Holding
a cigarette lighter in with your hand
while it is heating can make it overload,
damaging the lighter and the heating element.
Just push the lighter all the
way in and let go.
When it’s done, it will pop back by itself.
- --
To remove the front ashtray, pull up on the tab with
a key or screw driver inserted in the tab, and lift the
ashtray out.
2-42
ProCarManuals.com

Instrument Panel
- 2-43
ProCarManuals.com

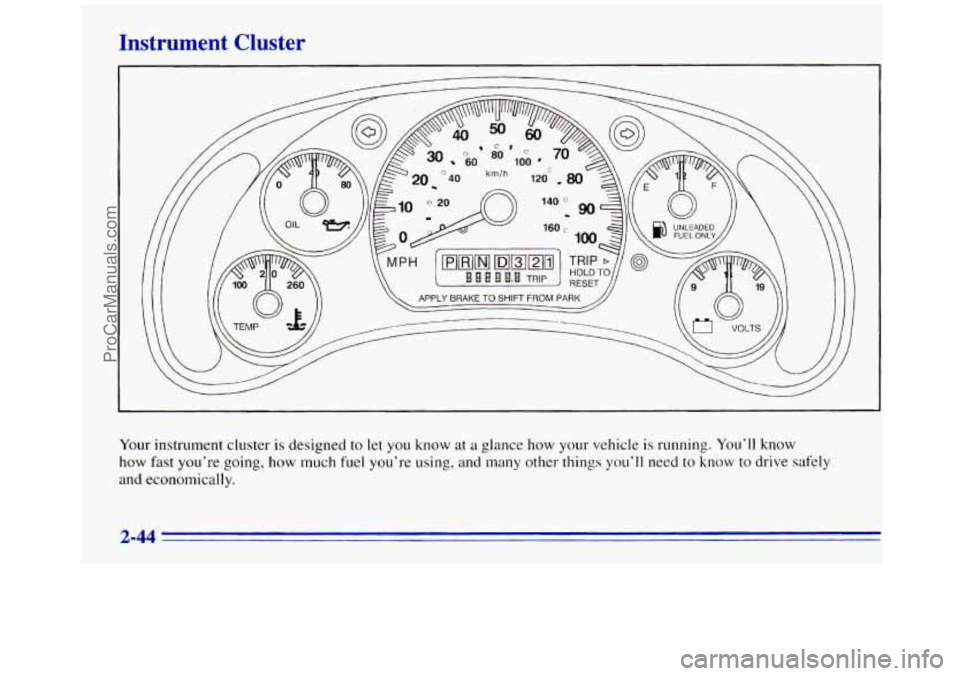

Instrument Cluster
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know
how fast you’re going, how much fuel you’re using, and many other things you’ll need to know to drive safely
and econo~~~ically.
2-44
ProCarManuals.com

Speedometer
Your speedometer lets YOLI see your speed in both miles
per hour (mph) and kilometers per hour
(ktdh). Your
odometer shows how far your vehicle has been driven,
in either miles (used in the United States) or kilometers
(used
in Canada).
YOLI may wonder what happens if YOLK vehicle needs a
new odometer installed. Laws vary as to the procedure
that must be followed,
so check with your state or
provincial vehicle registration office.
But generally, if
the new odometer can be set to the mileage total of the
old odometer, then
it must be. But if it can't, then it's set
at zero, and
a label must be put on the driver's door to
show the old mileage reading when the new odometer
was installed.
nip Odometer
The trip odometer can tell
YOLI how far your
vehicle has been driven
since you last set the trip
odometer
to zero.
To reset the trip odometer,
fully press the reset button
located near the trip odometer readout.
The odometer
can show either total miles or trip miles
by using the push control
in the cluster.
ProCarManuals.com

Warning Lights, Gages and Indicators
This part describes the warning lights and gages that
may
be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention
to
your warning lights and gages could also save you or
others from injury.
Warning lights come
on when there may be or is a
problem with one of your vehicle’s functions.
As you
will see in the details on the next
few pages, some
warning lights come on briefly when you start the
engine just
to let you know they’re working. If you are
familiar with this section,
you should not be alarmed
when this happens.
Gages can indicate when there may be
or is a problem
with one of your vehicle’s functions. Often gages and
warning lights work together
to let you know when
there’s a problem with your vehicle.
When one
of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check
the section that tells you
what to
do about it. Please follow this manual’s advice. Waiting
to
ao repam can be costly -- and even aangerous.
So please get to know your warning lights and gages.
They’re a big help.
Safety Belt Reminder Light
When the key is turned to RUN or START, a tone will
come
on for about eight seconds to remind people to
fasten their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also come on and stay on
for about
20 seconds, then
it will flash for about
55 seconds. If the driver’s
belt is already buckled,
neither the tone nor
the
light will come on.
3 AL
