1996 FORD THUNDERBIRD Owners Manual

38
*
[SR32050( BC )04/95]

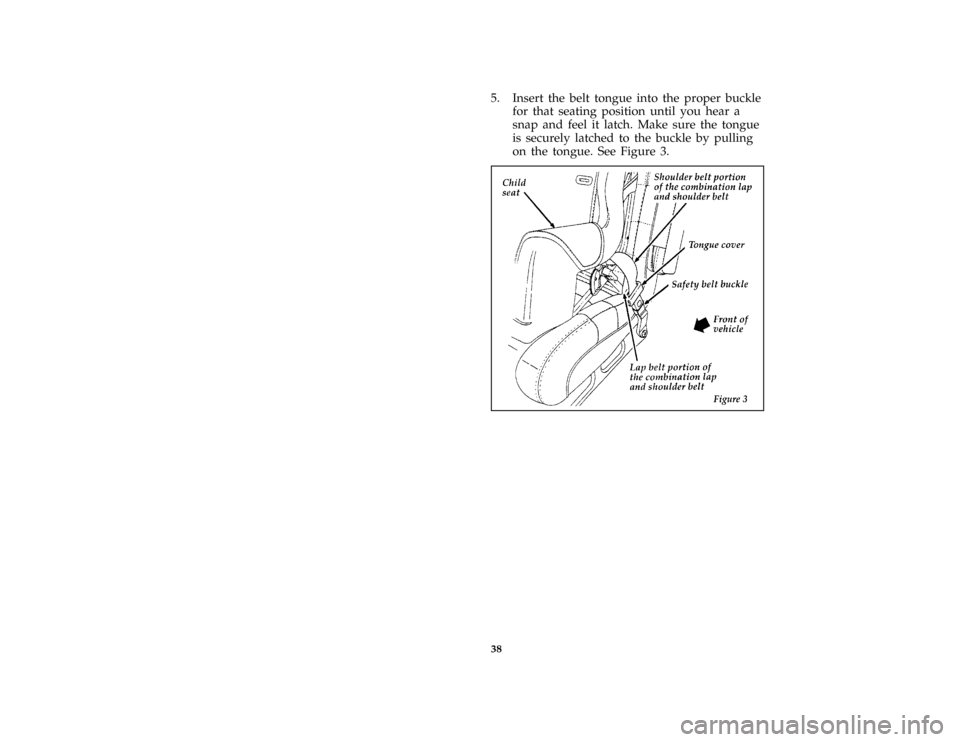

5. Insert the belt tongue into the proper buckle
for that seating position until you hear a
snap and feel it latch. Make sure the tongue
is securely latched to the buckle by pulling
on the tongue. See Figure 3.
*
[SR32060( BC )05/95]
half page art:0011365-A
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

39
*
[SR32070( BC )04/95]

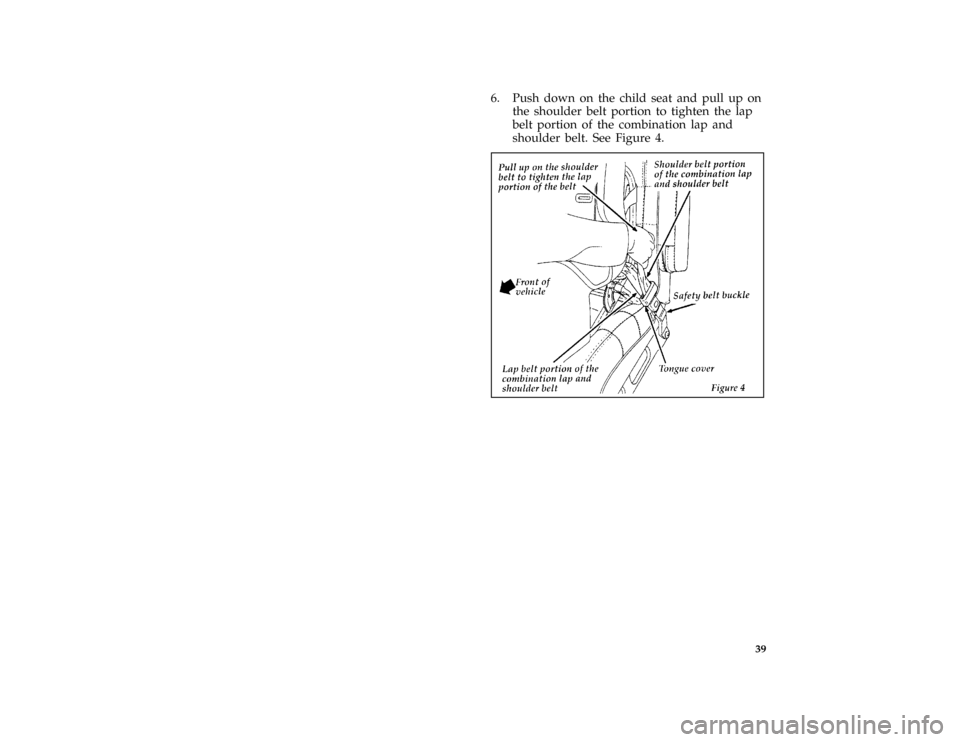

6. Push down on the child seat and pull up on
the shoulder belt portion to tighten the lap
belt portion of the combination lap and
shoulder belt. See Figure 4.
*
[SR32080( BC )05/95]
half page art:0011366-A
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

40
*
[SR32090( BC )04/95]
7. Grasp belt close to child seat and pull on the
shoulder belt portion of the combination
lap/shoulder belt, then allow the belt to
retract and remove all slack to securely
tighten the child safety seat in the vehicle.
See Figure 5.
*
[SR32100( BC )05/95]
half page art:0011367-A
*
[SR32110( BC )04/95]

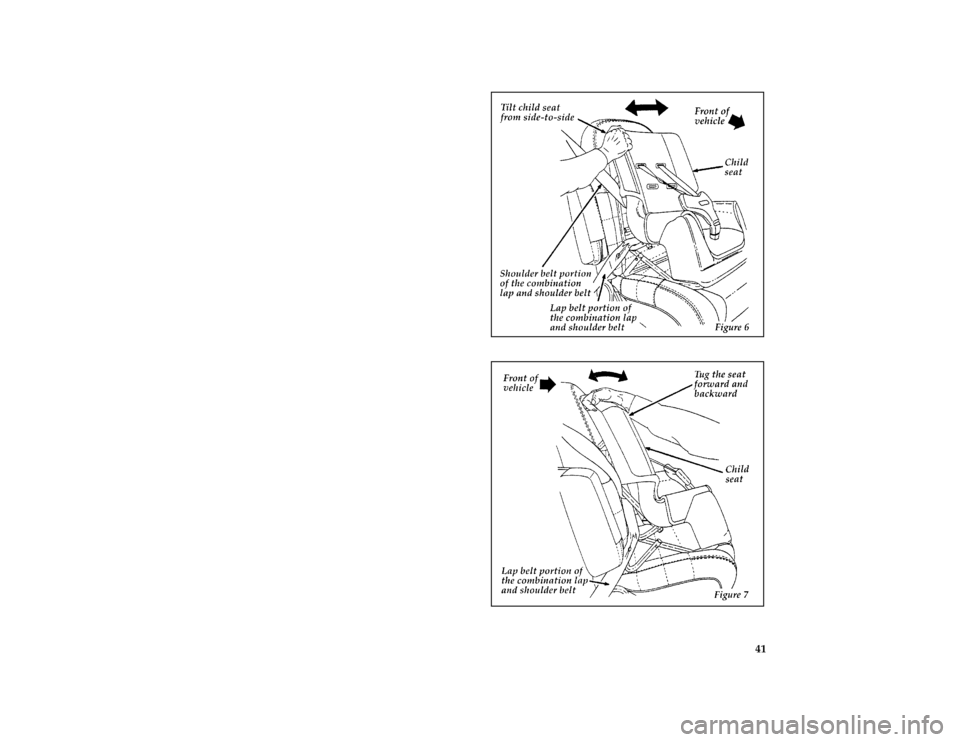

8. Before placing the child into the child seat,
forcibly tilt the child seat from side-to-side
and in forward directions to make sure that
the seat is held securely in place. See Figures
6 and 7. If the child seat moves excessively,
repeat steps 6 through 8, or properly install
the child seat in a different seating position.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

41 [SR32120( BC )05/95]
half page art:0011368-A
*
[SR32130( BC )05/95]
half page art:0011369-A
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

42
*
[SR32140( BC )04/95]
9. Check from time to time to be sure that
there is no slack in the lap/shoulder belt.
The shoulder belt must be snug to keep the
lap belt tight during a collision.
% [SR32150( BCGV)03/95]
Installing a Child Safety Seat at the Rear
Center Seating Position with Adjustable
Lap Belt
[SR32160( BCGV)03/95]
1. Lengthen the lap belt. To lengthen the belt,
hold the tongue so that its bottom is
perpendicular to the direction of webbing
while sliding the tongue up the webbing.
[SR32170( BCGV)03/95]
2. Place the child safety seat in the center
seating position.
[SR32180( BCGV)03/95]
3. Route the tongue and webbing through the
child seat according to the child seat
manufacturer's instructions.
[SR32190( BCGV)03/95]
4. Insert the belt tongue into the proper buckle
for the center seating position until you hear
a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
[SR32200( BCGV)03/95]
5. Push down on the child seat while pulling
on the loose end of the lap belt webbing to
tighten the belt.
[SR32210( BCGV)03/95]
6. Before placing the child into child seat,
forcibly tilt the child seat from side-to-side
and in forward direction to ensure that the
seat is held securely in place. If the child
seat moves excessively, repeat steps 5
through 6, or properly install the child seat
in a different position.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

43 %
*
[SR38300( ALL)05/95]
Safety Belts for Children
*
[SR38400( ALL)05/95]
Children who are too large for child safety seats
should always wear safety belts. (See instructions
with your child seat, or contact its manufacturer,
to determine maximum size of child that will
safely fit in the seat.)
*
[SR38500( ALL)05/95]
RWARNING
If safety belts are not properly worn and
adjusted as described, the risk of serious
injury to the child in a collision will be
much greater.
*
[SR38600(MBCG )05/95]
If the shoulder belt portion of one of the lap and
shoulder belts can be positioned so that it does
not cross or rest in front of the child's face or
neck, the child should wear the lap and shoulder
belt. Moving the child closer to the center of the
vehicle may help provide a good shoulder belt
fit.
*
[SR38700( BC )03/95]
RWARNING
If the shoulder belt cannot be properly
positioned, the child should sit in the
center rear seat and use the lap belt.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

44
*
[SR38830( ALL)04/95]
To improve the fit of lap and shoulder belts on
children who have outgrown child safety seats,
Ford recommends use of a belt-positioning
booster seat that is labelled as conforming to all
Federal motor vehicle safety standards.
Belt-positioning booster seats raise the child and
provide a shorter, firmer seating cushion that
encourages safer seating posture and better fit of
lap and shoulder belts on the child. A
belt-positioning booster should be used if the
shoulder belt rests in front of the child's face or
neck, or if the lap belt does not fit snugly on
both thighs, or if the thighs are too short to let
the child sit all the way back on the seat cushion
when the lower legs hang over the edge of the
seat cushion. You may wish to discuss the
specific needs of your child with your
pediatrician.
*
[SR38860( ALL)04/95]
RWARNING
Do not use a belt-positioning booster with
a lap-only belt.
*
[SR38900( ALL)05/95]
Lap belts and the lap belt portion of lap and
shoulder belts should always be worn snugly
and below the hips, touching the child's thighs.
*
[SR39000( ALL)05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

45
Starting Your Thunderbird
*
[ST03400( ALL)03/95]
Ignition
%*
[ST03500( ALL)01/95]
Understanding the Positions of the Ignition
[ST03750( ALL)12/94]
quarter page art:0010035-B
The positions of the key in the ignition
%*
[ST03901( BCGV)03/95]
ACCESSORY allows some of your vehicle's
electrical accessories such as the radio and the
windshield wipers to operate while the engine is
not running.
% [ST04001( ALL)12/94]
LOCK locks the steering wheel. It also locks the
automatic transmission gearshift lever.
*
[ST04101( ALL)01/95]
LOCK is the only position that allows you to
remove the key. The LOCK feature helps to
protect your vehicle from theft.
*
[ST04200( ALL)03/95]
OFF allows you to shut off the engine and all
accessories without locking the steering wheel or
the automatic transmission gearshift lever.
*
[ST04300( ALL)03/95]
ON allows you to test your vehicle's warning
lights (except the brake system warning light) to
make sure they work before you start the
engine. The key returns to the ON position once
the engine is started and remains in this position
while the engine runs.
File:rcstb.ex
Update:Mon Feb 19 10:52:09 1996
