1996 FORD THUNDERBIRD Owners Manual

287 %
*
[SV55300( ALL)05/95]
Lubricant Specifications
[SV55800( BC )02/96]
twenty-eight pica chart:0010584-HFile:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

288 [SV55900( BC )03/95]
fourteen pica chart:0010585-K
*
[SV56400( ALL)11/95]
NOTE: Rear axle lube quantities must be
replaced every 100,000 miles
(160,000 km) or if the axle has been
submerged in water. Otherwise, the
lube should not be checked or changed
unless a leak is suspected or repair
required.
%
*
[SV57000( ALL)01/95]
Vehicle Storage
*
[SV57100( ALL)01/95]
Maintenance Tips
*
[SV57150( ALL)01/95]
If you plan on storing your vehicle for an
extended period of time (60 days or more), refer
to the following maintenance recommendations
to ensure your vehicle stays in good operating
condition.
*
[SV57200( ALL)01/95]
General
*
[SV57300( ALL)01/95]
q
Store all vehicles in a dry, ventilated place.
*
[SV57400( ALL)01/95]
q
Protect from sunlight, if possible.
*
[SV57500( ALL)01/95]
q
If vehicles are stored outside, they require
regular maintenance to protect against rust
and damage.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

289
*
[SV57600( ALL)01/95]
Body
*
[SV57700( ALL)01/95]
q
Wash vehicle thoroughly to remove dirt,
grease, oil, tar or mud from exterior surfaces,
rear wheel housing and underside of front
fenders.
*
[SV57800( ALL)01/95]
q
Periodically wash vehicles stored in exposed
locations.
*
[SV57900( ALL)01/95]
q
Touch-up raw or primed metal to prevent
rust.
*
[SV58000( ALL)01/95]
q
Cover chrome and stainless steel parts with a
thick coat of auto wax to prevent
discoloration. Re-wax as necessary when the
vehicle is washed.
*
[SV58100( ALL)04/95]
q
Lubricate all hood, door and trunk lid hinges
and latches with a light grade oil.
*
[SV58200( ALL)01/95]
q
Cover interior soft trim to prevent fading.
*
[SV58300( ALL)01/95]
q
Keep all rubber parts free from oil and
solvents.
%*
[SV58350( ALL)01/95]
Engine
*
[SV58400( ALL)01/95]
q
Start engine every 15 days. Run at fast idle
until it reaches normal operating temperature.
*
[SV58500( ALL)01/95]
q
With your foot on the brake, shift through all
the gears while the engine is running.
%*
[SV58600( ALL)01/95]
Fuel system
%*
[SV58700( ALL)07/94]
q
Fill fuel tank with high-quality unleaded fuel
until the first automatic shutoff of the fuel
pump nozzle.
*
[SV58900( ALL)03/95]
NOTE: During extended periods of vehicle
storage (60 days or more), fuel may
deteriorate due to oxidation. This can
damage rubber and other polymers in
the fuel system and may also clog
small orifices.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

290
*
[SV59000( ALL)01/95]
Ford Gas Stabilizer should be added whenever
actual or expected storage periods exceed 60
days. Follow the instructions on the label. The
vehicle should then be operated at idle speed to
circulate the additive throughout the fuel system.
%*
[SV59200( ALL)01/95]
Cooling system
*
[SV59300( ALL)01/95]
q
Protect against freezing temperatures.
%*
[SV59400( ALL)01/95]
Battery
*
[SV59500( ALL)01/95]
q
Check and recharge as necessary.
*
[SV59600( ALL)01/95]
q
Keep connections clean and covered with a
light coat of grease.
*
[SV59650( ALL)03/95]
q
If storing your vehicle for more than 30 days
without recharging the battery, it may be
advisable to disconnect the battery cables to
ensure battery charge is maintained for quick
starting.
[SV59675( ALL)05/94]
NOTE: If battery cables are disconnected, it
will be necessary to reset memory
features.
%*
[SV59700( ALL)01/95]
Brakes
*
[SV59800( ALL)01/95]
q
Make sure brakes and parking brake are fully
released.
%*
[SV59900( ALL)01/95]
Tires
*
[SV60000( ALL)05/95]
q
Maintain recommended air pressure.
*
[SV60100( ALL)01/95]
Miscellaneous
*
[SV60200( ALL)01/95]
q
Make sure all linkages, cables, levers and
clevis pins under vehicle are covered with
grease to prevent rust.
*
[SV60300( ALL)03/95]
q
Move vehicles at least 25 feet (8 m) every 15
days to lubricate working parts and prevent
corrosion.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

291 [SV60400( ALL )01/96]
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

297 [QI01350( BC )05/95]
full page art:0011379-A

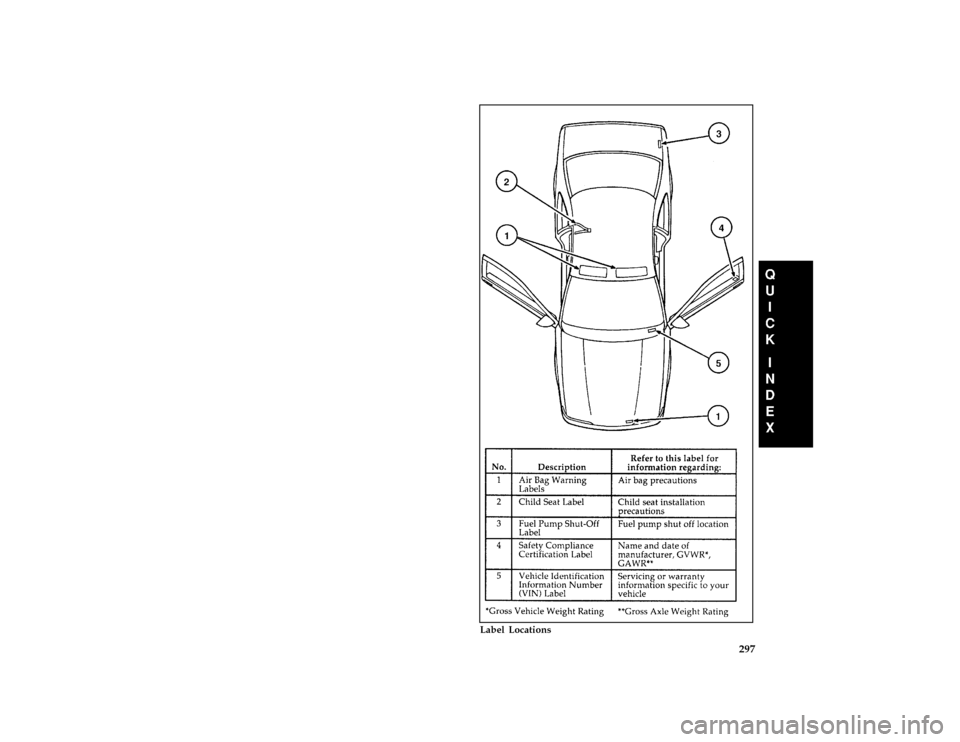

Label Locations
File:rcqib.ex
Update:Mon Feb 19 10:44:04 1996

298 [QI01400( B )05/95]

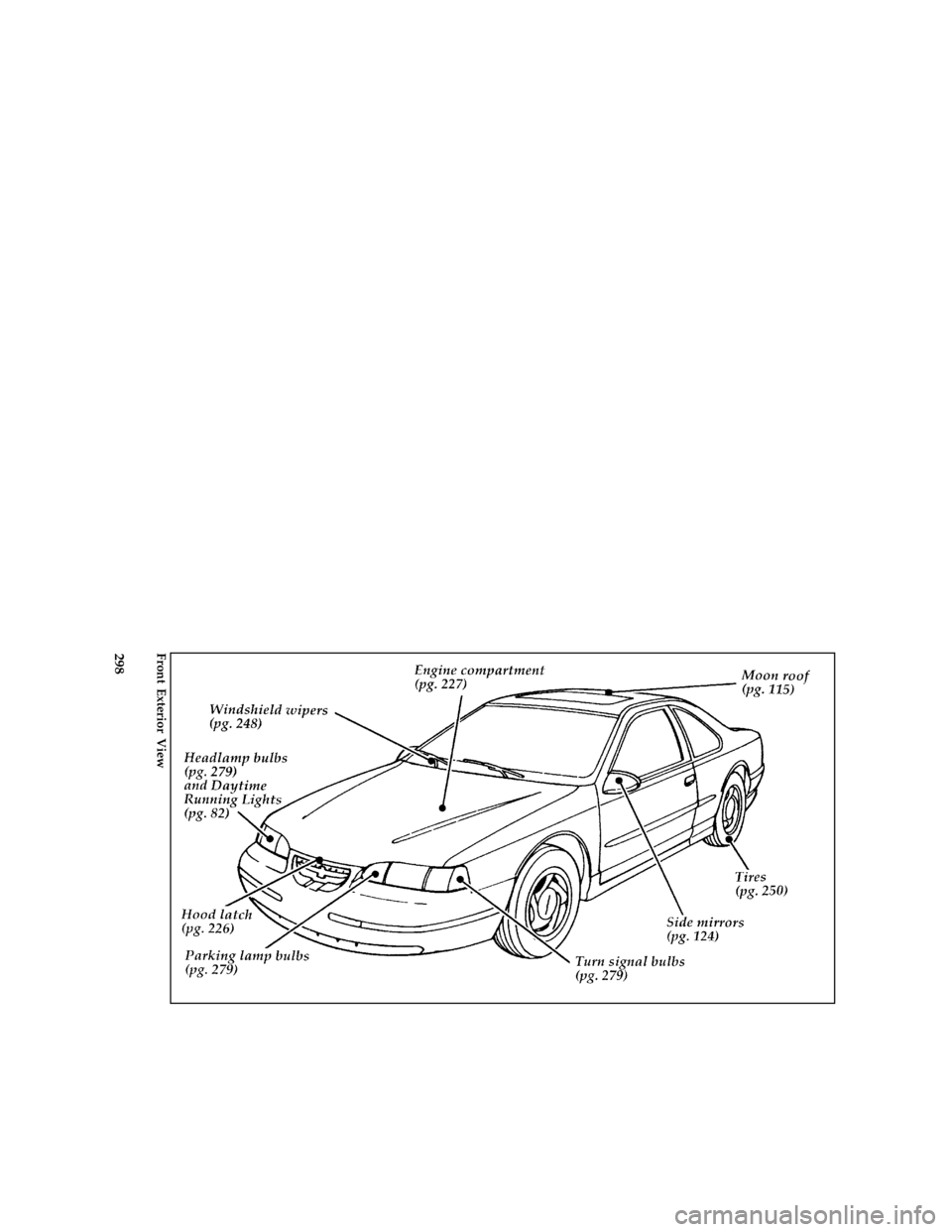

full page art:0011108-CFront Exterior View
File:rcqib.ex
Update:Mon Feb 19 10:44:04 1996

299 [QI01600( B )05/95]
full page art:0011110-C
Rear Exterior View
File:rcqib.ex
Update:Mon Feb 19 10:44:04 1996
