1996 FORD MUSTANG tow

92
*
[SC02301( ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
*
[SC02401( ALL)08/95]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
%*
[SC02700( ALL)05/95]
High Beams
*
[SC02800( ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[SC02900( ALL)05/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
[SC02955(M )06/93]
NOTE: The fog lamps will turn off if you put
high beams on while fog lamps are on.
%*
[SC03200( ALL)08/95]
Flashing the Lights
*
[SC03300( ALL)06/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
%
*
[SC03500( ALL)08/95]
Windshield Wipers and Washer
*
[SC03600( ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
[SC03750( ALL)01/95]
Rotate the end of the lever away from you to
activate the wipers. The first seven detents are
interval wipe positions, the eighth detent is the
LO position and the ninth detent is the HI
position.
*
[SC03800( ALL)01/95]
To turn the wipers off, turn the knob toward
you to the OFF position.
File:07rcscm.ex
Update:Wed Mar 27 09:30:54 1996

93 %
*
[SC04100( ALL)08/95]
Variable Interval Wipers
*
[SC04205( ALL)01/95]
In addition to two speed wipers, your vehicle
has wipers that you can set to operate at
varying intervals. For example, you can set the
interval so they wipe less often when it drizzles
or more often in heavier rain.
[SC04700( ALL)02/95]
one third page art:0011293-A
The variable interval wiper on the turn signal lever
*
[SC04900( ALL)03/94]
To set the interval wipers, turn the knob at the
end of the turn signal lever toward or away
from you until the wipers are going at the
desired interval.
*
[SC05300( ALL)08/95]
Windshield Washer
*
[SC05401( ALL)01/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if the wipers were OFF) or
returning to HI, LO, or the interval setting
selected.
*
[SC05500( ALL)03/95]
If the washer does not work, check the washer
fluid level and fill it if it is low. See theServicing
Your Mustangchapter. If there is enough fluid,
consult your nearest Ford or Lincoln-Mercury
dealer.
File:07rcscm.ex
Update:Wed Mar 27 09:30:54 1996

96
%*
[SC07300( ALL)05/95]
Tilt Steering
*
[SC07400( ALL)06/95]
RWARNING
Never adjust the steering wheel when the
vehicle is moving.
[SC07700(MBC )03/93]
half page art:0010088-B

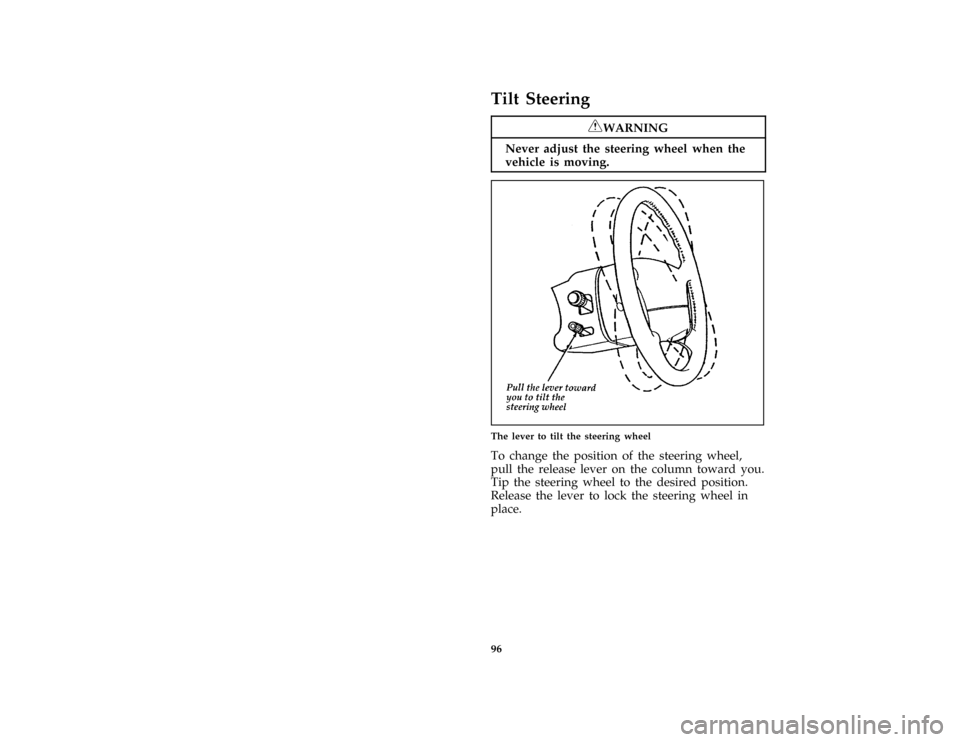

The lever to tilt the steering wheel
*
[SC08000( ALL)09/95]
To change the position of the steering wheel,
pull the release lever on the column toward you.
Tip the steering wheel to the desired position.
Release the lever to lock the steering wheel in
place.
File:07rcscm.ex
Update:Wed Mar 27 09:30:54 1996

113
*
[FV08775( ALL)02/95]
NOTE: The operating range of the remote
entry system can also be affected by
weather conditions (such as very cold
temperatures) or structures around the
vehicle (buildings, other vehicles, radio
and TV towers, etc.). Typical operating
range will allow you to be up to 33
feet (10 meters) away from your
vehicle.
*
[FV08800(MBC )02/95]
quarter page art:0020790-A

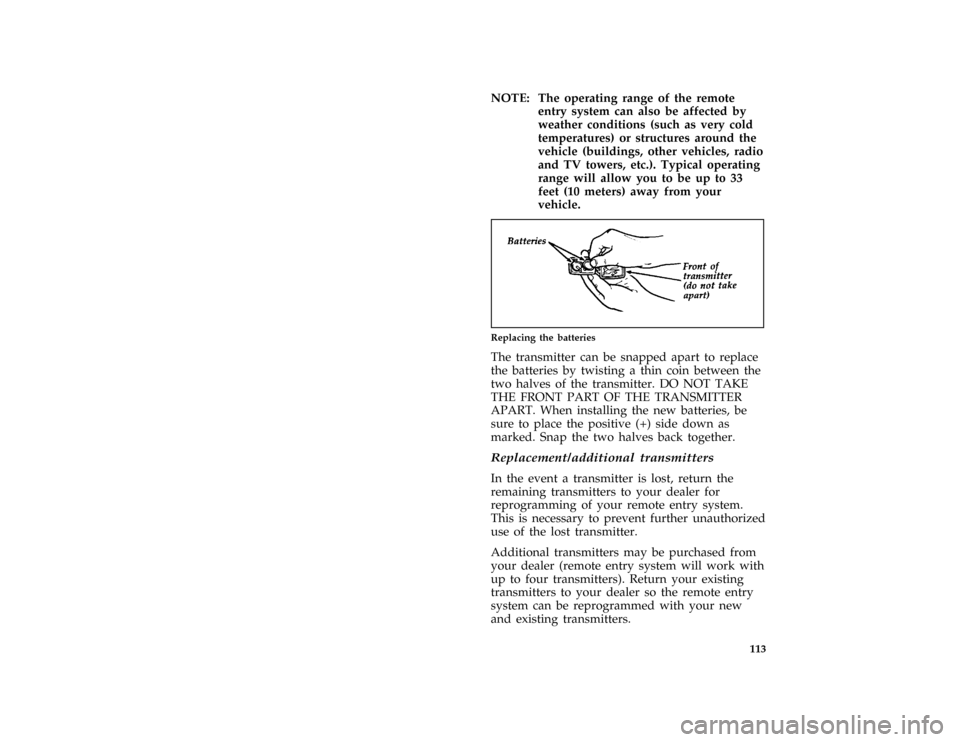

Replacing the batteries
*
[FV08825(MBC )02/95]
The transmitter can be snapped apart to replace
the batteries by twisting a thin coin between the
two halves of the transmitter. DO NOT TAKE
THE FRONT PART OF THE TRANSMITTER
APART. When installing the new batteries, be
sure to place the positive (+) side down as
marked. Snap the two halves back together.
%*
[FV08850( ALL)02/95]
Replacement/additional transmitters
*
[FV08875(MBC )02/95]
In the event a transmitter is lost, return the
remaining transmitters to your dealer for
reprogramming of your remote entry system.
This is necessary to prevent further unauthorized
use of the lost transmitter.
*
[FV08900(MBC )02/95]
Additional transmitters may be purchased from
your dealer (remote entry system will work with
up to four transmitters). Return your existing
transmitters to your dealer so the remote entry
system can be reprogrammed with your new
and existing transmitters.
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

132 % [FV36200( ALL)03/95]Using the Remote Control for the
Trunk (If equipped)
[FV36400(M )08/93]
You can use the remote control inside your
glove compartment to unlock and open the
trunk. If equipped, you can also use your remote
entry system to open the trunk.
[FV36600(M )01/89]
quarter page art:0010286-A
The remote control for the trunk
% [FV37300(M )12/94]
Convertible (If equipped)
[FV37650(M )09/95]
NOTE: Do not store articles behind rear seat.
Articles stored in the convertible top
stowage compartment may break the
rear glass window when the top is
lowered.
% [FV38600(M )01/89]
Lowering the Convertible Top
[FV38700(M )03/93]
The convertible top can be lowered with the side
windows either up or down.
[FV38750(M )09/95]
NOTE: CONVERTIBLE TOP WILL NOT
OPERATE UNLESS PARKING BRAKE
IS ENGAGED. Do not lower the top
while the vehicle is moving because
the top may be severely damaged.
Also, do not lower the top when the
top material is wet.
[FV38800(M )01/89]
To lower the convertible top:
[FV38850(M )03/93]
1. Bring vehicle to a complete stop. Engage the
parking brake.
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

133 [FV38855(M )06/93]
2. Check the convertible top stowage
compartment behind the rear seat to be sure
it is empty and ready to receive the top.
[FV38900(M )06/93]
3. Unclamp the top from the windshield header
at both the right and left sides by pulling
each clamp rearward until the hook in the
windshield header is free. The clamps are
flush with the header when in the closed
position.
[FV39000(M )06/93]
4. Close the windshield header clamps
immediately after disengagement, to avoid
cutting the top material and to permit
installation of the vinyl boot.
[FV39100(M )06/93]
5. If the top has not been lowered for some
time and sticks to the windshield header,
push the front of the top up slightly with
your hand to loosen it.
[FV39200(M )05/94]
one third page art:0010289-C

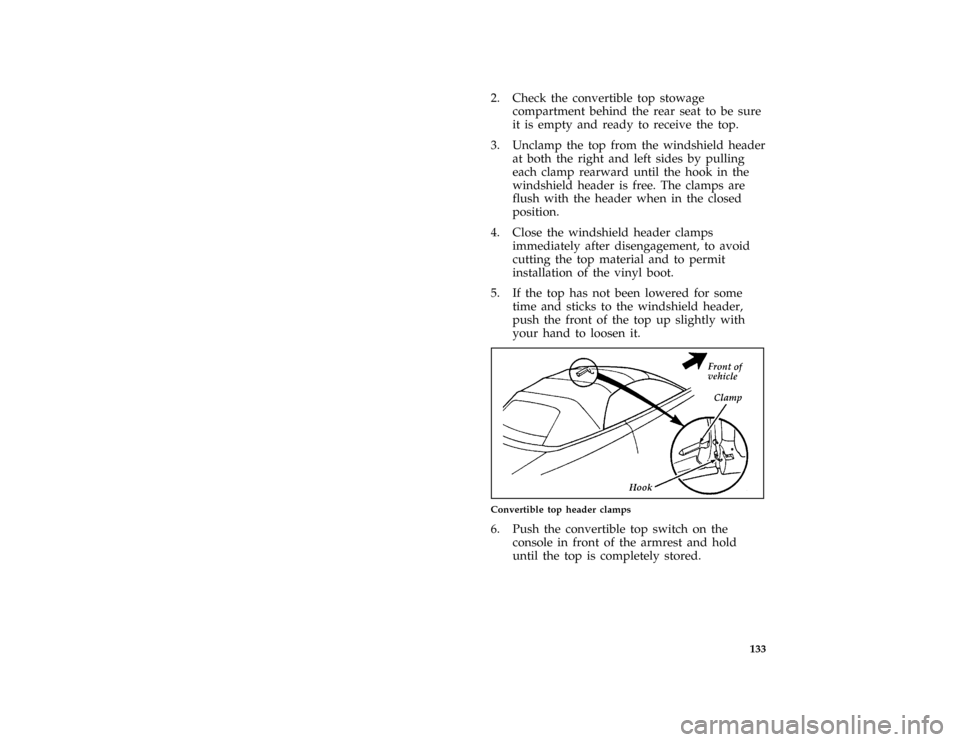

Convertible top header clamps
[FV39700(M )05/94]
6. Push the convertible top switch on the
console in front of the armrest and hold
until the top is completely stored.
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

137 [FV41150(M )05/95]

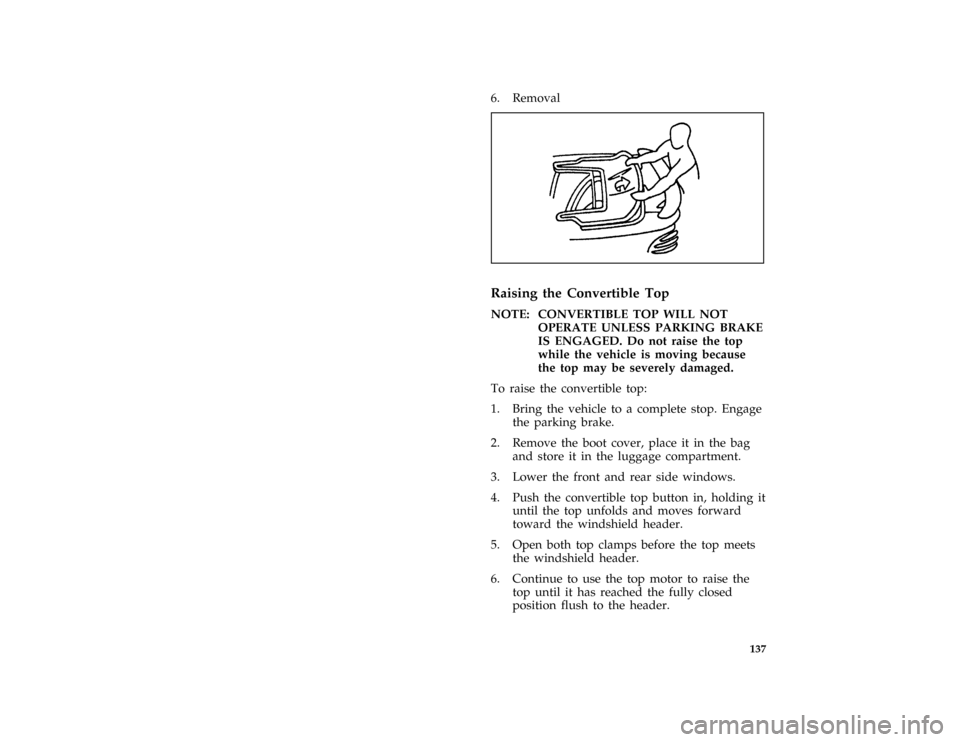

6. Removal
[FV41201(M )05/95]
one third page art:0011361-A% [FV41600(M )01/89]
Raising the Convertible Top
[FV41700(M )09/95]
NOTE: CONVERTIBLE TOP WILL NOT
OPERATE UNLESS PARKING BRAKE
IS ENGAGED. Do not raise the top
while the vehicle is moving because
the top may be severely damaged.
[FV41800(M )01/89]
To raise the convertible top:
[FV41850(M )02/93]
1. Bring the vehicle to a complete stop. Engage
the parking brake.
[FV41900(M )06/93]
2. Remove the boot cover, place it in the bag
and store it in the luggage compartment.
[FV41950(M )03/93]
3. Lower the front and rear side windows.
[FV42000(M )06/93]
4. Push the convertible top button in, holding it
until the top unfolds and moves forward
toward the windshield header.
[FV42100(M )03/93]
5. Open both top clamps before the top meets
the windshield header.
[FV42200(M )03/93]
6. Continue to use the top motor to raise the
top until it has reached the fully closed
position flush to the header.
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

174
*
[AS61900( ALL)08/95]
To minimize these conditions, a stereo/mono
blend circuit has been incorporated into this
system. This feature automatically switches a
weak stereo signal to a clearer monaural signal,
which improves the quality of reception.
*
[AS62000( ALL)08/95]
Several sources of static are normal conditions
on AM frequencies. These can be caused by
power lines, electric fences, traffic lights and
thunderstorms.
*
[AS62100( ALL)08/95]
Another reception phenomenon isStrong Signal
Capture and Overload. This can occur when
listening to a weak station and when passing
another broadcast tower. The close station may
capture the more distant station, although the
displayed frequency does not change. While
passing the tower, the station may switch back
and forth a few times before returning to the
original station.
*
[AS62200( ALL)08/95]
When several broadcast towers are present
(common in metropolitan areas) several stations
may overload the receiver, resulting in
considerable station changing, mixing and
distortion.
*
[AS62300( ALL)08/95]
Automatic gain control circuitry for both AM
and FM bands has been incorporated into this
system to reduce strong signal capture and
overload.
%
*
[AS62400( ALL)08/95]
All About Radio Frequencies
*
[AS62500( ALL)08/95]
The Federal Communications Commission (FCC)
and the Canadian Radio Telecommunications
Commission (CRTC) establish the frequencies
that AM and FM radio stations may use for
their broadcasts. The allowable frequencies are,
AM: 530, 540...1600, 1610 kHz in 10 kHz steps;
FM: 87.9, 88.1...107.7, 107.9 MHz in 0.2 MHz
steps.
