1996 FORD MUSTANG tow

213
*
[RE13500(MBC )09/95]
Reinstalling the anti-theft lug nut
*
[RE13600(MBC )03/95]
Insert the key over the locking lug nut. Place the
lug nut wrench over the lug nut key and, while
applying pressure on the key, install the lug nut.
*
[RE13800( ALL)03/95]
If the Engine Cranks But Does
Not Start or Does Not Start After
a Collision
[RE13810( ALL)07/95]
The Fuel System Shut-off Switch
[RE13900( ALL)07/95]
If the engine cranks but does not start or if you
have had a collision, the fuel system shut-off
switch may have been triggered. The shut-off
switch is a device that stops the fuel system
when your vehicle has been involved in a
substantial jolt.
[RE14000( ALL)07/95]
For information on how to check and reset the
fuel system shut-off switch, seeFuel system
shut-off switchin the Index.
%
*
[RE14100( ALL)05/95]

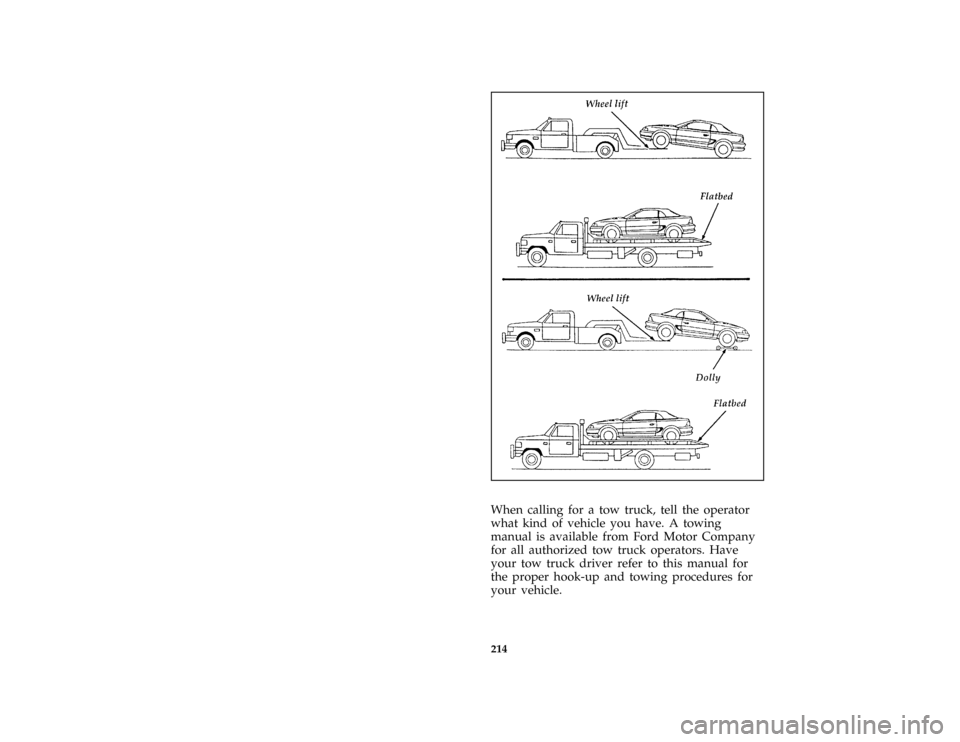

Towing Your Vehicle
[RE14225(M )10/95]
Mustang/Mustang GT
[RE14250(M )10/95]
It is recommended that your vehicle be towed
with wheel lift or flatbed equipment. If slingbelt
equipment must be used, the towbar will deform
the soft fascia (bumper). However, it will return
to an acceptable shape.
[RE14255(M )10/95]
Mustang Cobra/Convertible
[RE14260(M )10/95]
DO NOT TOW WITH SLINGBELT
EQUIPMENT. Ford Motor Company has not
developed or approved a T-hook sling-type
procedure. Use wheel lift or flatbed equipment.
If your vehicle is to be towed from the rear
using wheel lift equipment, the front wheels
must be placed on a dolly to prevent damage to
the front fascia (bumper).
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

214 [RE14350(M )10/95]
three fourths page art:0011387-A
*
[RE14400( ALL)03/95]
When calling for a tow truck, tell the operator
what kind of vehicle you have. A towing
manual is available from Ford Motor Company
for all authorized tow truck operators. Have
your tow truck driver refer to this manual for
the proper hook-up and towing procedures for
your vehicle.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

215
Customer Assistance
%*
[HS00205( ALL)06/94]
Roadside Assistance
*
[HS00210( ALL)08/95]
Ford Motor Company has set up a 24-hour,
seven-day-a-week hotline with trained operators
who put you in touch with the help you need if
you experience a problem with your vehicle.
This complimentary service is provided to you
throughout your warranty period of 3 years or
36,000 miles (60,000 km), whichever comes first.
To purchase Roadside Assistance coverages
beyond this period (available through Ford Auto
Club in the United States or Ford and
Lincoln-Mercury dealers in Canada), contact
your Ford or Lincoln-Mercury dealer.
*
[HS00215( ALL)06/94]
Roadside Assistance will cover the following:
*
[HS00220( ALL)06/94]
q
Mount your spare if you have a flat tire.
*
[HS00225( ALL)06/94]
q
Jump-start your battery if it is dead.
*
[HS00230( ALL)06/94]
q
Unlock your vehicle if you are locked out.
*
[HS00235( ALL)06/94]
q
Bring you fuel if you run out.
*
[HS00240( ALL)06/94]
q
Tow your vehicle if you are stranded. Even
non-warranty related tows, like accidents or
getting stuck in mud or snow, are covered
(some exclusions apply, such as impound
towing and repossession).
*
[HS00245( ALL)06/94]
How to use Roadside Assistance
*
[HS00250( ALL)06/94]
Your Roadside Assistance identification card can
be found in the Owner Guide portfolio in your
glove compartment. Complete the card and place
it in your wallet for quick reference.
File:13rchsm.ex
Update:Wed Mar 27 09:35:14 1996

254 %
*
[SV18600( ALL)08/95]
Checking Hoses
*
[SV18700( ALL)11/94]
Inspect all engine and heater system hoses and
hose connections for deterioration, leaks, and
loose hose clamps as specified in theMaintenance
Schedule and Recordbooklet. Repair or replace
with Motorcraft hoses or equivalent as necessary.
*
[SV18800( ALL)09/95]
Adding Engine Coolant
*
[SV18900( ALL)09/95]
RWARNING
Do not put engine coolant in the container
for the windshield washer fluid.
*
[SV18950( ALL)09/95]
If sprayed to clean the glass, engine coolant or
antifreeze could make it difficult to see through
the windshield.
[SV19000(MBC )05/95]
RWARNING
Never remove the radiator cap or vent
plug while the engine is running or hot.
[SV19030( ALL)05/95]
Follow these steps to avoid personal injury that
can be caused by escaping steam or engine
coolant.
[SV19040(MBC )03/95]
1. Before you remove the cap, turn the engine
off and let it cool. Even when the engine is
cool, be careful when you remove the
radiator cap or vent plug.
[SV19145( ALL)03/95]
2. When the engine is cool, wrap a thick towel
around the cap and turn it slowly
counterclockwise to unscrew.
*
[SV19150( ALL)09/95]
3. Step back while the pressure releases.
[SV19160( ALL)12/94]
4. When you are sure that all the pressure has
been released, use the cloth to press the cap
down, turn it, and remove it.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

322 Index
Controls
instrument panel............ 79
mirrors................ 125
steering column............. 91
Convertible
cleaning............... 138
installation of the boot......... 134
lowering the convertible top...... 132
raising the convertible top....... 137
Coolant (see Engine coolant)
checking and adding......... 252
drain and flush............ 257
preparing for storage......... 303
proper solution............ 255
refill capacities............ 298
specifications............. 300
temperature gauge........... 73
warnings............... 252
Cooling fan............... 236
Crankcase emission filter......... 299
Cruise control (see Speed control)...... 97
Customer Assistance Center, Ford (U.S.) . . 217
Customer Assistance Centre,
Ford of Canada..........217, 223
D
Dashboard (see Instrument panel)...... 79
Daytime running light system....... 84
Defects, reporting............ 222
Defrost
rear window.............. 83
windshield............... 82
Dipstick
automatic transmission fluid....269, 271
engine oil.............. 249
power steering fluid.......... 274
Disabled vehicle (see Towing)...... 213
Dispute Settlement Board........ 218
File:rcixm.ex
Update:Wed Mar 27 09:41:15 1996

Index 323
Doors................. 103
lubricant specifications........ 300
Driving under special conditions
bad weather............. 190
heavy load.............. 192
high water.............. 191
slippery roads............ 190
tips for safe driving.......... 190
towing a trailer............ 194
E
Electrical system
circuit breakers............ 287
fuses..............278, 286
operating when the engine is off..... 49
power point outlet.......... 130
Electronic sound system
radio reception............ 173
tuning the radio.........142, 163
warranty and service information . . . 175
Electronic stereo cassette radio
(see Electronic sound system)..... 142
Emergencies, roadside
assistance.............. 215
battery acid spills........... 199
fuel................. 245
jump-starting............. 199
towing................ 213
Emergency brake (parking brake) . . . 187±188
Emission control system
catalytic converter.......... 293
emissions warranty......... 4,293
Engine
check engine warning light....... 70
does not start........... 54,57
fuel injected engine, starting..... 51,53
fuel pump shut-off switch........ 57
preparing to start..........51±52
refill capacities............ 298
service points............ 239
File:rcixm.ex
Update:Wed Mar 27 09:41:15 1996

330 Index
Lights, warning and indicator (continued)
safety belt............... 66
service engine soon........... 70
theft system.............. 72
turn signal indicator......... 72,91
Load limits
GAWR................ 192
GVWR................ 192
trailer towing............. 194
Lubricant specifications......... 300
Luggage compartment.......... 131
Lug nuts
anti-theft............... 212
standard............... 209
tightening sequence.......... 211
M
Maintenance schedule and record
(see separate Maintenance
Schedule and Record booklet)...... 3
Maintenance (see Servicing)....... 235
Manual transmission
backing up (reverse).......... 183
clutch..............182, 272
driving................ 182
fluid, checking and adding....... 272
fluid capacities............ 298
lubricant specifications......... 300
shifting gears............. 183
shift speeds.............. 184
Map pockets.............. 131
Master cylinder, brakes......... 272
Methanol in fuel............. 244
File:rcixm.ex
Update:Wed Mar 27 09:41:15 1996

Index 333
Roadside assistance........... 215
Roadside emergencies.......... 199
Rotating the tires............ 264
S
Safe driving tips............ 190
Safety belts (see Safety restraints)...... 9
Safety chains, when towing a trailer . . . 196
Safety defects, reporting......... 222
Safety information relating to
automotive fuels........... 245
Safety restraints
adjusting the safety belts.... 11,13,15
automatic locking mode.......14±15
automatic locking mode (retractor) . . 14±15
cleaning the safety belts......... 21
extension assembly........... 20
for adults............... 9
for children.............. 28
for infants............. 28,30
for pregnant women.......... 9
head................. 116
lap and shoulder belts........ 9,11
maintenance.............. 21
proper use............... 9
replacement.............. 21
warning light and chime........ 66
Safety seats for children
and air bags........... 24,30±31
attaching with tether straps....... 30
automatic locking mode
(retractor).......14±15, 30, 32, 39
in front seat.............. 30
in front seat, convertible......... 32
in front seat, coupe........... 39
in rear outboard........ 30,32,39
in rear seat............... 30
tether anchorage hardware....... 30
Seat belts (see Safety restraints)....... 9
Seats.................. 116
File:rcixm.ex
Update:Wed Mar 27 09:41:15 1996
