[IP18400(BEF )03/95]
Cargo, Courtesy and Dome Lamps
*
[IP19175(B F )05/90]
The interior/courtesy lamp is automatically
turned on when the driver or passenger door is
opened. Turning the headlamp switch fully
counterclockwise will operate the interior lamp
when the doors are closed.
*
[IP19185(B F )05/95]
quarter page art:0020695-A
Interior/Courtesy lamp
*
[IP19190(B F )05/95]
Combination Cargo and High-Mount
Brakelamp
*
[IP19200(B F )05/95]
The combination cargo/high-mount brakelamp is
located outside the vehicle, directly over the rear
window. Use the headlamp control switch to
turn on the cargo lamp and interior courtesy
lights.
[IP19250( F )05/95]
A high-mount brakelamp feed is provided in the
taillamp wiring, in the event an aftermarket cap
is installed on the vehicle obscuring the
cargo/high-mount brakelamp on the cab. The
feed is located at the left rear of the vehicle,
behind the bumper and is marked with a white
tag ªcenter high-mount stop lamp.º
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

93
*
[IP19350( F )09/93]

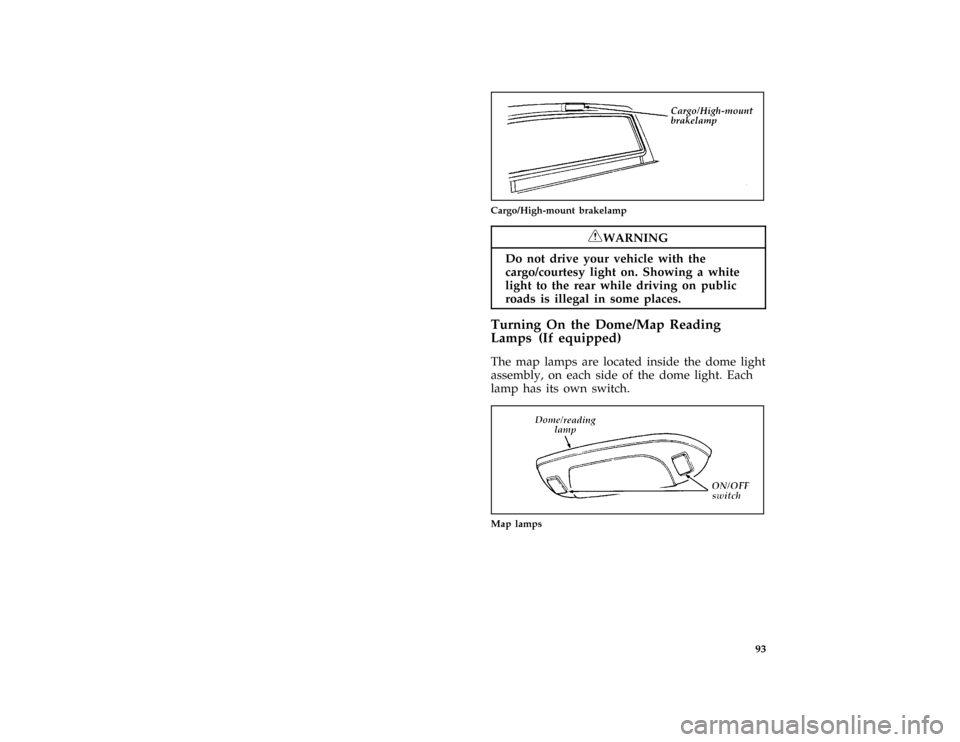

quarter page art:0020902-B
Cargo/High-mount brakelamp
*
[IP19400(B F )05/91]
RWARNING
Do not drive your vehicle with the
cargo/courtesy light on. Showing a white
light to the rear while driving on public
roads is illegal in some places.
*
[IP19705(B F )07/94]
Turning On the Dome/Map Reading
Lamps (If equipped)
*
[IP19805(B F )07/94]
The map lamps are located inside the dome light
assembly, on each side of the dome light. Each
lamp has its own switch.
*
[IP19900(B F )05/94]
quarter page art:0020127-B
Map lamps
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

95
Steering Column Controls
*
[SC00400( ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
*
[SC00500( ALL)01/95]
The Turn Signal Lever
*
[SC00600( ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
*
[SC00700( ALL)03/95]
q
operate the turn signals and cornering lamps
*
[SC00800(BEF )01/95]
q
turn the high beams on/off
*
[SC00900(BEF )01/95]
q
flash the lights
*
[SC01000(BEF )01/95]
q
turn the windshield wipers and washer
on/off
*
[SC01100( ALL)01/95]
Turn Signals
*
[SC01200( ALL)03/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[SC01400( ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

96
*
[SC01700( ALL)01/94]
one third page art:0020081-C
Turn signal lever and functions
*
[SC01800( ALL)11/89]
If the turn indicator light in the instrument
panel does not illuminate or remains on (doesn't
flash) when you signal a turn, the turn signaling
system is malfunctioning. Have this condition
corrected as soon as possible, but make sure that
you use the accepted hand signals in the
meantime.
*
[SC03200( ALL)03/95]
High Beams
*
[SC03300( ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[SC03400( ALL)03/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

97
*
[SC03800( ALL)03/95]
one third page art:0020074-B
Headlamp high beam switch and turn signal lever
*
[SC04200( ALL)05/95]
Flashing the Lights
*
[SC04300( ALL)05/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is on or off.
*
[SC04400( ALL)03/95]
Windshield Wipers and Washer
*
[SC04500( ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
*
[SC04600( ALL)03/95]
Turn the knob on the end of the turn signal
lever toward the front of the vehicle. You can
turn it to either the LO or HI speed position.
*
[SC04700( ALL)03/95]
Variable Interval Wipers
*
[SC04800( ALL)03/95]
In addition to two speed wipers, your vehicle is
equipped with wipers that you can set to
operate at varying intervals. For example, you
can set the interval so they wipe less often when
it drizzles or more often in heavier rain.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

99
*
[SC05400( ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC05500(BEF )04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[SC05510( ALL)03/95]
Hazard Flasher
*
[SC05520( ALL)04/95]
The hazard flasher is used to alert other drivers
to hazardous situations.
*
[SC05525( FM)10/92]
The flashers will continue to flash with the brake
pedal depressed.
*
[SC05530( ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
*
[SC05540( ALL)09/93]
To use the hazard flasher:
*
[SC05550( ALL)10/92]
1. Push in the flasher button; it will pop out
and the lamps will begin to flash.
*
[SC05560( ALL)10/92]
2. To stop the flashers, push in the flasher
button again.
*
[SC05562( ALL)10/92]
NOTE: The flasher button will be sticking up
slightly higher when ON than when
OFF.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

104
*
[SC09325( ALL)05/95]
RWARNING
Do not shift the transmission into N
(Neutral) with the speed control on.
*
[SC09350( ALL)03/94]
To maintain a preset speed under the above
conditions, with electronically controlled
transmissions Ð press the Transmission Control
Switch. The indicator light will turn on and
illuminate the word ªOFF.º This will cancel
ªOverdriveº. You can press the Transmission
Control Switch on or off at any speed. For the
best fuel economy during normal driving
conditions, press the Transmission Control
Switch to turn off the light. This allows
overdrive operation.
*
[SC09375( ALL)05/95]
quarter page art:0020771-C
Transmission control switch and Indicator light
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

106
*
[SC10250(BEF )10/94]
q
TAP-UP Ð This allows you to increase your
current speed in increments of 1 mph
(1.6 km/h) by a momentary tap of the
SET-ACCEL switch. Multiple taps of the
SET-ACCEL switch will increase your vehicle
speed 1 mph (1.6 km/h) for each tap. For
example, if you are currently set at 60 mph
(96 km/h) and tap the SET-ACCEL switch 5
times your vehicle speed will increase and set
at 65 mph (104 km/h).
*
[SC10300( ALL)12/91]
Turning the Speed Control Off
*
[SC10400( ALL)03/95]
You can cancel the speed control while you are
driving.
*
[SC10500( ALL)06/92]
q
Press the OFF switch. The speed control is
off. If you want to resume speed control,
press the ON switch and reset the speed
control by pressing the SET ACCEL button.
[SC10700(B F )04/95]
q
Press the clutch pedal slightly (if equipped).
The speed control is suspended, but you can
reset it by pressing SET ACCEL or return to
the previous set speed with the RESUME
switch.
[SC10750( ALL)04/95]
q
Press the brake pedal slightly. The speed
control is suspended, but you can reset it by
pressing SET ACCEL or return to the
previous set speed with the RESUME switch.
*
[SC10800( ALL)04/95]
In addition, the speed control is turned off each
time you turn the vehicle off.
