1996 FORD CONTOUR Owners Manual

22
[SR17720(ALL)02/94]
17-1/2 pica
art:0001205-A
Inflated driver-side air bag
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
23
[SR17740(ALL)02/94]
17-1/2 pica
art:0001206-A
Inflated passenger-side air bag
*
[SR18400(ALL)05/95]
RWARNING
If the air bag is inflated, THE AIR BAG WILL NOT
FUNCTION AGAIN AND MUST BE REPLACED
IMMEDIATELY. If the air bag is not replaced, the
unrepaired area will increase the risk of injury in a
collision.
*
[SR18425(ALL)05/95]
To ensure that the air bag system will operate as intended in a
crash, the system is equipped with a diagnostic module, which
controls a readiness lamp and a warning tone. The diagnostic
module monitors its own circuits, the air bag electrical system,
the air bag readiness light, the air bag power, and the air bag
inflators.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

24
%*
[SR18450(ALL)05/95]
The air bag system uses a readiness light on the instrument
cluster and a tone to indicate the condition of the system. When
you turn the ignition key to the ON position, this light will
illuminate for approximately six (6) seconds and then turn off.
This indicates that the system is operating normally. NOTE:
Maintenance of the air bag system is not required.
%*
[SR18475(ALL)05/95]
A problem with the system is indicated by one or more of the
following:
*
[SR18501(ALL)05/95]
n
the readiness light will either flash or stay lit,
*
[SR18525(ALL)05/95]
n
or it will not light immediately after ignition is turned on,
*
[SR18550(ALL)05/95]
n
or a group of five beeps will be heard. The tone pattern will
repeat periodically until the problem and light are repaired.
*
[SR18575(ALL)05/95]
If any of these things happen, have the air bag system serviced
at your Ford or Lincoln-Mercury dealer immediately. Unless
serviced, the air bag supplemental restraint system may not
function properly in the event of a collision.
*
[SR18601(ALL)05/95]
RWARNING
Do not attempt to service, repair, or modify the Air Bag
Supplemental Restraint System or its fuses. See your
Ford or Lincoln-Mercury dealer.
%*
[SR19000(ALL)05/95]
Disposal of air bags or air bag equipped vehicles
*
[SR19500(ALL)05/95]
For disposal of air bags or air bag equipped vehicles, see your
local Ford or Lincoln-Mercury dealer. Air bagsMUSTbe
disposed of by qualified personnel.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
25
%*
[SR20200(ALL)05/95]
Safety Restraints for Children
*
[SR20300(ALL)02/95]
In the U.S. and Canada, you are required by law to use safety
restraints for children. If small children ride in your vehicle Ð
this generally includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or less Ð you must
put them in safety seats that are made specially for children.
Safety belts alone do not provide maximum protection for these
children. Check your local and state laws for specific
requirements.
*
[SR20400(ALL)05/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SR20600(ALL)05/95]
RWARNING
Passengers should not be allowed to ride in the cargo
area. Persons not riding in a seat with a fastened seat
belt are much more likely to suffer serious injury in a
collision. Cargo should always be secured to prevent it
from shifting and causing damage to the vehicle or harm
to passengers.
*
[SR20650(ALL)05/95]
When possible, put children in the rear seat of your vehicle.
Accident statistics suggest that children are safer when properly
restrained in the rear seating positions than in the front seating
positions.
*
[SR20700(ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

26
*
[SR20750(ALL)05/95]
RWARNING
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
*
[SR20800(ALL)05/95]
RWARNING
Never leave a child unattended in your vehicle.
%*
[SR22000(ALL)01/95]
Safety Seats for Children
*
[SR22100(ALL)05/95]
Use a safety seat that is recommended for the size and weight
of the child. Always follow the safety seat manufacturer's
instructions when installing and using the safety seat.
*
[SR22125(ALL)02/95]
Ford recommends the use of a child safety seat having a top
tether strap. Install the child safety seat in a seating position
which is capable of providing a tether anchorage. For more
information on top tether straps seeAttaching Safety Seats With
Tether Strapsin this chapter.
*
[SR22300(ALL)05/95]
Your vehicle is equipped with a right front passenger air bag.
Air bags deploy with great force, faster than the blink of an eye.
Front passengers, especially children and small adults, must
never sit on the front edge of the seat, stand near the glove
compartment of the instrument panel, or lean over near the air
bag cover when the vehicle is moving. All occupants should sit
with their backs against the seatback, move the seat to the most
rearward position if possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should use child or
infant seats.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
27
*
[SR22400(ALL)05/95]
RWARNING
When using forward-facing child seats move the
passenger seat as far back from the instrument panel as
possible. NEVER SECURE REAR-FACING INFANT
SEATS IN THE FRONT SEAT.
[SR22450(ALL)05/95]
THE FORCE OF THE RAPIDLY INFLATING PASSENGER AIR
BAG COULD PUSH THE TOP OF THE REAR-FACING SEAT
AGAINST THE VEHICLE SEATBACK, ARMRESTS OR
CONSOLE. REAR-FACING INFANT SEATS MUST ALWAYS
BE SECURED IN THE REAR SEAT. Failure to follow these
instructions could result in serious injury.
*
[SR22475(ALL)05/95]
All child restraint systems are designed to be secured in vehicle
seats by lap belts or by the lap portion of a lap-shoulder belt.
*
[SR22500(ALL)05/95]
RWARNING
If you do not properly secure the safety seat, the child
occupying the seat may be injured during a collision or
sudden stop. An unsecured safety seat could also injure
other passengers.
*
[SR22600(ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
*
[SR22625(ALL)05/95]
When installing a child safety seat, be sure to use the correct
safety belt buckle for that seating position, and make sure the
tongue is securely fastened in the buckle.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

28
*
[SR22650(ALL)05/95]
RWARNING
Always keep the buckle release button pointing upward
and away from the child seat, with the tongue between
the child seat and the release button as shown in the
following illustration.
[SR22700(ALL)03/95]
17-1/2 pica
art:0001209-B

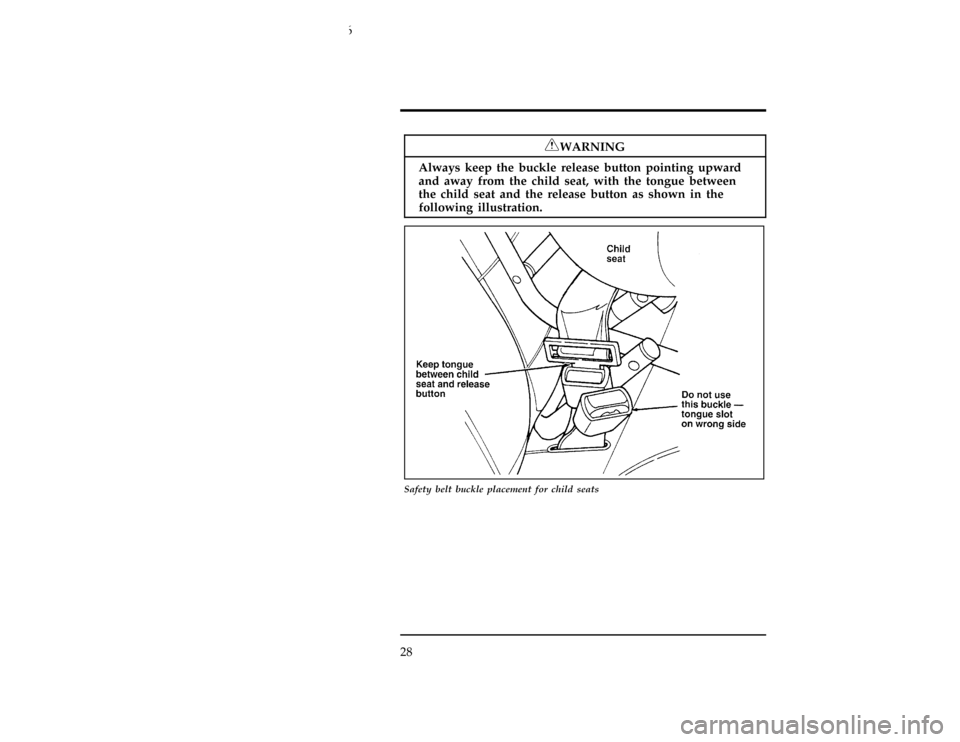

Safety belt buckle placement for child seats
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
29
%*
[SR22750(ALL)11/94]
Installing Child Safety Seats in the Front Passenger
Seat and Outer Rear Seating Positions
[SR22800(ALL)04/95]
Your vehicle is equipped with a dual locking mode retractor on
the shoulder belt portion of the combination lap/shoulder safety
belt for the right front seat passenger and rear outer passengers.
*
[SR22850(ALL)03/95]
If you choose to install a child safety seat in the front seating
position, move vehicle seat as far back as possible.
*
[SR22900(ALL)03/95]1.
Position the child seat in center of passenger seat.
*
[SR22950(ALL)03/95]2.
Pull down on shoulder belt, then grasp shoulder belt and lap
belt together. Figure 1.
[SR23000(ALL)02/94]
17-1/2 pica
art:0001270-AFile:cdsro.ex
