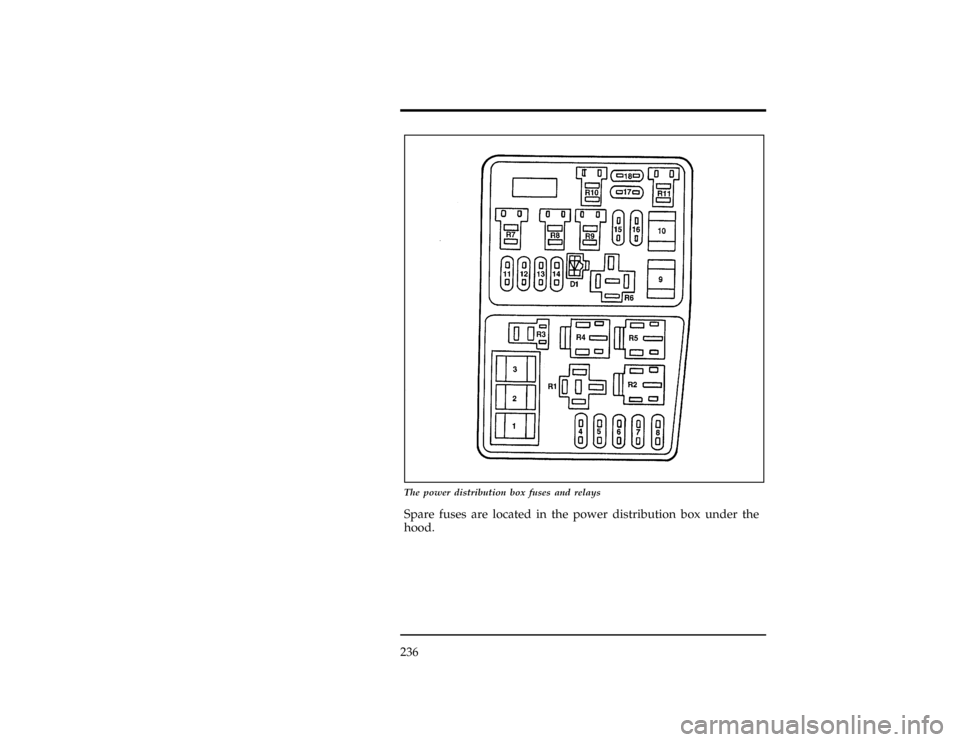

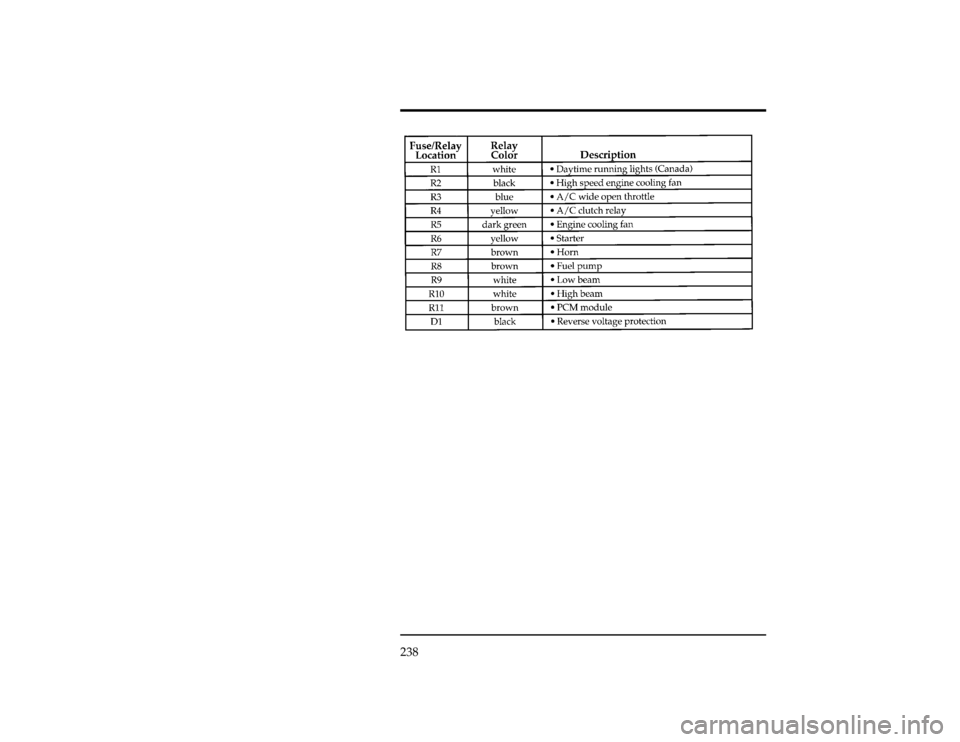

The power distribution box fuses and relays
[SV33800(ALL)09/94]
Spare fuses are located in the power distribution box under the
hood.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
237
[SV33920(ALL)05/95]
twenty-four pica
chart:0000378-IFile:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

238
[SV33930(ALL)05/94]
fourteen pica
chart:0001257-BFile:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
239
*
[SV33951(ALL)02/95]
The Instrument Panel Fuses, Circuit Breakers and
Relays
[SV33971(ALL)05/94]
The instrument panel fuse panel is underneath the instrument
panel on the left side. To open it, reach under the instrument
panel and push the release button to the right of the fuse panel.
[SV34001(O )05/94]
13-1/2 pica
art:0000377-B

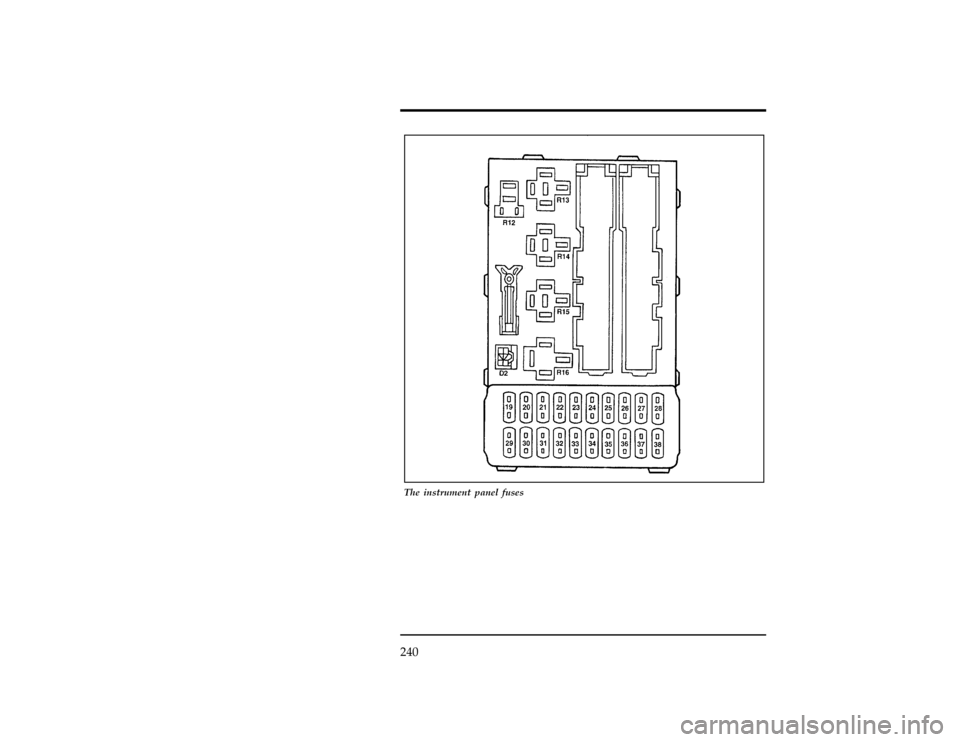

The instrument panel fuse panel location
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

240
[SV34101(ALL)02/94]
24 pica art:0000381-C

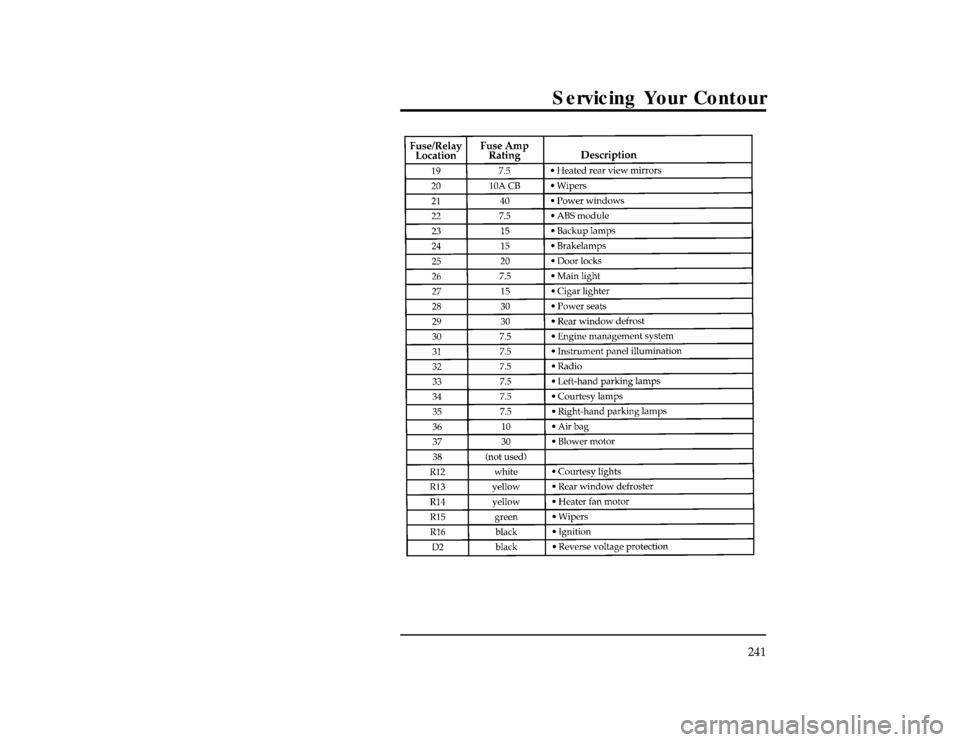

The instrument panel fuses
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
241
[SV34210(ALL)05/94]
thirty pica
chart:0000379-JFile:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

242
[SV34401(ALL)01/95]

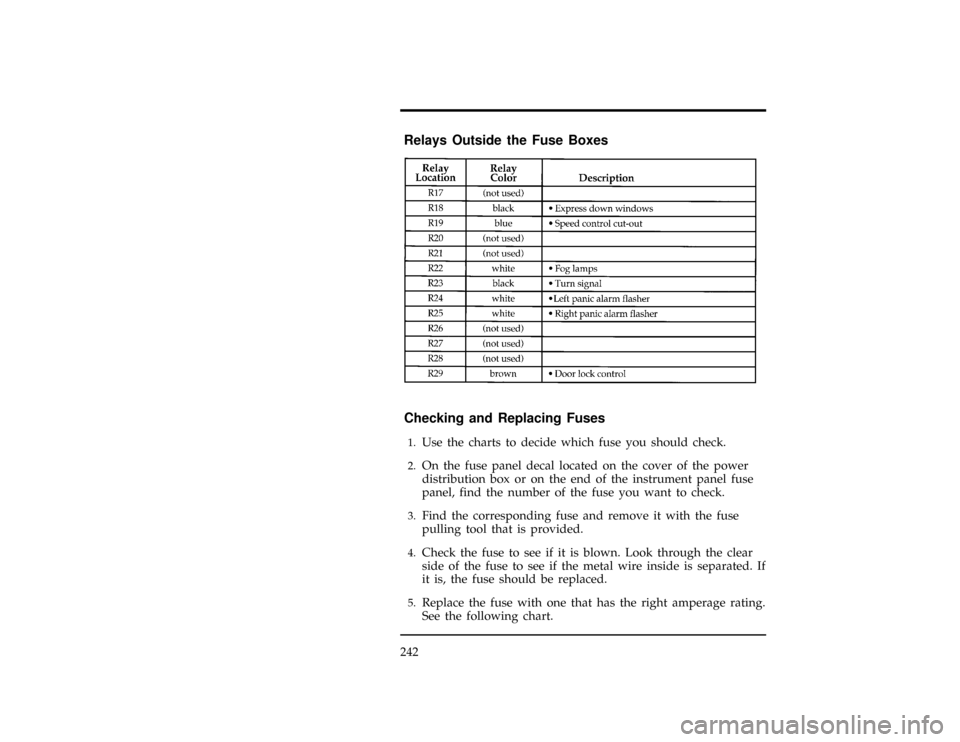

Relays Outside the Fuse Boxes
[SV34501(ALL)04/94]
sixteen pica
chart:0001229-A%*
[SV35200(ALL)06/95]
Checking and Replacing Fuses
[SV35301(ALL)04/94]1.
Use the charts to decide which fuse you should check.
[SV35311(ALL)02/94]2.
On the fuse panel decal located on the cover of the power
distribution box or on the end of the instrument panel fuse
panel, find the number of the fuse you want to check.
[SV35351(ALL)02/94]3.
Find the corresponding fuse and remove it with the fuse
pulling tool that is provided.
[SV35370(ALL)11/92]4.
Check the fuse to see if it is blown. Look through the clear
side of the fuse to see if the metal wire inside is separated. If
it is, the fuse should be replaced.
[SV35390(ALL)02/93]5.
Replace the fuse with one that has the right amperage rating.
See the following chart.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
243
[SV36000(ALL)05/94]
7-1/2 pica art:0001319-A

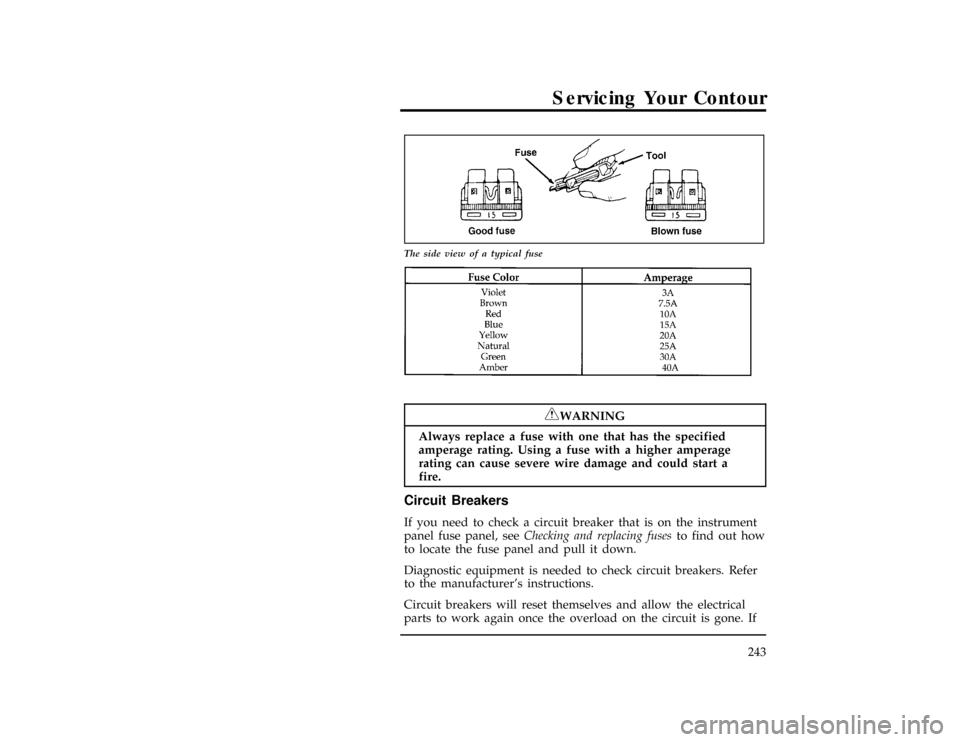

The side view of a typical fuse
[SV36200(ALL)04/94]
eight pica
chart:0001255-B*
[SV36300(ALL)05/95]
RWARNING
Always replace a fuse with one that has the specified
amperage rating. Using a fuse with a higher amperage
rating can cause severe wire damage and could start a
fire.
%*
[SV36700(ALL)03/95]
Circuit Breakers
[SV36900(ALL)02/94]
If you need to check a circuit breaker that is on the instrument
panel fuse panel, seeChecking and replacing fusesto find out how
to locate the fuse panel and pull it down.
*
[SV37000(ALL)02/95]
Diagnostic equipment is needed to check circuit breakers. Refer
to the manufacturer's instructions.
[SV37100(ALL)02/95]
Circuit breakers will reset themselves and allow the electrical
parts to work again once the overload on the circuit is gone. If
