1996 FORD CONTOUR Owners Manual

163
Roadside Emergencies
*
[RE00310(ALL)03/95]
Jump-Starting Your Vehicle
*
[RE00320(ALL)01/95]
Your vehicle's battery may die if you leave the lights on or any
electrical equipment on after you turn the engine off. If this
happens, you may be able to jump-start from a booster battery
to start your vehicle.
*
[RE00400(ALL)02/95]
RWARNING
The gases around the battery can explode if exposed to
flames, sparks, or lit cigarettes. An explosion could result
in injury or vehicle damage.
*
[RE00500(ALL)02/95]
RWARNING
To protect yourself when charging a battery, always
shield your face and eyes. Make sure that you can
breathe fresh air.
%*
[RE00700(ALL)05/95]
RWARNING
Applying too much pressure on the ends when lifting a
battery could cause acid to spill. Lift the battery with a
carrier or with your hands on the opposite corners.
%*
[RE00800(ALL)05/95]
RWARNING
Batteries contain sulfuric acid which burns skin, eyes,
and clothing.
*
[RE00850(ALL)06/95]
If the acid touches someone's skin, eyes, or clothing,
immediately flush the area with water for at least 15 minutes. If
someone swallows the acid, have him or her drink lots of milk
or water first, then Milk of Magnesia, a beaten egg, or vegetable
oil. Call a doctor immediately.
File:cdreo.ex
Update:Thu Jan 25 12:24:30 1996

164
*
[RE00900(ALL)03/95]
To avoid damaging your vehicle or your battery, and to avoid
injury to yourself, follow these directions for preparing your
vehicle to jump-start and connecting the jumper cables in the
order they are given. If in doubt, call for road service.
*
[RE01000(ALL)03/95]
Preparing Your Vehicle
*
[RE01100(ALL)03/95]1.
Your vehicle has a 12-volt starting system, so you need to
use a 12-volt jumper system. You will damage your starting
motor, ignition system, and other electrical parts if you
connect them to a 24-volt power supply (either two 12-volt
batteries in series or a 24-volt generator set).
*
[RE01200(ALL)03/95]2.
Do not disconnect the battery of the disabled vehicle. You
could damage the vehicle's electrical system.
*
[RE01300(ALL)04/95]3.
Park the booster vehicle close to the hood of the disabled
vehicle.Make sure the vehicles do not touch each other.Set
the parking brake on both vehicles and stay clear of the
engine cooling fan and other moving parts.
*
[RE01400(ALL)03/95]4.
Check all battery terminals and remove any excessive
corrosion before you attach the jumper cables.
*
[RE01600(ALL)03/95]5.
Turn on the heater fan in both vehicles. Press the DEFROST
button. Turn off all other switches and gauges.
%*
[RE01700(ALL)05/95]
Connecting the jumper cables
*
[RE02500(ALL)03/95]1.
Connect one end of the first jumper cable to the positive (+)
terminal of the discharged battery. (You can connect either
jumper cable to the positive (+) terminal, as long as you use
the same cable for both positive terminals.) Most jumper
cables have a red cable and a black cable. The red cable is
generally used for the positive terminals and the black for
the negative ones.
*
[RE02600(ALL)04/95]2.
Connect the other end of the first cable to the positive (+)
terminal of the booster battery.
File:cdreo.ex
Update:Thu Jan 25 12:24:30 1996

Roadside Emergencies
165
*
[RE02700(ALL)05/95]3.
Connect one end of the second cable to the negative (±)
terminal of the booster battery Ð NOT to the discharged
battery.
*
[RE02800(ALL)04/95]4.
Connect the other end of the second cable to a good metallic
surface on the engine or frame of the disabled vehicle.
*
[RE02900(ALL)05/95]
RWARNING
Do not connect the end of the second cable to the
negative (±) terminal of the battery to be jumped. A
spark may cause an explosion of the gases that surround
the battery.
File:cdreo.ex
Update:Thu Jan 25 12:24:30 1996

166
[RE02975(ALL)01/95]
27-1/2 pica art:0001006-E

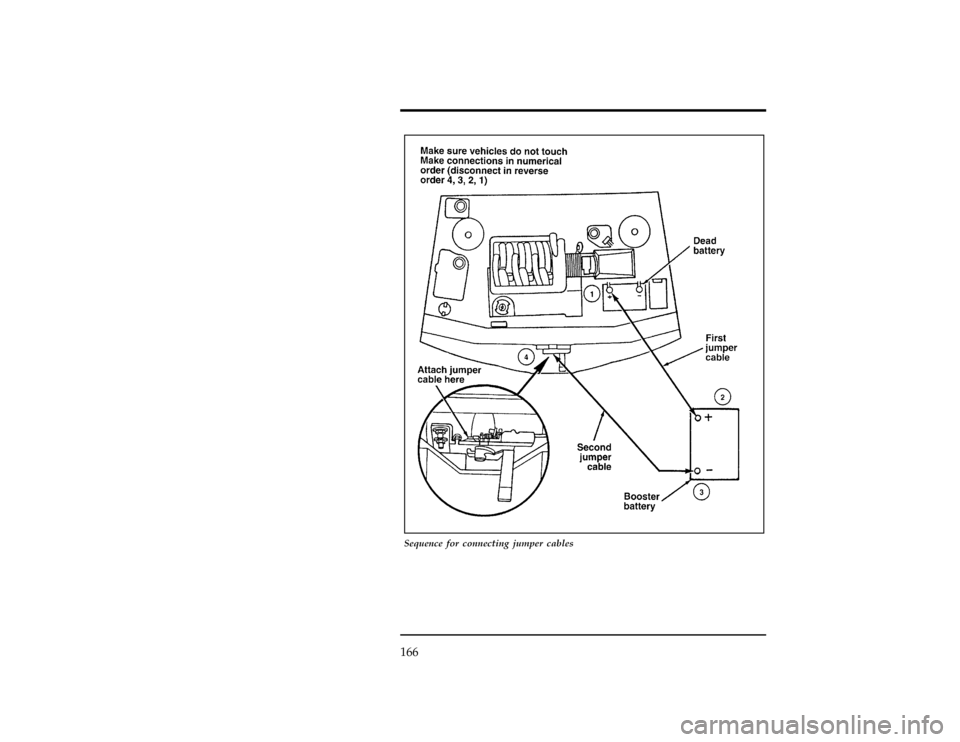

Sequence for connecting jumper cables
File:cdreo.ex
Update:Thu Jan 25 12:24:30 1996

Roadside Emergencies
167
*
[RE03400(ALL)03/95]
Jump-Starting
*
[RE03600(ALL)03/95]1.
Make sure that the jumper cables are not in the way of
moving engine parts, then start the booster vehicle. Run the
engine at a moderate speed.
*
[RE03700(ALL)03/95]2.
Let the discharged battery charge for a few minutes and then
start the disabled vehicle. It may take a couple of tries before
the vehicle starts. If the vehicle does not start after several
attempts, there may be a different problem.
*
[RE03800(ALL)03/95]3.
When both vehicles are running, let them idle for a few
minutes to charge the discharged battery.
*
[RE03900(ALL)03/95]
Removing jumper cables
*
[RE04000(ALL)03/95]1.
Always remove the jumper cables in the reverse order.
Remove the negative (±) end of the jumper cable from the
metallic surface on the engine or frame of the disabled
vehicle.
*
[RE04100(ALL)05/95]2.
Remove the negative (±) cable from the booster battery.
*
[RE04200(ALL)03/95]3.
Remove the positive (+) cable from the booster battery.
*
[RE04300(ALL)05/95]4.
Remove the other end of the positive (+) cable from the
discharged battery.
*
[RE04400(ALL)04/95]
After the vehicle is started, let it idle for a while to let the
engine ªrelearnº its idle conditions. Drive it around for a while
with all electrical accessories turned off to let the battery
recharge.You may need to use a battery charger to fully
recharge the battery.
*
[RE04450(ALL)03/95]
If you need to replace your battery, seeBatteryin theServicing
Your Vehiclechapter.
File:cdreo.ex
Update:Thu Jan 25 12:24:30 1996

168
*
[RE04500(ALL)03/95]
Changing a Tire
*
[RE04600(ALL)01/95]
If you get a flat tire while you are driving, do not apply the
brake heavily. Instead, gradually decrease the speed. Hold the
steering wheel firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off the ignition, set
the parking brake, and turn on the hazard flashers.
*
[RE04700(ALL)03/95]
The Temporary Spare Tire
*
[RE04800(ALL)03/95]
You may have a high pressure temporary spare tire. This spare
tire is smaller than a regular tire and is designed for emergency
use only. Use it only when you get a flat tire and replace it as
soon as you can. This spare tire is marked with the words
ªTEMPORARY USE ONLYº so that you can easily identify it.
*
[RE04900(ALL)01/93]
RWARNING
If you use the temporary spare tire continuously or do
not follow these precautions, the tire could fail, causing
you to lose control of the vehicle, possibly injuring
yourself or others.
*
[RE05000(ALL)01/95]
When you drive with the temporary spare tire, DO NOT:
*
[RE05100(ALL)01/95]
n
exceed 50 mph (80 km/h) under any circumstances.
*
[RE05200(ALL)01/95]
n
load your vehicle so that it is heavier than the maximum
vehicle load rating listed on the tire decal.
*
[RE05300(ALL)01/95]
n
tow a trailer.
*
[RE05400(ALL)01/95]
n
use tire chains on this tire.
*
[RE05500(ALL)01/95]
n
try to repair the temporary spare tire or remove it from its
wheel.
*
[RE05600(ALL)01/95]
n
use the wheel for any other type of vehicle.
File:cdreo.ex
Update:Thu Jan 25 12:24:30 1996

Roadside Emergencies
169
*
[RE05700(ALL)01/95]
n
drive through an automatic car wash with this tire. Because
the temporary spare tire is smaller than a conventional tire,
it reduces the ground clearance. Your vehicle may get caught
in the rails and it could be damaged.
*
[RE06000(ALL)03/95]
Spare Tire Location
*
[RE06120(ALL)01/95]
The spare tire is stored under the carpet on the floor of the
trunk.
[RE06150(ALL)04/94]
You will find additional instructions for the spare tire on the
wheel decal (located on the temporary spare wheel).
[RE06550(ALL)02/94]
17-1/2 pica
art:0000531-B

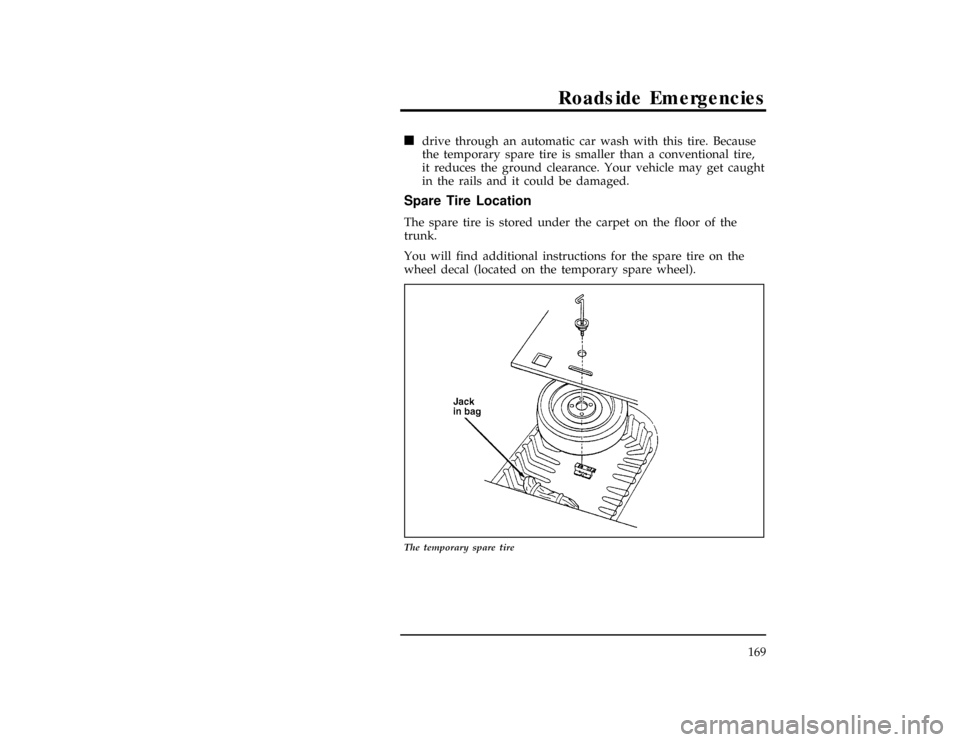

The temporary spare tire
File:cdreo.ex
Update:Thu Jan 25 12:24:30 1996

170
*
[RE07400(ALL)03/95]
Preparing to Change the Tire
[RE07650(ALL)05/94]1.
Make sure that your vehicle will not move or roll. If you
have an automatic transaxle, put the gearshift in P (Park). If
you have a manual transaxle, put the gearshift in 1 (First).
Set the parking brake and block the wheel that is diagonally
opposite the tire that you are changing.
[RE08500(ALL)05/95]
When one of the front wheels is off the ground, the transaxle
alone will not prevent the vehicle from moving or slipping off
the jack, even if the vehicle is in P (automatic) or 1 (manual). To
prevent the vehicle from moving when you change one of the
front tires, put a block behind the wheel that is diagonally
opposite to the tire.
*
[RE08600(ALL)05/95]
RWARNING
If the vehicle slips off the jack, you or someone else
could be seriously injured.
*
[RE08800(ALL)05/95]2.
Get out the spare tire and jack.
*
[RE08825(ALL)05/95]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
[RE08850(ALL)01/95]3.
Remove the wheel cover from the wheel with the tapered
end of the wheel lug wrench. Insert and twist the handle,
then pry against the inner wheel cover flange. For
information about removing optional wheel center ornaments
seeStyled Polycast Wheel Ornamentslater in this section.
[RE09200(ALL)01/95]4.
Loosen the wheel lug nuts by pulling up on the handle of
the wrench one-half turn counterclockwise. Do not remove
the wheel lug nuts until you raise the tire off the ground.
For information about removing anti-theft lug nuts, see
Anti-Theft Wheel Lug Nutslater in this section.
