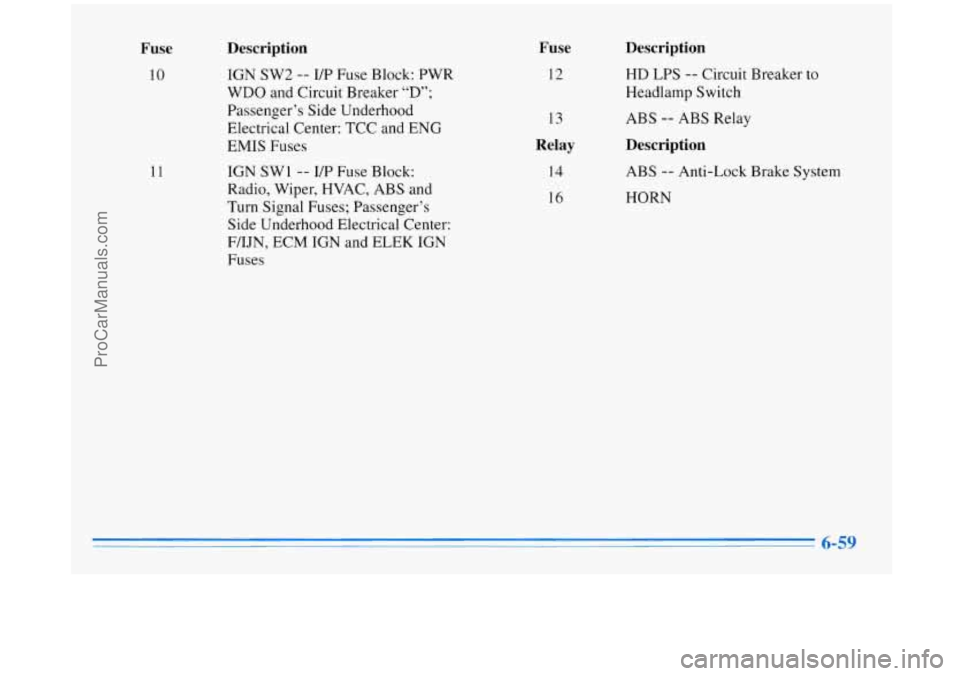

Fuse
10
11
Description
IGN SW2 -- I/P Fuse Block: PWR
WDO and Circuit Breaker
“D”;
Passenger’s Side Underhood
Electrical Center: TCC and ENG
EMIS Fuses
IGN SW1
-- I/P Fuse Block:
Radio, Wiper, HVAC, ABS and
Turn Signal Fuses; Passenger’s
Side Underhood Electrical Center:
F/IJN,
ECM IGN and ELEK IGN
Fuses
Fuse
12
13
Relay
14
16
Description
HD LPS -- Circuit Breaker to
Headlamp Switch
ABS
-- ABS Relay
Description
ABS -- Anti-Lock Brake System
HORN
6-59
ProCarManuals.com

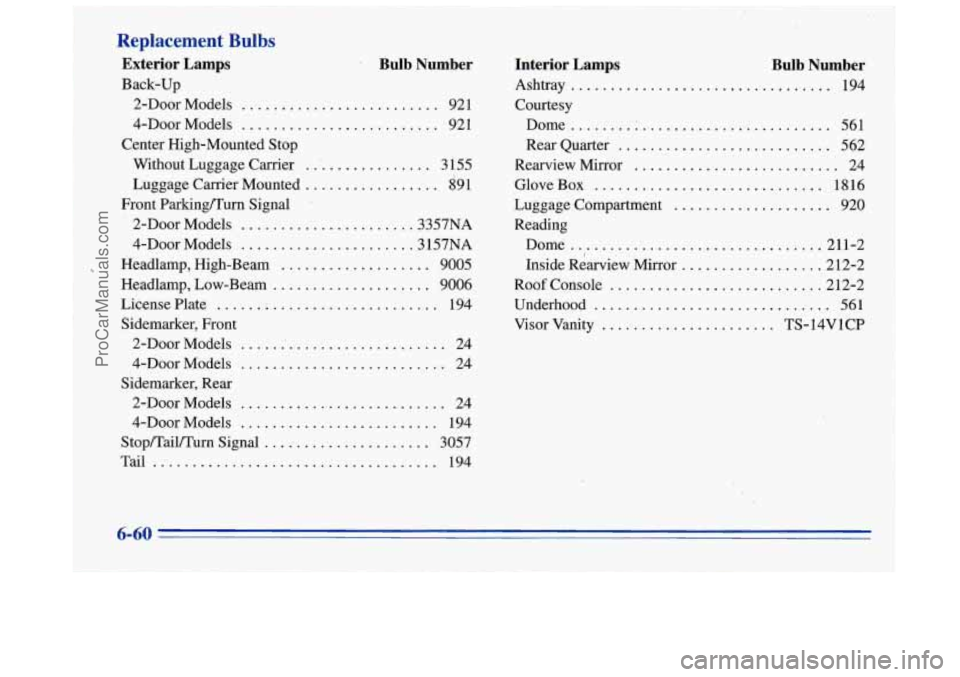

Bulb Number
Replacement Bulbs
Exterior Lamps
Back-up 2-Door Models
......................... 921
4-Door Models
.......................... 921
Center High-Mounted Stop
. Without Luggage Carrier ................. 3 155
Luggage Carrier Mounted
................. 891
Front Parkingmurn Signal
..
. 2-Door Models ...................... 3357NA
4-Door Models
...................... 3 157NA
Headlamp, High-Beam ................... 9005
Headlamp, Low-Beam
.................... 9006
License Plate
...... : ..................... 194
Sidemarker, Front 2-Door Models
........................... 24
4-Door Models
.......................... 24
2-Door Models
.......................... 24
4-Door Models
......................... 194
Tail
.................................... 194
Sidemarker.
Rear
Stop/Tail/Turn Signal
... .-. ................ 3057
Interior Lamps Bulb Number
Ashtray ................................. 194
Courtesy Dome
................................. 561
Rear Quarter
........................... 562
Rearview Mirror
.......................... 24
GloveBox
............................. 1.816
Reading Luggage Compartment
.................... 920
Dome
................................ 211-2
Inside Rearview Mirror
................... 212-2
Roof Console
........................... .21 2-2
Underhood
.............................. 561
Visor Vanity
...................... TS-14VlCP
6-60
ProCarManuals.com

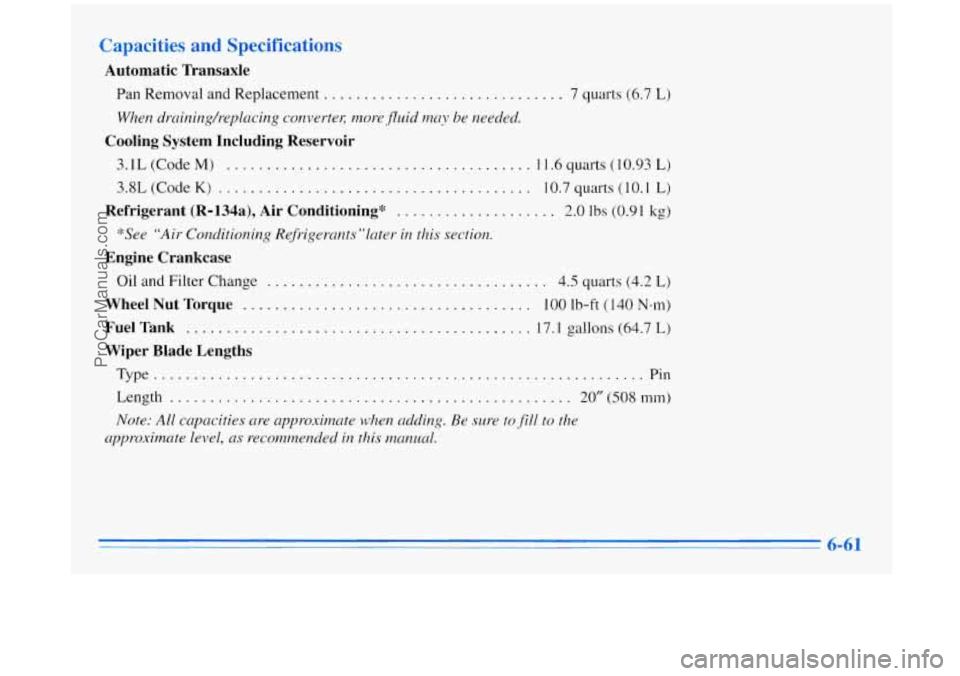

Capacities and Specifications
Automatic Transaxle
Pan Removal and Replacement .............................. 7 quarts (6.7 L)
When draiizilzg/replacil.Ig convertec more,fluid may be needed.
Cooling System Including Reservoir
3.1L(CodeM) ...................................... 11.6quarts(10.93L)
3.8L (Code
K) ....................................... 10.7 quarts (10.1 L)
Refrigerant (R-l34a), Air Conditioning* .................... 2.0 lbs (0.91 kg)
*See “Air Conditioning Refriger~-lnts”l~~tel- in th,is section.
Engine Crankcase
Oil and Filter Change ................................... 4.5 quarts (4.2 L)
Wheel Nut Torque .................................... 100 Ib-ft (140 N.m)
Fuel Tank ........................................... 17.1 gallons (64.7 L)
Wiper Blade Lengths
Type ............................................................. Pin
Length
.................................................. 20”(508mm)
Note: All capacities are approximate when adding. Be sure to Jill to the
approximate level, as recommended in this manual.
6-61
ProCarManuals.com

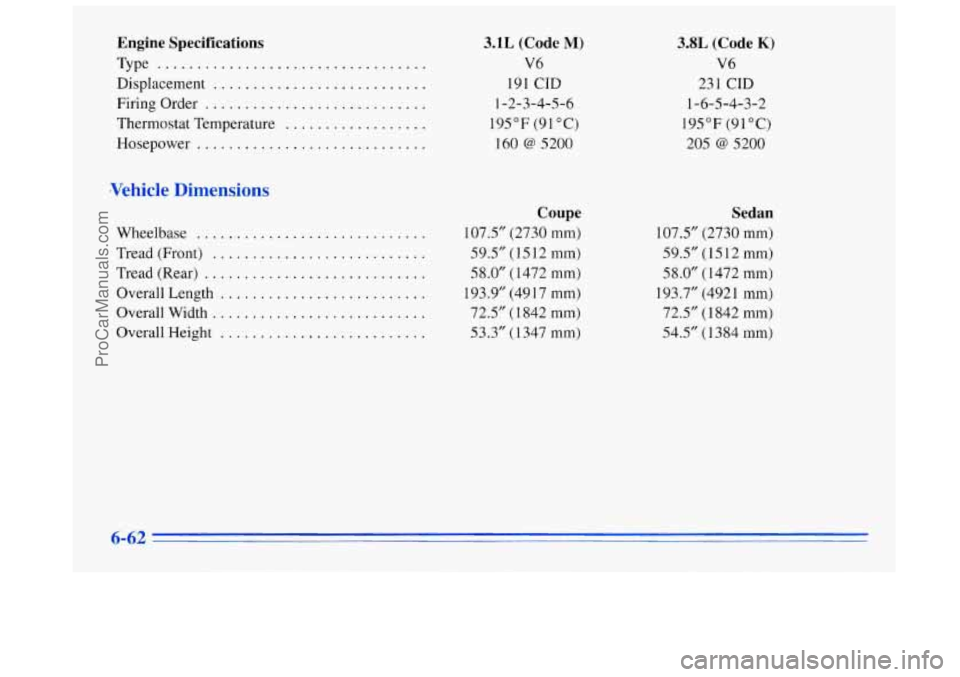

Engine Specifications
Type ..................................
Displacement ...........................
Thermostat Temperature ..................
Firing Order ............................
Hosepower .............................
-Vehicle Dimensions
Wheelbase .............................
Tread (Front) ...........................
Tread (Rear) ............................
Overall Length ..........................
Overall Width ...........................
Overall Height ..........................
3.1L (Code M)
V6
191 CID
1-2-3-4-5-6
195°F (91°C) 160
0 5200
Coupe
107.5” (2730 mm)
59.5”
(1 5 12 mm)
58.0” (1472
mm)
193.9” (49 17 mm)
72.5” (1 842 mm)
53.3” (1 347 mm)
3.8L (Code K)
V6
231
CID
1-6-5-4-3-2
195°F (91°C)
205 0 5200
Sedan
107.5” (2730 mm)
59.5” (15 12 mm)
58.0” (1472 mm)
193.7” (492
1 mm)
72.5”
(1 842 mm)
54.5”
(1 384 mm)
6-62
ProCarManuals.com

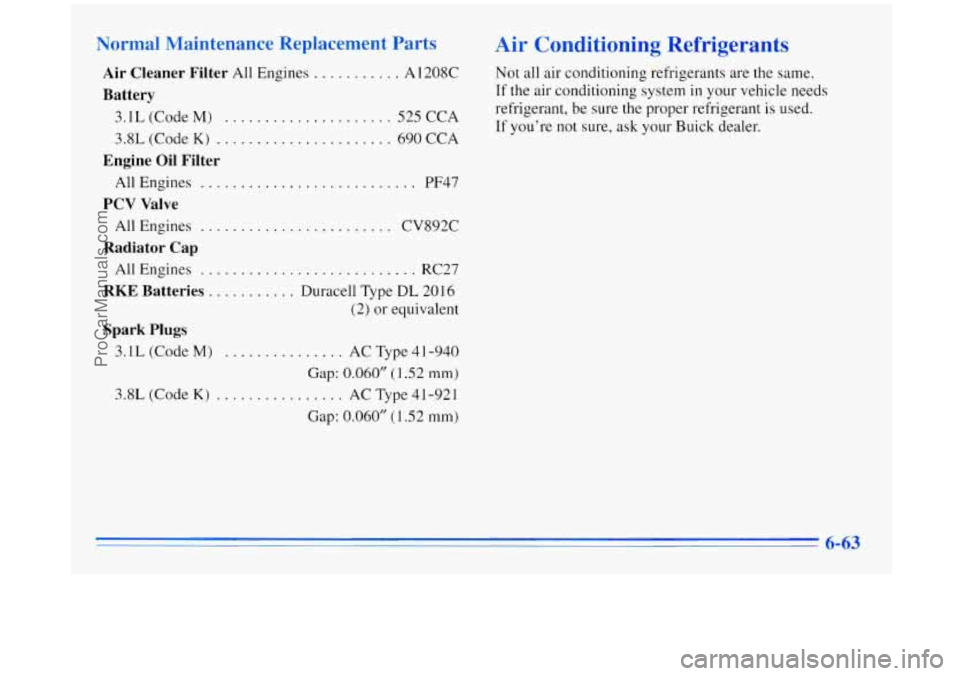

Normal Maintenance Replacement Parts
Air Cleaner Filter All Engines ........... A 1208C
Battery
3.1L (Code M) ..................... 525 CCA
3.8L (Code
K) ...................... 690 CCA
Engine Oil Filter
PCV Valve
All Engines ........................... PF47
All Engines
........................ CV892C
Radiator Cap
All Engines ........................... RC27
RKE Batteries ........... Duracell Type DL 2016
(2) or equivalent
Spark Plugs
3.1L (Code M) ............... AC Type 41 -940
Gap: 0.060” (1.52 mm)
3.8L (Code K) ................ AC Type 41-921
Gap:
0.060” (1.52 mm)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask your Buick dealer.
6-63
ProCarManuals.com

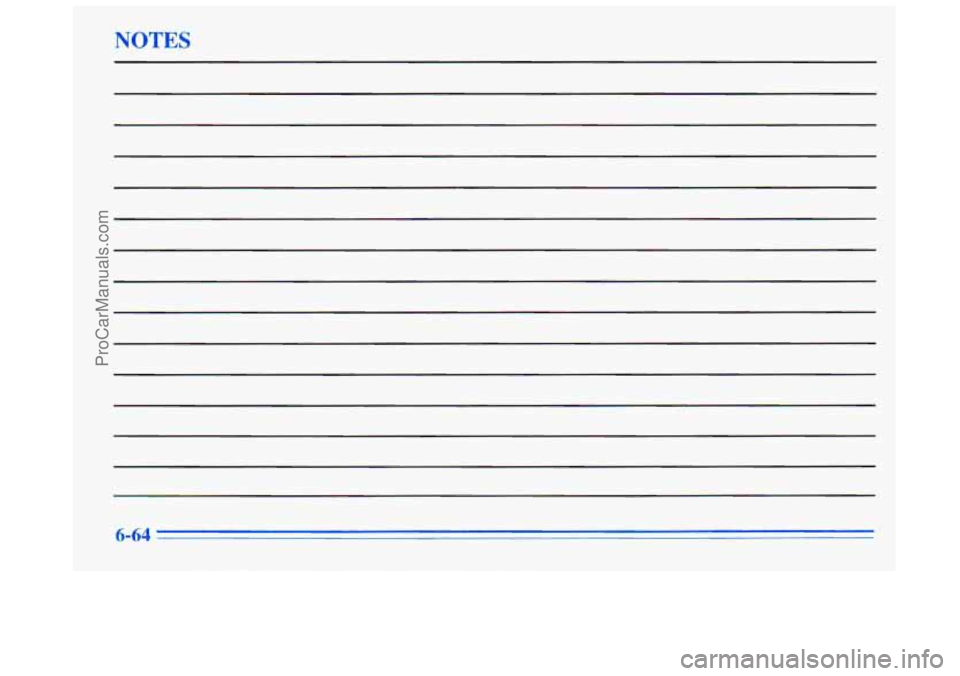

NOTES
6-64
ProCarManuals.com

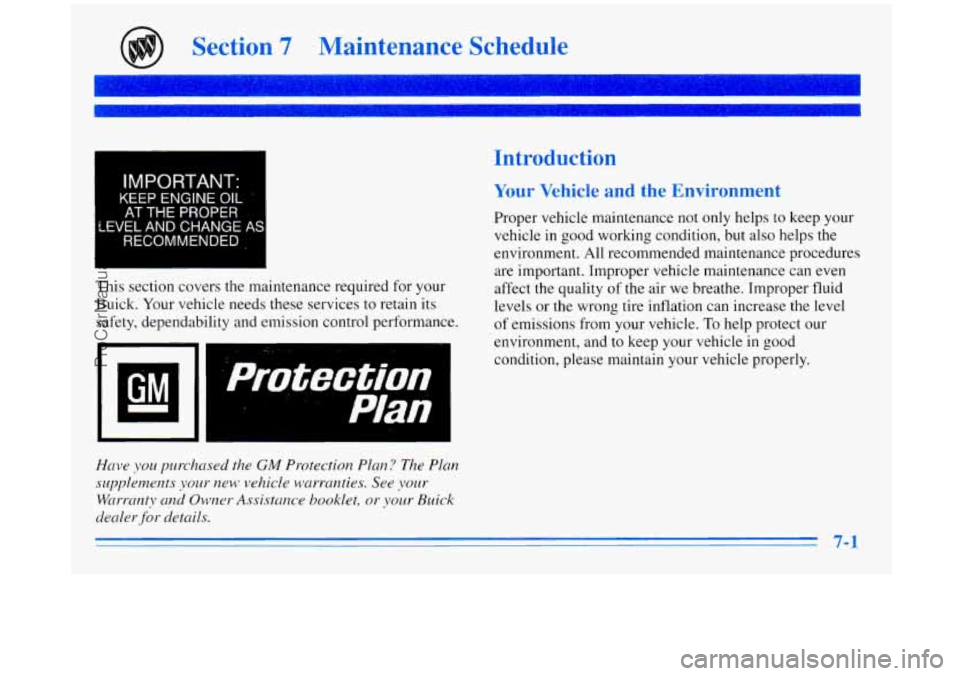

Section 7 Maintenance Schedule
I IMPORTANT:
KEEP ENGINE OIL
I ’ 1
.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment.
All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality
of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in
good
condition, please maintain your vehicle properly.
I
This section covers the maintenance required for your
Buick. Your vehicle needs these services to retain its
safety, dependability and emission control performance.
F
I I
Have you purchased the GM Protection Plan? The Plan
supplements
your IWPV vehicle warrunties. See your
Warranty and Owner Assistance booklet, or your Buick
dealer
for details.
7-1
ProCarManuals.com

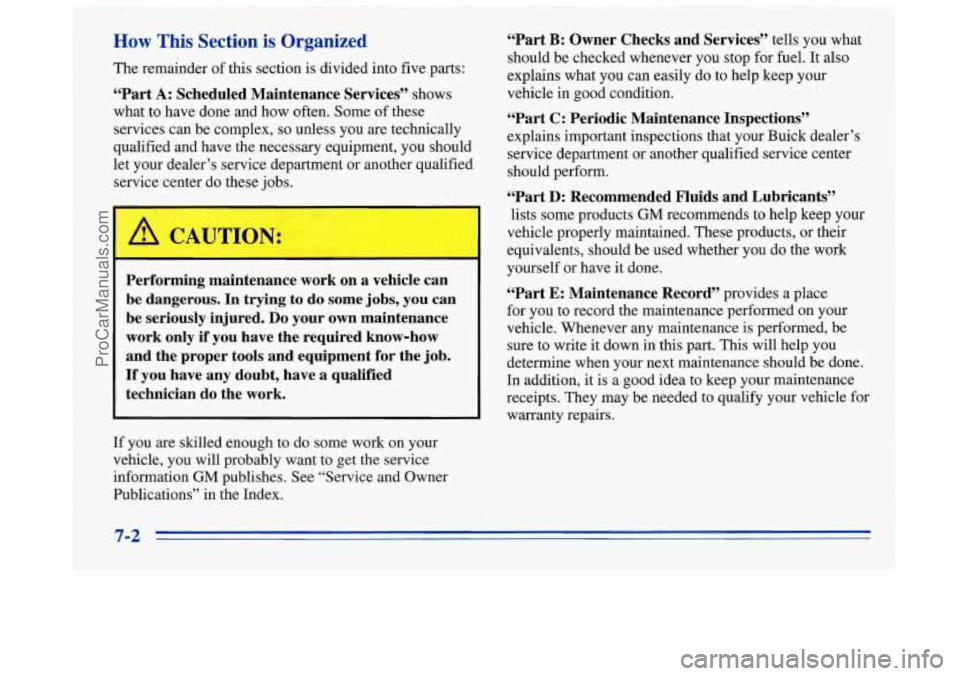

How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what to have done and how often. Some of these
services can be complex,
so unless you are technically
qualified and have the necessary equipment, you should
let your dealer’s service department
or another qualified
service center do these jobs.
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs,
you can
be seriously injured.
Do your own maintenance
work only
if you have the required know-how
and the proper tools and equipment for the job.
If you have any doubt, have a qualified
technician do the work. “Part
B: Owner Checks and
Services’’ tells you what
should be checked whenever you stop for fuel.
It also
explains what you can easily do to help keep your
vehicle in good condition.
“Part
C: Periodic Maintenance Inspections”
explains important inspections that your Buick dealer’s service department or another qualified service center
should perform.
“Part
D: Recommended Fluids and Lubricants”
lists some products
GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have it done.
“Part
E: Maintenance Record’’ provides a place
for you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write it down in this part. This will help you
determine when your next maintenance should be done.
In addition, it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for
warranty repairs.
If you are skilled enough to do some work on your
vehicle, you will probably want to get the service
information
GM publishes. See “Service and Owner
Publications” in the Index.
7-2
