1996 BUICK REGAL Owners Manual

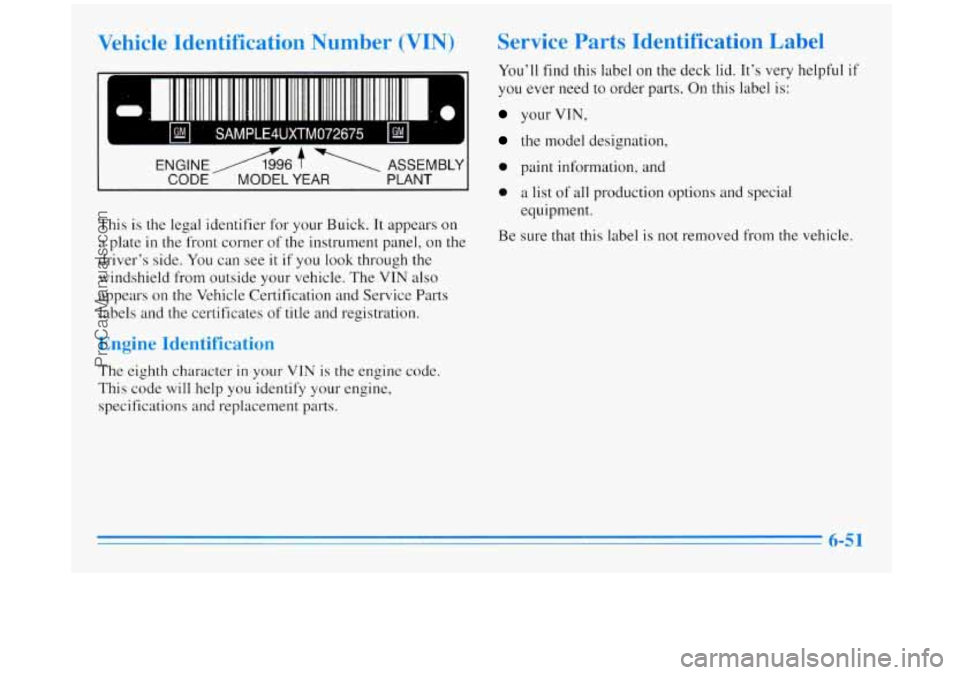

Vehicle Identification Number (VIN)
0- I
I I SAMPLE4UXTM072675 I Ud I
I,. .
ENGINE A6 $. ASSEMBLY
This is the legal identifier for your Buick. It appears on
a plate in the front corner of the instrument panel, on the
driver‘s side. You can see
it if you look through the
windshield from outside your vehicle. The VIN also
appears
on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code
will help you identify your engine,
specifications and replacement parts.
Service Parts Identification Label
You’ll find this label on the deck lid. It’s very helpful if
you ever need to order parts. On this label is:
your VIN,
the model designation,
0 paint information, and
0 a list of all production options and special
equipment.
Be sure that this label is not removed from the vehicle.
6-51
ProCarManuals.com

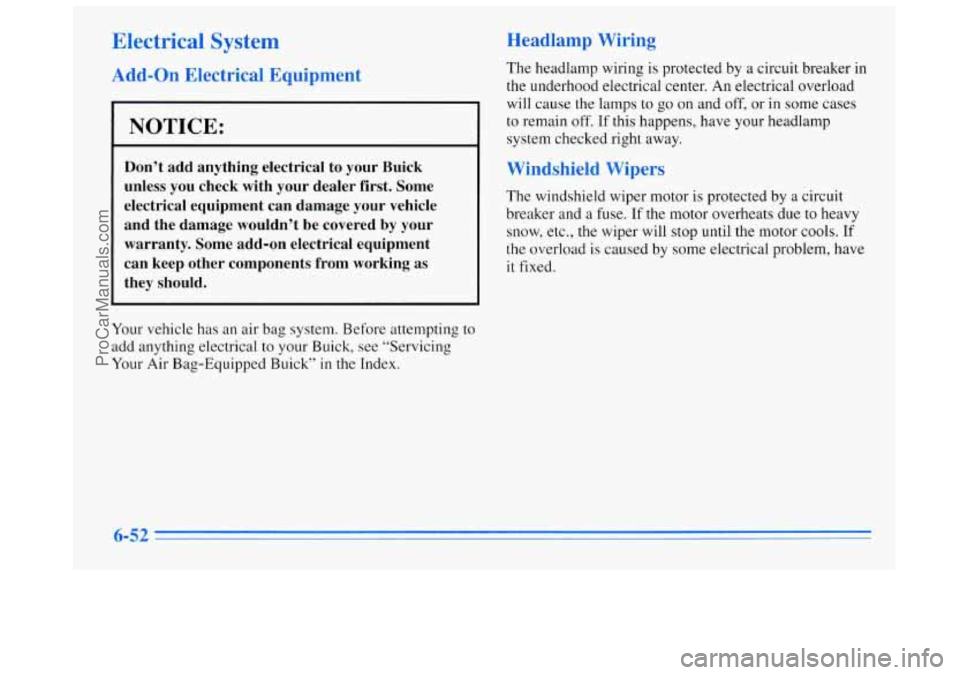

Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Buick
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center. An electrical overload
will cause the lamps to go on and off, or
in some cases
to remain off. If this happens, have your headlamp
system checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and
a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem, have
it fixed.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Buick, see “Servicing
Your Air Bag-Equipped Buick”
in the Index.
6-52
ProCarManuals.com

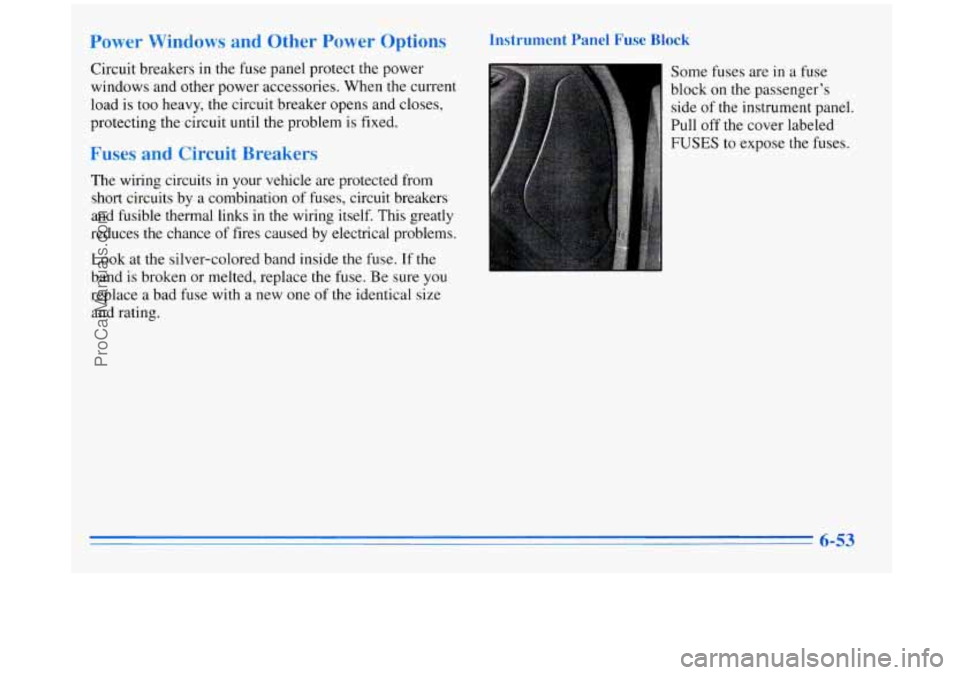

Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting
the circuit until the problem is fixed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links in the wiring itself. This greatly
reduces the chance of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
you
replace a bad fuse with a new one of the identical size
and rating.
Instrument Panel Fuse Block
Some fuses are in a fuse
block on the passenger’s
side
of the instrument panel.
Pull
off the cover labeled
FUSES to expose the fuses.
6-53
ProCarManuals.com

Circuit
Breaker
C
D
Description
Power Windows
Power Seats
Fuse
1
3
4
5
6
7
10
11
12
13
14
Description
CIGAR LIGHTER -- Instrument
Panel Cigarette Lighter
DRL MDL
HVAC
#2 -- HVAC Control
Assembly, Solenoid Box
HAZARD FLASHER
POWER ACCESSORY
#2 -- Sunroof Control Unit
LOCK CONTROL
-- Door
Lock Relay
I/P ELECTRONICS BATTERY
FEED
-- Chime Module,
Electronic Brake Control Module
(EBCM), Theft-Deterrent Module,
Radio, Radio Amplifier, Trip
Computer
STARTER RELAY
ANTI-THEFT
-- Theft-Deterrent
Module
ABS
-- Electronic Brake Control
Module (EBCM), ABS Relay
HVAC
BLOWER
MOTOR -- Blower Motor Relay
ProCarManuals.com

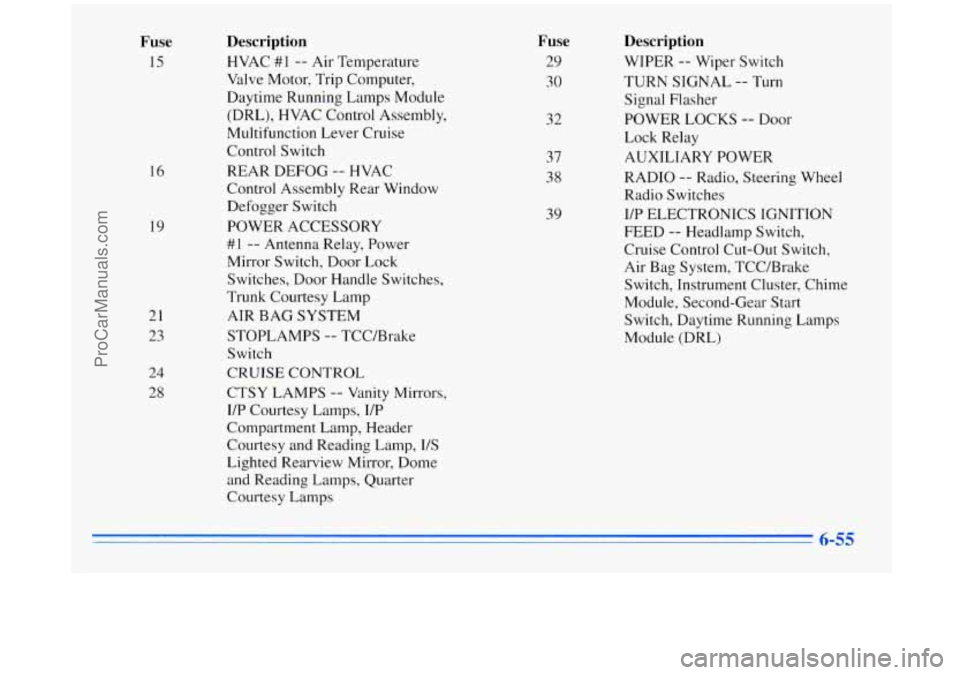

Fuse
15
16
19
21
23
24
28
Description
HVAC #1 -- Air Temperature
Valve Motor: Trip Computer,
Daytime Running Lamps Module
(DRL), HVAC Control Assembly,
Multifunction Lever Cruise
Control Switch
Control Assembly Rear Window
Defogger Switch
POWER ACCESSORY
#1 -- Antenna Relay, Power
Mirror Switch, Door Lock
Switches,
Door Handle Switches,
Trunk Courtesy Lamp
AIR BAG SYSTEM
STOPLAMPS
-- TCC/Brake
Switch
CRUISE CONTROL
CTSY LAMPS -- Vanity Mirrors,
T/P Courtesy Lamps, I/P
Compartment Lamp, Header
Courtesy and Reading Lamp,
I/S
Lighted Rearview Mirror, Dome
and Reading Lamps, Quarter
Courtesy Lamps
REAR
DEFOG
-- HVAC
Fuse
29
30
32
37
38
39
Description
WIPER -- Wiper Switch
TURN SIGNAL
-- Turn
Signal Flasher
POWER LOCKS
-- Door
Lock Relay
AUXILIARY POWER
RADIO
-- Radio, Steering Wheel
Radio Switches
I/P ELECTRONICS IGNITION
FEED
-- Headlamp Switch,
Cruise Control Cut-Out Switch,
Air Bag System, TCC/Brake
Switch, Instrument Cluster, Chime
Module, Second-Gear Start
Switch, Daytime Running Lamps
Module (DRL)
6-55
ProCarManuals.com

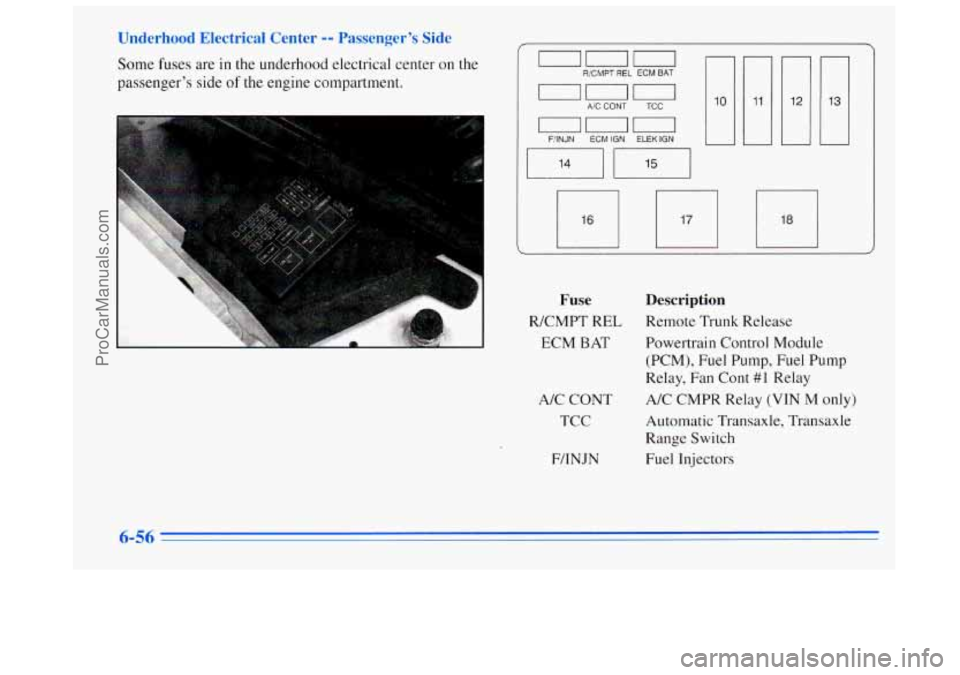

Underhood Electrical Center -- Passenger's Side
Some fuses are in the underhood electrical center on the
passenger's side
of the engine compartment.
ODD RICMPT REL ECM BAT
~~~ A!C CONT TCC
~~~ FllNJN ECM IGN ELEK IGN
--
I l4 II I -1 J
Fuse Description
R/CMPT REL Remote Trunk Release
ECM BAT Powertrain Control Module
(PCM),
Fuel Pump, Fuel Pump
Relay, Fan Cont
#1 Relay
A/C CONT
TCC
F/IN J N
A/C CMPR Relay (VIN M only)
Automatic Transaxle, Transaxle
Range
Switch
Fuel Injectors
6-56
ProCarManuals.com

Fuse
ECM IGN
ELEK IGN
10
11
12
13
Description
Powertrain Control Module
(PCM), EGR, CCP, VAPSW,
Mass Air Flow (MAF) Sensor
(VIN
X only), Oxygen Sensor,
Vac Canister Switch, Fan
#2 Relay
Electronic Ignition (EI)
Control Module
I/P
Fuse Block
FAN CONT
#I Relay
Passenger’s Side Underhood
Electrical Center and
I/P Fuse
Blocks: Fuses
5, 14,23 and 32
FAN CONT
#2 Relay and UP Fuse
Block:
Fuse 16, Power Seat
Circuit Breaker
“D”
Relay
14
15
16
17
18
Description
FUEL PUMP
A/C CMPR
FAN CONT #2
-- Secondary
Cooling Fan (Passenger Side)
FAN CONT
#I -- Primary
Cooling Fan (Driver Side)
Ignition Relay
6-57
ProCarManuals.com

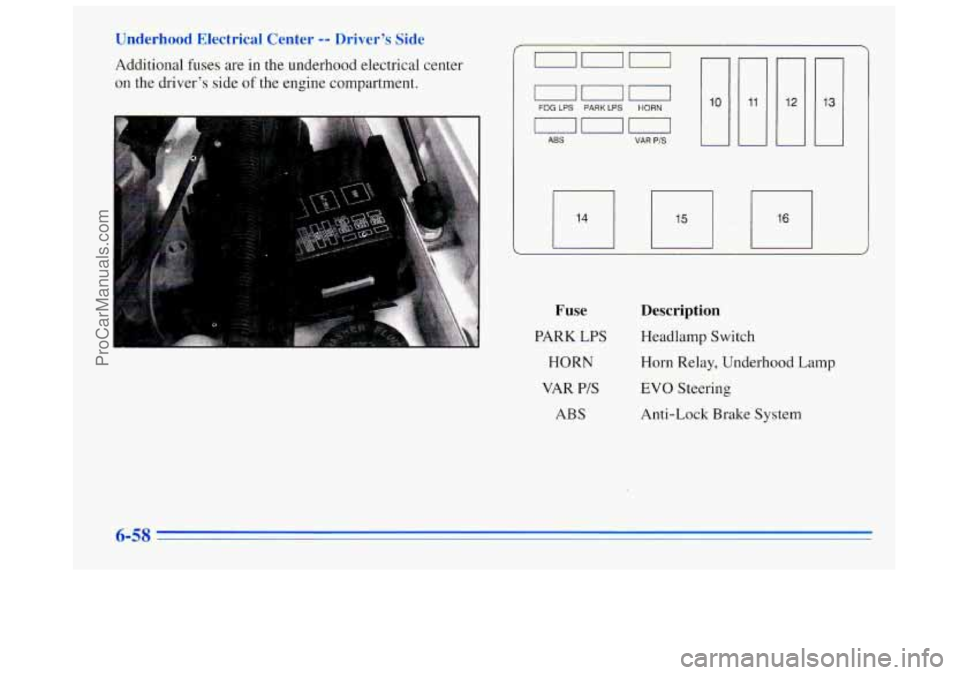

Und ’ hood Elect
Additional fuses are in the underhood electrical center
on the driver’s side
of the engine compartment.
DDD FOG LPS PARKLPS HORN
Fuse
PARK LPS
HORN
VAR P/S
ABS
Description
Headlamp Switch
Horn Relay, Underhood Lamp
EVO Steering
Anti-Lock Brake System
6-58
